I
NSTALLATION INSTRUCTIONS AND USER GUIDE
TBC
TOWEL RAIL
TBC 8
TBC 12
Please read these instructions carefully before installing or using this appliance for the first
Page 2
EN
1. IMPORTANT INFORMATION
• The warranty of the towel rail will not cover any
damage caused by the non observance of any of these
instructions.
• This guide must be kept and given to any new user.
• Please, check that the voltage in the rating label fits the
power supply.
• The installation must be carried out in accordance with
the current electrical regulations.
• The installation of the towel rail should be carried out
by trained personnel.
• The use of electric towel rails is forbidden in any area
where there is a presence of gases, explosives or
inflammable objects.
• The towel rail should not be installed exactly under an
electric outlet.
• The appliance must be installed in such a way that it is
impossible for anyone using a bath or shower, to touch the
controls.
• The surfaces of the towel rail can be hot and caution is
advised when small children are near the appliance.
• Warning: In order to avoid a hazard for very young
children, this appliance should be installed so that the
lowest heated rail is at least 600mm above the ground.
• If the supply lead of the towel rail is damaged it must
be replaced by service personnel authorized by the
manufacturer, since special tools are needed.
• This appliance must be earthed.
• Before carrying out any work inside the appliance, the
towel rail must be disconnected from the electricity
supply.
• All the models incorporate a safety device. This will
disconnect the towel rail if for some reason it fails. If the
safety device activates the towel rail will need to be
repaired by service personnel authorized by the
manufacturer.
• The presence of air particles of smoke, dust and other
pollutants could, in time, discolour the walls and surfaces
around the towel rail.
2.- INSTRUCTIONS OF INSTALLATION
The towel rail is designed to only work in a vertical position
and fixed to the wall, never to the ceiling.
A clear distance of 5 cm must be allowed around the towel
rail.

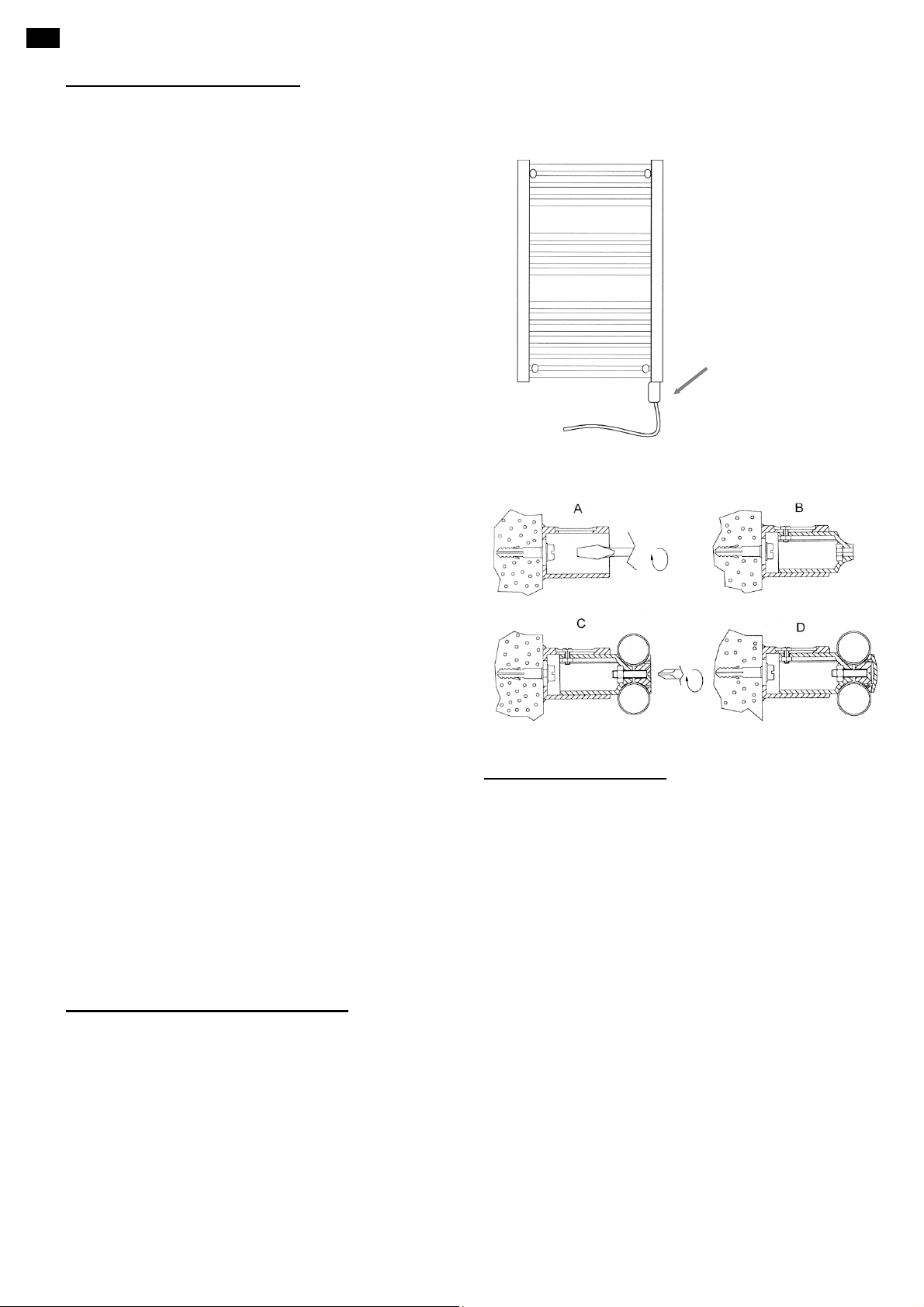

The fixation to the wall is carried out by means of the four
supports given with the appliance, according to the
following outline.
Cable exit always on the
lower right side.
The towel rail supports should be placed in sequence as
indicated below.
3. APPLICATION OF USE
The bathroom towel rail has two very useful functions: can
be used as heating for bathrooms and can be used to dry
towels and clothes.
The towel rail incorporates an electronic thermostat that
controls the temperature of the room. An indicator is
illuminated when the apparatus is consuming energy.
A small control allows you to adjust the temperature. By
rotating the control of the thermostat to the maximum the
towel rail will heat more quickly, when the required
temperature is reached slowly rotate counter clockwise
until the luminous indicator goes out. In this position the
towel rail will maintain the selected temperature
automatically. Different surface temperatures could arise
due to the internal fluid distribution in the towel rail.
4
Page 3
EN
4. MAINTENANCE
The towel rail doesn't require any type of special
maintenance. Clean with a cloth, only when the unit is
disconnected and cold. Do not use solvents or abrasive
products when cleaning.
The towel rail is filled with a precise quantity of special
fluid. Any repairs that may require the opening of the
towel rail must only be carried out by the manufacturer.

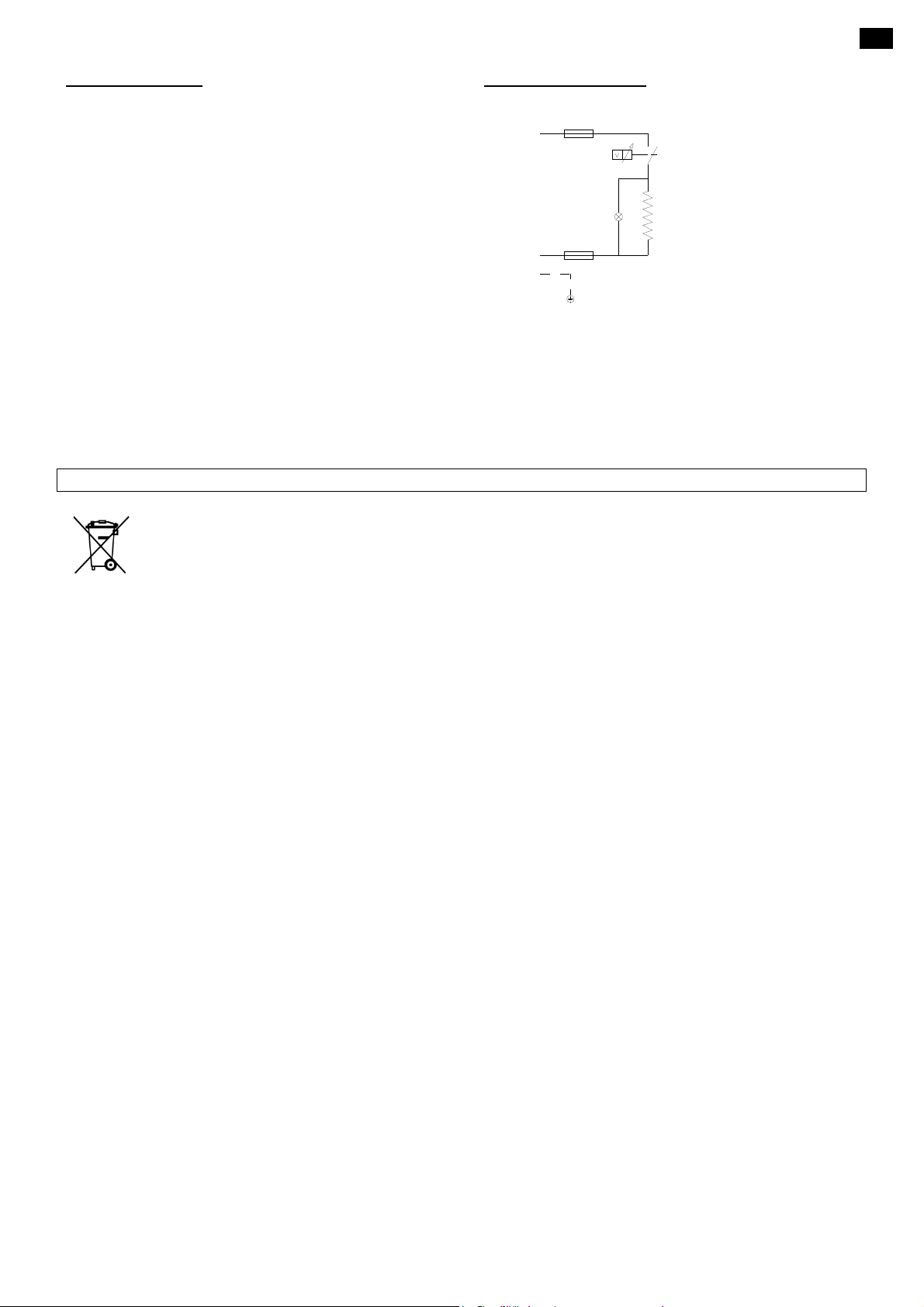

5. WIRING DIAGRAM
F1
L
Ta
230 V− 50 Hz
IR
F2
N
Voltage: 220 – 240 V~
IP 65
F1: fuse 1
F2: fuse 2
Ta: electronic thermostat
I: Luminous indicator
R: Heating element
Models:
TBC8 (300 W - Crome)
The towel rail has been manufactured to assured quality
and according to processes to protect the environment.
TBC12 (500 W - Crome)
Once at the end of the useful life of the appliance, take it
to a clean point so that it’s materials can be recycled
appropriately.
EN
The symbol on the product or in its packaging indicates that this product may not be treated as household
waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of this product, please contact your local city office,
your household waste disposal service or the shop where you purchased the product. These instructions are only valid in the
EU member states.
5
Page 4
ELNUR UK LTD
