Elnur TBB-8K, TBB-12K, TBC-8K, TBC-12K Installation Instructions

Installation Instructions

TBB-K
Towel Rails

TBB-8K | TBB-12K | TBC-8K | TBC-12K

Please read these instructions carefully before
installing or using this appliance for the first time.

1. WARNING

• The warranty of the towel rail will not cover any
damage caused by the non observance of any of
these instructions. Please read these instructions
before installing or using this appliance for the first
time. This guide must be kept and given to any
new user.

• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards
involved. Children must not play with the appliance.
Cleaning and user maintenance must not be made
by children without supervision.

• Children aged from 3 years and less than 8 years
shall only switch on/off the appliance provided
that it has been placed or installed in its intended
normal operating position and they have been
given supervision or instruction concerning use

of the appliance in a safe way and understand the
hazards involved. Children aged from 3 years and
less than 8 years shall not plug in, regulate and clean
the appliance or perform user maintenance.

• Children of less than 3 years should be kept away
unless continuously supervised.

• Please, check that the voltage in the rating label fits
the power supply.

• The surfaces of the towel rail can be hot and caution
is advised when small children are near the
appliance. WARNING: In order to avoid a hazard for
very young children, this appliance should be
installed so that the lowest heated rail is at least
600 mm above the ground.

• Before carrying out any work inside the appliance,
the towel rail must be disconnected from the
electricity supply.

• The use of electric towel rails is forbidden in any
area where there is a presence of gases, explosives
or inflammable objects.

• The towel rail should not be installed exactly under
an electric outlet.

• The appliance must be installed in such a way that
it is impossible for anyone using a bath or shower,
to touch the controls.

• The towel rail is fitted with a flexible cable size
3 x 1.00 mm² for electrical connection. It may be used
to connect the heater to the fixed wiring of the
premised through a suitable connection box
positioned adjacent to the heater.

• The supply circuit to the towel rail must incorporate
a double pole isolating switch having a contact
separation of at least 3 mm.

• The installation must be carried out in accordance
with the current electrical regulations. Should the
towel rail be moved and reinstalled it is essential that
the work is carried out by a fully qualified technician.

• The supply lead must not contact the surface of the
towel rail.

• If the supply lead of the towel rail is damaged it must
be replaced by service personnel authorized by the
manufacturer, since special tools are needed.

• This towel rail is filled with a precise quantity of
thermal fluid. Repairs requiring opening of the fluid
container are only to be made by the manufacturer
or his service agent who should be contacted if there
is a fluid leakage.

• Regulations concerning the disposal of fluid when
scrapping the appliance have to be followed.

• The presence of air particles of smoke, dust and
other pollutants could, in time, discolour the walls
and surfaces around the towel rail.

• All the models incorporate a safety device. This will
disconnect the towel rail if for some reason it fails.
If the safety device activates the towel rail will need
to be repaired by service personnel authorized by
the manufacturer.

2. INSTRUCTIONS
FOR INSTALLATION

The towel rail is designed to only work in a vertical
position and fixed to the wall, never to the ceiling.

The fixation to the wall is carried out by means of the
supports given with the appliance, according to the
following outline.

A clear distance of 5 cm must be allowed around
the towel rail.

Cable exit always on the lower right side.

Elnur powered by Gabarrón | ECOMBI SSH | User Guide 2

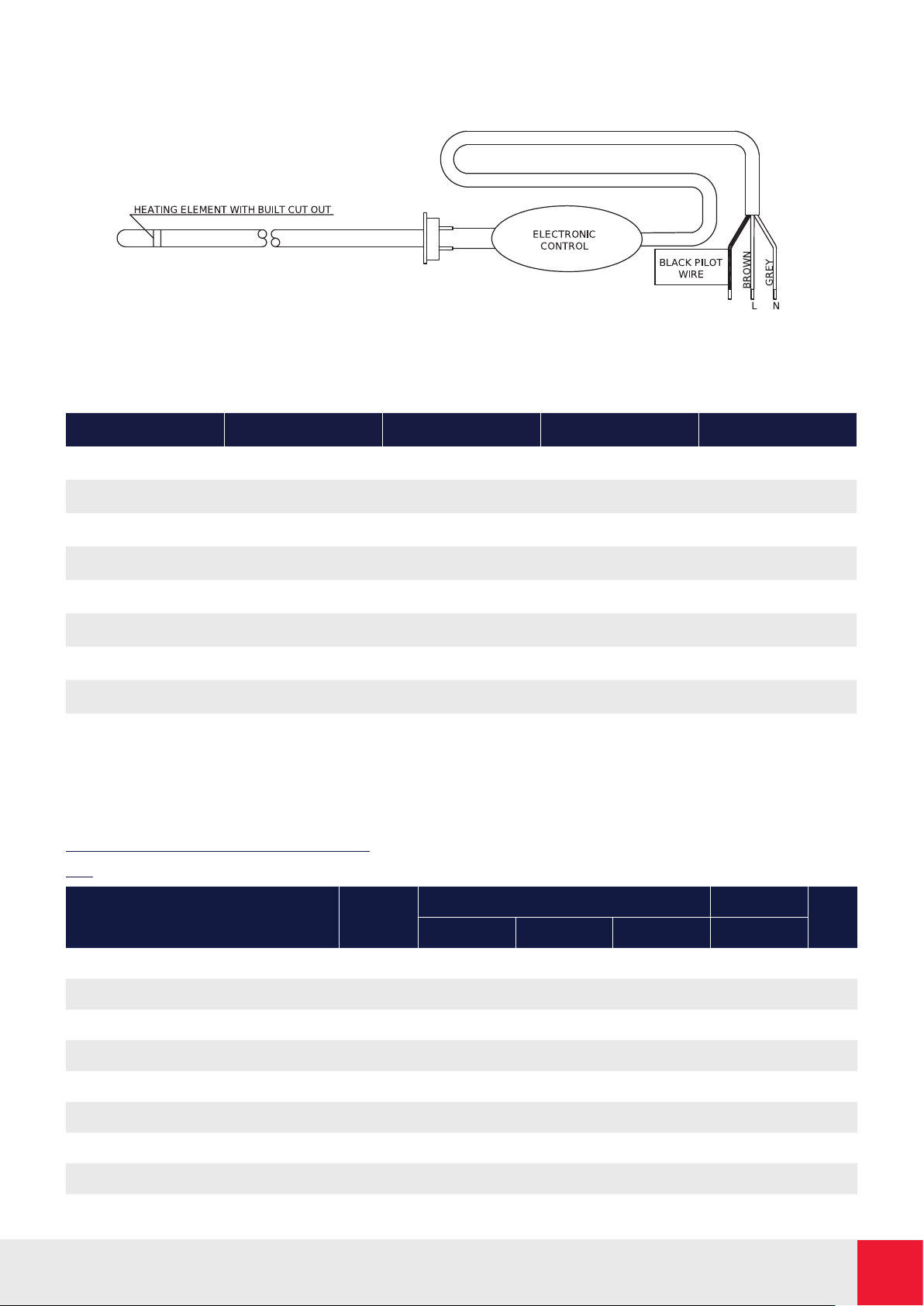

Connect the wires to a fix wall socket or to an appropriate plug WITHOUT EARTH. Connect the black wire

IR Receiver: Allows full remote control of the device trough the

Connect the wires to a fix wall socket or to an appropriate plug WITHOUT EARTH. Connect the black wire

to the signal wire when available. Do not connect this wire to any EARTH lead.

The towel rail supports should be placed in sequence as indicated below:

3.- APPLICATION OF USE

Indicator of active

Button [-]

Button [On / Off]

Button [Prog]

Button [+]

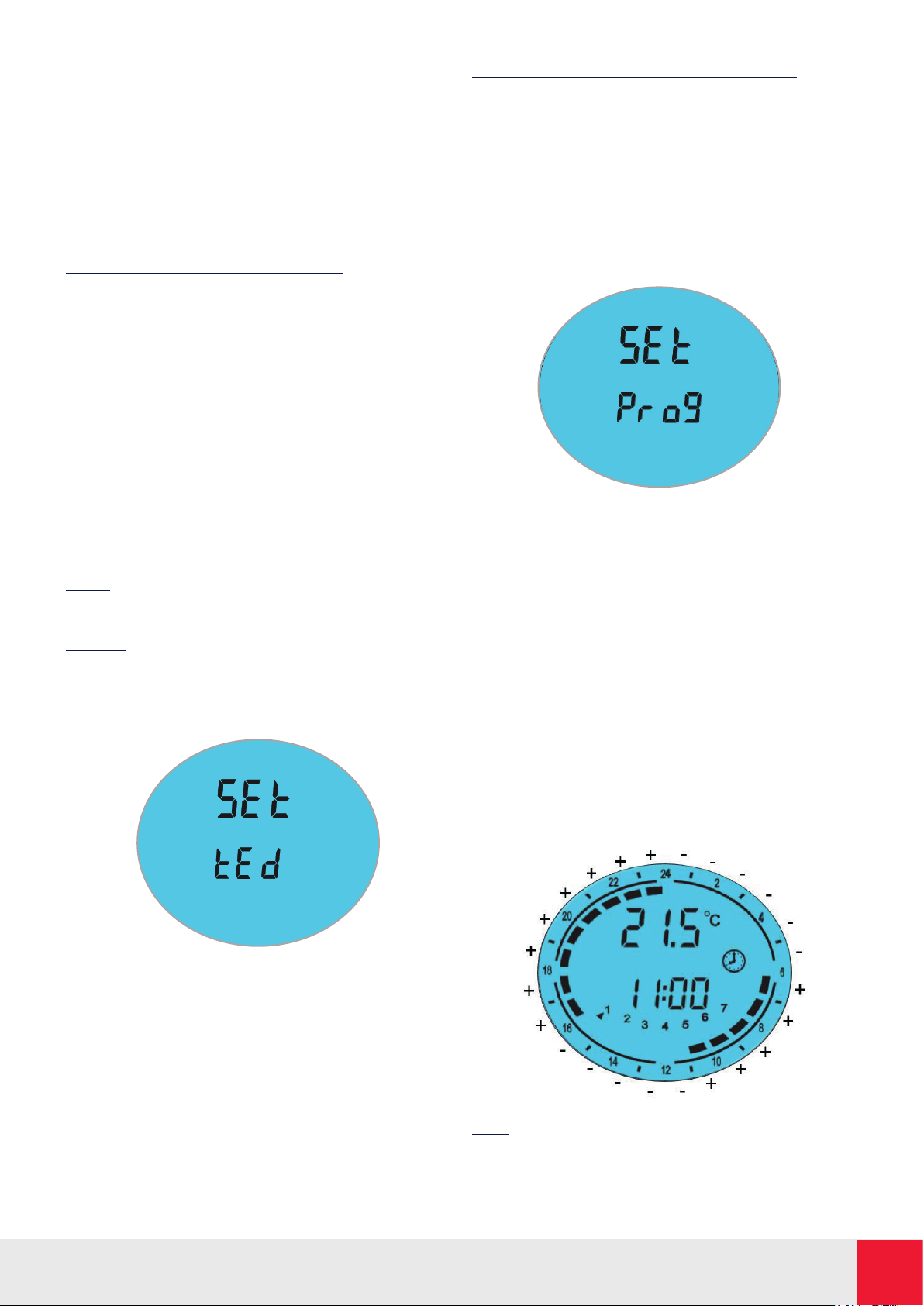

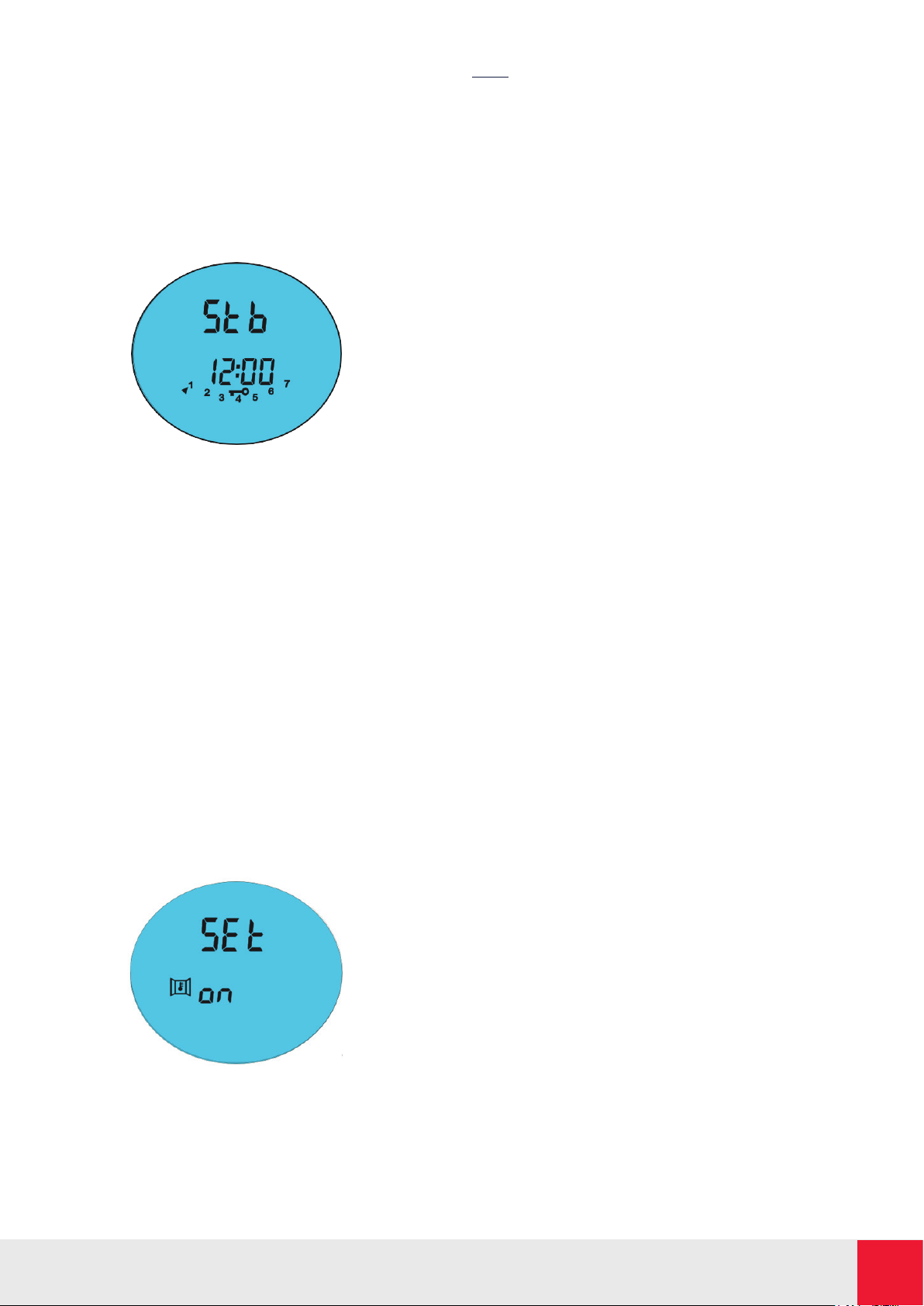

Backlit Display: Displays all device

Comfort / Eco bar

Operating

Open Window Detection

Day of the week

Key-lock icon

Clock

Configured temperature

to the signal wire when available. Do not connect this wire to any EARTH lead.

The towel rail supports should be placed in sequence as indicated below:

3. APPLICATION OF USE

heating element

(Chrono mode)

mode icons

IR Receiver: Allows full remote control of the device
through the dedicated remote control.

dedicated remote control.

related information.

24h indicator

IR receiver indicator

Elnur powered by Gabarrón | ECOMBI SSH | User Guide 3
