ElmoTech EMS2000i User Manual
ElmoTech Ltd. Version 1.0

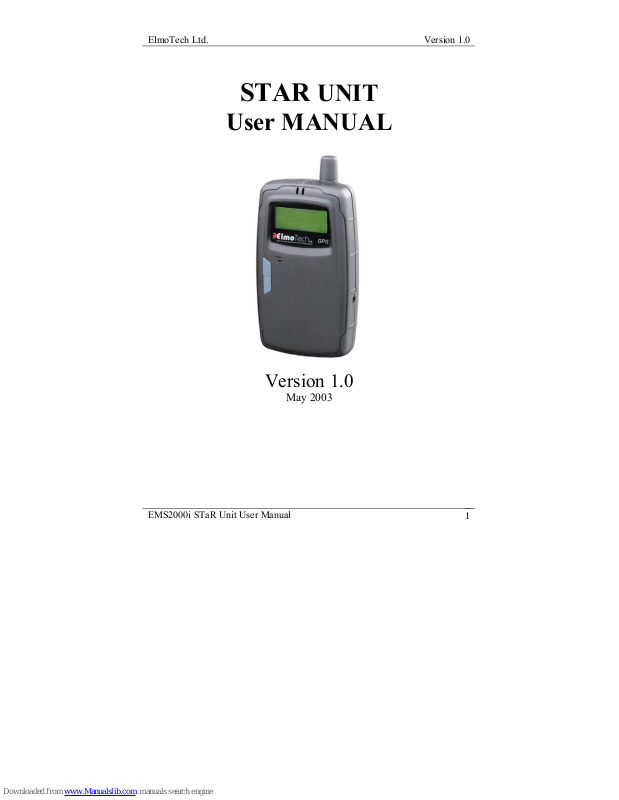

STAR UNIT
User MANUAL
Version 1.0
May 2003
EMS2000i STaR Unit User Manual
1
Version 1.0 ElmoTech Ltd.
EMS2000i STaR Unit User Manual
2
Prepared by:
Elmo-Tech Ltd.
Corporate Headquarters
2 Rehov HaBarzel
P.O. Box 13236
Ramat HaChayal
61132 Tel Aviv
Israel
Tel: +972-3 – 6478871
Fax: +972-3 – 6478872
Visit us at: www.elmotech.com
© 2001, Elmo Tech Ltd. All rights reserved.
No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, for purpose other
than the user’s manual, without prior permission of Elmo Tech Ltd.
NO WARRANTY
The technical documentation is being delivered AS-IS, and ElmoTech
Ltd. makes no warranty as to its accuracy or use. Any use of the
technical documentation or the information contained therein is at risk
of the user. Documentation may include technical or other
inaccuracies or typographical errors. ElmoTech Ltd. Reserves the
right to make change without prior notice.
ElmoTech Ltd. Version 1.0
EMS2000i STaR Unit User Manual
3
Table of Contents
Section
Page
THE MONITOR CENTER/ PROBATION AGENCY________________ 6
Equipment________________________________________________ 6
THE OFFENDER’S PREMISES _____________________________ 8
Monitoring System Location _________________________________ 8
Activating the STaR Unit ___________________________________ 9
Downloading the Curfew Schedule and Default Offender Parameters11
Installing the Transmitter __________________________________ 12
Calibrating the Transmitter ________________________________ 12
Attaching the Transmitter _________________________________ 13
STaR Unit Range Setting__________________________________ 15
General Rules for the Offender______________________________ 18
REMOVING The Monitoring System____________________________ 19
Initiating an End of Service_________________________________ 19
Deactivating the STaR Unit_________________________________ 19
Removing the Transmitter _________________________________ 20
Disconnecting the Transmitter ______________________________ 20
TRANSMITTER CLEANING INSTRUCTIONS __________________ 22
Cleaning the Transmitter:__________________________________ 22
Transmitter strap replacement _________________________________ 23
Reasons for Strap Replacement _____________________________ 23
Version 1.0 ElmoTech Ltd.
EMS2000i STaR Unit User Manual
4
Equipment Needed for Strap Replacement ____________________ 24
Replacing the Transmitter Straps ___________________________ 24
FCC Notices________________________________________________ 26
STaR Unit FCC Notices __________________________________ 26
STaR Unit Customer Information ___________________________ 27
Transmitter FCC Notices __________________________________ 27
ElmoTech Ltd. Version 1.0
EMS2000i STaR Unit User Manual
5
Table of Figures
Figure
Page
FIGURE 1 IDEAL HOME UNIT LOCATION ........................................................8
F
IGURE 2 THE STAR UNIT ........................................................................... 10
F
IGURE 3 PROTRUDING SIDE OF TRANSMITTER DIRECTED UPWARDS..........14
Version 1.0 ElmoTech Ltd.
THE MONITOR CENTER/
PROBATION AGENCY
At the Monitor Center/Probation Agency:
1. Enter the Offender’s data in the monitoring application. This can
be done well in advance, even before the actual equipment is
allocated and installed.
2. Enter the following equipment data in the monitoring application.
• STaR unit Serial No. - Check that the number entered matches
the number on the STaR unit.
• Transmitter Serial No. - Check that the number entered matches
the number on the Transmitter.
The STaR Unit/Transmitter Serial No.’s are visible on the back of
each unit.
Equipment
Check that you have all the required equipment:
• STaR unit, carrying pouch and power adapter
• Transmitter
• Home Unit
• Electronic key
• Locking device
• Strap holder
• Strap clips (male and female)
EMS2000i STaR Unit User Manual
6
ElmoTech Ltd. Version 1.0
• Screwdriver (to open a clip if necessary). It is recommended to use a
5 mm flat head screwdriver.
It is always advisable to bring an extra set of strap clips to cater
for the event in which the first set may be accidentally damaged
during the installation.
EMS2000i STaR Unit User Manual
7
Version 1.0 ElmoTech Ltd.
THE OFFENDER’S PREMISES
Monitoring System Location
In order to install the Monitoring System, you will need to find the best
location for the Home Unit. The ideal
place for the Home Unit is in the
center of the house, 3 feet off the ground and at least 1 foot away from
the wall.
Figure 1 Ideal Home Unit Location
The Home Unit should be placed in an open area away from other
electrical appliances, personal computers, laptops or metal objects.
EMS2000i STaR Unit User Manual
8
ElmoTech Ltd. Version 1.0
EMS2000i STaR Unit User Manual
9
The STaR unit should be placed in the proximity of not more than 15 feet
from the Home Unit, and should be connected to the charger when at
home.
Activating the STaR Unit
In order to activate the STaR unit:
1. Connect the charger (power adapter) to the wall socket.
2. Plug the appropriate end of the charger cord into the charger
socket on right side of the STaR unit.
3. The STaR unit makes an audible beeping sound and the STaR
logo and version number briefly appear on the LCD. At this
stage the unit runs through an initial series of Built-In-Tests
(BIT).
4. After completing the tests the LCD will display the default
STaR message, indicating that the STaR unit is in a working
state.
