Elmo Visual Presenter HV-7100SX Instruction Manual

Download

VISUAL PRESENTER

HV-7100SX

INSTRUCTION MANUAL

Please read this instruction manual carefully before using this product and keep it for future reference.

IMPORTANT SAFEGUARDS

■ Read Instructions – All the safety and operating instructions should be read before the appliance is operated.

■ Retain Instructions – The safety and operating instructions should be retained for future reference.

■ Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.

■ Follow Instructions – All operating and use instructions should be followed.

■ Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

■ Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards.

■ Water and Moisture – Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

■ Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the

manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

■ Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

■ Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

■ Grounding or Polarization – This product may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. The 2-wire polarized plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. The 3wire grounding type plug will fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.

■ Power-Cord Protection – Power- supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

■ Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

■ Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

■ A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

■ Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

■ Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

WARNING : Handling the

cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.

Wash hands after handling.

■ Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

● When the power-supply cord or plug is damaged.

● If liquid has been spilled, or objects have fallen into the product.

● If the product has been exposed to rain or water.

● If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

● If the product has been dropped or damaged in any way.

● When the product exhibits a distinct change in performance this indicates a need for service.

■ Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

■ Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

■ Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

CAUTION

RISK OF

ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This marking is located at the bottom of product.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

SA 1965

SA 1966

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT THIS PRODUCT MAY CAUSE RADIO INTERFERENCE IN WHICH CASE THE USER MAY BE REQUIRED TO TAKE ADEQUATE MEASURES.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

USER-INSTALLER CAUTION:

Your authority to operate this FCC verified equipment could be voided if you make changes or modifications not expressly approved by the party responsible for compliance to Part 15 of the FCC rules.

BEFORE YOU USE

■ Use this product under the rated electrical conditions.

■ Do not leave this product under direct sunlight or by heaters, or this

product may be discolored, deformed, or damaged.

■ Do not place this product in any humid, dusty, windy or vibrating location. Use this product in the following environmental conditions: Temperature: 5°C~40°C (41°F~104°F) Humidity: 30%~85% (No condensation)

■ Use a soft, dry cloth for cleaning. Do not use any volatile solvent, such as thinner or benzine.

■ Do not directly point the camera lens into the sun, or the camera may be damaged.

■ Caring for the batteries:

• If this product is not used for a long time, take out the batteries from

the wireless remote control.

• Do not use rechargeable Ni-Cd batteries.

• Do not use new and old batteries, or batteries of different types

together.

• Do not try to recharge or short-circuit the batteries.

■ Luminescent and Black Spots There may be some pixels that do not operate properly due to the use of CCD Area Image Sensors that are made-up of many pixels. You may experience luminescent or black spots on the screen; however, this is a phenomenon of CCD Area Image Sensors and is not malfunction.

1. PART NAMES AND FUNCTIONS

WIRELESS REMOTE

CONTROL

3. MOUSE

4. SETTING UP AND CONNECTION

5. STORING

6. OPERATION PROCEDURES

VARIOUS FUNCTION

AND OPERATIONS

8. OSD

9. RS-232C SPECIFICATIONS

10.

TROUBLESHOOTING

HINTS

11. SPECIFICATIONS

CONTENTS

1. PART NAMES AND FUNCTIONS

Appearance .......................................................8

Front Operation Panel...........................................9

Rear Panel .......................................................10

Wireless Remote Control .....................................11

2. WIRELESS REMOTE CONTROL

Receivable Range ..............................................13

Preparation ......................................................13

3. MOUSE

Mouse Operation ..............................................14

4. SETTING UP AND CONNECTION

Setting Up........................................................15

Connection to Monitor and Projector ......................15

Connection to the analog RGB-out terminal .....................16

Connection to the composite video-out terminal................16

Connection to the S video-out terminal ...........................16

Analog RGB Signal ............................................16

Signal allocation ......................................................16

Pin assignment .........................................................16

5. STORING

Storing ............................................................17

6. OPERATION PROCEDURES

Simple Steps for Presenting Printed Material .............18

Steps for Showing Transparent Material ..................19

VARIOUS FUNCTIONS AND OPERATION

Lighting ...........................................................20

Zoom..............................................................21

Monitor Output selection .....................................22

External input image signal which can be output from

video-out terminal .....................................................23

Electronic Enlargement ........................................24

Color / B&W Selection ......................................25

Posi / Nega Conversion .....................................25

Image Rotation..................................................26

Pause..............................................................26

Contrast ..........................................................27

White Balance..................................................28

Iris .................................................................29

Auto iris adjustment ...................................................29

Manual iris adjustment ...............................................30

Focus..............................................................31

Auto Focus ..............................................................31

Powered Manual Focus ..............................................32

1. PART NAMES AND FUNCTIONS

WIRELESS REMOTE

CONTROL

3. MOUSE

4. SETTING UP AND CONNECTION

5. STORING

6. OPERATION PROCEDURES

VARIOUS FUNCTION

AND OPERATIONS

8. OSD

9. RS-232C SPECIFICATIONS

10.

TROUBLESHOOTING

HINTS

11. SPECIFICATIONS

CONTENTS

Preset Operation ...............................................33

Image Memory..................................................34

Splitting the Screen ............................................35

F.A.M. (Frame Accumulate Mode)..........................35

Installation of LCD Monitor...................................36

Connecting to the LCD Monitor .............................36

"Utility Software CD-ROM" ...................................36

8. OSD (On-Screen Display)

OSD Menu.......................................................37

9. RS-232C SPECIFICATIONS

Setting Up........................................................46

Cable Connection..............................................46

Data Format Specifications...................................47

Transmission Command (PC → Visual Presenter)...............47

Response data format (Visual Presenter

→ PC) .................47

Transmission Specifications ..................................48

UART Communication Format................................49

Connection ......................................................50

10. TROUBLESHOOTING HINTS

Symptoms and Confirmation .................................51

Replacement of Fluorescent Lamp...........................51

11. SPECIFICATIONS

General..................................................................52

Main Camera ..........................................................53

Lighting ..................................................................53

Supplied Accessories.................................................54

Options..................................................................54

Appearance

Camera Head

Infrared Sensor

Column

Stage

Base Lamp

Wireless Remote Control

Infrared Emitting Part

Scroll Mouse

Lamp Arm

Upper Lamp

Lighting Unit

Lighting Unit Arm

Column Lock Button

Press this button to raise/fold the column.

Pocket for Wireless Remote Control

Front Operation Panel

Microphone Jack

1 PART NAMES AND FUNCTIONS

Front Operation Panel

Name Function

Reference Page

Monitor Output Selection

F.A.M. (Frame Accumulate Mode)

Zoom

Auto Focus

Contrast

Lamp

Posi/Nega Conversion

Pause

White Balance

Image Rotation

Iris

To change the output line.

To select F.A.M.

To zoom the object.

To switch Posi/Nega.

To switch the lighting.

To change the setting between still image and video.

To adjust the brightness of the screen.

To change the mode between AUTO and ONE-PUSH.

To rotate the image. Every time this button is pressed, the image rotates counterclockwise by 90°.

To make documents, etc. visible clearly.

To focus automatically.

P. 26

P. 22

P. 35

P. 21

P. 31

P. 27

P. 25

P. 20

P. 29

P. 28

P. 19

MONITOR OUTPUT

PAU S E

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/M ANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

Pause

Iris

White Balance

Monitor Output Selection

F.A.M.

Image Rotation

Posi/Nega Conversion

Lamp8Contrast

Zoom

Auto Focus

Rear Panel

Power Cord Receptacle [

AC IN

]

12VDC Out Terminal [

DC12V

]

RS-232C Terminal [

RS-232C

]

Analog RGB-out Terminal [OUTPUT.RGB OUT]

Analog RGB-in Terminal 1 [INPUT.RGB1]

Mouse Terminal [MOUSE]

USB Terminal [USB]

Vide-out Terminal [OUTPUT.S-VIDEO /VIDEO] S-Video (mini DIN 4P), Composite video (RCA pinjack)

Analog RGB-in Terminal 2 [INPUT.RGB2]

DIP Switch

Stereo Audio Input Terminal 1/2

Stereo Audio Output Terminal

Name Function Reference Page

Analog RGB-in Terminal

[INPUT.RGB1]

Mouse Terminal [MOUSE]

USB Terminal [USB

]

Video-out Terminal [OUTPUT.S-VIDEO/VIDEO] S-Video (mini DIN 4P) Composite video (RCA pinjack)

Power Cord Receptacle [AC IN

]

RS-232C Terminal [

RS-232C

]

Analog RGB-out Terminal [OUTPUT.RGB OUT]

12VDC Out Terminal [

DC12V

]

Connected to the power cord connector.

To connect the mouse (supplied accessory).

If connected to PC with the attached USB cable, it is possible to transfer images and control the main unit by using the software in the attached Utility Software CD-ROM.

To output images to the NTSC/PAL monitor, such as TV monitor.

Image is output when this terminal is connected to RGB input equipment (e.g., LCD projector, multi-sync monitor).

Input image is output through analog RGB-out terminal and video-out terminal when the input selection is set at RGB1.

P. 36

P. 46

P. 16

P.22

P. 14

P. 36

P. 15 P. 16

To output DC12V and the image. This connecting terminal specially designed for the LCD monitor (LM-5011N) available separately.

Do not connect the equipment other than LM-5011N.

To connect the RS-232C cable when controlling the main unit from the PC.

Stereo Audio Output Terminal

To output sound to audio input equipment.

P.22

Wireless Remote Control

PAU S E

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

AUTO FOCUS

FOCUS.FAR

FOCUS

NEAR

IRIS.CLOSE

MONITOR OUTPUT.RGB 2

LAMP.BASE

IMAGE.CALL

IMAGE.SET

LAMP.UPPER

MONITOR OUTPUT.RGB 1

PAUSE

PRESET.SET

PRESET.CALL

POSI/NEGA

COLOR/B&W

MONITOR OUTPUT

MAIN

ZOOM.TELE

ZOOM.WIDE

IRIS.NORMAL

IRIS.OPEN

MEMORY NO.

ARROWS

Name Function Reference Page

Analog RGB-in Terminal 2 [INPUT.RGB2]

DIP Switch

Input image is output through analog RGB-out terminal and video-out terminal when the input selection is set at RGB2.

[A] key

Over scan

Under scan

SXGA

XGA

[C] key

The functions can be switched as follows:

◊

[A] key: To switch the resolution of the image output

from the RGB output terminal [RGB-OUT].

◊

[B] key: To switch the video output system.

◊

[C] key: To switch the video output screen size.

◊

[D] key: To switch the electronic shutter mode.

Before switching the DIP switch key, be sure to turn off the power supply to this product.

P. 22

P. 15

Stereo Audio Input Terminal 1/2

To output input sound from audio output terminal when the input selection is set at RGB1/2.

P. 22

NTSC

PAL

[B] key

60 50

[D] key

COLOR/B&W

ELECTRONIC ENLARGEMENT

Button Name Function Reference Page

2 3

To change the output line.

To zoom in.

To zoom out.

To move the focus near.

To move the focus far.

To focus automatically.

To reset the AUTO iris to the initial value.

To open the AUTO/MANUAL iris.

To close the AUTO/MANUAL iris.

To switch POSI/NEGA.

To switch COLOR/B&W.

To turn ON/OFF the upper lamp.

To turn ON/OFF the base lamp.

To store images in the main unit memory. Used with the memory No.

To change the setting between still image and video.

The memory No. used with 5 to 8 . When the live image and the image from the memory are displayed together by splitting the screen in half, the [1] and [3] buttons scrolls the live image right and left and the [4] and [5] buttons scrolls the image from the memory right and left.

To double the image size.

PAUSE

STAT US


LAMP

ZOOM

FOCUS

IRIS

MONITOR OUTPUT

POSI/NEGA

PRESET.SET

PRESET.CALL

UPPER

BASE

MAIN

RGB1

RGB2

NORMAL

OPEN

TELE

WIDE

NEAR

FAR

AUTO FOCUS

IMAGE.SET

IMAGE.CALL [SPLIT]

ARROWS

MEMORY NO.

To scroll the screen during magnification (electronic enlargement) mode. This button is also used to move the pointer when it appears.

To store the operating condition of the equipment. Used with the memory No.

To call the stored operating condition then. Used with the memory No.

To call the image stored by [IMAGE.SET] button. Used with the memory No. To display the image called out from the memory together with the live image in the split screen.

P. 26

P. 24

P. 25

P. 20

P. 22

P. 21

P. 32

P. 31

P. 29

P. 33

P. 34

P. 35

Receivable Range

Point the infrared emitting part of the wireless remote control at the infrared sensor of this product, and press the button for desired function. The receivable range may be narrowed when the Presenter is placed under sunlight, near an inverter fluorescent lamp or in any other unfavorable surroundings. Depending on the conditions of fluorescent lamps, etc. the sensor may fail to receive the infrared light. In such a case, relocate this poduct, or take other countermeasures.

• Receivable range

Distance : Approx. 7 m (23 ft.) or less from the light receiving area to the front of the

wireless remote control.

Angle : Approx. 30° degrees or less from the light receiving area to the front of the

wireless remote control rightward, leftward, upward and downward, respectively.

2 WIRELESS REMOTE CONTROL

Preparation

Remove the battery case cover by pressing downward on the [ OPEN] mark part in the direction as indicated by the arrow. Install 2 pcs of batteries (type R03, AAA) into the case in the direction as indicated there.

Install the batteries with the polarity.

Change the batteries once a year.

The supplied batteries are only for use in initially confirming the operation of this product. It is not guaranteed that these batteries can work effectively for the indicated period.

Connect the mouse to the mouse terminal [MOUSE] on the rear panel.

Mouse Operation

• Click the right button To display or clear the pointer and OSD menu, operate the OSD menu, drawing function control, screen scroll start and electronic enlargement. Moves in the following sequence during normal use; Displaying pointer

→ Displaying ENTER icon → Displaying OSD menu → Clearing OSD menu → Clearing ENTER icon → Clearing pointer. Displaying and clearing of the ENTER icon does not function when the magnification (electronic enlargement), image rotation (90°, 270°), multi-screen display or drawing function are selected. The screen scroll is usable during the multi-screen display, electronic enlargement and image rotation (90°, 270°). (The pointer is shown then with symbol).

• Drag with the left button down (click and hold down to move) To scroll the screen in electronic enlargement, image rotation (90°, 270°) and multi-screen display

• Roll the mouse wheel To scroll up/down the screen in electronic enlargement and image rotation (90°, 270°) function

• Click the right button To operate display on/off of the zoom window. It is also used as cancel button when straight line drawing and square shape drawing functions are selected.

Click the OSD menu, then the menu functions are given priority.

When using the mouse, connect the mouse to the product turning on the power supply to this product.

Use the attached mouse. If another mouse is used, the normal operation cannot be guaranteed.

The OSD display is assumed to be used for large projection sizes with a projector or the like. Therefore, the display on a hand monitor or a TV may be hard to see.

• Electronic enlargement ... • OSD ...

P.37P.24

Reference Page

3 MOUSE

The pointer is displayed.

The Pointer is cleared.

The OSD menu is cleared. (The ENTER icon is displayed.)

The ENTER icon is displayed.

The OSD menu is displayed.

The ENTER icon is cleared.

Click Click the

ENTER icon

ClickClick

Click

Click the EXIT icon

Start

Right button

Left button

Center button Mouse wheel

Mouse

Connection to Monitor and Projector

The following settings of this product can be switched with the DIP switch. Switch the settings according to the connection environment. The factory settings are as shown in the following table:

In the area where the rated supply frequency is 50Hz, when the D key is used as set at “0,” fluorescent lamps, mercury lamps and other AC lamps may suffer “flicker” due to the lighting of their discharge tubes. In this case, set the D key to “1,” and the flicker may be reduced. In the area where the rated supply frequency is 60Hz, use the D key as factory set at “0.”

Be sure to turn off the power supply to all equipment before making any connections to protect this product and all the connected equipment.

When switching the DIP switch key, be sure to turn off the power supply beforehand.

When plugging/unplugging cables, be sure to do so by holding the plugs.

4 SETTING UP AND CONNECTION

Key

A B

To switch the resolution of images output from RGB terminals To switch the VIDEO output system

Function Key selection

Initial setting

SXGA NTSC

0 0

Over scan

Content

C D

To switch the screen size of VIDEO output To switch the electronic shutter mode

Setting Up

(1) Unfold the lamp arms fully until they come to the

dead end. Unfold in the sequence specified in the drawing shown to the right.

(2) Press the column lock button, and raise the

column until the column lock button returns to the original position. Make sure that the column has been completely locked.

(3) Turn the camera head until the lens faces to the

stage.

(4) Plug the power cord into the power cord

receptacle of this product and the AC outlet.

■ Connection to the analog RGB-out terminal

Connect the analog RGB-out terminal [OUTPUT·RGBOUT] to the equipment having an analog RGB-in terminal with the analog RGB cable (attached) or a connection cable available on the market. At this time, the position of the display may be deviated from the center. If deviated, manually adjust the horizontal and vertical positions on the connected equipment side. Also, vertical stripes may appear on the screen of the LCD projector. That can be alleviated by manually adjusting the dot clock frequency on the projector side.

■ Connection to the composite video-out terminal

Connect the composite video output terminal [VIDEO] and the audio output terminal [AUDIO] (RCA pin) with the video/audio cable with RCA pin plug as attached or available on market.

■ Connection to the S video-out terminal

Use the S video terminal [S-VIDEO](mini-DIN4P) and the S-video cable as attached or available on market.

Hold the cable plug when connecting or disconnecting the cables.

Analog RGB Signal

■ Signal allocation

■ Pin assignment

109876

54321

15 14 13

DSUB 15P shrink terminal (Female

)

12 11

Video signal :

Horizontal synchronized signal :

Vertical synchronized signal :

Analog 0.7V(p-p) 75Ω terminated

TTL level (positive/negative polarity)

Pin No. Name

Video signal (Red)

Video signal (Green)

Video signal (Blue)

4N.C 5 GND

Pin No. Name

GND (Red)

GND (Green)

GND (Blue)

9N.C

10 GND

Pin No. Name

GND 12 N.C 13

Horizontal synchronized signal

Vertical synchronized signal

15 N.C

LCD projector

CRT Monitor

TV Monitor

Storing

When the LCD monitor is mounted, this product cannot be stored. Remove the LCD monitor, and then store this product.

(1) Turn off the power switch, and unplug the

power cord and the video cable.

(2) Turn the camera head so that it may be ready to

be stored.

The illustration shows the right storage position of the camera head. Never apply excessive force to the column.

(3) Press the column lock release button, and fold

down the main column.

The illustration shows the right storage position of the column. Never apply excessive force to the column.

(4) Fold down the lighting unit arms and .

Be sure to fold down arm first as per the illustration.

5 STORING

4 5

Simple steps for Presenting Printed Material

(1) Turn on the power switch.

Before turning on the power switch, connection to the monitor should have been completed.

The indicator lamp (green LED) on the front panel shows the initial status of each function.

If the power switch is turned on immediately after being turned off, this product may not operate. For restarting, turn off this product and wait several seconds then turn on.

(2) Place the object on the stage. Adjust the image

size according to the object size by using the zoom buttons ([TELE] / [WIDE]) on the front operation panel or the zoom tele/wide buttons ([ZOOM.TELE] / [ZOOM.WIDE]) on the wireless remote control, while watching the image on the TV monitor.

(3) Press the auto focus button [AF] on the front

panel or the wireless remote control.

The auto focus function works up to a height of approx. 10cm (3.9 in) above the stage surface.

PAUSE

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

6 OPERATION PROCEDURES

Wireless remote control

Front operation panel

Wireless remote control

(2)

(3)

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

Front operation panel

(2) (3)

ZOOM

TELE

WIDE

ANUAL

CONTRAST

WHITE

BALANCE

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

ZOOM

WIDE

ONTRAST

IRIS

NORMAL OPEN CLOSE

Steps for Showing Transparent Material

(1) Press the [LAMP] button on the front panel or

the [LAMP.BASE] button on the wireless remote control to light up the base light (the lighting for the transparent documents) built in the stage.

(2) To turn off the base light, press the

[LAMP.BASE] button on the front panel or on the wireless remote control again.

PAUSE

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

(1) (2)

Wireless remote control

Front operation panel

Wireless remote control

IRIS

POSI / NEGA

ION

AUTO/MANUAL

CONTRAST

WHITE

BALANCE

LAMP

UPPER / BASE / OFF

SET

CALL

SETCALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

Lighting

The upper lamp unit for presenting material such as printed matter and 3-D objects, and the base lamp for presenting transparent material, such as slide, and negative films, are built in to this product. When the [LAMP] button on the front operation panel or the [LAMP] ( [UPPER] / [BASE] ) button on the wireless remote control is pressed, the fluorescent lamp lights up in 1 to 3 seconds.

• Front operation panel Every time the

[LAMP] button is pressed, lighting is

switched in a cycle of the upper lamp lights up

→

the base lamp lights up → the base lamp goes out.

• Wireless remote control Turn on/off by each button. In the initial settings, the upper lighting is on.

It is impossible to have the upper lamp and the base lamp lit up together.

To obtain a sharp image with good color rendering, it is sometimes necessary to use the upper lamp.

PAUSE

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

IRIS

POSI / NEGA

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

SET

PRESET

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

VARIOUS FUNCTIONS AND OPERATION

Wireless remote control

Front operation panel

Wireless remote control

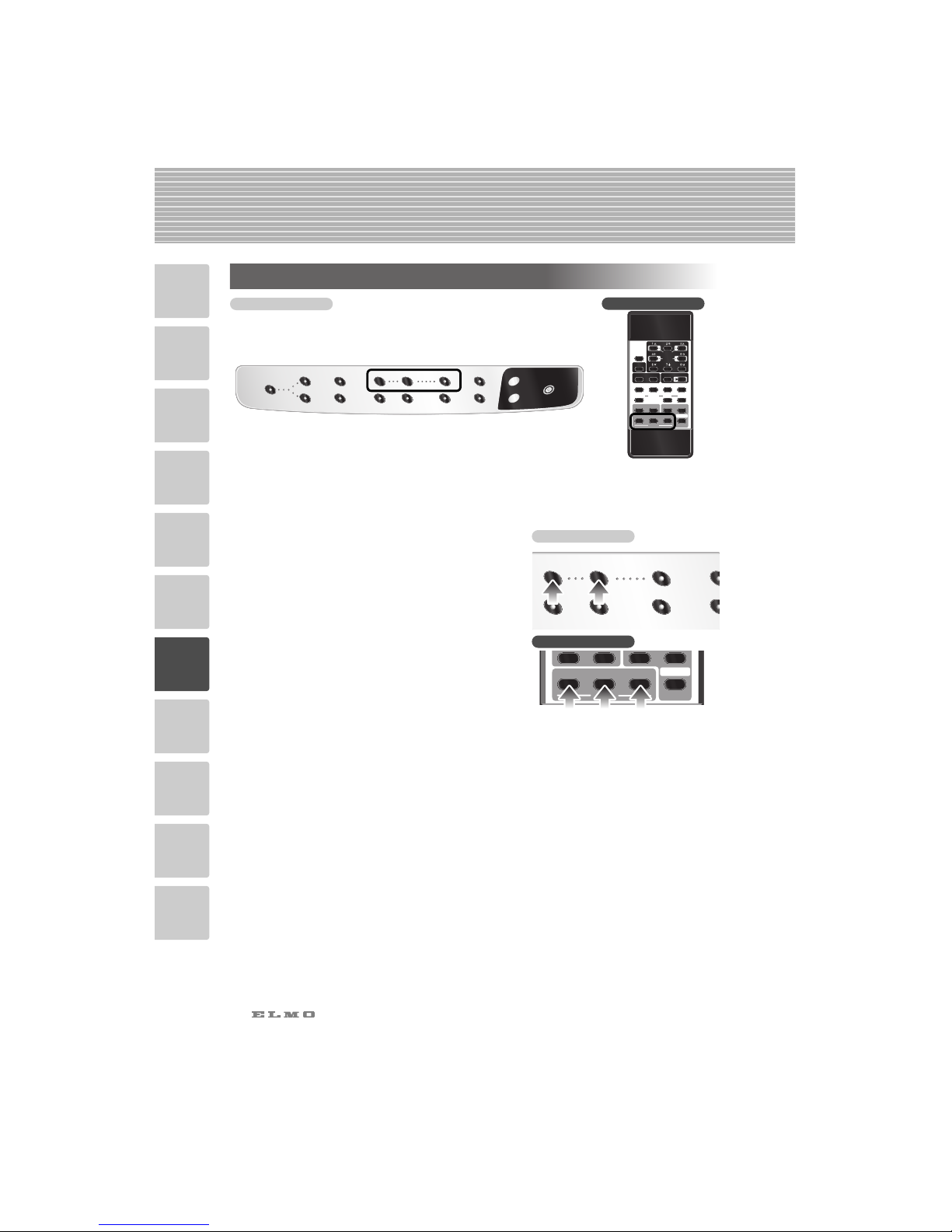

Zoom

Press the [TELE] button on the front operation panel or the [ZOOM.TELE] button on the wireless remote control, and the image will gradually be enlarged. When the optical zoom reaches the maximum TELE side (about 10 times), a message of “PRESS TELE FOR DIGITAL ZOOM” appears on the screen. When the same button is pressed again, the electronic zoom function is activated, and the image can be further magnified up to 2 times (up to about 20 times when used with the optical zoom function).

When the image is zoomed electronically, the quality of the image degrades due to pixelation.

Press the [WIDE] button on the front operation panel or the [ZOOM.WIDE] button on the wireless remote control, and the image will gradually be reduced.

Also, by continuously pressing the zoom button, the zooming speed becomes faster. (Double speed function)

PAUSE

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

ZOOM

TELE

WIDE

CONTRAST

WHITE BALANCE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR OUTPUT

ZOOM

TELE

WIDE

CONTRAST

WHITE BALANCE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR OUTPUT

Front operation panel

Wireless remote control

Front operation panel

Wireless remote control

Front operation panel

Wireless remote control

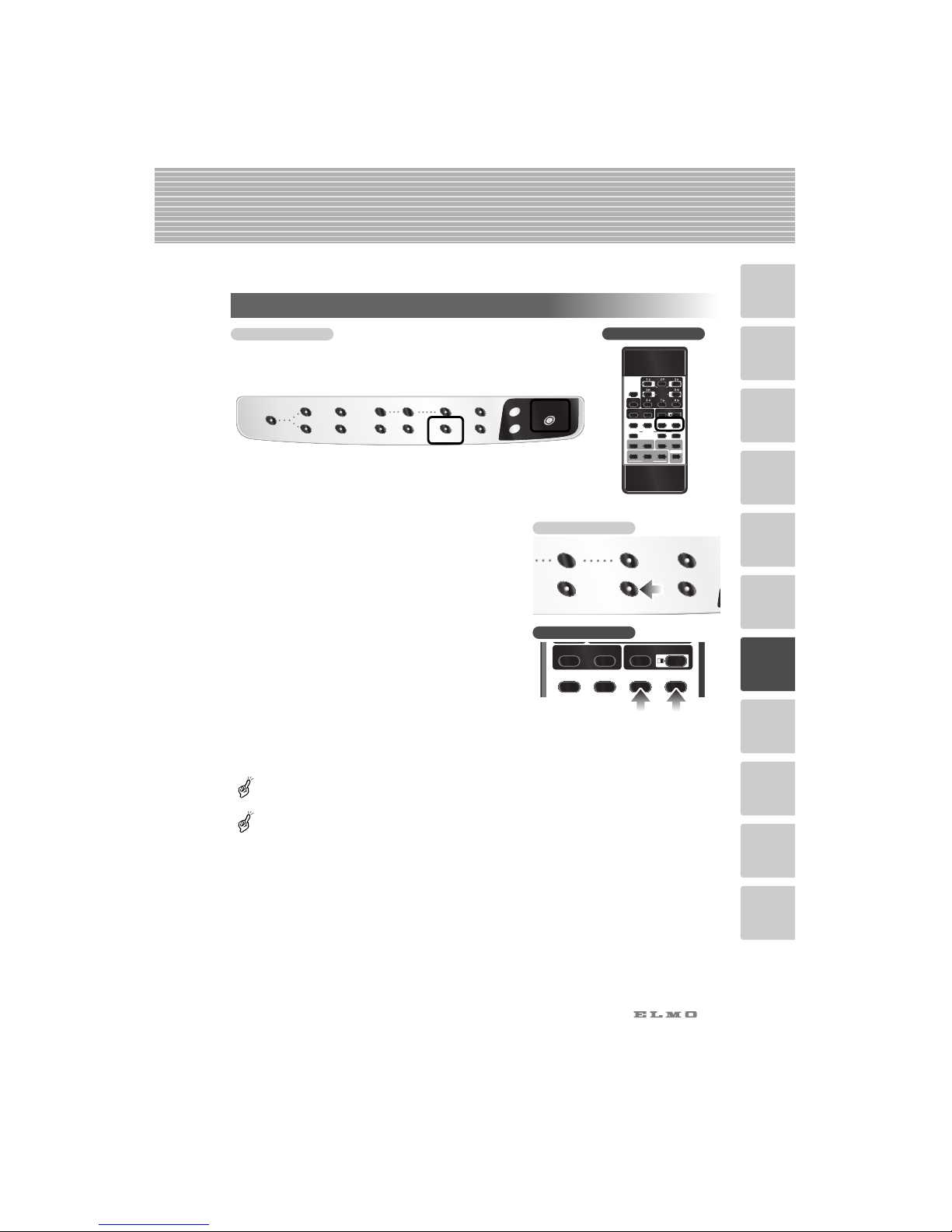

Monitor Output Selection

The respective images from two different sources connected to this product such as a PC and an ELMO Presenter "HV-110XG" can be alternately presented on a TV by selecting the source by pressing the desired Monitor Output selection buttons without changing the cable connections. The image can be switched by pressing the Monitor Output selection button [RGB1], [RGB2], [MAIN] on the front operation panel or on the wireless remote control.

The lighting of indicator lamp on the front panel indicates which input is now selected.

• Table of Video- and Audio-in / out Terminal Selections

PAUSE

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

MONITOR OUTPUT

PAU S

F. A . M .

MAIN

RGB1

RGB2

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

RGB1 RGB2MAIN

MONITOR

OUTPUT

Front operation panel

Wireless remote control

Front operation panel

Wireless remote control

Video-out TerminalOutput signal

Main camera video signal

Microphone

External video signal 1 External audio signal 1

Monaural

RGB1 Stereo 1 (L/R)

Microphone

External video signal 2 External audio signal 2

Monaural

RGB2 Stereo 2 (L/R)

Main camera video signal

Input

Main

Unit

RGB1

RGB2

Audio-out Terminal

RGB

L R

■

External input image signal which can be output from video-out terminal

Signal Frequency

Resolution

(Number of lines)

Polarity of

the synchronized signal

(

P: Positive, N: Negative

)

Mode name VGA1 VGA2 VGA3 VGA@60Hz VGA@72Hz VGA@75Hz VGA@85Hz SVGA@56Hz SVGA@60Hz SVGA@72Hz SVGA@75Hz SVGA@85Hz XGA@60Hz XGA@70Hz XGA@75Hz XGA@85Hz SXGA1 SXGA2 SXGA3 SXGA@60Hz SXGA@75Hz SXGA@85Hz UXGA@60Hz UXGA@65Hz UXGA@70Hz UXGA@75Hz UXGA@85Hz Mac 13 Mac 16 Mac 19 Mac 21 PC98

37.861

37.861 85.080

85.039

59.941

72.809

75.000

85.008

56.250

60.317

72.188

75.000

85.061

60.004

70.069

75.029

84.997

75.000

60.000

85.003

60.020

75.025

85.024

60.000

65.000

70.000

75.000

85.000

66.667

74.550

74.927

75.062

56.420

37.927

31.469

37.861

37.500

43.269

35.156

37.879

48.077

46.875

53.674

48.363

56.476

60.023

68.677

67.500

60.000

85.938

63.981

79.976

91.146

75.000

81.250

87.500

93.750

106.250

35.000

49.725

60.241

68.681

24.825

84.889 31.500

31.500

35.500

25.175

31.500

36.000

40.000

50.000

49.500

56.250

65.000

75.000

78.750

94.500

108.000

148.500

108.000

135.000

157.500

162.000

175.500

189.000

202.500

229.500

30.240

57.283

80.000

100.000

21.052

640 640 720 640 640 640 640 800 800 800 800

800 1024 1024 1024 1024 1152 1280 1280 1280 1280 1280 1600 1600 1600 1600 1600

640

832 1024 1152

640

350 400 400 480 480 480 480 600 600 600 600 600 768 768 768 768 864 960

960 1024 1024 1024 1200 1200 1200 1200 1200

480

624

768

870

400

P / N N / P

N / P N / N N / N N / N N / N

N / N

P / P

P / P P / P P / P P / P P / P

N / N

P / P P / P P / P P / P P / P P / P P / P P / P P / P P / P P / P

P / P N / N N / N N / N N / N N / N

kHz Hz MHz

Horizontal Vertical

Horizontal Vertical HS/VS

Pixel clock

Input image signals other than the above may not be applicable to this Presenter.

Some input image signals may not allow the Presenter to output images in full size.

This Presenter is not complied with synchronous signals (e.g., composite, sync on green)

Electronic Enlargement

When the [2×] button on the wireless remote control is pressed, the image is enlarged double on the central part. When the pointer is on display and the right button of the mouse is clicked, the target area to be magnified double is highlighted. (Zoom window) When the target area to be enlarged is moved by dragging the mouse and then the left button of the mouse is clicked, the highlighted target area is enlarged. The enlarged image can be scrolled by using the arrow buttons on the wireless remote control or by manipulating the mouse.

•The mouse can be operated as follows:

• Left button........ To scroll the image

according to the dragging of the mouse while holding down the left button.

• Mouse wheel ... To scroll up/down the enlarged screen.

• Right button ..... To t u rn on/off the double

enlargement. When any image is enlarged electronically, the pointer becomes the mark .

When the electronic enlargement is operated while the pointer or the OSD menu is displayed, the pointer or the ENTER icon cannot be turned on/off, since the left button of the mouse is dedicated for scroll function. To turn on/off the pointer or the ENTER icon, the electronic enlargement function must be in off state.

The images from the memory cannot be enlarged electronically, and the electronically enlarged images cannot be stored in the memory.

Wireless remote control

•Mouse.....

•OSD........

P.37

P.14

Reference Page

PAU S E

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

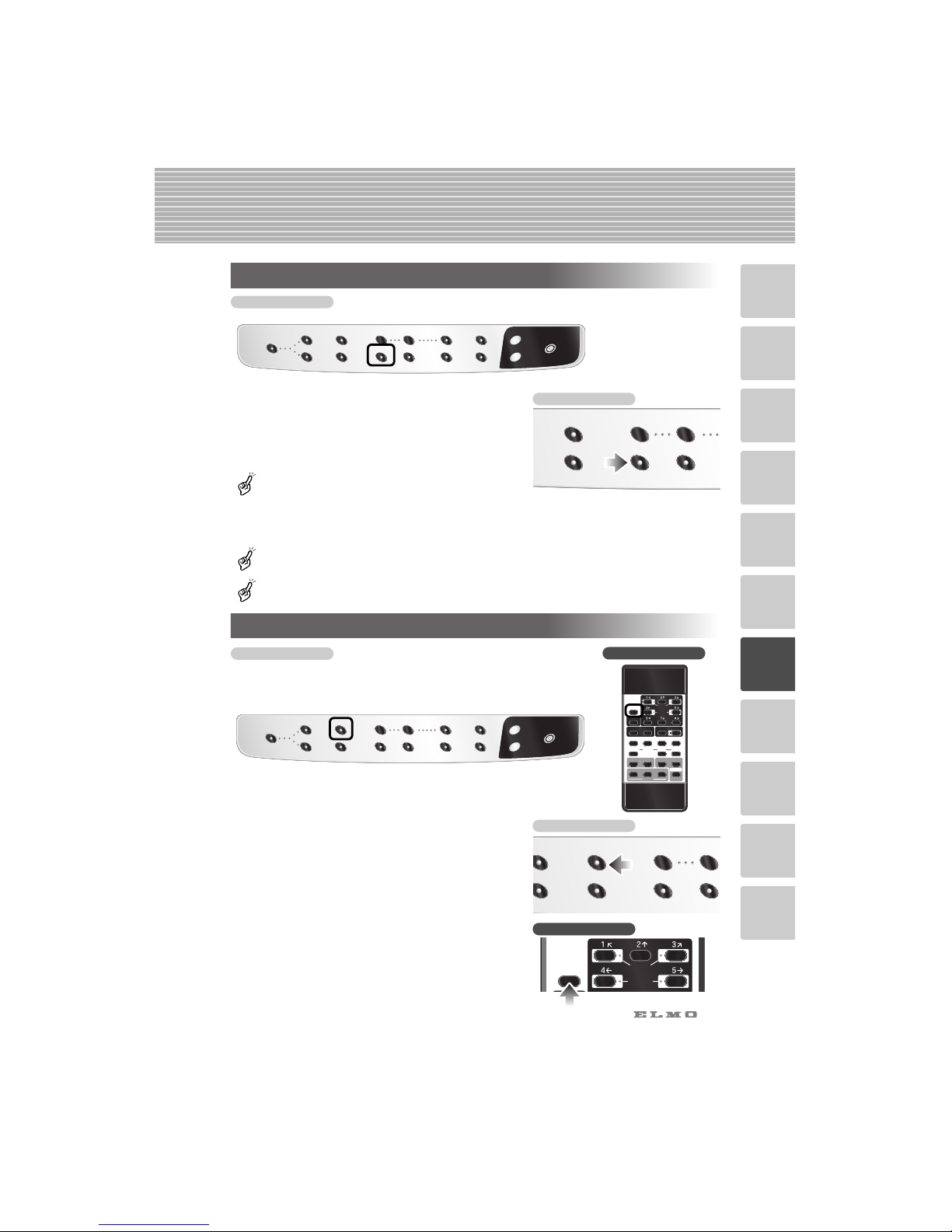

Posi / Nega Conversion

To show a negative film. Press the [POSI / NEGA] button on the front operation panel or wireless remote control, the indicator lamp lights up and the image will be converted to the NEGA mode accordingly. When the

[POSI / NEGA] button is pressed again,

the indicator lamp goes out and the POSI mode is resumed.

In the condition of NEGA, the followings are restricted.

• When contrast on: Gamma adjustment is not available.

• Only When Gamma setting

γ = 07: Contrast can

be turned on.

NEGA setting at the factory

• Gamma:

γ = 07 (0.3)

• Contrast: on

• White Balance: Auto mode

PAUSE

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

IRIS

OPEN CLOSE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

W B

LAMP

UPPER / BASE / OFF

SET

PRESET

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

Color / B&W Selection

To present the B&W (Black&White) material such as documents. A clearer image can be achieved without color blur on a monitor. If the [COLOR/B&W] button on the wireless remote control is pressed, images are switched.

Wireless remote control

PAU S E

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

Front operation panel

Wireless remote control

Front operation panel

Wireless remote control

Image Rotation

When the [IMAGE ROTATION] button on the front operation panel is pressed, the image rotates. Every time the [IMAGE ROTATION] button is pressed, the image rotates counterclockwise by 90°. When the image is rotated, indicator lamp goes on.

When the image rotation (90°, 270°) is operated while the pointer or the OSD menu is displayed, the pointer or the ENTER icon cannot be turned on/off, since the left button of the mouse is dedicated for scroll function. To turn on/off the pointer or the ENTER icon, the image rotation (90°, 270°) function must be cancelled.

The image does not rotate when Pause mode is working.

The images from the memory cannot be rotated.

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

PAU S E

F.A.M.

IRIS

OPEN CLOSE

POSI / NEGA

IMAGE ROTATION

Pause

When the [PAUSE] button on the front operation panel is pressed, the image from the main camera pause. When the [PAUSE] button is pressed again, the pause mode is canceled.

PAUSE

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

PAU S E

F.A.M.

GB1

GB2

IRIS

OPEN CLOSE

POSI / NE

IMAGE ROTATION

PAU S E

LIVE

MEMORY

Front operation panel

Wireless remote control

Front operation panel

Wireless remote control

Contrast

To present the material with a little half tone such as documents. Images with sharp characters and lines contrasty with background can be obtained. When the [CONTRAST] button on the front operation panel is pressed, the indicator lamp lights up, and the image becomes contrasty. When the [CONTRAST] button is pressed again, the indicator lamp goes out, and the image is reset to the normal condition.

In the condition of NEGA, contrast is turned on only when the gamma setting is

γ = 07 (0.3).

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

ZOOM

TELE

WIDE

CONTRAST

WHITE BALANCE

Front operation panel

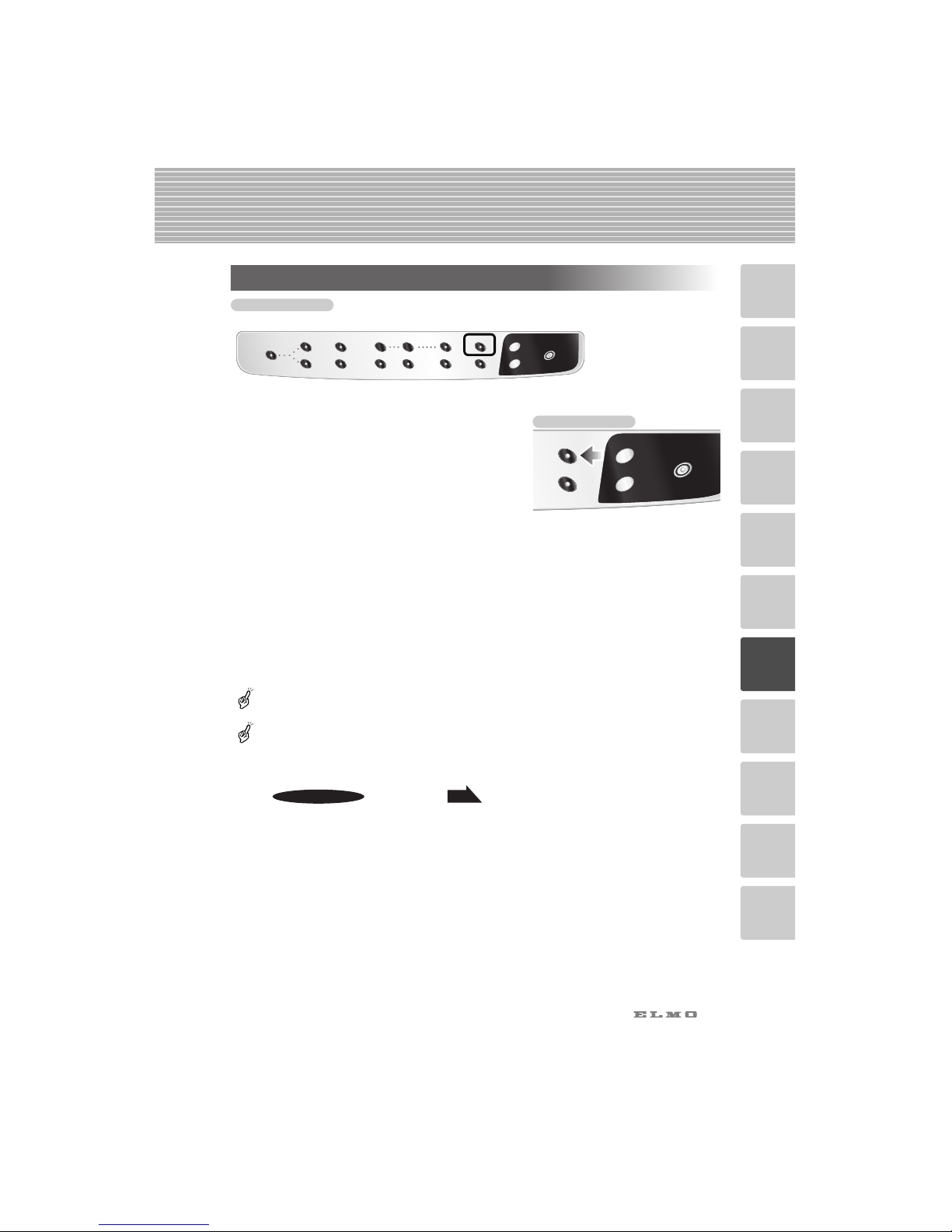

White Balance

The camera of this product automatically adjusts the shooting color balance (AUTO mode). However, depending on the color arrangement of document or the like, this color balance may be lost. In such case, shoot the stage surface, and press the [WHITE BALANCE] button on the front operation panel. Then, the indicator lamp blinks and then lights up, and the white balance is fixed. (ONE-PUSH mode) When the

[WHITE BALANCE] button is pressed

again, the indicator lamp goes out, and the mode returns to the AUTO mode.

AUTO .................. To set the white balance in the auto follow mode (initial setting).

ONE-PUSH ........... To set the push-set white balance. By pressing the [WHITE BALANCE]

button, the white balance for the then color temperature is fixed.

The automatically followed color temperature ranges from approx. 3000k to 8000k.

When the white balance is set to the MANUAL mode on the OSD, the white balance is fixed, and the indicator lamp remains lighting. When the white balance button [WHITE BALANCE] on the operation panel is pressed while the indicator lamp is lighting, the indicator lamp goes out, and the mode is switched to the AUTO mode.

• OSD.......

P.37

Reference Page

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

ZOOM

TELE

WIDE

CONTRAST

WHITE BALANCE

Front operation panel

Iris

To adjust the brightness of image by adjusting the lens opening.

• Auto iris ........... Adjusts brightness automatically.

• Manual iris ....... Adjusts brightness manually.

■ Auto iris adjustment

To adjust the level of brightness automatically according to the object. Press the iris button [OPEN] on the front panel or the [IRIS.OPEN] button on the wireless remote control to open the iris. Press the iris button

[CLOSE] on the front panel or the

[IRIS.CLOSE] button on the wireless remote control to

close the iris. Press the [IRIS.NORMAL] button on the wireless remote control,to change setting back to the defaults. Press and hold the auto/manual selection button [AUTO.MANUAL] on the front operation panel for more than 4 seconds or press the [IRIS.NORMAL] button on the wireless remote control to return to the initial setting.

PAUSE

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

IRIS

OPEN CLOSE

POSI / NEGA

GE ROTATION

AUTO/MANUAL

CON

WH BA

LAMP

UPPER / BASE / OFF

IRIS

NORMAL OPEN CLOSE

NEAR FAR

Front operation panel

Wireless remote control

Front operation panel

Wireless remote control

Front operation panel

Wireless remote control

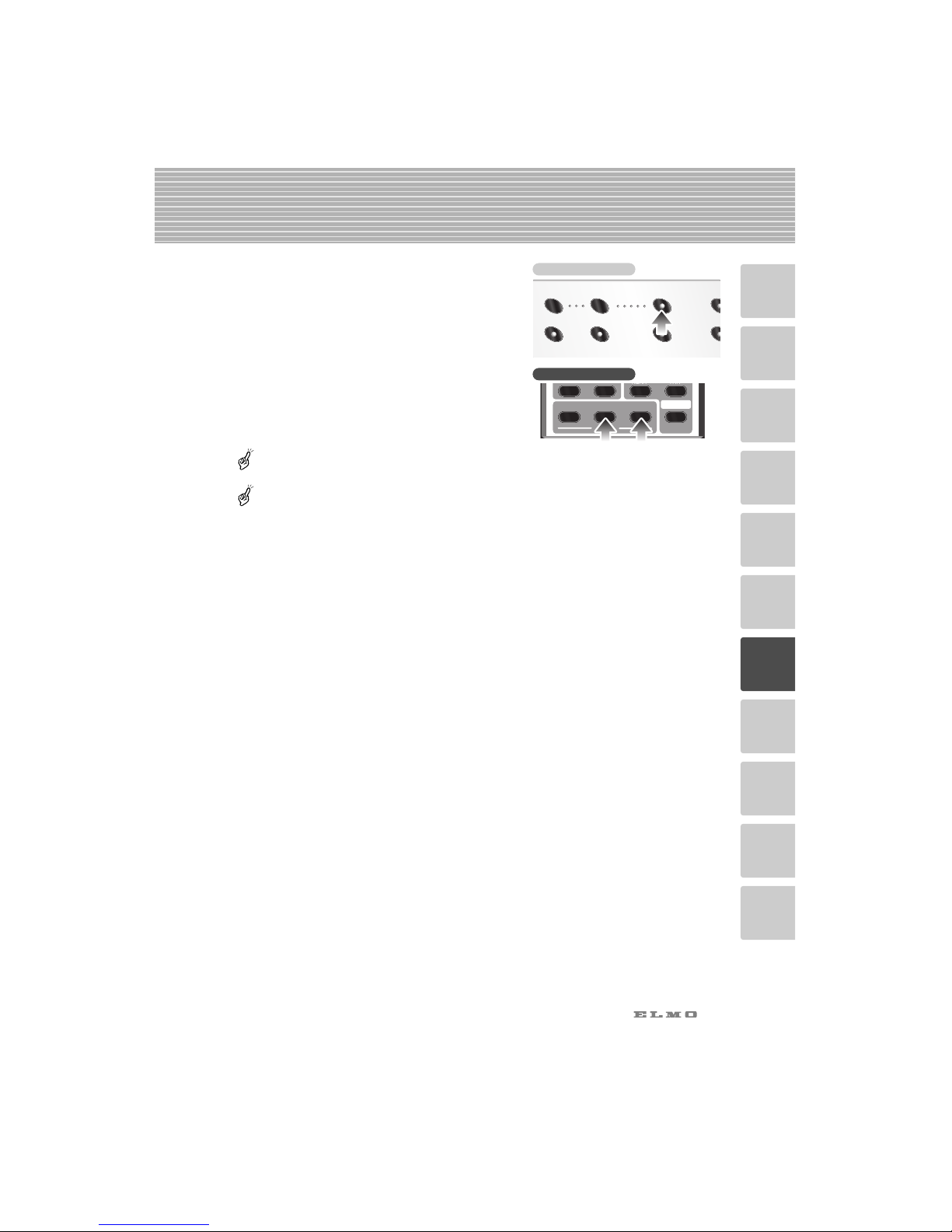

■ Manual iris adjustment

To lock the image to a certain brightness. Press the iris button [AUTO/MANUAL] on the front panel, then the indicator lamp goes on to enable the adjustment by manual iris. Press the iris button [OPEN] on the front panel or the [IRIS.OPEN] button on the wireless remote control,to open the iris. Press the iris button [CLOSE] or the [IRIS.CLOSE] button on the wireless remote control to close iris. Press the iris button [AUTO/MANUAL] again, and the indicator lamp goes off, to return to the auto iris.

The default setting is Auto iris.

In time of manual iris, the iris is locked, and does not follow the brightness change of the object.

IRIS

OPEN CLOSE

POSI / NEGA

GE ROTATION

AUTO/MANUAL

CON

WH BA

LAMP

UPPER / BASE / OFF

IRIS

NORMAL OPEN CLOSE

NEAR FAR

Focus

Adjust the focus of the object.

■ Auto Focus

Press the auto focus button [AF] on the front panel or the wireless remote control, to activate the auto focus. While the auto-focus is in operation, the indicator lamp on the front panel blinks until the object is brought into focus. This product features a one-push auto focus function. Once focusing is completed, the auto focus function is released, and the focused position maintains unchanged (FOCUSFREE).

The objects listed below may not be brought into focus in the auto focus mode. In these cases, use the manual focus mode.

• Objects bearing little contrast

• Objects with fine repeated patterns, such as

lateral stripes and cross stripes

• Objects glittering or reflecting strong light

• Objects with bright background, or excessive

contrast

• The whole image is dark.

• Objects located near and far at the same time

• Objects in motion

The auto focus function will be canceled if the manual focus button

[FOCUS.NEAR] or [FOCUS.FAR] on

the wireless remote control is pressed.

The auto focus function works up to a height of approx. 10cm (3.9 in) above the stage surface when the zoom button

[TELE] is set to the

maximum.

PAUSE

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR OUTPUT

PAUSE

F.A.M.

MAIN

RGB1

RGB2

IRIS

OPEN CLOSE

ZOOM

TELE

WIDE

POSI / NEGA

IMAGE ROTATION

AUTO/MANUAL

CONTRAST

WHITE BALANCE

LAMP

UPPER / BASE / OFF

ZOOM

TELE

WIDE

NTRAST

WHITE

BALANCE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

Front operation panel

Wireless remote control

Front operation panel

Wireless remote control

■ Powered Manual Focus

To focus on specific part of the material, such as 3-D material. Press the focus button [FOCUS NEAR] or [FOCUS FAR] on the wireless remote control.

The powered manual focus function works up to a height of approx. 10cm (3.9 in) above the stage surface when the zoom button

[TELE] is set to the

maximum.

Wireless remote control

PAU S E

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

Preset Operation

Operation status of this product can be stored / read out in the memory (max. 8 states can be stored). Operation states that can be stored are as shown below.

•Present zoom angle of view

•The iris state of Auto/Manual selection and its statue.

•White balance status

•On/off of aperture

•Status of gamma

•Lighting status

•Status of color/B&W switch

•Color and shape of the pointer

•Status of image rotation

•On/off of contrast mode

•Status of POSI/NEGA conversion

•Status of F.A.M. selection

•Sound volume

1. How to store

Press the [PRESET.SET] button on the wireless remote control and press the [MEMORY NO.] button of the wireless remote control within "4 sec or less", then the current status of this product is saved in the pressed number memory.

2. How to read out operation status Press the

[PRSET.CALL] button on the wireless

remote control and press the [MEMORY NO.] button of the wireless remote control within "4 sec or less", then this product is set to the memorized status corresponding to the number.

The preset (stored) status is maintained even when the power is turned off.

Wireless remote control

PAU S E

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

Image Memory

Images can be stored in the memory of this Presenter. (max. 8 sheets)

1. How to store images Press the

[IMAGE.SET] button on the wireless

remote control and press the [MEMORY NO.] button of the wireless remote control within "4 sec or less", then the image is stored in the pressed number.

When the power of the Presenter is turned off, the images stored in the memory are cleared.

2. How to read out stored images Press the [IMAGE.CALL] button on the wireless remote control and press the [MEMORY NO.] button on the wireless remote control “within about 4 sec,” then the stored image corresponding to the pressed memory No. is read out.

If the [MAIN] button in the input selection area is pressed, the camera captured image is displayed again.

Wireless remote control

PAU S E

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

F.A.M. (Frame Accumulate Mode)

This is used to reduce artifacts in image, and is appropriate to take pictures of still objects. Press the [F.A.M.] (Frame Accumulate Mode) button on the front panel, and the indicator lamp goes on, and the F.A.M. is selected. Press the [F.A.M.] (Frame Accumulate Mode) button again, and the indicator lamp goes off, and the normal status resumes.

When the image is rotated, the clear mode does not function.

Splitting the Screen

The live image currently on camera and an image in the memory can be displayed together on the split screen.

1. Read out the image to be displayed in the split screen from the memory by the image memory read-out system.

Press the [IMAGE.CALL] button on the wireless remote control again, and the live image is displayed on the left half of the screen and the image from the memory is displayed in the right half of the screen.

3. The live image can be scrolled right and left with the [1] and [3] buttons on the wireless remote control, and the image from the memory can be scrolled right and left with the

[4] and [5] buttons

on the wireless remote control. The images can also be scrolled by manipulating the mouse.

•

How to scroll the images by manipulating the mouse

Bring the mouse either to the live image or the image from the memory, whichever to be scrolled, and drag the mouse (move the mouse while pressing the left button of the mouse), the image will scroll right and left.

PAU S E

SET

PRESET

LIVE

MEMORY

CALL

SET


CALL

LAMP

POSI/NEGA COLOR/B&W

UPPER BASE

IRIS

NORMAL OPEN CLOSE

TELE

ZOOM

WIDE

NEAR

FOCUS

FAR

RGB1 RGB2MAIN

MONITOR

OUTPUT

PAU S E

F.A.M.

RGB1

RGB2

IRIS

OPEN

IMAGE ROTATION

Wireless remote control

Front operation panel

Connecting to the LCD Monitor

The LCD monitor (LM-5011N) can be connected by using the LCD monitor out terminal of the Presenter.

When connecting to the LCD monitor out terminal, confirm the right connection direction.

When using the LCD monitor connection cable, do not use the AC adapter or video cable attached to the LCD monitor (LM-5011N).

The LCD monitor (LM-5011N) and the LCD monitor bracket (MS-201) are available on option, and not attached to this Presenter (HV-7100SX).

Do not connect any other cable to this terminal. Negligence will result in the failure of the equipment.

DC IN 12V

VIDEO IN

LCD monitor connection cable (accessory)

LCD monitor out terminal [DC 12V]

LCD monitor [LM-5011N]

1 VIDEO OUT

Mini DIN 9P

(Female)

2 GND

3NC

4NC

5NC

6NC

7 +12V

8 GND

CONT.

4356

"Utility Software CD-ROM"

The attached "Utility Software CD-ROM" contains the PC link software "Image Mate" and the TWAIN driver "ELMO TWAIN DS, "and can be operated as shown below.

• To transfer graphic data to PC.

• To operate the Presenter by PC.

For details, see the installation manual for "Utility Software" and "manual.pdf" in the CDROM.

Installation of LCD Monitor

To install the LCD monitor (LM-5011N) available separately, the LCD monitor mounting metal piece (MS-201) available separately is required.

The LCD monitor (LM-5011N) and the LCD monitor bracket (MS-201) are available on option, and not attached to this Presenter (HV-7100SX).

LCD monitor

LCD monitor bracket

OSD Menu

8 OSD (On-Screen Display)

OSD (On-Screen Display) means the operating menu is displayed on the screen (hereinafter called OSD menu). Using this OSD menu, it is possible to operate this product by the mouse.

Icon Name Function

Reference Pages

To adjust the focus .

Focus Near/Far

P. 32

Icon Name

ENTER

EXIT

Function

Reference Pages

To display the OSD menu.

To remove the OSD menu.

P. 14

●● Menu A

Icon Name Function

Reference Pages

To focus the lens automatically.

To adjust the zoom of the lens.

To adjust the iris of the lens.

To switch the Auto/Manual mode. When this icon is held down for about 4 sec, the iris is reset to the initial default value.

To set the white balance in the AUTO FOLLOW mode. (initial setting)

To set the push-set white balance. When the left button of the mouse is clicked, the white balance for the then color temperature is fixed.

To set the white balance with <RED>, <GREEN> and <BLUE>. Adjust the white balance by clicking the left button of the mouse on the direction buttons beside the volume bar. <RED>…To adjust the red component (01-99). <

GREEN>…To adjust the green component (01-99). <BLUE>…To adjust the blue component (01-99).

Iris Open/Close

Iris Mode

Auto White Balance

Manual White Balance

One-push White Balance

Zoom Tele/Wide

Auto Focus

P. 31

P. 29

P. 28

P. 29

P. 28

P. 21

P. 30

Icon Name

Upper lamp on/off

Base lamp on/off

POSI/NEGA conversion

Color/B&W selection

Image rotation

Function

Reference Pages

To turn on/off the upper lamp. When power is turned on, the previous saved setting remains.

To turn on/off the base lamp. When power is turned on, the previous saved setting remains.

To switch the selection of the color/B&W of the screen. When power is turned on, the previous saved setting remains.

To switch the selection of the positive/negative of the screen. When power is turned on, the previous saved setting remains.

To rotate the image counterclockwise by 90°. When power is turned on, the previous saved setting remains.

P. 20

P. 25

P. 26

P. 19

P. 20

●● Menu B

Icon Name Function

Reference Pages

To switch the image contrast setting. When the power is turned on, the previous saved setting remains.

To switch the selection of the static/moving image. When power is turned on, the initial state is Animation.

To switch the modulation (edge emphasis) of the image. When power is turned on, the previous saved setting remains.

To switch the image F.A.M. (Frame Accumulate Mode) setting. When the power is turned on, the previous saved setting remains.

To switch the gamma setting value (00(1.0) / 01(0.9) / 02(0.8) / 03(0.7) / 04(0.6) / 05(0.5) / 06(0.4) / 07(0.3)). When power is turned on, the previous saved setting remains. The factory setting is “04 (0.6).” Gamma cannot be adjusted when the contrast is on in the negative status.

To adjust the sound volume from the microphone terminal. When the power is turned on, the previous saved setting remains. Click the left button of the mouse on the arrow button by the volume bar and adjust the sound volume. When the left button of the mouse is clicked on the sound volume adjust icon again, the volume bar disappears. The factory setting of the sound volume is 50.

Aperture selection

F.A.M. (Frame Accumulate Mode) Selection

Gamma Adjustment (0-7)

Volume Adjust (0 – 63)

Pause

Contrast Selection

To change the color and shape of the pointer on the screen. Every time the left button of the mouse is clicked, the icon pointer is switched in order of “

White arrow

→ Blue arrow → Yellow arrow → Red arrow → White line → Blue line → Yellow line → Red line

”.

Pointer

P. 27

P. 35

P. 26

Icon Name Function

To draw a free line. At the beginning of the line, click and hold the left button (on the mouse), and then move the mouse pointer by dragging the mouse, and a free line will be drawn.

To draw a straight line between two points. Draw a line by clicking the left button of the mouse on the starting point, releasing the button, moving the pointer to the ending point and then clicking the left button again to complete the line. Then, the straight line between these 2 points is drawn. To cancel the first point, click the right button on the mouse before fixing the second point.

To draw a rectangle. Click the left button on the mouse on a vertex of a rectangle to fix the first point. Then, unclick the left button of the mouse, move the pointer to a vertex of the opposing corner, and click the left button of the mouse again to fix the second point. Then, the rectangle with these 2 points as vertexes is drawn. To cancel the first point, click the right button of the mouse before fixing the second point.

Rectangle Drawing

Straight Line Drawing

Free Line Drawing

To display the horizontal line marker. Click the left button of the mouse in the position in which the horizontal line should be displayed. Each time the left button of the mouse is clicked, Display/Non-display is reversed. The horizontal line marker does not remain as drawing data.

Horizontal Line Marker

●● Menu C

Icon Name Function

To display the vertical line marker. Click the left button of the mouse on the position in which the vertical line should be displayed. Each time the left button of the mouse is clicked, Display/Non-display is reversed. The vertical line marker does not remain as drawing data.

To change the line thickness of the drawing data and line marker. Each time the icon is clicked, the numeric value on the right of the icon switches in this order: “1 → 2 → 3 → 1 → 2 → …” These numeric values show the line thickness. “1” shows “fine,” “2” shows “medium” and “3” shows “thick.” This function is applicable to the free line drawing, the straight line drawing, the rectangle drawing, the horizontal line marker and the vertical line marker.

To delete drawing data partially. Move the eraser cursor to the position in which the drawing data should be erased, and click the left button of the mouse, and the eraser color will turn from blue to red and the drawing data around the cursor will be deleted. When the cursor is moved by dragging the mouse, the portion around the cursor is deleted continuously.

To delete the drawing data enclosed by a rectangle. In the same way as drawing a rectangle, specify 2 vertexes of a rectangle, and the drawing data enclosed by the rectangle will be cleared.

Line Thickness Change

Partial Delete

Box Clear

Vertical Line Marker

To clear the drawing data on display all over the screen. It is also possible to erase the horizontal and vertical line marker and pointing marker.

All Clear

To change the line colors of the drawing data and the line marker. Eight colors are available: black, blue, green, cyan, red, magenta, yellow and white. This function is applicable to the free line drawing, the straight line drawing, the rectangle drawing, the horizontal line marker and the vertical line marker.

Color Palette

Icon Name Function

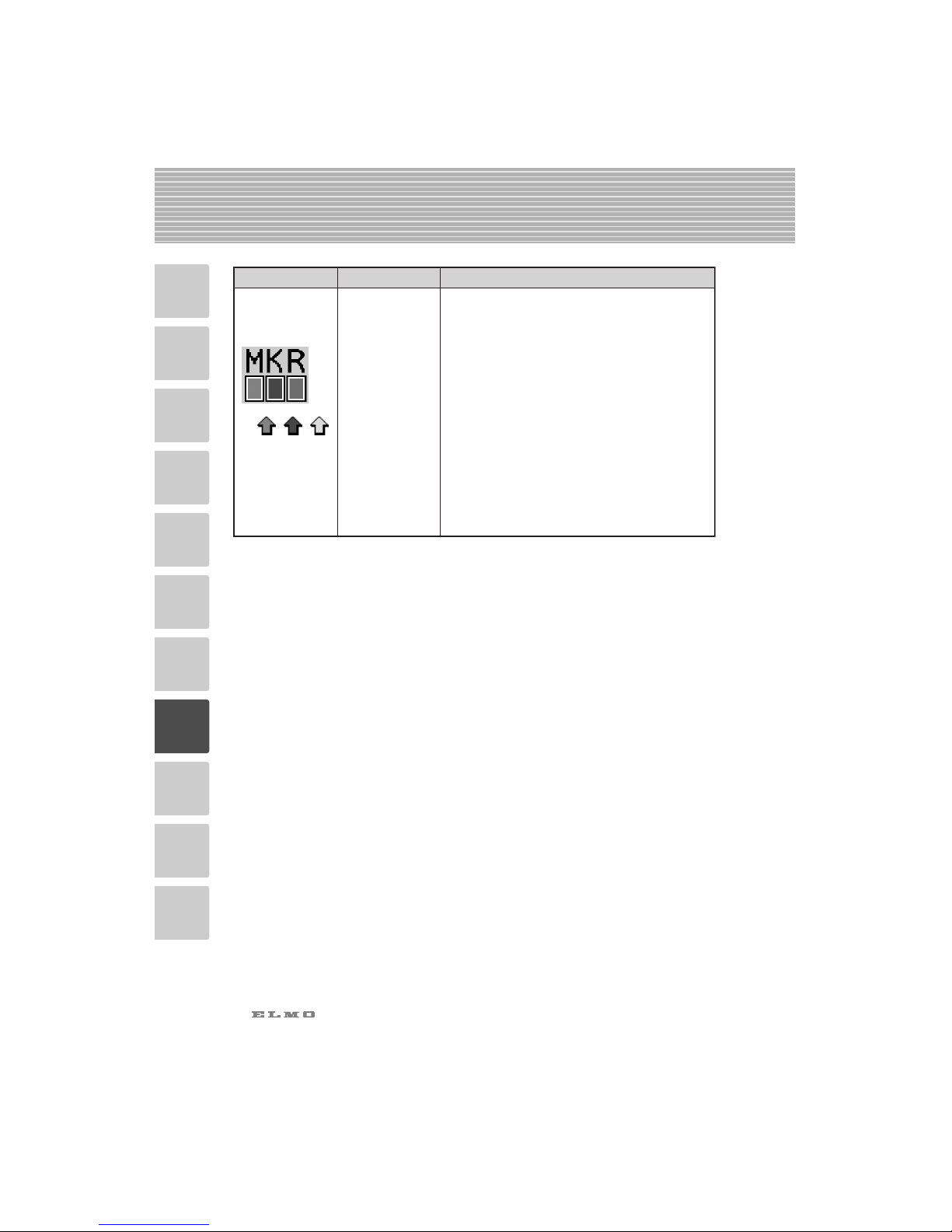

To display the pointing marker in the position in which the material should be pointed up. When the left button of the mouse is clicked on the icon of red, blue or green under the [MKR] display, the pointing marker in the clicked icon color is displayed in the mouse cursor position (The icon outline turns white). The marker moves along with the mouse movement. When the left button of the mouse is clicked in the position in which the marker should be fixed, the marker position is fixed. While the marker is on display, bring the pointer to the marker and click the left button of the mouse, and the marker movement will be enabled again. To conceal the marker, click the left button of the mouse again on the icon under the [MKR] display (The icon outline turns white). Three different markers in red, blue and green can be used together.

Pointing Marker

Icon Name

Preset

Preset Call

Initialization

Status saving

Function

Reference Pages

To preset the condition of this Presenter. Up to 8 conditions from 1 to 8 can be stored.

To reset the condition of this Presenter to the preset condition.

To save initial status when power is turned on. To save the same content as the items recorded in Preset/Move.

To reset this product to the status of the factory settings.

P. 33

●● Menu D

Icon Name Function

Reference Pages

To store images. Up to 8 images from 1 to 8 can be stored. The stored images can be read out until the power of this Presenter is turned off. During the image calling, images cannot be stored.

To read out images from the memory. When an image is set, the set No. on the icon of this function becomes convex. When this icon is clicked, the set image is read out. During the image calling, the icon remains concave. When the icon is clicked again, the image on camera reappears. The image displayed on the split screen cannot be read out (The set No. is shown flat.).

To display the image from the memory and the image on camera together on the split screen. When an image is read out, the icon of this function becomes convex. When this convex icon is clicked, the images are displayed on the split screen (When the image is not read out, the display on the split screen is disabled.). While the image is on display on the split screen, the icon remains concave. When the icon is clicked again, the icon returns to the image read condition.

Screen Split

Image Call

Image Set

P. 34

P. 35

●● Menu E

9 RS-232C SPECIFICATIONS

Setting Up

(1) Connect this product to a PC with an RS-232C connection cable.

When using an RS-232C cable available in the market, make sure of the connection shown the next page.

To protect this product and the PC, be sure to turn off all the power switches of all equipment before connecting.

(2) Start the PC, and set the communication mode of the RS-232C to the communication

mode of this product.

For the information how to set the communication mode of the RS-232C, refer to the instruction manual of the PC.

(3) Start the PC program to operate this product.

(4) Control through the RS-232C will start.

For communication control, be sure to take the above steps for setting.

This product can be controlled by a PC connected to this product through the RS-232C terminal [RS-232C].

Cable Connection

54321

9876

1 2 3 4 5 6 7 8 9

CD RXD TXD DTR SG DSR RTS CTS RI

CD RXD TXD

DTR

SG DSR

RTS

CTS

RI (CI)

1 2 3 4 5 6 7 8 9

DSUB-9P (Female)

54321

9876

PC side : DSUB-9P (Female)

Visual Presenter side

(DSUB-9P)

PC side (DSUB-9P)

Data Format Specifications

This command is executed in the form of 1-command/1 packet. The next command is not accepted until the previous processing is completed.

• The communication command always starts with STX (Start of Text) , and ends with ETX (End of Text) .

• If the communication format or command name is wrong, NAK (Negative Acknowledgement) will be sent from this product as a result of failing to receive correctly.

• When the communication format is correctly received, this product sends ACK (Normal Acknowledgement).

■ Transmission Command (PC → Visual Presenter)

Each operation command is executed in ASCII code, and transmitted in a set of 7 bytes as follows:

■ Response data format (Visual Presenter → PC)

All response data is transmitted as ASCII code, and it covers parameter in the table of operation command.

• Status 0

• Status 2

E T

Command

(PC)

(

Visual Presenter) → ACK

Data

Parameter

S T X

osi

olor

/ B&W

ointer

pla

lectroni

enlargemen

ocal

k out

E T X

RGB

outpu

selectio

ightin

selectio

aus

adjustment

32H

Video output

selection

S T X


rotation

Aperture

White

balance

Contrast

30H

(Normal)

31H

(Adjustment)

E T X

• Status 7

• Status 8

Byte not storing images is 30H. Byte storing images is 31H. Byte reading out images is 32H.

• ROM version

F.A.M.

Iris

Mode

20H

AUTO:31H

MANUAL:32H

20H 20H 20H 20H

20H

S T X

E T


Memory8


Memory7


Memory6


Memory5


Memory4


Memory3


Memory2


Memory1

S T X

E T

56H

48H

50H

S T X

20H

ROM version

20H

Transmission Specifications

• Full duplex start-stop sync. mode

• Start bit : 1 bit

• Data bit : 8 bits

• Stop bit : 1 bit

• Parity bit : None

• X parameter : None

• Baud rate (Communication speed) : 9600bps

Function

Command

Parameter

Data

Auto Focus AF ■ ■0

Posi/Nega NP ■ ■0 (POSI)

1 (NEGA)

Color/B&W CB ■ ■

0 (COLOR) 1 (B&W)

Pointer display PO ■ ■0 (OFF)

1 (ON)

Electronic enlargement

■ ■

■ ■0 (OFF)

1 (ON)

Pause FZ 0 (OFF)

1 (ON)

Enlarged image move

PM ■ ■0 (STOP)

1 ( → ) 2 ( ← ) 3 ( ↑ ) 4 ( ↓ ) 5 ( ) 6 ( ) 7 ( ) 8 ( )

• When pointer is on.: The pointer moves.

• When the image enlargement is on.: The enlarged image moves.

To change the RGB output line.

To change the video output line.

Focus adjustment

FO ■ ■

+ (NEAR) – (FAR) 0 (STOP)

Zoom adjustment

ZO ■ ■

+ (TELE) – (WIDE) 0 (STOP)

Lighting selection

PL ■ ■0 (OFF)

1 (BASE) 2 (UPPER)

RGB output selection

AV ■ ■

0 (MAIN) 1 (RGB1) 2 (RGB2)

Video output selection

MO ■ ■

0 (MAIN) 1 (RGB1) 2 (RGB2)

Iris adjustment IR ■ ■+ (OPEN)

– (CLOSE) 0 (STOP) 1 (AUTO)

Comments

↑

■ ■γ adjustment GN 0 (γ = 1.0) 1 (γ = 0.9) 2 (γ = 0.8) 3 (γ = 0.7) 4 (γ = 0.6) 5 (γ = 0.5) 6 (γ = 0.4) 7 (γ = 0.3)

UART Communication Format

Commands, parameters and data are all transmitted in ASCII code.

Connection

If the RS-232C cable is not correctly connected between this product and the PC, no acknowledgement is transmitted. Connect the RS-232C cable correctly, and fix it firmly with the connector set screws before the operation.

Function

Command

Parameter Data

Image rotation RO

0 (0°) 1 (90°) 2 (180°) 3 (270°)

■ ■

Aperture selection

White balance selection

■ ■

0 (OFF) 1 (ON)

0 (OFF) 1 (AUTO) 2 (

ONE-PUSH

)

F.A.M. selection

■ ■

0 (OFF) 1 (ON)

Comments

Image Store IS

■ ■

1 2 3 4 5 6 7 8

Image Read IC

■ ■

1 2 3 4 5 6 7 8

Contrast CT

■ ■

0 (OFF) 1 (ON)

Local Lockout LL

■ ■

0 (OFF) 1 (ON)

Default DF

■ ■

Status request QS

■ ■

0 2 7 8

Rom version QR

■ ■

ACK check SA

■ ■

0 (OFF) 1 (ON)

CR addition SC

■ ■

0 (OFF) 1 (ON)

"■ ■" in the data column means that the SPACE [20H] should be transmitted twice.

Replacement of Fluorescent Lamp

The lighting lamps (fluorescent lamps) are expendables. When any of them begins to shimmer or be less bright, replace it.

For the replacement of the lamp, consult your dealer from whom you have purchased the product or an authorized ELMO service center.

10 TROUBLESHOOTING HINTS

Check the following items. If any abnormality is found, consult the seller or our branch/office near your place.

No image on TV monitor

• Cable is not properly connected to the video-in terminal of monitor.

• The power cord is disconnected from the wall AC outlet.

• The plug is disconnected from the power cord receptacle of this

product.

• The power switch is not turned on.

• Zoom is set at TELE to display only white/black part of the

material.

• The power switch is turned on immediately after it is turned off. In this case, this product may not start. Wait several seconds after

turning off the power switch, and then turn on the power switch.

Symptom Possible cause / countermeasure

Image is too dark.

The image is striped.

Brightness tone is out of order.

Out of focus

The lamp is not quickly turned ON.

Video output image is disarrayed.

• The object is too close to the lens. Check if it does not stand higher than 10cm (3.9 in.) above the stage surface.

• Zoom is set at TELE after focusing at WIDE angle. Focus on the point of max. TELE.

• In the auto-focus, focusing is difficult in some cases.

• For protection purposes, the lamp is turned on after preheating for

2 seconds. This is not a fault.

• The intensity of illumination is not sufficient. Press the [LAMP] button on the front panel or the wireless remote control and turn on the upper lamp.

• Is the iris adjusted to "Close" side? Adjust the iris to "Open" side.

• This may be interference fringes between dots of printed matter and TV scanning lines or CCD pixels, which may be mitigated by changing the projection range.

• When using an LCD projector, vertical stripes may appear on the screen. This may be mitigated by manually adjusting the dot clock frequency on the projector side (refer to P. 16).

• This may be mitigated by switching gamma setting.

• Is the video output type set to the PAL?

If this machine which is set to PAL is connected to the monitor specially designed for NTSC, the video image may not be output normally, in which the image is disarrayed, or becomes black and white. Switch the video output type by referring to P. 11 "Dip Switches."

Symptoms and Confirmation

■ General

11 SPECIFICATIONS

Item

Power source AC100-240V 50Hz/60Hz Rated current 0.8A – 0.45A

Weight 10kg (22 lbs.) (main body only) Input selection Main Camera / External Analog RGB input × 2 Output terminal RGB output ×1

×1 ×1

Composite video output S-video output

Mini DSUB 15P connector, female

Input terminal

Ext. control terminal

RGB input

×2

×1 ×1 ×1

DSUB 15P connector, female

RS-232C Mouse

USB

DSUB 9P connector, male Mini DIN 6P connector, female Type B receptacle

RCA pin jack/75Ω unbalanced (NTSC/PAL) Mini DIN 4P connector/75Ω unbalanced (NTSC/PAL)

Outside dimensions

(W × D × H)

400mm × 541mm × 197mm (16.0 × 21.6 × 7.9 in.) (When folded) 697mm × 541mm × 629mm (27.9 × 21.6 × 25.2 in.) (When set up)

Specifications

1 pair

Audio output (Stereo)

RCA pin jack/applicable impedance 10kΩ or more –10dB

12VDC Out Terminal

×1Mini DIN 9P connector, female

Audio input (Stereo)

×2500mV (rms) impedance 47kΩ or more

φ3.5mm stereo mini jack

Microphone input (Mono)×1φ6.3mm jack/ applicable impedance 600Ω –65dB

■ Main Camera

f = 7.2 – 72mm (10 - time zoom), F3.1 15 frames / sec SXGA 362mm × 290mm (14.5 × 11.6 in.) max.

41mm × 33mm (1.6 × 1.3 in.) min. XGA 380mm × 285mm (15.2 × 11.4 in.) max.

43mm × 32mm (1.7 × 1.3 in.) min. From the stage surface to 100mm (3.9 in) above the stage surface Powered (with double speed function) Auto / Manual Auto (with level adjustment) / Manual 1/1.8″ CCD 1688(H) × 1248(V), 2,110,000 pixels SXGA 1525(H) × 1220(V) XGA 1600(H) × 1200(V) Internal sync. Analog RGB output : Horizontal 900TV lines or more;

Vertical 900TV lines or more Video output : Horizontal 470 TV lines or more

SXGA (negative polarity) XGA (positive polarity)

0.7V (P-P) 75Ω unbalanced, Synchronization signal, Signal frequency SXGA:

Horizontal frequency

63.981 kHz,

Vertical frequency

60.020 Hz

(1280 × 1024 at 60 Hz); Compliant with VESA XGA:

Horizontal frequency

48.363 kHz,

Vertical frequency

60.004 Hz

(1024 × 768 at 60 Hz); Compliant with VESA Compliant with NTSC/PAL Compliant with NTSC/PAL Full auto / One-push / Manual Provided (NTSC / PAL) Provided Provided Provided (0° / 90° / 180° / 270°) Provided Provided (1.0 / 0.9 / 0.8 / 0.7 / 0.6 / 0.5 / 0.4 / 0.3) Provided Provided Provided (2×, can be scrolled) Controllable by mouse (color selectable) Provided Provided Provided

Lens Shooting speed Shooting area

(H × V)

Limit of focus adjustment Zooming Focusing Iris Image pick-up element Total picture elements Effective picture element Sync. system Resolution

Analog RGB output

Composite video output S-video output White balance Video output selection Posi/Nega conversion Color/B&W selection Image rotation Contrast Gamma selection Aperture selection Pause Electronic image enlargement Pointer F.A.M. Drawing function Split screen function

Item Specifications

■ Lighting

Item

Upper High frequency lighting mode, 3-wave-length type fluorescent lamp

6W (Model: FHL6EX-N

)

Base High frequency lighting mode, 3-wave-length type fluorescent lamp

Area size: 296mm (W) × 216mm (H) (11.7 × 8.5 in.

)

Specifications

■ Supplied Accessories

1 1 1 1 1 2 1 1 1 1 1 1 1

QuantityName

Power cord (2.5m

) LCD monitor connection cable Video cable (RCA pin connector) (3 m

) S-video cable (Mini DIN 4P connector) (2 m) Infrared wireless remote controller (RCW-732

) Batteries (Type R03, AAA) Analog RGB cable (DSUB 15P connector) (2 m) Instruction manual for HV-7100SX Warranty card for HV-7100SX Scroll mouse USB cable (1.8m) Utility Software CD-ROM Utility Software Installation Manual

■ Options

• 5" TFT LCD color monitor kit (LM-5011N)

• LCD monitor bracket (MS-201)

• Accessory lens (ICL-430)

For the RCA pin, use a pin plug compliant with RC-6703.

The above specifications are subject to change without prior notice.

Trademark Acknowledgements

VESA is a registered trademark of Video Electronics Standards Association.

VGA, SVGA, XGA and SXGA are trademarks or registered trademarks of International Business Machines Corporation.

, , VISUAL PRESENTER, FOCUSFREE are trademarks or registered

trademarks of ELMO Co., Ltd.

WARNING

Unauthorized recording of copyrighted

slide films, materials, photographs, etc.

may infringe on the rights of copyright

owners and be contrary to copyright

laws.

Printed in Japan

6X1VHIN02

ELMO CO., LTD.

6-14, Meizen-cho, Mizuho-ku, Nagoya, 467-8567, Japan

OVERSEAS SUBSIDIARY COMPANIES

U.S.A. ELMO Mfg. Corp.

1478 Old Country Road, Plainview, NY 11803-5034

Tel:(516)501-1400 Fax:(516)501-0429

E-mail: elmo@elmousa.com

Web: http://www.elmousa.com/

Canada ELMO Canada Mfg. Corp.

44 West Drive, Brampton, Ontario L6T 3T6

Tel:(905)453-7880 Fax:(905)453-2391

E-mail: info@elmocanada.com

Web: http://www.elmocanada.com/

Germany ELMO (Europe) G.m.b.H

Neanderstr. 18, 40233 Düsseldorf

Tel:(0211)376051 Fax:(0211)376630

E-mail: elmoeurope@AOL.com

Web: http://www.elmo.de/

Printed on recycled paper

Elmo Visual Presenter HV-7100SX Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
