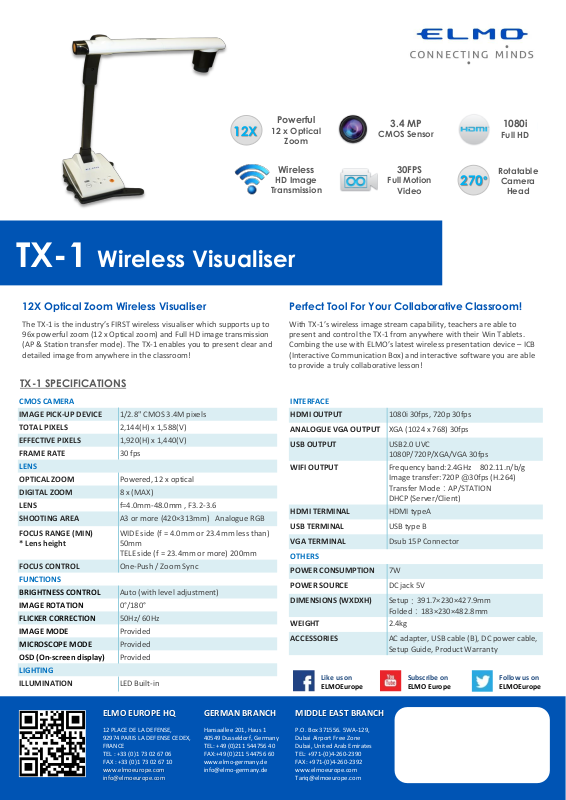

Elmo TX-1 Service Manual
TX-1 Wireless Visualiser
CMOS CAMERA
IMAGE PICK
-UP DEVICE
1/2.8" CMOS 3.4M pixels
TOTAL PIXELS
2,144(H) x 1,588(V)
EFFECTIVE PIXELS
1,920(H) x 1,440(V)
FRAME RATE
30 fps
LENS
OPTICAL ZOOM
Powered, 12
x optical
DIGITAL
ZOOM
8 x (MAX)
LENS
f=4.0mm
-48.0mm , F3.2-3.6
SHOOTING AREA
A3 or more (420
×313mm) Analogue RGB
FOCUS RANGE (MIN)
* Lens
height
WIDE side (f = 4.0mm or 23.4mm less than)
50mm
TELE side (f = 23.4mm or more)
200mm
FOCUS CONTROL
One
-Push / Zoom Sync
FUNCTIONS
BRIGHTNESS CONTROL
Auto (with level adjustment)
IMAGE ROTATION
0
°/180°
FLICKER
CORRECTION
50Hz/
60Hz
MODE
Provided
MICROSCOPE
MODE
Provided
OSD
(On-screen display)
Provided
LIGHTING
ILLUMINATION
LED Built
-in
TX-1 SPECIFICATIONS
3.4 MP
CMOS Sensor
30FPS
Full Motion
Video
INTERFACE
HDMI OUTPUT
1080i 30fps,
720p 30fps
ANALOGUE VGA OUTPUT
XGA (1024 x 768) 30fps
USB OUTPUT
USB2.0 UVC
1080P/720P/XGA/VGA
30fps
WIFI OUTPUT
Frequency band:2.4GHz
802.11.n/b/g
Image transfer:720P
＠
30fps (H.264)
Transfer Mode
：
AP/STATION
DHCP (Server/Client)
HDMI TERMINAL
HDMI typeA
USB
TERMINAL
USB type B
VGA TERMINAL
Dsub 15P Connector
OTHERS
POWER CONSUMPTION
7
W
POWER SOURCE
DC jack 5V
DIMENSIONS (WXDXH)
Setup
：
391.7×230×427.9mm
Folded
：
183×230×482.8mm
WEIGHT
2.4kg
ACCESSORIES
AC adapter, USB cable (B),
DC power cable,
Setup Guide,
Product Warranty
Like us on
ELMOEurope
Subscribe on
ELMO Europe
Follow us on
ELMOEurope
Rotatable
Camera
Head
Wireless
HD Image
Transmission
12X
Powerful
12 x Optical
Zoom
12X Optical Zoom Wireless Visualiser Perfect Tool For Your Collaborative Classroom!
The TX-1 is the industry’s FIRST wireless visualiser which supports up to
96x powerful zoom (12 x Optical zoom) and Full HD image transmission
(AP & Station transfer mode). The TX-1 enables you to present clear and
detailed image from anywhere in the classroom!
With TX-1’s wireless image stream capability, teachers are able to
present and control the TX-1 from anywhere with their Win Tablets.
Combing the use with ELMO’s latest wireless presentation device – ICB
(Interactive Communication Box) and interactive software you are able
to provide a truly collaborative lesson!
1080i
Full HD
270°
