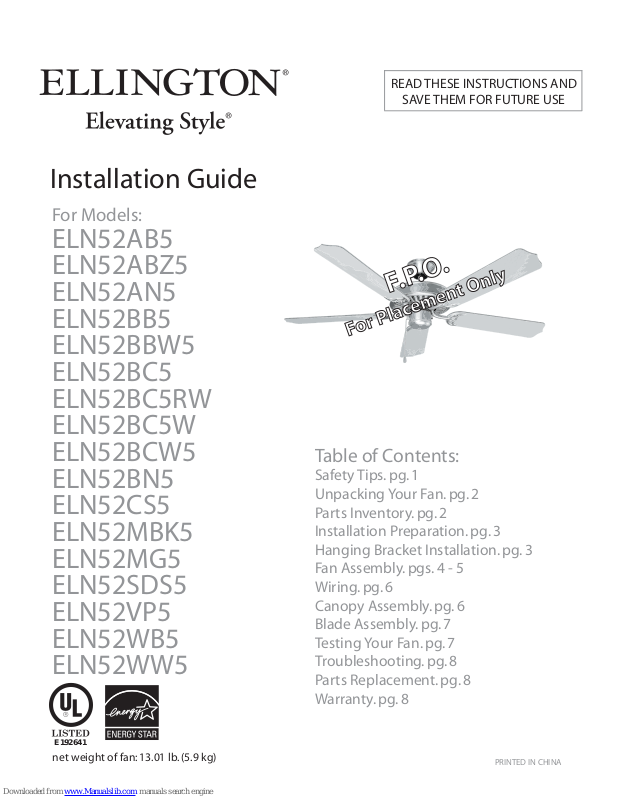

Page 1
Installation Guide
F.P.O.
For Placement Only
For Models:
ELN52AB5
ELN52ABZ5
ELN52AN5
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
F. P. O.
ELN52BB5
ELN52BBW5
ELN52BC5
ELN52BC5RW
ELN52BC5W
ELN52BCW5
ELN52BN5
ELN52CS5
ELN52MBK5
ELN52MG5
ELN52SDS5
ELN52VP5
For Placement Only
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pg. 3
Fan Assembly. pgs. 4 - 5
Wiring. pg. 6
Canopy Assembly. pg. 6

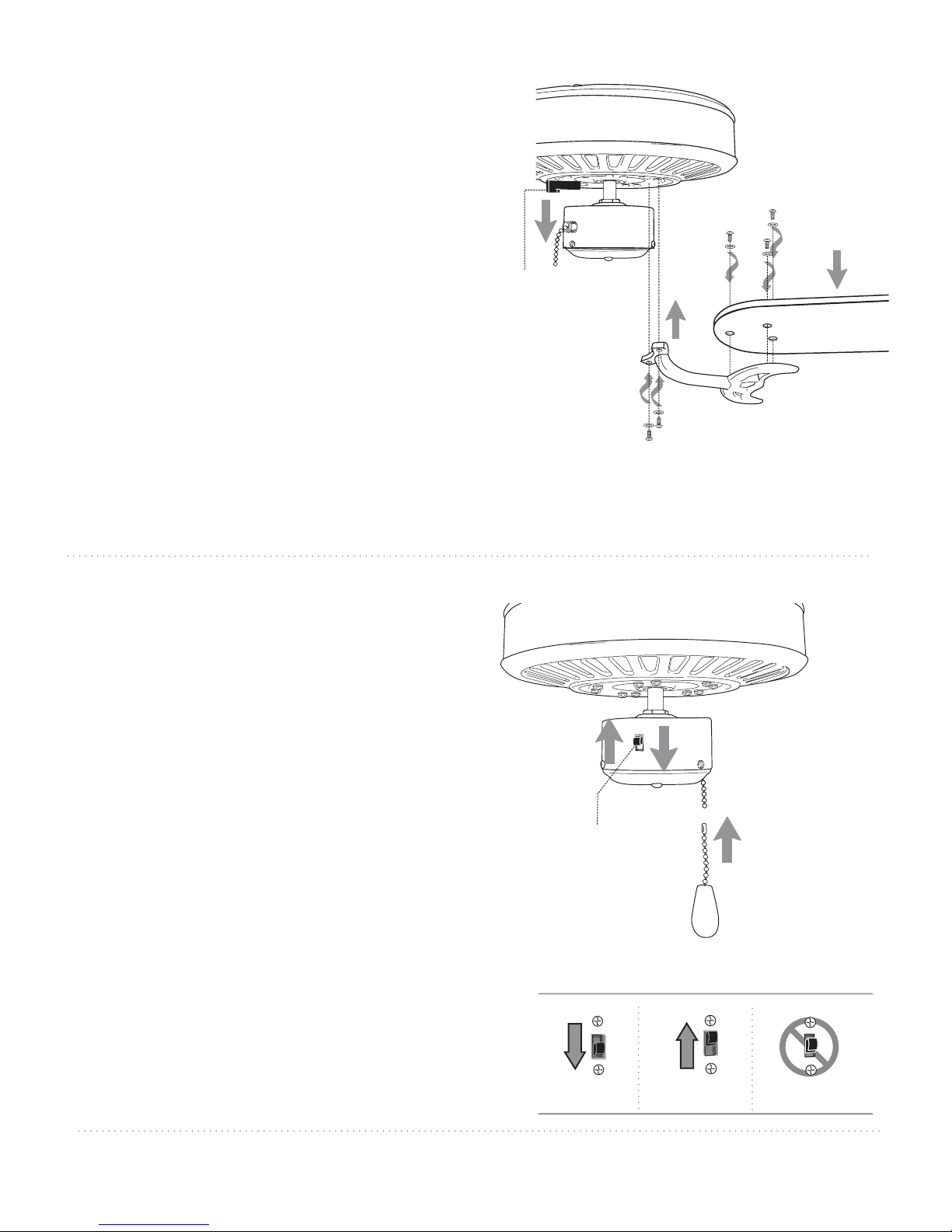

Blade Assembly. pg. 7
ELN52WB5
ELN52WW5
E192641
net weight of fan: 13.01 lb. (5.9 kg)
Testing Your Fan. pg. 7
Troubleshooting. pg. 8
Parts Replacement. pg. 8
Warranty. pg. 8
PRINTED IN CHINA
Page 2
SAFETY TIPS.
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit
panel before you begin the fan installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN
AND SAVE THESE INSTRUCTIONS.
CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code,
and ANSI/NFPA 70-1999. If you are unfamiliar with electrical wiring or if the house/building wires are
different colors than those referred to in the instructions, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate, and at
least seven (7) feet (2.13 meters) of clearance between the floor and the fan blade tips. The fan should
be mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or
other upright structures.
4. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at
least 35 pounds (16 kilograms). The outlet box must be supported directly by the building structure.
Use only UL listed outlet boxes marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked
"Acceptable for Fan Support," and use the mounting screws provided with the outlet box. Most outlet boxes
commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan
are designed to accept only one12 gauge house wire and two lead wires from the fan. If your house wire is larger
than 12 gauge or there is more than one house wire to connect to the two fan lead wires, consult an electrician
for the proper size wire connectors to use.
5. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and
marked suitable for use with the model fan you are installing. Switches must be UL general use
switches. Refer to the instructions packaged with the light kits and switches for proper assembly.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up
into the outlet box. The wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of electrical shock or fire, do not use this fan with any solid state speed control
device or control fan speed with a full range dimmer switch. [Using a full range dimmer switch to control fan
speed will cause a loud humming noise from fan.] (Note: This fan is suitable for use with remote control.)
8. Do not operate the reverse switch until fan has come to a complete stop.
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade arms during assembly or after
installation. Do not insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or
cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense and caution are
necessary factors in the installation and operation of this fan.
page 1
Page 3
1. Unpacking Your Fan.
Carefully open the packaging. Remove items
from Styrofoam inserts. Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.

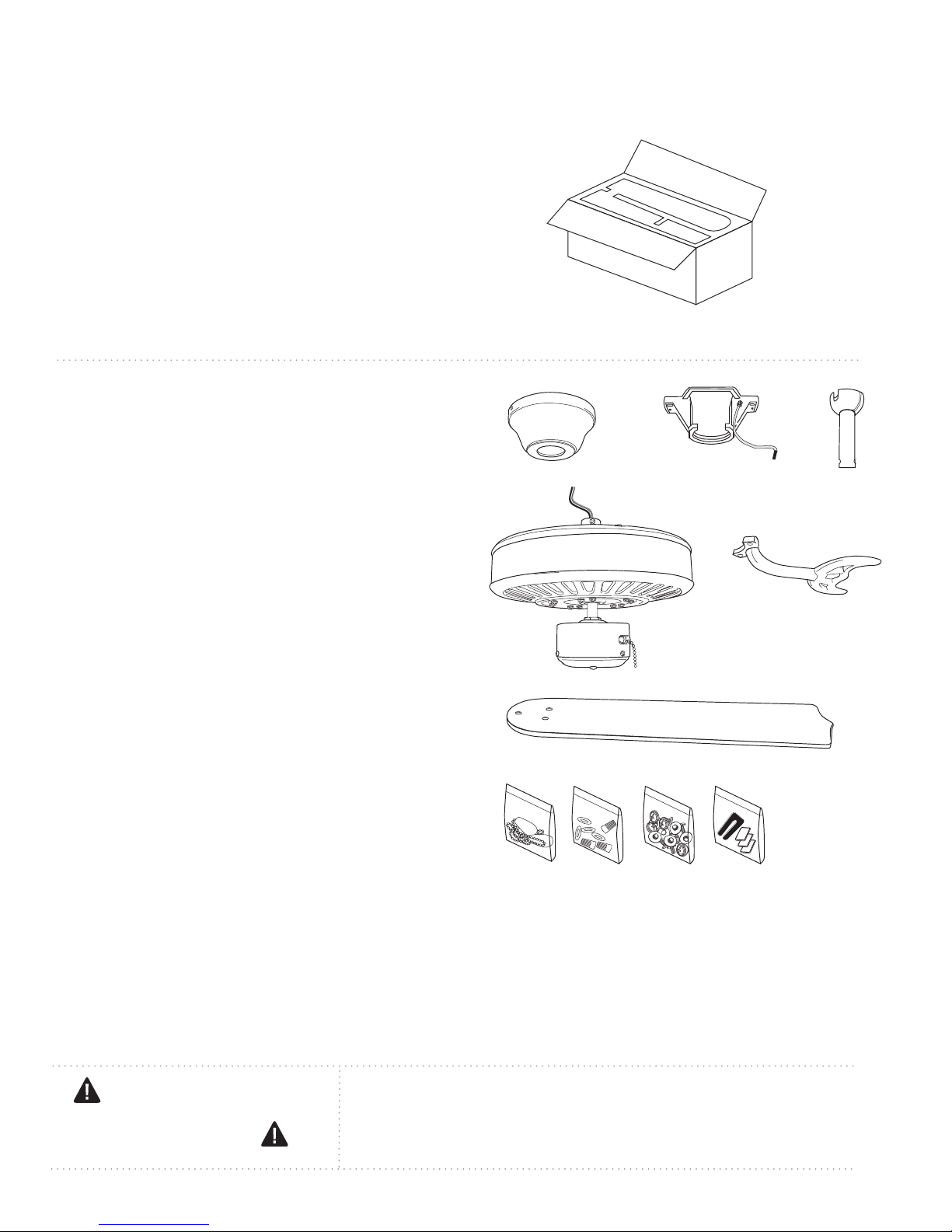

2. Parts Inventory.
b. hanging bracket. 1 piece
c. 4in. downrod and hanging ball. 1 piece
d. motor housing. 1 piece
a. canopy. 1 piece
e. blade arm. 5 pieces
f. blade. 5 pieces
g. hardware packs
a
d
f
g
b
e
c
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
page 2
Page 4

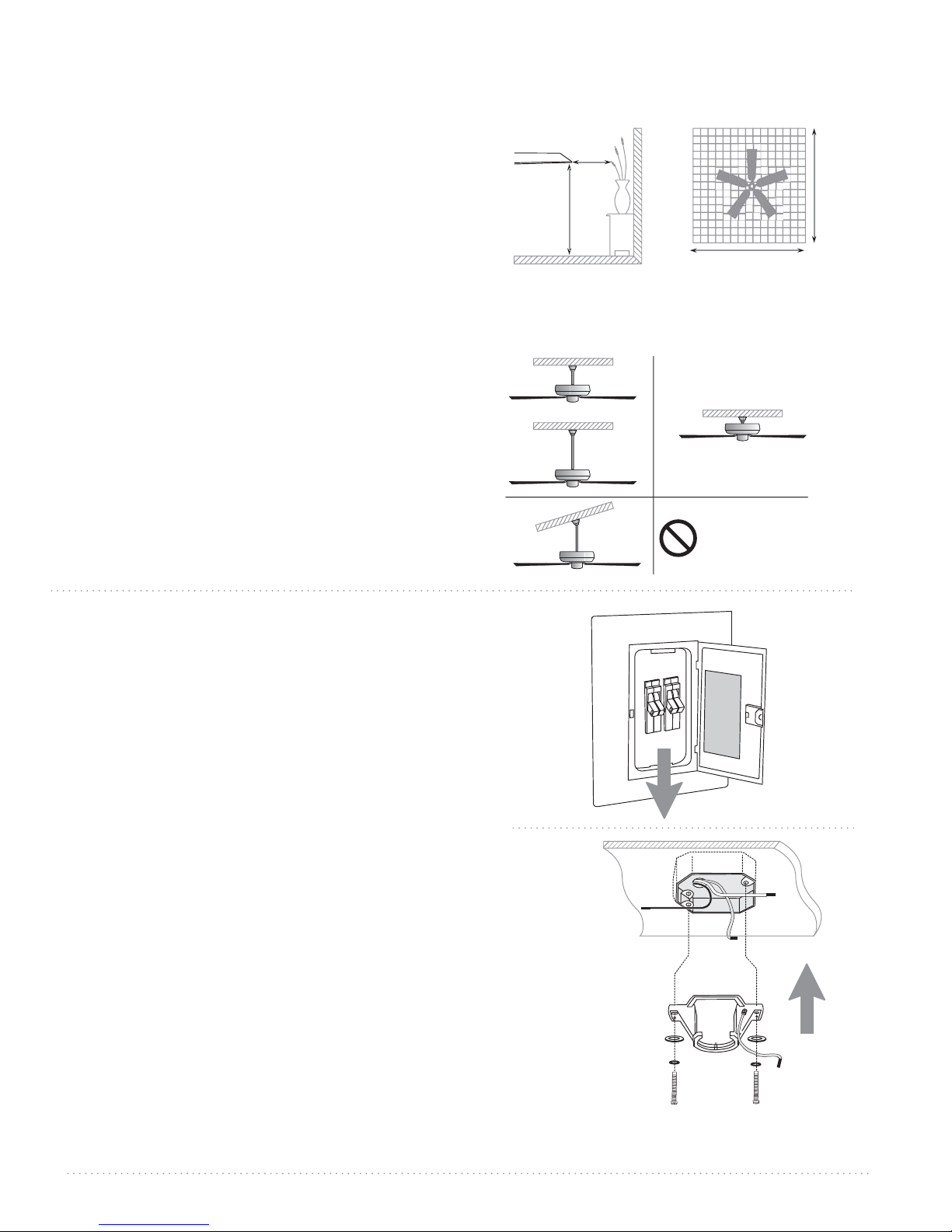

3. Installation Preparation.
blade edge
To prevent personal injury and damage, ensure
that the hanging location allows the blades a
clearance of 7ft. (2.13m) from the floor and 30in.
(76cm) from any wall or obstruction.
This fan is suitable for room sizes up to 400 square
feet (37.2 square meters).
This fan can be mounted with a downrod
on a normal or vaulted ceiling. The hanging length
can be extended by purchasing a longer downrod
(0.5in./1.27cm diameter). After installing hanging
bracket, continue to Section 5 on page 4 for those
instructions. This fan can also be mounted with
flushmount installation only on a normal ceiling.
After installing hanging bracket, continue to Section
6 on page 5 for those instructions.
Installation requires these tools:
Phillips screwdriver, flat-head screwdriver,
adjustable pliers or wrench, stepladder, wire
cutters, and rated electrical tape.
inches
(76cm)
7 feet
(2.13m)
downrod
installation
30
12ft. - 20ft.
(3.66m - 6.1m)
12ft. - 20ft.
(3.66m - 6.1m)
flushmount
installation
Vaulted ceiling
angle is not to
exceed 25 degrees.
4. Hanging Bracket Installation.
Turn off circuit breakers to current fixture from breaker
panel and be sure operating light switch is turned to the
OFF position.
WARNING: Failure to disconnect power supply prior to
installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be sure the
outlet box is securely attached to the building structure and
can support the full weight of the fan. Ensure outlet box is
clearly marked "Suitable for Fan Support." If not, it must be
replaced with an approved outlet box. Failure to do so can
result in serious injury.
CAUTION: Be sure outlet box is grounded properly and that a
ground wire (green or bare) is present.
Install hanging bracket to outlet box using original screws,
spring washers and flat washers provided with new or
original outlet box.* If installing on a vaulted ceiling, face
opening of hanging bracket towards high point of ceiling.
Arrange electrical wiring around the back of the hanging
bracket and away from the hanging bracket opening.
*Note: It is very important that you use the proper hardware
when installing the hanging bracket as this will support the fan.
hanging bracket
flat washers
spring washers
outlet box screws
ON
ON
OFF
OFF
page 3
Page 5

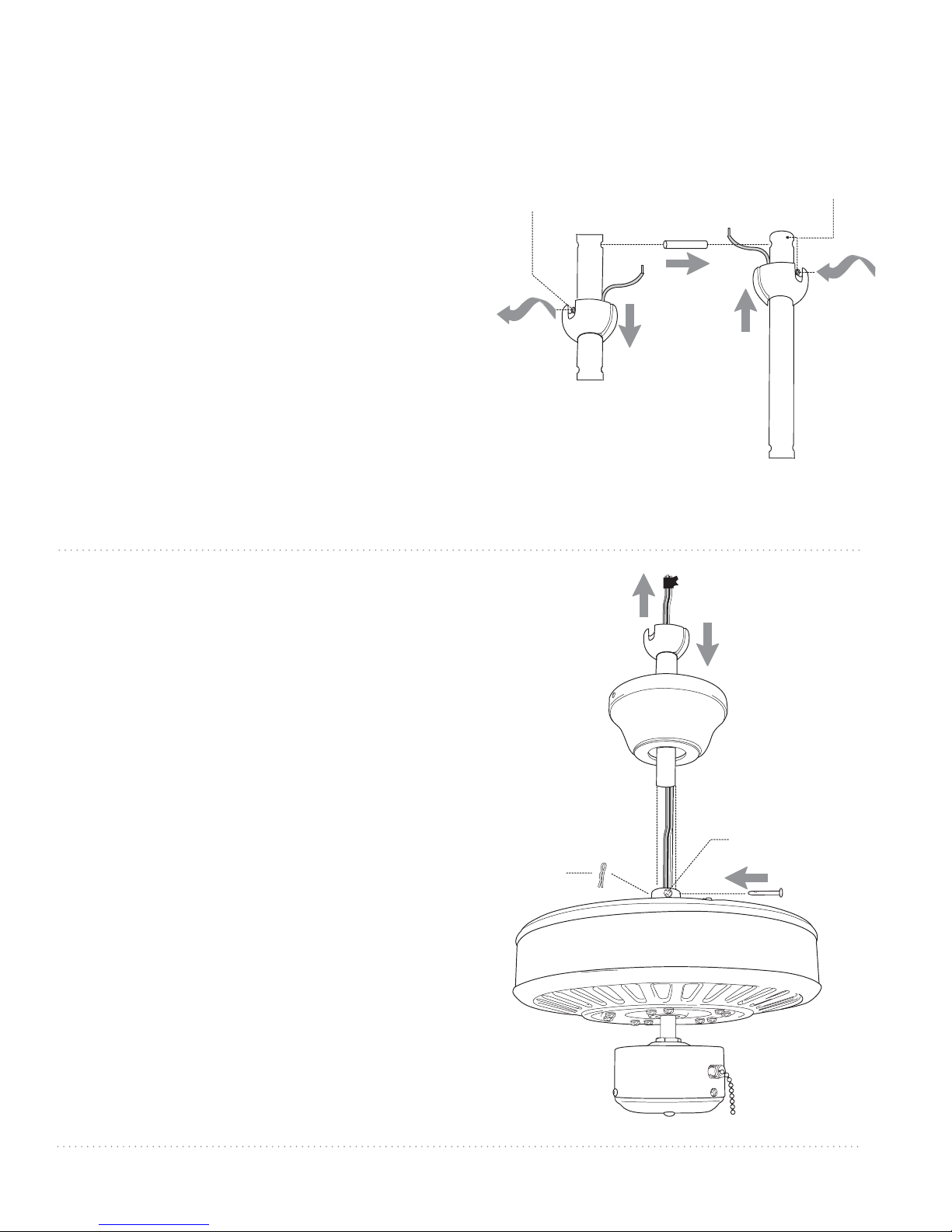

5. Fan Assembly (with downrod).
If you wish to extend the hanging length of
your fan, you must remove the hanging ball
from the 4in. downrod provided to use with an
extended downrod (sold separately). [If you
wish to use the 4in. downrod, please proceed to
instructions following the dotted line below.]
set screw
set screw hole
stop pin
To remove hanging ball, loosen set screw on
hanging ball, lower hanging ball and remove
stop pin. Slide hanging ball off the original
downrod, A, and slide it down the longer
downrod, B (the top of the downrod should be
noted as having a set screw hole; use this hole
when setting the set screw). Insert stop pin into
top of extended downrod and raise hanging
ball. Be sure stop pin aligns with slots on the
inside of the hanging ball. Tighten set screw
securely.
Tip: To prepare for threading electrical wires
through dowrod, apply small piece of electrical
tape to the ends of the electrical wires--this will
keep the wires together when threading them
through the downrod.
Loosen yoke set screws and nuts and remove
pin and clip from motor housing yoke. Slide
downrod through canopy.
hanging ball
A
B
electrical wiring
downrod
canopy
Thread electrical wires through downrod and
pull extra wire slack from the upper end of the
downrod.
Place downrod into the motor housing yoke
and re-insert pin and clip that were previously
removed. Tighten yoke set screws and nuts
securely. Lower canopy to motor housing.
["Fan Assembly" continued on next page.]
NOTE: The important safety precautions and
instructions appearing in the manual are not
meant to cover all possible conditions and
situations that may occur. It must be understood
that common sense and caution are necessary
factors in the installation and operation of this fan.
yoke set screw
and nut
clip
pin
motor housing
page 4
Page 6

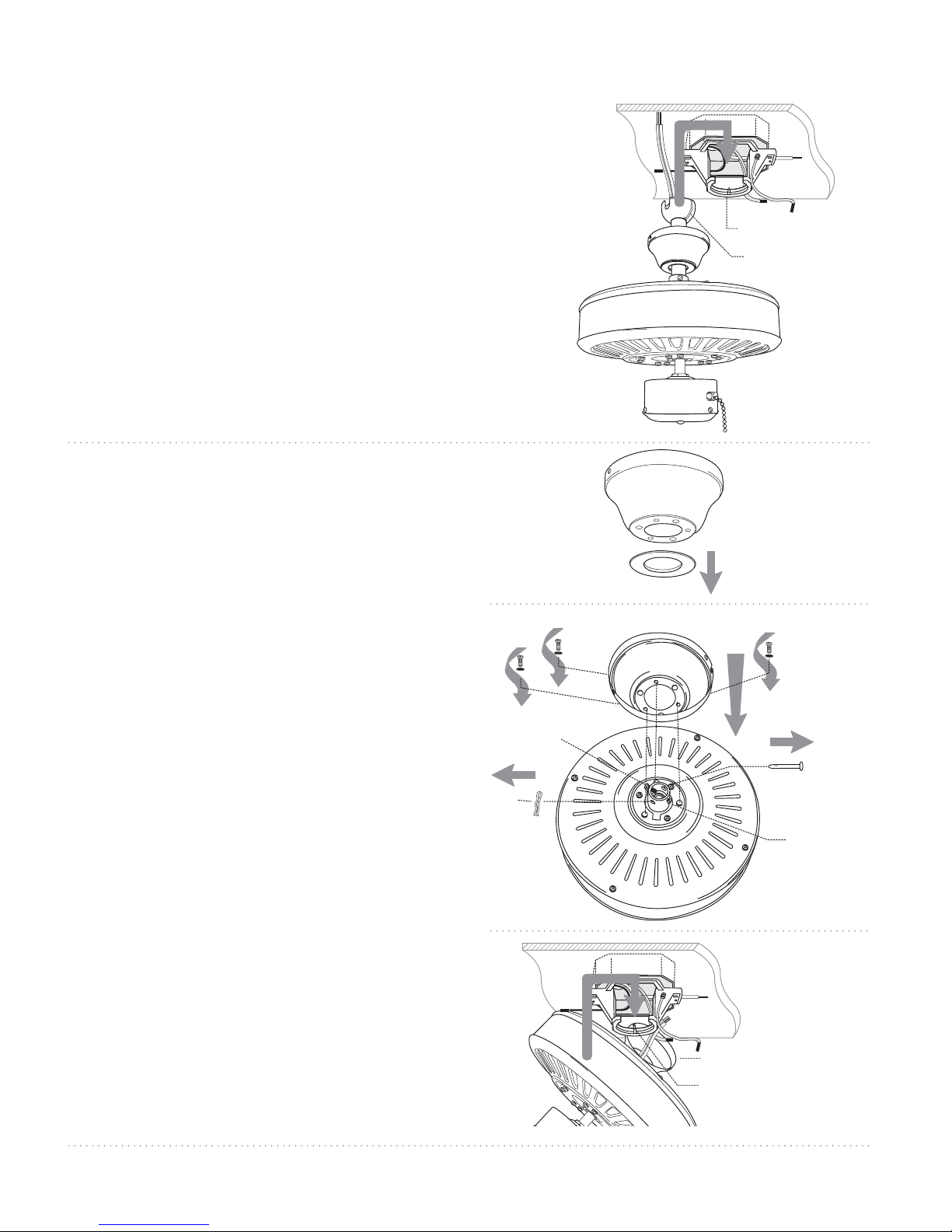

5. Fan Assembly (with downrod). (cont.)
With the hanging bracket secured to the outlet
box and able to support the fan, you are now ready
to hang your fan. Grab the fan firmly with two
hands. Slide downrod through opening in hanging
bracket and let hanging ball rest on the hanging
bracket. Turn the hanging ball slot until it lines up
with the hanging bracket tab.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you
once you are set on the ladder.
Continue to the "Wiring" section for wiring
diagram.
hanging bracket tab
hanging ball slot
6. Fan Assembly (flushmount).
Remove and set aside canopy cover to reveal
6 holes. Notice that 3 holes are larger than the
others.
If there are only 3 screws in top of motor
housing, please proceed to next paragraph. If
there are 6 screws in top of motor housing,
remove every other screw and lock washer.
Remove pin, clip and set screws from motor
housing yoke. Thread wiring through canopy.
Place canopy over yoke, aligning larger holes
in canopy with the 3 existing screws in top of
motor housing. Insert the 3 screws and 3 lock
washers that were removed (if there were
only 3 screws located in top of motor housing,
these screws/lock washers will be located in
one of the hardware packs) into the
remaining holes. Securely tighten these
screws.
canopy
canopy cover
canopy
set screw
pin
clip
yoke
motor housing
To prepare the fan for wiring, hang fan onto
hanging bracket by sliding the canopy over
the hanging bracket tab. (Use one of the
non-slotted holes on the rim of the canopy to
do so.)
canopy
hanging bracket tab
motor housing
page 5
Page 7

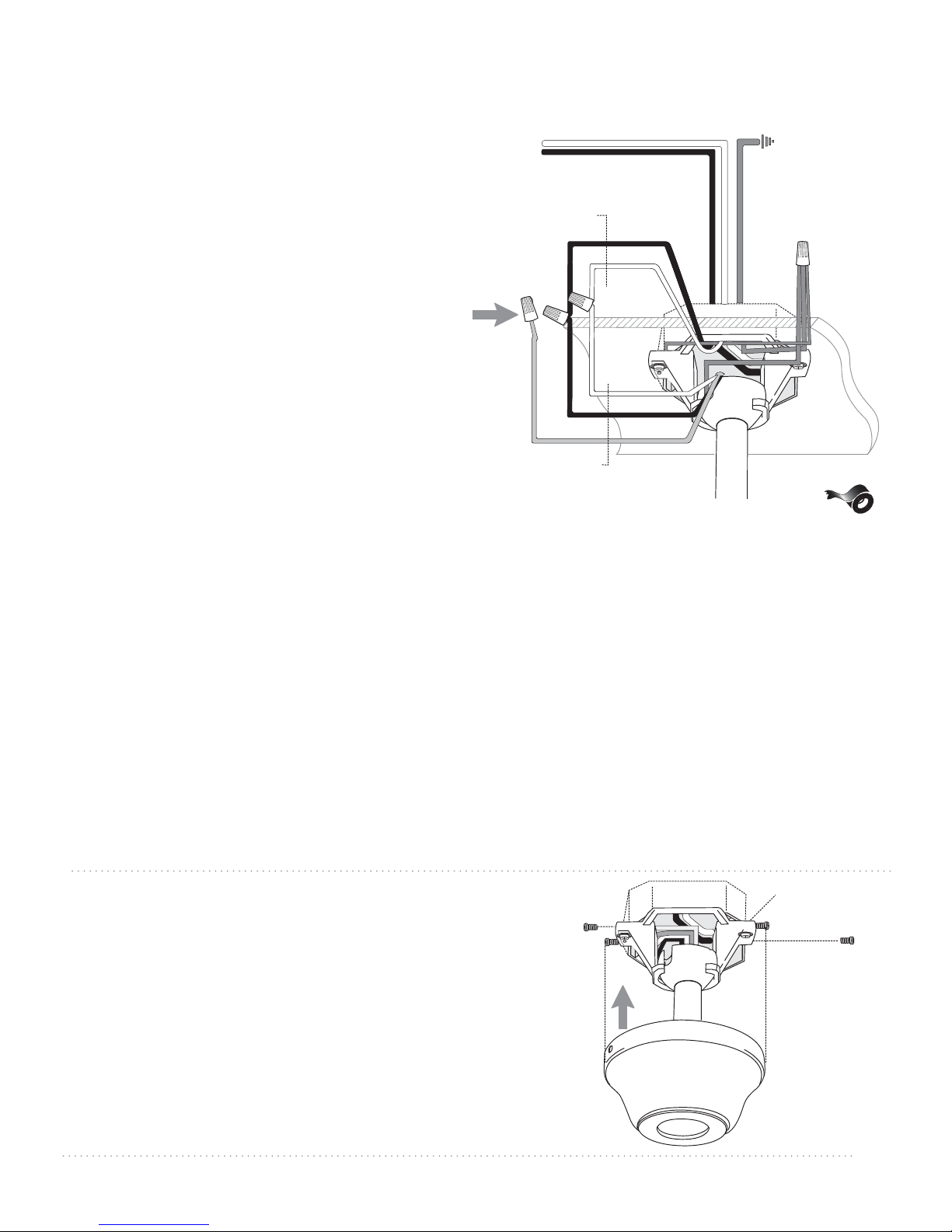

7. Wiring.
CAUTION: Be sure outlet box is properly grounded
and that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with Local
Codes or Ordinances and the National Electrical Code.
If you are unfamiliar with electrical wiring or if the
house/building wires are different colors than those
referred to in the instructions below, please use a
qualified electrician.
Note: Excess lead wire length from the fan can be cut
to the desired length and then stripped.
When downrod is secured in place on the hanging
bracket, electrical wiring can be made as follows:
Connect BLACK wire from fan to BLACK wire from
ceiling with wire connector provided.
Connect WHITE wire from fan to WHITE wire from
ceiling with wire connector provided.
Connect all GROUND (GREEN) wires together from
fan to BARE/GREEN wire from ceiling with wire
connector provided.
from ceiling
from fan
white supply wire
black supply wire
black
white
white
black
blue
ground
(green or bare)
ground
(green
or bare)
*
Since this fan does not come with a light kit, you
will need to cap off the BLUE wire with a wire
connector (as shown with arrow in diagram).
[Note: If you elect to purchase a light kit for the fan,
the BLUE wire from the fan must be connected to
the BLACK wire from the ceiling instead.]
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
This fan is remote control adaptable (remote control
sold separately).
8. Canopy Assembly.
Temporarily raise canopy to hanging bracket to
determine which 2 screws align with slotted holes in
canopy, and then lower canopy and partially loosen
these 2 screws. Remove the other 2 screws and set
aside.
Now, lift canopy to hanging bracket again, aligning
slotted holes in the canopy with loosened screws in
hanging bracket. Twist canopy to lock. Re-insert the
other 2 screws and secure all screws with Phillips
screwdriver.
hanging bracket
canopy
page 6
Page 8
9. Blade Assembly.
Time Saver: Washers for blade screws can be set
on each blade screw prior to installing blades.
Locate 15 blade attachment screws and washers
in hardware pack. Hold blade arm up to blade
and align holes. Insert 3 blade attachment
screws (along with washers) with fingers first
and then tighten screws securely with a Phillips
screwdriver. Repeat for the remaining blades.
Remove blade arm screws and lock washers
from underside of motor. If plastic motor locks
are installed with blade arm screws, discard
plastic motor locks (save blade arm screws and
lock washers to secure blade arms). Align blade
arm holes with motor screw holes and attach
blade arm with lock washers and blade arm
screws. Before securing screws permanently,
repeat with remaining blade arms. Securely
tighten all screws.
Note: Tighten blade arm screws twice a year.
plastic
motor
lock
lock washers
motor housing
blade attachment
screws and washers
blade
blade arm
blade arm
screws
10. Testing Your Fan.
It is recommended that you test fan before
finalizing installation. Restore power from circuit
box and light switch (if applicable). Test fan
speeds with pull chain. (diagram 1) Start at the
OFF position (no blade movement). First pull will
set the fan to HI. Second pull will set the fan to
MEDIUM. Third pull will set the fan to LOW. Fourth
pull will again set the fan to the OFF setting. If fan
does not function, please refer to
"Troubleshooting" section to solve any issues
before contacting Customer Service.
Turn fan completely off before moving the reverse
switch. Set reverse switch to recirculate air
depending on the season:
- DOWN position in summer (diagram 2)
- UP position in winter (diagram 3)
A ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
Important: Reverse switch must be set either
completely UP or completely DOWN for fan to
function. If the reverse switch is set in the middle
position (diagram 4), fan will not operate.
reverse
switch
diagram 1
pull chain
extension
Attach pull chain extension supplied or custom
pull chain extension (sold separately) to the end
of the pull chain.
page 7
diagram 2
diagram 3
diagram 4
Page 9
Troubleshooting. Warranty.
WARNING: Failure to disconnect power supply
prior to troubleshooting any wiring issues may
result in serious injury.
Problem: Fan fails to operate.
Solutions:
1. Check wall switch to fan.
2. Verify that reverse switch is set completely in
either direction.
3. Check to be sure fan is wired properly.
Problem: Fan wobbles.
Solutions:
1. Use the balancing kit provided in one of the
hardware packs. If no blade balancing kit is provided,
please call Customer Support,1-800-527-1292, to
request one.
2. Check to make sure set screw(s) on motor
housing yoke is (are) tightened securely.
3. Check to be sure set screw on hanging ball is
tightened securely.
Parts Replacement.
For parts and information, please refer to
"Parts Inventory" on page 2.
Ellington Customer Support:
1-800-527-1292
www.ellingtonfans.com
ELLINGTON LIFETIME LIMITED WARRANTY:
ELLINGTON/LITEX INDUSTRIES, LTD. warrants this fan to the
original household purchaser for indoor use under the
following provisions:
1-YEAR WARRANTY: ELLINGTON/LITEX INDUSTRIES, LTD.
will replace or repair any fan which has faulty performance
due to a defect in material or workmanship. Contact Litex
Customer Service at 1-800-527-1292 to arrange for return
of fan. Return fan, shipping prepaid, to Litex Industries, Ltd.
We will repair or ship you a replacement fan, and we will
pay the return shipping cost.
5-YEAR WARRANTY: ELLINGTON/LITEX INDUSTRIES, LTD.
will repair or replace, at no charge to the original
purchaser, any fan motor that fails to operate satisfactorily
when failure results from normal use.
RETURN FAN MOTOR ONLY, shipping prepaid, to Litex
Industries. We will repair or ship purchaser a replacement
motor and Litex will pay the return shipping cost.
6-YEAR to LIFETIME LIMITED WARRANTY: ELLINGTON/LITEX
INDUSTRIES, LTD. will repair the fan, at no charge for labor
only to the original purchaser, if the fan motor fails to
operate satisfactorily when failure results from normal use.
Parts used in the repair will be billed to the purchaser at
prevailing prices at time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Litex Industries nor the manufacturer will
assume any liability resulting from improper installation or
use of this product. In no case shall the company be liable
for any consequential damages for breach of this, or any
other warranty expressed or implied whatsoever. This
limitation as to consequential damages shall not apply in
states where prohibited.
page 8
Loading...
