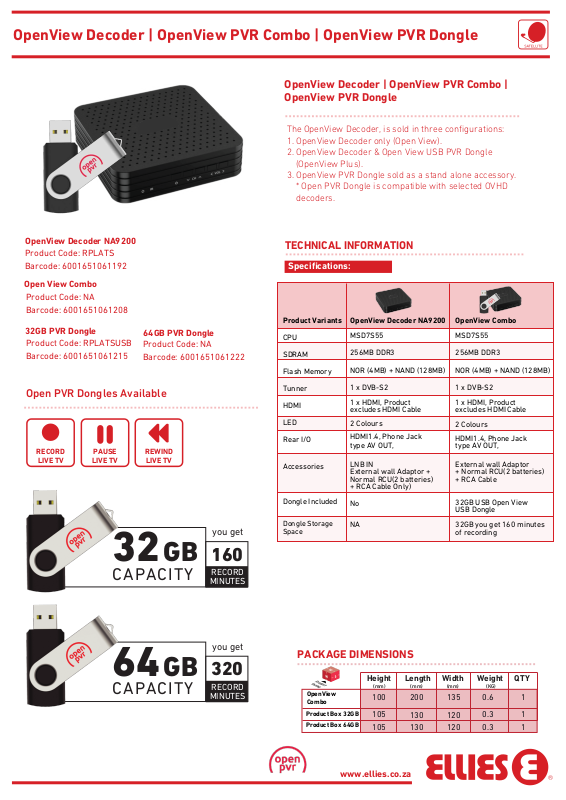

Page 1
OpenView Decoder | OpenView PVR Combo | OpenView PVR Dongle
OpenView Decoder | OpenView PVR Combo |
OpenView PVR Dongle
The OpenView Decoder, is sold in three configurations:
1. OpenView Decoder only (Open View).
2. OpenView Decoder & Open View USB PVR Dongle
(OpenView Plus).
3. OpenView PVR Dongle sold as a stand alone accessory.
* Open PVR Dongle is compatible with selected OVHD
decoders.
OpenView Decoder NA9200
Product Code: RPLATS
Barcode: 6001651061192
Open View Combo
Product Code: NA
Barcode: 6001651061208
32GB PVR Dongle
Product Code: RPLATSUSB
Barcode: 6001651061215
64GB PVR Dongle
Product Code: NA
Barcode: 6001651061222
Open PVR Dongles Available
RECORD
LIVE TV
PAUSE
LIVE TV
REWIND
LIVE TV
you get
TECHNICAL INFORMATION
Specifications:
Product Variants
CPU
SDRAM
Flash Memory
Tunner
HDMI
LED
Rear I/O
Accessories
Dongle Included
Dongle Storage
Space
OpenView Decoder NA9200
MSD7S55
256MB DDR3
NOR (4MB) + NAND (128MB)
1 x DVB-S2
1 x HDMI, Product
excludes HDMI Cable
2 Colours
HDMI1.4, Phone Jack
type AV OUT,
LNB IN
External wall Adaptor +
Normal RCU(2 batteries)
+ RCA Cable Only)
No
NA
OpenView Combo
MSD7S55
256MB DDR3
NOR (4MB) + NAND (128MB)
1 x DVB-S2
1 x HDMI, Product
excludes HDMI Cable
2 Colours
HDMI1.4, Phone Jack
type AV OUT,
External wall Adaptor
+ Normal RCU(2 batteries)
+ RCA Cable
32GB USB Open View
USB Dongle
32GB you get 160 minutes
of recording
32
GB
CAPACITY
64
GB
CAPACITY
160
RECORD
MINUTES
you get
320
RECORD
MINUTES
PACKAGE DIMENSIONS
Height
OpenView
Combo
Product Box 32GB
Product Box 64GB
www.ellies.co.za
Length
200
130
130
Width
135
120
120
Weight QTY
(KG)(mm)(mm)(mm)
0.6 1100
0.3 1105
0.3 1105
Page 2
OpenView PVR Dongle 32GB or 64GB
OpenView PVR Dongle
OpenView PVR Dongle sold as a stand alone accessory or
upgrade. * Open PVR Dongle is compatible with selected
OVHD decoders.
32GB PVR Dongle
Product Code: RPLATSUSB
Barcode: 6001651061215
64GB PVR Dongle
Product Code:
Barcode: 6001651061222
TECHNICAL INFORMATION
Specifications:
Product Variants
Dongle Included
Dongle Storage
Space
OpenView PVR Dongle
32GB USB Open View
USB Dongle
32GB you get 160 minutes
of recording
OpenView PVR Dongle
64GB USB Open View
USB Dongle
64GB you get 320 minutes
of recording
Open PVR Dongles Available
RECORD
LIVE TV
PAUSE
LIVE TV
REWIND
LIVE TV
32
CAPACITY
GB
you get
160
RECORD
MINUTES
you get
Steps to setup your USB Dongle
Step 1
• Power o the Set top Box.
• Insert the PVR Dongle into the USB port of the Set Top Box.
• Power on the Set Top Box.
Step 2
• After the Set Top Box has booted, a pop-up
screen will appear “Storage for PVR”.
• Select “OK”
• Please wait until the PVR Dongle is configured,
& PVR functionality is enabled successfully.
PACKAGE DIMENSIONS
64
GB
CAPACITY
320
RECORD
MINUTES
Product Box 32GB
Product Box 64GB
www.ellies.co.za
Height
Length
130
130
Width
120
120
Weight QTY
(KG)(mm)(mm)(mm)
0.3 1105
0.3 1105
