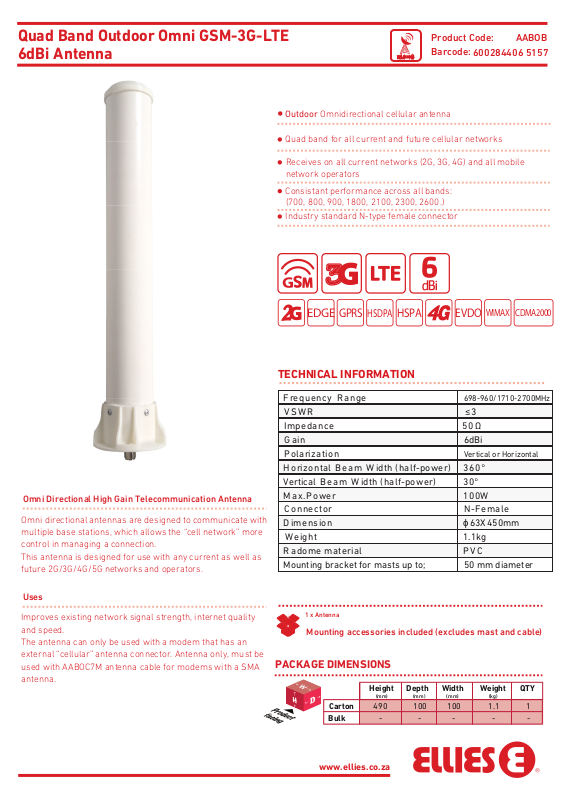

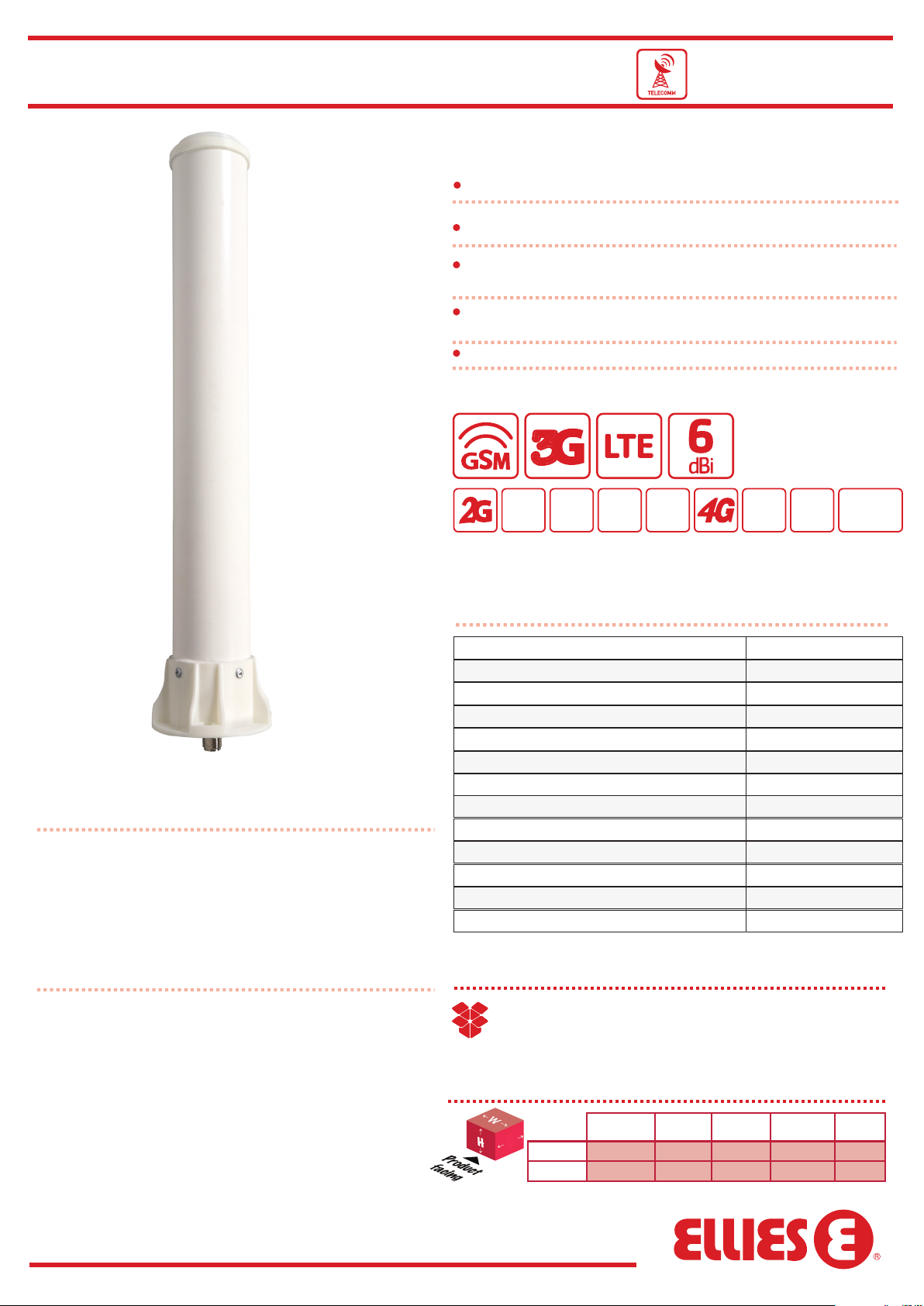

Quad Band Outdoor Omni GSM-3G-LTE
6dBi Antenna
Outdoor Omnidirectional cellular antenna
Quad band for all current and future cellular networks
Receives on all current networks (2G, 3G, 4G) and all mobile
network operators
Consistant performance across all bands:
(700, 800, 900, 1800, 2100, 2300, 2600.)
Industry standard N-type female connector
TELECOMM
Product Code: AABOB
Barcode:
600284406 5157
Omni Directional High Gain Telecommunication Antenna
Omni directional antennas are designed to communicate with
multiple base stations, which allows the “cell network” more
control in managing a connection.
This antenna is designed for use with any current as well as
future 2G/3G/4G/5G networks and operators.
EDGE
HSDPA
HSPA EVDOGPRS
WIMAX CDMA2000
TECHNICAL INFORMATION
Freque ncy R a nge
V S W R
Impeda nce
G ain
6dBi
Polarization
Horizo ntal Beam Width (half-power)
BVertical eam W idth (ha lf-power)
Max. P ower
C onnector
D imension
W e ight
R a dome mate rial
Mounting bracket for masts up to; 50 mm diameter
698-960/1710-2700MHz
≤3
Ω50
Vertical or Horizontal
°360
°30
100W
N-Female
ɸ 63X 450mm
1.1kg
PV C
Uses
Improves existing network signal strength, internet quality
and speed.
The antenna can only be used with a modem that has an
external “cellular” antenna connector. Antenna only, must be
used with AABOC7M antenna cable for modems with a SMA
antenna.
1 x Antenna
Mounting accessories included (excludes mast and cable)
PACKAGE DIMENSIONS
Height
D
Carton
Bulk
www.ellies.co.za
490 1.1100 100
- -- - -
Depth
Width
(mm)(mm)(mm)
Weight
(kg)
QTY
1
Page 2

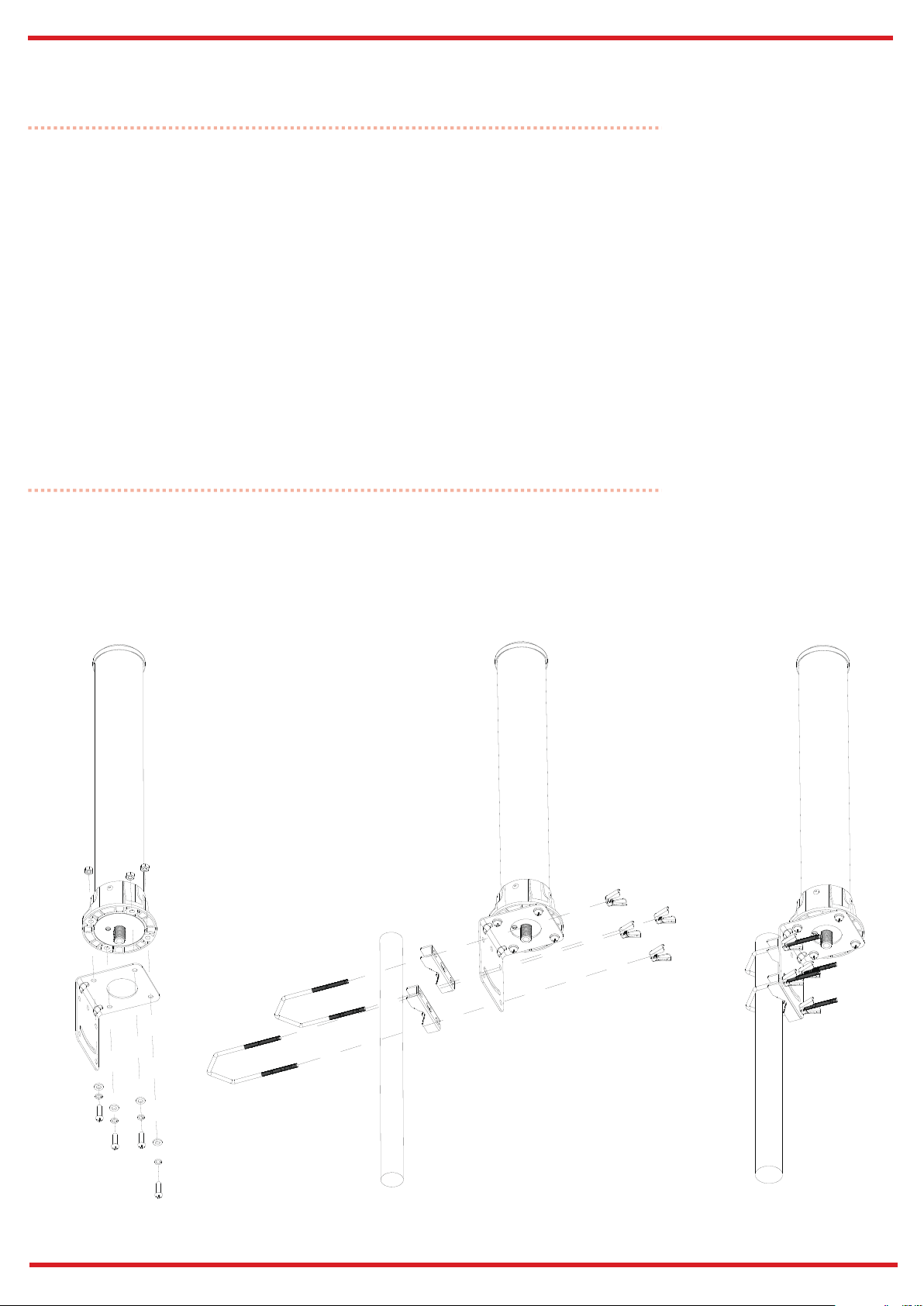

Installation guide
Installation hints
1. Ensure antenna is placed at top of mast for best omni directional performance.
2. Test for best setup location before final installation. (A few meters can make a large dierence to signal quality.)
3. Tilting the antenna slightly from vertical can make a large dierence to signal quality.
4. Keep antenna as far away as possible from TV antennas to minimise possible interference to the TV installation.
5. Keep antenna connection cable as short as possible.
6. Use drip loop on the antenna cable before it enters the house to avoid water running along cable into house.
7. Conform to applicable earthing/grounding regulations.
8. Use waterproof N-type connectors on antenna cable with amalgamating tape for best weather proofing.
Connector
For dongles and STBs with either TS9 or CRC9 connectors, an antenna cable (AABOC7M) together
with the correct “pigtail” adaptor cable (AABOATS9 or AABOACRC9) must be used.
