Ellegi LISAMOBILE Operators Guide

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

User’s Guide for the software

Leda

LISAMOBILE system

REV. 0.7

9

8

7 27 June 2014 Revision CR IB DL

6 12 June 2014 Revision CR IB DL

5 14 March 2014 Revision - New features of the release 4.5.0 IB DL CR

4 15 May 2013 Revision - New features of the release 4.3.5 IB DL CR

3 27 September 2011 Revision - New features of the release 4.3 IB DL CR

2 03 December 2010 Revision IB DL CR

1 13 July 2010 Revision IB CR LG

0 23 April 2010 Emission IB CR LG

Rev. Date: Note: Written by:

Checked

by:

Approved

by:

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

Ellegi srl, 2009 - 2014. All Rights Reserved.

Via Petrarca 55 • 22070 Rovello Porro CO Italy

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 2 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

WARNING

This document is only and specifically referred to the LiSALab (© & ™)

technology and to the GBInSAR LiSALab systems, and not to other similar

technologies or instrumentations, and it is intended to be used only by

experienced professionals. This document can never replace the professional

knowledge of the users. People that use this technology, data and information are

responsible of their supervision, their management and their control. These

responsibilities include the choice of the appropriate uses of these technology,

data and information to obtain the desired results. The users of the technology,

data and information are moreover responsible of the evaluation of the suitability

of independent procedures to examine the accuracy and the reliability of eventual

interpretations and uses.

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 3 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

Index

Index 4

Licence Agreement 5

User’s guide for the LISAMOBILE setting parameters software 13

LiSAMobile system tune up 23

Spatial Resolution graphs and parameters setting depending on the distance from the monitored

target 26

IF value setting 28

Example: a procedure for the system’s parameters setting 29

Antennas types and emission diagrams 29

Precautions for the system switching off 30

Contacts, Warnings and Legals 31

WARNING 31

CONFIDENTIALITY 31

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 4 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

Licence Agreement

IMPORTANT, READ CAREFULLY.
UNLESS IT IS SUPERSEDED BY A SIGNED LICENSE AGREEMENT BETWEEN YOU AND ELLEGI
SRL, ELLEGI SRL IS WILLING TO LICENSE THE SOFTWARE, DATA, OR DOCUMENTATION TO
YOU ONLY ON THE CONDITION THAT YOU ACCEPT ALL OF THE TERMS AND CONDITIONS
CONTAINED IN THIS ELLEGI SRL LICENSE AGREEMENT.
PLEASE READ THE TERMS AND CONDITIONS CAREFULLY. THE SOFTWARE, DATA, OR
DOCUMENTATION WILL NOT BEGIN DOWNLOADING TO OR INSTALL ONTO YOUR COMPUTER
SYSTEM UNTIL YOU HAVE MANIFESTED YOUR ASSENT TO THE TERMS AND CONDITIONS OF
THE ELLEGI SRL LICENSE AGREEMENT BY CLICKING "I accept the License Agreement".
IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS AS STATED, THEN ELLEGI SRL IS
UNWILLING TO LICENSE THE SOFTWARE, DATA, OR DOCUMENTATION TO YOU AND YOU
SHOULD CLICK "I do not accept the License Agreement", IN WHICH EVENT, THE SOFTWARE, DATA,
OR DOCUMENTATION WILL NOT BE DOWNLOADED TO OR INSTALLED ONTO YOUR COMPUTER
SYSTEM.

Software: LEDA – LISAMOBILE system. Any versions.

This ELLEGI SRL License Agreement (hereinafter referred to as "License Agreement") is between you ("Licensee") and

Ellegi srl ("ELLEGI SRL"),

c.so magenta, 12 I-20123 milano Italy

c.f. /p. i.v.a. IT05903450962 iscr. reg. impr. di milano, r.e.a 1857197

Operative and administrative headquarters:

via petrarca 55, I-22070 rovello porro co

ARTICLE 1.DEFINITIONS

Definitions. As used herein, the following words, phrases, or terms in this License Agreement shall have the following meanings:

(a) "Data" means any ELLEGI SRL or third party data vendor(s) digital data set(s) including, but not limited to, geographic, vector

data, raster, reports, or associated tabular attributes in ELLEGI SRL software compatible format(s) supplied under this License

Agreement.

(b) "Documentation" means all of the printed and digital materials including, but not limited to, user documentation, training

documentation, or technical information and briefings supplied under this License Agreement.

(c) "License Manager" means the nondestructive license management software program or hardware key, or similar copy protection

mechanism, which controls the distribution of the licensed number of Software copies to requesting end user(s) of Licensee.

(d) "Software" means the actual copy of all or any portion of ELLEGI SRL's proprietary software technology, computer software

code, components, dynamic link libraries (DLLs), and programs delivered on any media, including, but not limited to, alpha, beta,

prerelease, restricted version(s), or final commercial release provided in source, object, or executable code format(s), inclusive of

backups, updates, service packs, sample code or merged copies permitted hereunder or subsequently supplied under this License

Agreement.

Creation
date:

2010-04-23

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 5 of 31

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

ARTICLE 2.INTELLECTUAL PROPERTY RIGHTS AND RESERVATION OF OWNERSHIP

The Software, Data, and Documentation are owned by ELLEGI SRL and its licensor(s) and are protected by Italian laws and

applicable international laws, treaties, and conventions regarding intellectual property or proprietary rights inclusive of trade secrets.

ELLEGI SRL and its licensor(s) retain all rights, title, and ownership not granted herein to all copies of the Software, Data, and

Documentation licensed under this License Agreement. From the date of receipt, licensee agrees to use reasonable effort to protect

the Software, Data, and Documentation from unauthorized use, reproduction, distribution, or publication.

All rights not specifically granted in this License Agreement are reserved to ELLEGI SRL and its licensor(s).

ARTICLE 3.GRANT OF LICENSE

3.1 Grant of License. In consideration of the mutual promises and covenants provided herein and for other good and valuable

consideration, and conditioned upon compliance with all of the terms and conditions set forth in this License Agreement including,

but not limited to, Article 4, ELLEGI SRL grants to Licensee a personal, nonexclusive, nontransferable license to

(a) Use the Software, Data, and Documentation as a single package for Licensee's own internal use only; and

(b) Access and use any secure ELLEGI SRL Web site resources made available to Licensee for Licensee's internal use only,

provided that Licensee follows ELLEGI SRL's terms of use policy specified therein. All password or controlled access information

provided by ELLEGI SRL or its authorized distributor shall be treated as ELLEGI SRL confidential information.

3.2 Commercial Application Service Provider. Use of ELLEGI SRL Software, Data, or Documentation in a commercial Application

Service Provider (ASP) business model is subject to execution of a written ASP license agreement and the payment of the

appropriate additional license fees. For purposes of this License Agreement, a commercial ASP means a Licensee who uses

ELLEGI SRL Software, Data, or Documentation for a site or service, operates the site or the service for a profit, and generates

revenue by charging for access to the site or service (by selling data, pay-per-view, subscription fee, or similar means).

ARTICLE 4.SCOPE OF USE

4.1 Permitted Uses

(a) Licensee may (i) install and store copies onto electronic storage device(s) and (ii) only use the Software, Data, and

Documentation as "Concurrent use license". This license permits execution of the Software on any computer on the network. The

number of simultaneous/concurrent users may be controlled by a License Manager to access and use the Software, Data, or

Documentation.

Scope of Use and in accordance with the licensed configuration provided at the time of order, Software registration, or License

Manager Issuance.

(b) Licensee may make one (1) copy of the Software, Data, and Documentation for archival purposes during the term of this License

Agreement. Additionally, Licensee may make routine computer backups and implement a redundant Software installation for failover

operations during the period the primary site is not operational. The redundant Software installation shall remain dormant except for

system maintenance and updating of databases while the primary site is operational.

(c) Excluding ELLEGI SRL GBInSAR Radar Data and unless there is a statement to the contrary in the data, Licensee may use,

copy, reproduce, publish, publicly display, or redistribute map images derived from ELLEGI SRL GBInSAR Radar Data in hard-copy

or static, electronic formats (i.e., .gif, .tiff, etc.) provided that Licensee affixes an attribution statement to the map images

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 6 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

acknowledging ELLEGI SRL or its licensors as the source of the portion(s) of such Data displayed, printed, or plotted. The ELLEGI

SRL branded Data shall not be used separately from ELLEGI SRL Software.

4.2 Uses Not Permitted

(a) Licensee shall not sell; rent; lease; sublicense; lend; assign; time-share; or act as a service bureau or Application Service

Provider (ASP) that allows third party access to the Software, Data, and Documentation except as provided herein; or transfer, in

whole or in part, access to prior or present versions of the Software, Data, or Documentation, any updates, or Licensee's rights

under this License Agreement.

(b) Licensee shall not redistribute the Software registration number/license authorization file(s) or Hardware.

(c) Licensee shall not redistribute the Software, in whole or in part, including, but not limited to, extensions, components, or DLLs

without the prior written approval of ELLEGI SRL as set forth in an appropriate redistribution license agreement.

(d) Licensee shall not reverse engineer, decompile, or disassemble the Software, Data, or Documentation, except to the extent that

such activity is expressly permitted by applicable law notwithstanding this restriction in order to protect ELLEGI SRL and its

licensor(s) trade secrets and proprietary information contained in the Software, Data, or Documentation.

(e) Licensee shall not make any attempt to circumvent the technological measure(s) (e.g., License Manager, etc.) that controls

access to or use of the Software, Data, and Documentation, except to the extent that such activity is expressly permitted by

applicable law notwithstanding this restriction.

(f) Licensee shall not use the Software to transfer or exchange any material where such transfer or exchange is prohibited by

copyright or any other law.

(g) Licensee shall not remove or obscure any ELLEGI SRL or its licensor(s) patent, copyright, trademark, or proprietary rights

notices contained in or affixed to the Software, Data, or Documentation.

(h) After a reasonable transition period for updating to the most current version of the Software, Licensee shall cease using all prior

version(s) of the Software that Licensee has elected to update to the most current version(s) of the Software. When the transition to

the most current version(s) of the Software is complete, the quantity of Software licenses in use by Licensee at any given time shall

not exceed the total quantity licensed by ELLEGI SRL in accordance with the licensed configuration on file with ELLEGI SRL

Customer Service or ELLEGI SRL's authorized distributor.

(i) With the exception of Server Software application licenses for which such licensed use are contemplated, Licensee

shall not provide access to or allow affiliates or other third parties to use the Software, Data, or Documentation in a

distributed computing environment.

(ii) Licensee may not distribute or post Data, reports, or other output from ELLEGI SRL Software or Data or services on

the Internet without the express written consent of ELLEGI SRL.

ARTICLE 5.MAINTENANCE

Maintenance consists of Software, Data, or Documentation updates and access to technical support and other benefits specified in

the most current applicable ELLEGI SRL or its distributor's Support Services Policy.

ARTICLE 6.TERM AND TERMINATION

The license granted to Licensee by this License Agreement shall commence upon the acceptance of this License Agreement and

shall continue until such time that (i) Licensee elects in writing to discontinue use of the Software, Data, or Documentation and

terminates this License Agreement or (ii) either party terminates this License Agreement for a material breach that is not cured

within ten (10) days of written notice to the other party, except that termination is immediate for a material breach of a nature that it

is impossible to cure. Upon termination of this License Agreement, Licensee shall uninstall, remove, and destroy all Software, Data,

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 7 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

and Documentation, and any whole or partial copies, modifications, or merged portions in any form and execute and deliver

evidence of such deinstallation and destruction to ELLEGI SRL or its authorized distributor.

ARTICLE 7.LIMITED WARRANTIES AND DISCLAIMERS

7.1 Limited Warranties. For a period of ninety (90) days from the later of the date of keycode issuance or date of delivery of the

Software, Data, or Documentation to Licensee, ELLEGI SRL represents and warrants that (i) the unmodified Software will

substantially conform to the published Documentation and (ii) the media upon which the Software, Data, and Documentation is

provided will be free from defects in materials and workmanship under normal use and service.

7.2 Data Disclaimer. If included under this License Agreement, the Data has been obtained from sources believed to be reliable, but

its accuracy and completeness are not guaranteed. The Data may contain some nonconformities, defects, errors, or omissions.

ELLEGI SRL AND ITS LICENSOR(S) MAKE NO WARRANTY WITH RESPECT TO THE DATA. Without limiting the generality of

the preceding sentence, ELLEGI SRL and its licensor(s) do not warrant that the Data will meet Licensee's needs or expectations,

the use of the Data will be uninterrupted, or that all nonconformities can or will be corrected. ELLEGI SRL

and its licensor(s) are not inviting reliance on this Data, and Licensee should always verify actual Data including, but not limited to,

map, spatial, raster, and tabular information.

7.3 High Risk Activities

(a) The Software, Data, and Documentation are not fault-tolerant and are not designed, manufactured, or intended for use or resale

for insurance underwriting or with critical health and safety or online control equipment in hazardous environments that require fail-

safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control,

emergency response, terrorism prevention or response, life support, or weapons systems ("High Risk Activities").

ELLEGI SRL SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES.

(b) To the extent permitted by law, Licensee agrees to indemnify, defend, and hold ELLEGI SRL, its officers, directors, employees,

agents, subcontractors, licensors, successors, and assigns harmless from and against any and all liability, losses, claims, expenses

(including attorneys' fees), demands, or damages of any kind, including direct, indirect, special, punitive, incidental, or consequential

damages, arising out of or in any way connected with Licensee's use or permitting the use by others of the Software, Data, and

vendor's hardware for High Risk Activities. Delivery of the Software, Data, and vendor's hardware does not constitute a waiver of the

rights and obligations set forth in this Article.

7.4 General Disclaimer. EXCEPT FOR THE ABOVE EXPRESS LIMITED WARRANTIES, ELLEGI SRL DISCLAIMS ALL OTHER

WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONINTERFERENCE, SYSTEM

INTEGRATION, AND NONINFRINGEMENT. ELLEGI SRL DOES NOT WARRANT THAT THE SOFTWARE, DATA, OR

DOCUMENTATION WILL MEET LICENSEE'S NEEDS, OR THAT LICENSEE'S OPERATION OF THE SAME WILL BE

UNINTERRUPTED OR ERROR FREE, OR THAT ALL NONCONFORMITIES CAN OR WILL BE CORRECTED.

7.5 Exclusive Remedy. Licensee's exclusive remedy and ELLEGI SRL's entire liability for breach of the limited warranties set forth in

this Article 7 shall be limited, at ELLEGI SRL's sole discretion, to (i) replacement of any defective media; (ii) repair, correction, or a

work-around for the Software subject to the ELLEGI SRL Support Services Policy; or (iii) return of the license fees paid by Licensee

for the Software, Data, or Documentation that does not meet ELLEGI SRL's Limited Warranty, provided that Licensee uninstalls,

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 8 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

removes, and destroys all copies of the Software, Data, or Documentation and executes and delivers evidence of such

deinstallation and destruction to ELLEGI SRL or its authorized distributor.

ARTICLE 8.LIMITATION OF LIABILITY

8.1 Disclaimer of Certain Types of Liability. IN NO EVENT SHALL ELLEGI SRL OR ITS LICENSOR(S) BE LIABLE TO LICENSEE

FOR COSTS OF PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOST PROFITS; LOST SALES OR BUSINESS

EXPENDITURES; INVESTMENTS; OR COMMITMENTS IN CONNECTION WITH ANY BUSINESS, LOSS OF ANY GOODWILL,

OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR RELATED TO THIS

LICENSE AGREEMENT OR USE OF THE SOFTWARE, DATA, OR DOCUMENTATION, HOWEVER CAUSED, ON ANY THEORY

OF LIABILITY, AND WHETHER OR NOT ELLEGI SRL OR ITS LICENSOR(S) HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGE. THESE LIMITATIONS SHALL APPLY NOTWITHSTANDING ANY FAILURE OF ESSENTIAL PURPOSE OF ANY

LIMITED REMEDY.

8.2 General Limitation of Liability. INFRINGEMENT INDEMNITY, IN NO EVENT WILL ELLEGI SRL'S TOTAL CUMULATIVE

LIABILITY HEREUNDER, FROM ALL CAUSES OF ACTION OF ANY KIND, INCLUDING, BUT NOT LIMITED TO, CONTRACT,

TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY, BREACH OF WARRANTY, MISREPRESENTATION, OR OTHERWISE,

EXCEED THE AMOUNTS PAID TO ELLEGI SRL BY LICENSEE FOR SOFTWARE, DATA, OR DOCUMENTATION PURSUANT

TO THIS LICENSE AGREEMENT.

8.3 Applicability of Disclaimers and Limitations. Licensee agrees that the limitations of liability and disclaimers set forth in this

License Agreement will apply regardless of whether Licensee has accepted the Software, Data, or Documentation or any other

product or service delivered by ELLEGI SRL. The parties agree that ELLEGI SRL has set its prices and entered into this License

Agreement in reliance upon the disclaimers and limitations set forth herein, that the same reflect an allocation of risk between the

parties (including the risk that a contract remedy may fail of its essential purpose and cause consequential loss), and that the same

form an essential basis of the bargain between the parties.

ARTICLE 9.GENERAL PROVISIONS

9.1 Taxes and Fees, Shipping Charges. License fees quoted to Licensee are exclusive of any and all taxes or fees including, but not

limited to, sales tax, use tax, value-added tax (VAT), customs, duties, or tariffs, and shipping and handling charges.

9.2 No Implied Waivers. The failure of either party to enforce any provision of this License Agreement shall not be deemed a waiver

of the provisions or of the right of such party thereafter to enforce that or any other provision.

9.3 Severability. The parties mutually agree that if any provision of this License Agreement is held to be unenforceable for any

reason, such provision shall be reformed only to the extent necessary to make the intent of the language enforceable.

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 9 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

9.4 Successor and Assigns. Licensee shall not assign, sublicense, or transfer Licensee's rights or delegate its obligations under this

License Agreement without ELLEGI SRL's prior written consent, and any attempt to do so without consent shall be void. This

License Agreement shall be binding upon the respective successors and assigns of the parties to this License Agreement.

9.5 Survival of Terms. The provisions of Articles 6, 7, 8, and 9 of this License Agreement shall survive the expiration or termination

of this License Agreement for any reason.

9.6 Equitable Relief. Licensee agrees that any breach of this License Agreement by Licensee may cause irreparable damage and

that, in the event of such breach, in addition to any and all remedies at law, ELLEGI SRL shall have the right to seek an injunction,

specific performance, or other equitable relief in any court of competent jurisdiction to prevent violation of these terms and without

the requirement of posting a bond or undertaking or proving injury as a condition for relief.

9.7 Governing Law

This License Agreement shall be governed by and construed in accordance with the laws of the State of Italy without reference to

conflict of laws principles. This License Agreement constitutes the sole and entire License Agreement of the parties as to the subject

matter set forth herein and supersedes any previous License Agreements, understandings, and arrangements between the parties

relating to such subject matter, and any terms on Licensee's purchase orders. Any modification(s) or amendment(s) to this License

Agreement must be in writing and signed by an authorized representative of each party.

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 10 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

Glossary

Azimuth Calculated distance of the back scattered electromagnetic signal from a point

of the target area. It is the projection of the position of the point along the

system’s linear positioner longitudinal direction.

Back scattering Signal reflected by an object hit by a radar impulse.

Displacement/deformation

maps Large scale and detailed extended areal graphical representations of the

movements and/or displacements of the target.

Frequency The number of times in which a periodical phenomenon happens in the unit

of time.

Interferogram Complex image resulting from the complex conjugated product of two radar

images. Represented in phase, provide information related to the

movements happened during the time interval between two acquisitions.

JRC Joint Research Centre. European Commission research centre.

Line of sight Line or direction joining two points. It joins the point in which is located the

system to a specific point under observation located in the target area.

LiSA Linear Synthetic Aperture radar. The system is able to measure the behavior

and the damage of structures, such as ground displacement typical of

landslide activity. Such a system uses a ground based interferometric sensor

(GBInSAR) based on the technique of synthetic radar aperture, completed

and integrated by specific software packages, developed for this purpose, to

purchase, process and analyze data collected from the sensor.

LiSALab (technology) Derivative technology developed by Ellegi srl on the basis of the original

LiSA and of the GBInSAR LiSA sensor. This technology belongs exclusively

to Ellegi srl.

Creation
date:

2010-04-23

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 11 of 31

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

Microwaves Electromagnetic waves with a wave length between 25mm and 600mm.

Power or Phase images Each pixels of a complex image representing a part (or cell) of the region in

which the raw data are focalized. It can be associated to information related

to the reflected signals from everything contained in the cell; therefore there

are available two ways to represent the same image, in power and in phase.

The first one provide an indication on the intensity level of the back scattered

signals, the second one on its phase.

Radiometric amplitude Intensity level of irradiated energy.

Range Distance calculated by means of the signal “time of flight” and assuming that

the electromagnetic waves have a speed equal to the light ( 3x108 m/s). It

gives the distance of a point of the target area perpendicular to the system’s

linear positioner longitudinal direction.

SAR Synthetic Aperture Radar. Radar antenna whose dimension is simulated to

be bigger than the real one, sampling the antenna signals when it is in

movement. This technique is useful to increase spatial resolution.

Signal to noise ratio Shortened in 'S/N ratio'. It is the ratio between useful signal measured and

the present background noise signal.

Scan frequency Coherent emission and receiving of a frequency band in discrete packets.

Scatterometer Scatterometer is a radar able to measure the capability of objects to reflect

the electromagnetic energy that hits them.

Spatial resolution In radar technology, it is the dimension of a measuring cell (pixel). Two

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

objects of dimensions smaller than cell’s ones have to belong to two different

cells to be discriminated and/or measured.

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 12 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

User’s guide for the LISAMOBILE setting parameters software

The LEDA © is the program that manages the data acquisition performed by the GBInSAR LISAMOBILE

© system.

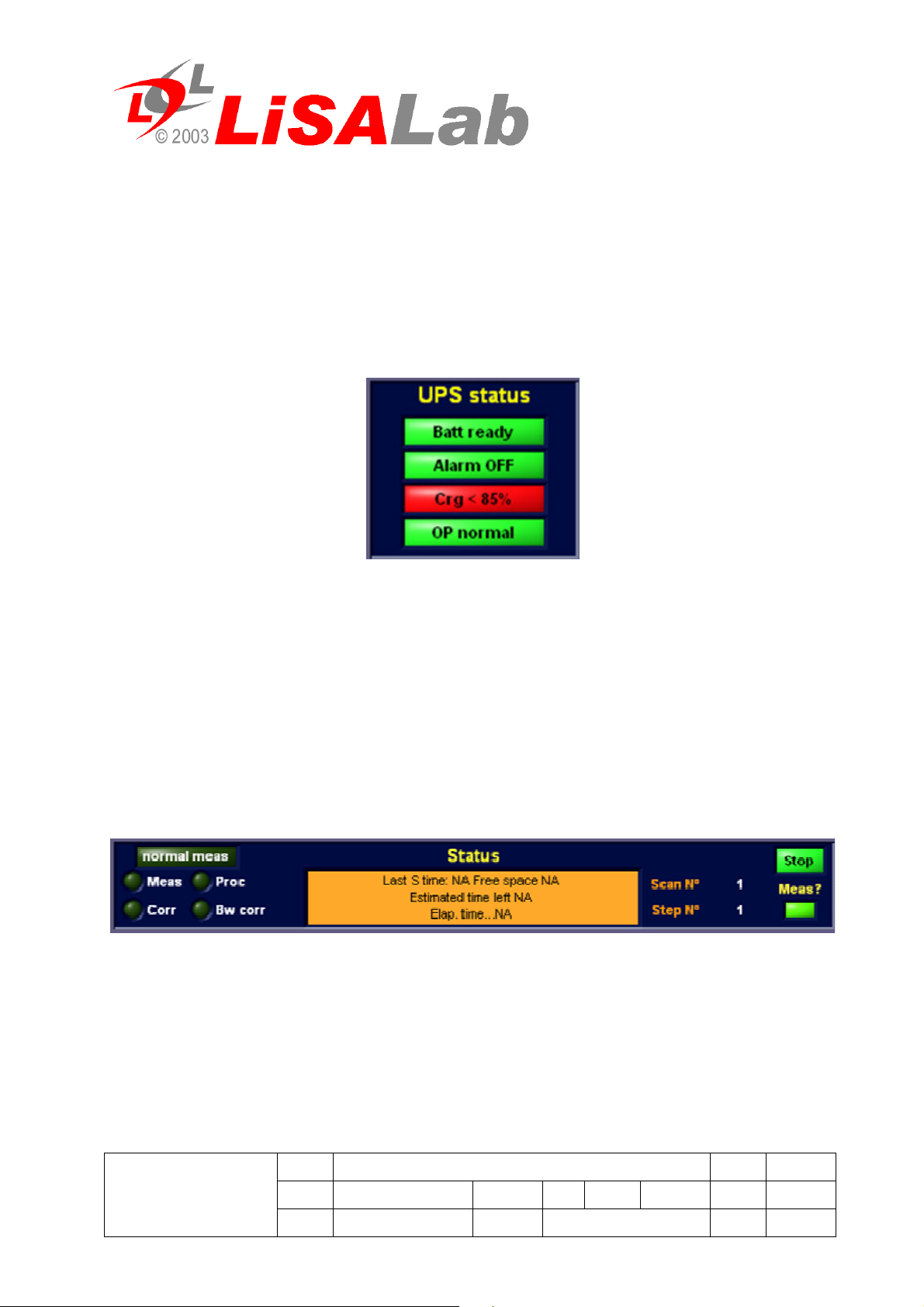

In the upper left portion of its interface, in the “Check Instr” box, the LEDA © performs a control of the

status of the main components of the GBInSAR LISAMOBILE © system. If a device is in a “NOK” (Not

OK) status in the “Action” menu the command “Recheck Instr” will perform again the instruments check,

the “Go on” command will continue the process and the “Quit & SD” command will quit the application

and shut down the machine. When the green indicator is switched on the correspondent component is

working properly. If all the devices work correctly a green notification (“All instruments OK”) will appear in

the lower part of the check instr box Figure 2). The devices that are checked are:

• the display;

• the GPS receiver;

• the temperature controller;

• the linear positioner;

• the GSM modem

• the UPS;

• the radio frequency components.

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential

Figure 1: the GBInSAR LISAMOBILE system interface: the LEDA .

Subject: User’s guide: Main LISAMOBILE release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 07 Rev. date: 2014-06-27

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 13 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

Figure 2: the “Check Instr” box of the LEDA © interface.

At the right side of the “Check Instr” box are found the “GPS Receiver” and the “Temp control” boxes.

In these two boxes are displayed the information about the GPS position and the temperatures measured

by the system sensors (Figure 3). These information are:

• The measured latitude, longitude and

altitude above the sea level;

• Mode, it can be 2D, 3D or Not available

depending on the number of visible

satellites;

• A green led to show the GPS status;

• Valid data, indicates if valid data is available;

• T Rg, is the temperature of the fan

controller;

• T Rx and T Tx, are the temperatures of the

receiver and transmitter devices;

• F1, fan 1 voltage;

• F2, fan 2 voltage;

• V in, measuring head input voltage.

• Last UTC, is the last Coordinated Universal

Time registered;

• T Ct, is the temperature on the fans;

Figure 3: the “Gps Receiver” and the “Temp control” boxes of the LEDA © interface.

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 14 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

The “UPS status” box is at the right side of the modem control box and displays information on the UPS

status (Figure 4). There are four green indicators that turn to red if there is a warning on the UPS status.

The four indicators are:

• Batt ready;

• Alarm ;

• Crg < 85%;

• OP normal.

Figure 4: the “UPS status” box of the LEDA © interface.

The “Status” box is at the center of the LEDA © interface and displays information on the status of the

acquisitions and of the system (Figure 5). The “normal meas” indicator can turn to red and display the

“meas restart” warning if the acquisitions for some reason were stopped and restarted. The “Stop/move”

green and red indicators displays in real time when the system head is moving.

There are four indicators that will turn to green if:

• Meas, the system is measuring;

• Corr, the system is correcting the

• Proc, the system is processing the

acquired images;

Figure 5: the “Status” box of the LEDA © interface.

The displayed information are:

• Last scan time;

• Free space (left on the system for the

images storage);

• Estimated time left (before running out

of storage space on the system);

Subject: User’s guide: Main LiSAmobile release 4.5.0

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

processed images;

• Bw corr, dummy flag for future use.

• Elapsed time (from the beginning of the

measurements);

• Scan N°;

• Step N° (of the current scan).

Creation
date:

Special note: Confidential Page: 15 of 31

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

The system display emulator and the command menu box are in the central right part of the LEDA ©

interface (Figure 6). In the command menu under the display emulator are displayed the command

options, the custom parameters currently set and the actual position inside the command menu

(highlighted with a light blue color).

The display emulator reproduces the command display found on the power base and is managed with the

same logic: the menu has different “layers” and the “up” and “down” commands allow to move inside a

layer, while the “left” and “right” commands allow to move in the lower or in the upper layers.

The “Enter” command allows changing the value of the highlighted feature, its value can be changed with

the “up”, “down”, “left” and “right” commands and set to the new value using again the “Enter” command.

The “F1” button is associated to the “esc” function that is “escape without saving parameters.

The “F2” button is a dummy for future use. In the following pictures (Figure 7, Figure 8 and Figure 9) are

presented the main layers of the control menu with a brief explication of the various sub menu layers.

Note: depending on the operating state of the system some features of the command menu might be

hidden.For all the submenus in the “Value” field is shown the value currently set, and in the “Min” and

“Max” field are shown the minimum and maximum values that can be selected.

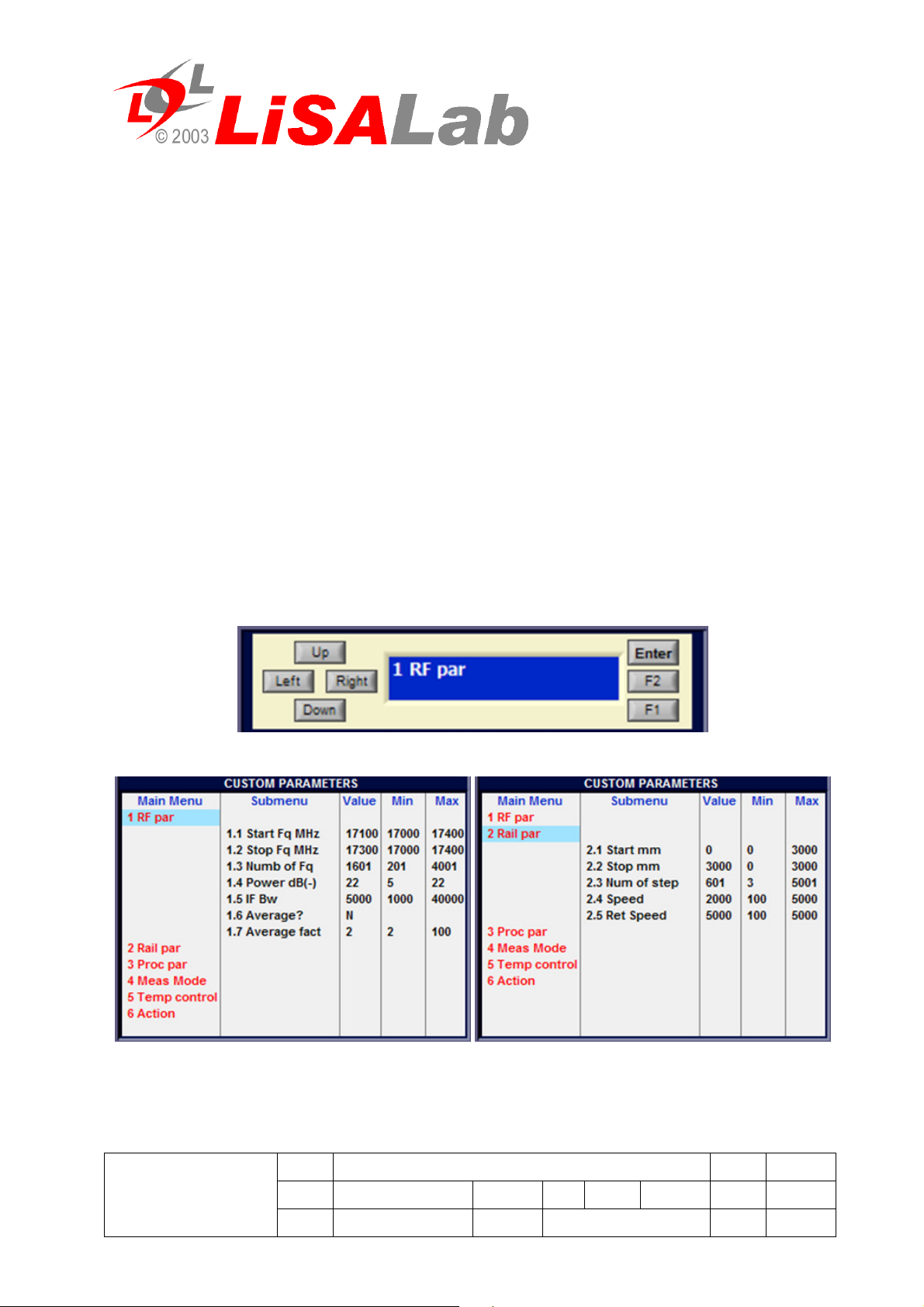

Figure 6: the display emulator of the LEDA © interface.

Figure 7: the “RF par” and the “Rail par” submenus of the LEDA © interface command menu box.

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 16 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

The “RF par” submenu (Figure 7) allows setting all the “radio frequency” parameters of the system, that

are the start and the stop frequencies (expressed in MHz), the number of frequencies used inside the

selected band, the emitted power (expressed in dBm), the IF bandwidth, the presence of the average

option and the average factor. For further information on the choice of the system parameters please

refer to “Appendix A”. The “Rail par” submenu (Figure 7) allows setting the linear position parameters that

are the start and the stop position of the synthetic aperture, the number of steps performed inside the

aperture, the moving speed of the carriage during the acquisition and the moving speed of the carriage

when returning to the start position.

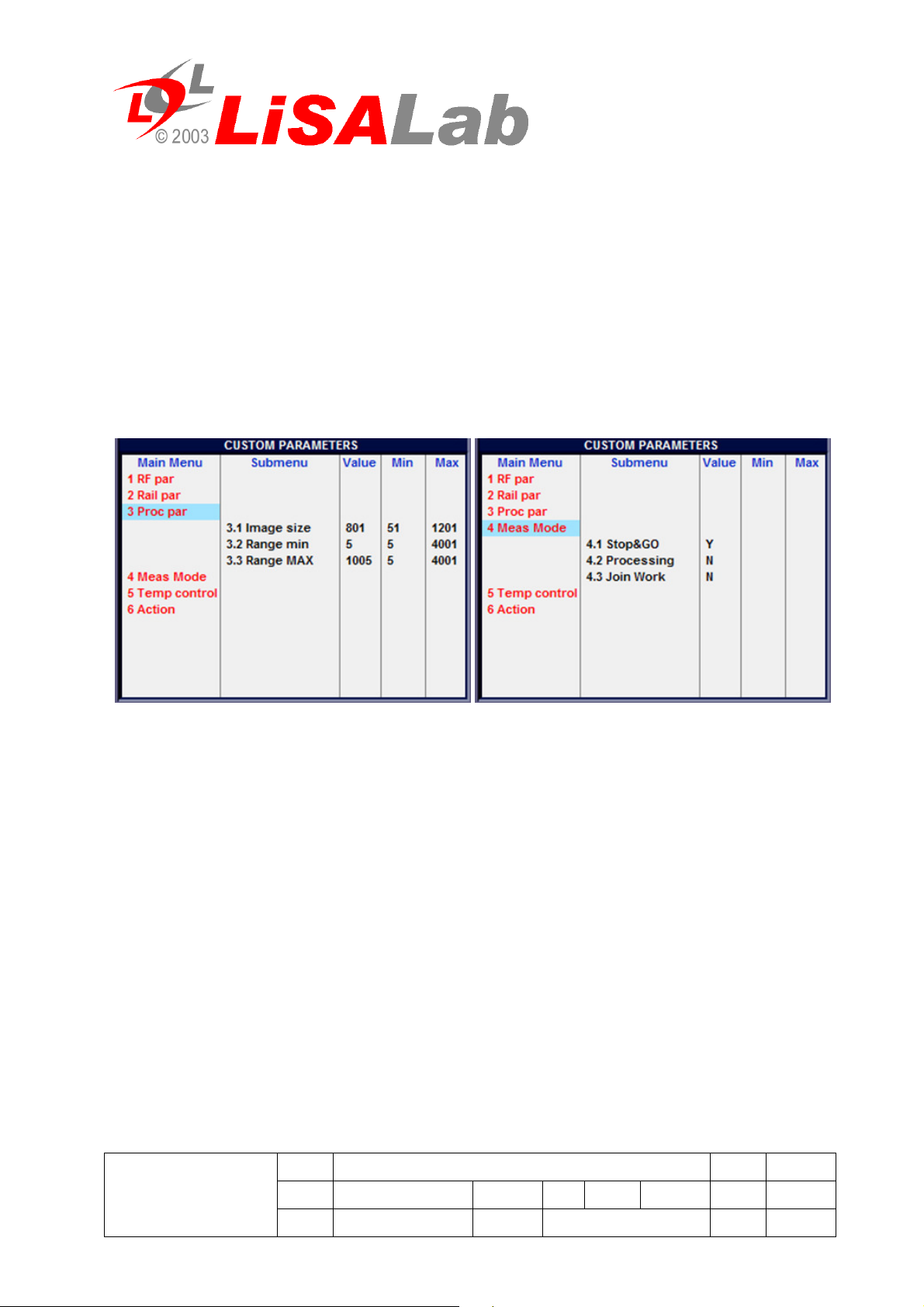

Figure 8: the “Proc par” and the “Meas Mode” submenus of the LEDA © interface command menu.

The “Proc par” submenu (Figure 8) allows setting the dimensions of the images that will be produced by

the system (if the “processing” option is activated in the “Meas Mode” submenu) that are the image size

(in pixels) and the image minimum and maximum range values. The produced images will have the same

sizes in both the range and azimuth directions and the azimuth dimensions are symmetric.

The “Meas Mode” submenu (Figure 8) allows enabling and disabling the “Stop&GO” mode, the

“Processing” option and the “Join Work” option. These functions are enabled if the “Y” value is set,

otherwise are disabled if the “N” value is set.

If the “Stop&GO” mode is disabled the system will acquire images in the “Continuous” mode, that is much

faster because the system will perform the acquisitions without stopping at each step. The “Processing”

mode enables the images processing, if is disabled only the raw data will be acquired and stored. The

“Join Work” option stores the acquired data in the same work, even if the acquisitions are aborted or the

system is switched off. If this option is disabled the system will create a new work at every restart.

The “Temp control” submenu (Figure 9) allows setting the parameters of the two measuring head fans.

These parameters are the Target temperature, the functioning mode (always “off”, always “on” or

“automatic”) and the low speed and high speed voltages.

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 17 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

The “Action” submenu (Figure 9) allows selecting the desired action to be performed: “start mesa” starts

the acquisitions, “Quit & SD” quits the application and shuts down the machine, “load def par” loads the

default parameters, “save user par” saves the current parameters as user parameters, “load user par”

loads the previously saved user parameters and “del user par” deletes the user parameters.

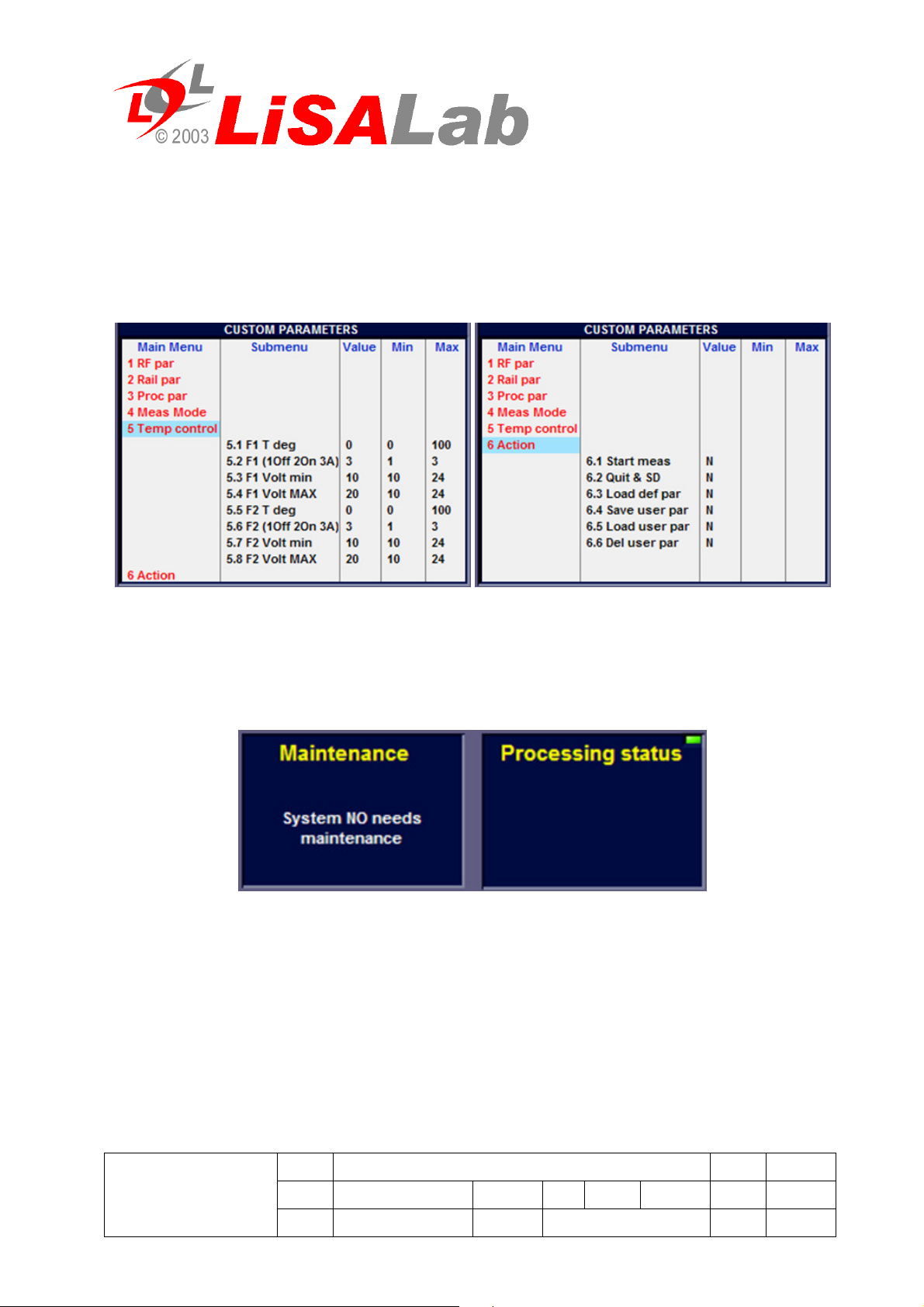

Figure 9: the “Temp control” and the “Action” submenus of the LEDA © interface command menu.

The Maintenance and the Processing Status boxes (Figure 10) are under the command menu box

and are used to display maintenance information and processing status information.

Figure 10: the “Maintenance” and the “Processing status” boxes of the LEDA © interface.

If the “RF maintenance” warning appears in the Maintenance box contact as soon as possible

Ellegi i.e. for an RF maintenance intervention.

The Signal’s Amplitude and Phase screens (Figure 11) are in the central part of the LEDA © interface

under the command menu box and are used to display in real time the amplitude and the phase values of

the received radar signal. In the following figure (Figure 11) is shown an example of phase and amplitude

responses having the system working correctly. In Figure 12 is shown an example of phase and

amplitude responses having the system not working correctly.

Creation
date:

2010-04-23

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 18 of 31

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

Figure 11: the Amplitude and Phase screens of the LEDA © interface - system working correctly.

Figure 12: the Amplitude and Phase screens of the LEDA © interface- system not working correctly.

The “Instr Log” tab (Figure 13) is in the central part of the LEDA © interface under the amplitude and

phase screens and it is used to resume the Logs of the instruments. The scroll bar at the right side of the

tab allows scrolling all the registered LOGs.

Creation
date:

2010-04-23

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 19 of 31

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

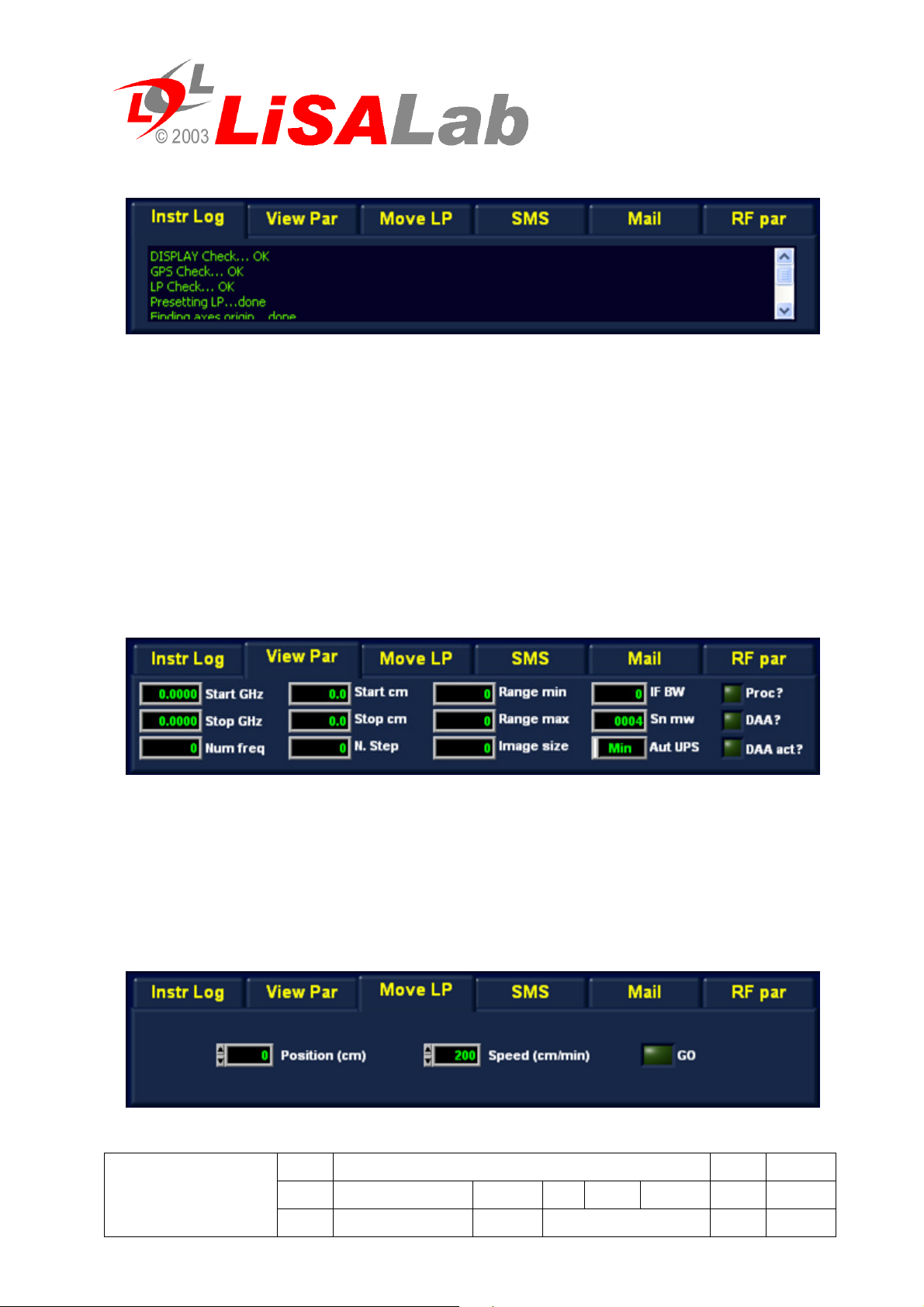

Figure 13: the “Instr Log” tab of the LEDA © interface.

The “View Par” tab (Figure 14) is in the central part of the LEDA © interface under the amplitude and

phase screens and it is used to display the acquisition and processing parameters. The visualized

information are the start and the stop frequencies (expressed in GHz), the number of frequencies used

inside the selected band, the start and the stop position of the synthetic aperture, the number of steps

performed inside the aperture, the maximum and minimum range of the processed image, the image size,

the IF bandwidth, the microwave board serial number and the UPS battery level for the forced shutdown

(Min indicates that the forced shut down will be performed as soon as the power line is missing). The

“Proc?” indicator is switched on if the images processing is enabled. The other two indicators are

dummies for future developments.

Figure 14: the “View Par” tab of the LEDA © interface.

The “Move LP” tab (Figure 15) is in the central part of the LEDA © interface under the amplitude and

phase screens and it contains the commands to manually move the linear positioner carriage. The

desired position of the carriage (expressed in cm) has to be typed in the “Position (cm)” display, and the

desired moving speed has to be typed in the “Speed (cm/min)” display. The “GO” button will send the

command and move the carriage at the selected speed to the desired position.

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Figure 15: the “Instr Log” tab of the LEDA © interface.

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 20 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

The “SMS” tab (Figure 16) is in the central part of the LEDA © interface under the amplitude and phase

screens and it contains the commands to set the SMS notifications frequencies and the recipients list. It

also features an indicator to display the instantaneous GSM field intensity.

The numeric indicator at the left side of the sending list is used to scroll the recipients’ telephone

numbers. The “Add” button opens a dialogue box (Figure 17) where the user can write the new name and

the telephone number to be added to the e-mail sending list; the “Send?” switch enables the notifications

via SMS to this recipient. The “Del” button is used to delete from the sending list the entry currently

displayed, while the “Chg” button is used to enable/disable the SMS notifications towards the entry

currently displayed (when the green indicator at the right of the entry telephone number is switched on the

SMS notifications are enabled). The “Par” button opens a dialogue box (Figure 17) where the user can

set the notifications frequencies (the interval between two notifications, expressed in number of scans).

Figure 16: the “SMS” tab of the LEDA © interface.

Figure 17: the dialogue boxes used to add a new name and phone number to the SMS sending list (left) and to set the notifications

frequency.

The “Mail” tab (Figure 18) is in the central part of the LEDA © interface under the amplitude and phase

screens and it contains the commands to set the e-mail notifications frequencies and the recipients list.

The recipients list displays its entries one by one and it can be scrolled using the numeric indicator on its

left side.

Creation
date:

2010-04-23

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 21 of 31

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

The “Add” button opens a dialogue box (Figure 19) where the user can write the new e-mail address to be

added to the e-mail sending list; the “Send?” switch enables the notifications via e-mail to this recipient.

The “Del” button is used to delete from the sending list the entry currently displayed, while the “Chg”

button is used to enable/disable the SMS notifications towards the entry currently displayed (when the

green indicator at the right of the entry telephone number is switched on the SMS notifications are

enabled). The “Par” button opens a dialogue box (Figure 19) where the user can set the notifications

frequencies (the interval between two notifications, expressed in number of scans) and the e-mail

parameters (Smtp Server name, LISAMOBILE system address, Remote connection name and the

connection type that can be “remote”, “LAN” or “none”).

Figure 18: the “Mail” tab of the LEDA © interface.

Figure 19: the dialogue boxes used to add a new e-mail address to the e-mail sending list (left) and to set the notifications

properties.

The “RF par” tab (Figure 20) is in the central part of the LEDA © interface under the amplitude and

phase screens and it contains commands only available in the advanced mode.

Subject: User’s guide: Main LiSAmobile release 4.5.0

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 22 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

Figure 20: the “RF par” tab of the LEDA © interface.

The campaign and operator information box (Figure 21) is in the lower left corner of the LEDA ©

interface and it contains the information about the place of measurement and the operator name and

surname.

Figure 21: the campaign and operator information box of the LEDA © interface.

LiSAMobile system tune up

The LEDA © is the program that manages the data acquisition performed by the GBInSAR

LISAMOBILE© system.

The “RF par” submenu (Figure 7) allows user setting all the “radio frequency” parameters of the system,

that are:

- the start frequency (expressed in MHz);

- the stop frequency (expressed in MHz),

- the emitted power (expressed in dBm) this value rapresents the power at the antenna input.

All these values can be set by users between two predefined software limits, the user cannot overtake

these limits.

These are the limits:

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 23 of 31

Creation
date:

2010-04-23

Parameters

Lower limit

Upper limit

Minimum Variable step

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

Start frequencies 17,105 MHz 17,295 MHz 1 MHz

Stop frequency 17,105 MHz 17,295 MHz 1 MHz

Emitted power at the antenna

input

The maximum EIRP output power using antennas with 10dB gain is dBm 14+-0,5 dB + 10 dB = 24dBm

+-0,5 dB.

Using the “limited power” modality the user is forced by the software to use only values of the above

parameters that are respectful of the ETSI, FCC and IC normatives according the market in which the

system is used.

• For European market according the antennas’ gain the LiSamobile subsystem regulates the

5 dBm 14 dBm 1 dBm

values of the power output to be always below the 26dBm of EIRP.

• For Canada the EIRP is limited to 24.7dBm average.

• In USA the max EIRP is related to the extension of the frequencies, according the FCC par 90 the

EIRP is calculated accordingly. The system limits the maximum “Emitted power at the antenna
input” in order to respect the calculated EIRP given the extension of the frequency.

The system start always in the “limited power modality” and the user can regulates the EIRP according

the antennas gain its currently using.

The changes are made using the “Manage Antennas” menu.

When the “Manage Antennas” button is pushed on the “Main LiSAmobile" control bar the Antennas

Manager Window appears on the user’s screen (Figure 22).

This module allow the user to select the specific antenna models are mounted and used on the system

and to consequently set the system power output in order to fulfill the emission thresholds regulations. It

also allow to import new antennas characteristics and to therefore create an “antennas database” on the

LiSAmobile system that could be then used in order to select the better antennas for each monitoring

campaign respectful of the varius normatives.

The Antennas database is displayed in the upper left list where a checkmark indicates the antennas in

use. For each entry of this list are displayed the amplitudes expressed in degrees of the Horizontal and

Vertical lobes (“H lobe°” and “V lobe°”), the antennas gain expressed in dB and a brief comment.

via petrarca 55, rovello porro co

Status: Confidential, Public

ellegi srl

c.so magenta, 12 milano

sede operativa

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 24 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

The “Add” control button will add a new entry to the antennas list and the user can insert the lobe

dimensions, the gain and a comment in the correspondent fields. When an entry of the list is selected the

control buttons “Del”, “Edit” and “Use” will respectively allow to delete, edit or use the selected antennas.

The “Limit Pow” control button allow to change the acquisition mode from “Power Not Limited” to “Power

Limited”. If the “Power Limited” option is selected and confirmed this software taking into account the

declared gain of the antennas in use will automatically limit the emitted power of the LiSAmobile system

in order to fulfill the emission thresholds of the various regulations active in the terirtories in which the

system is operated.

Figure 22: The Antennas Manager Window and normative power output limit anable control.

WARNING: USERS ARE HOWEVER EVENTUALLY RESPOSABILITY TO CROSS CHECK THAT

THE LISAMOBILE SYSTEM HAVE ALL THE RADIOFREQUENCY PARAMETERS SET IN SUCH A

WAY TO BE RESPECTFUL OF THE LOCAL TRANSMISSION RULES.

USERS MUST BE SURE TO HAVE REQUESTED AND OBTAINED A LICENSE TO TRANSMIT OF

REQUESTED BY LOCAL NORMATIVES IF NECESSARY AND BE AWARE ABOUT THE

RESTRICTIONS ON THE OPERATION OF SYSTEM.

Creation
date:

2010-04-23

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 25 of 31

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

APPENDIX A - Technical information and recommendations

Spatial Resolution graphs and parameters setting depending on the

distance from the monitored target

The LISAMOBILE © system produces images having a spatial resolution (resolutions in the range and in

the azimuth directions) that varies depending on the selected measuring parameters and on the distance

of the observed target. Also the maximum range (distance reachable) is linked to the selected

parameters.

In the following graphs are presented the LISAMOBILE system’s theoretical range and azimuth resolution

graphs (Figure 23 and Figure 24) and the LISAMOBILE system maximum range graph (Figure 25).

The theoretical range resolution varies only depending on the used bandwidth. The biggest is the used

bandwidth the better will be the range resolution.

The theoretical azimuth resolution at a fixed central frequency (in this case is 17.2 GHz) depends on the

synthetic aperture length and on the distance from the system. The longest is the synthetic aperture and

the closest is the target, the better will be the obtained azimuth resolution.

The maximum range depends on the used bandwidth and on the number of frequency points. The

highest is the number of frequency points and the smallest is the used bandwidth, the greater will be the

obtainable maximum range.

Therefore, as shown on the graphs of Figure 24 and Figure 25, for normal applications it can be stated

that the LISAMOBILE optimal range is up to 3 km, between 3 km and 4.2 km the quality of the results

could be highly affected by the local conditions, and over 4.25 km the feasibility of the measurements can

not be guaranteed without a detailed inspection on the particular situation.

Having more frequency points will increase the time required for the acquisition of each single radar

image, and decreasing the bandwidth will decrease as well the range resolution of the image. Therefore

the user should set the measuring parameters taking into account the trade off that exists between having

high performances in terms of range resolution and having high performances in terms of maximum

range.

Also the time required for the acquisition of a single radar image could be important, for example in the

monitoring of fast displacements, and therefore the trade off between smaller acquisition times and high

performances in terms of maximum range can become crucial.

Creation
date:

2010-04-23

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 26 of 31

local conditions

Not

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

3

2

Range resolution [m]

1

0

25 50 75 100 125 150 175 200 225

Bandwidth [MHz]

Figure 23: Range resolution graph.

20

18

15

13

10

8

Azimuthal resolution [m]

5

3

Optimal Range

Depending on the

guaranteed

0

0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000

Range distance [m]

Aperture 2,0 m Aperture 2,5 m Aperture 3,0 m

Figure 24: Azimuth resolution graph.

Creation
date:

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 27 of 31

Status: Confidential, Public

2010-04-23

Depending on the

local conditions

Not

guaranteed

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

5500

5000

4500

4000

3500

3000

Optimal Range

Maximum range [m]

2500

2000

1500

1000

500

0

25 50 75 100 125 150 175 200 225

Bandwidth [MHz]

Freq. Points 801 Freq. Points 1601 Freq. Points 2001 Freq. Points 2501 Freq. Points 3001 Freq. Points 3501 Freq. Points 4001

Figure 25: Maximum range graph.

IF value setting

The value of the IF parameter affects the speed of the GBInSAR LISAMOBILE © system’s

measurements: the higher is the IF value the smaller will be the time required for a single measure, that in

some applications might result in decreasing the impact of the atmospheric effects on a single image.

On the other hand, higher IF values result in lower levels of the images signal-to-noise ratio, and

therefore lower performances in terms of precision and accuracy of the measurements.

The measurements speed should be set depending on the observed phenomenon features, on the

scenario’s characteristics and on the trade off between fast or precise (and accurate) measurements.

A good compromise is found in the default value of the IF parameter, which is normally set to 5.000.

The LEDA software’s system display emulator (Figure 7) allows the IF parameter value to be set

between 1.000 and 40.000, but it is recommended to change it only if neceaasry. A good solution could

be to firstly change it to a value of 10.000 and perform some measurements to appreciate if changing the

IF value is effective in improving the measurements quality concerning the atmospheric effects impact,

and to further increase it using the same procedure to a maximum 15.000.

Creation
date:

2010-04-23

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 28 of 31

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

Anyway it is always recommended to ask Ellegi technical support and recommendations before setting

the IF parameter to a value that is different to its default one of 5.000.

Example: a procedure for the system’s parameters setting

The optimal setting of the system’s parameters depends on the observed scenario characteristics and on

the desired output features.

The following procedure should help the user in the choice of the system’s parameters:

1. Chose the desired range resolution and consequently select the needed bandwidth according to

the graph of Figure 23;

2. Knowing the maximum distance of the target area to be measured, select the synthetic aperture

length needed to achieve the desired azimuthal resolution, according to the graph of Figure 24. It

is recommended to select the system parameters in order to have similar or equal range and

azimuthal resolution dimentions, extremely stretched resolution cells might produce poor quality

results;

3. Knowing the maximum distance of the target area to be measured and the bandwidth selected in

the first step of this procedure, select the number of frequency points according to the graph of

Figure 25. the maximum range indicated in the graph must be grater than the maximum distance

of the target area;

4. Perform a measure to decide weather or not the time required for the acquisition of a single

measure and the impact of the atmospheric effects suits the monitoring requirements;

5. If the monitoring requirements are not satisfied, an increase the IF value, a decrease of the

number of frequency points and/or a decrease of the synthetic aperture’s length will decrease the

time required for a single acquisition.

Antennas types and emission diagrams

The GBInSAR LISAMOBILE © system can be used with different horn antennas. Different antennas have

different emission diagrams that means wider or narrower visible sceneries, therefore depending on the

monitored scenario one kind of antenna might be more suitable than another.

Because of the peculiar characteristics of each monitoring scenario, the choice of the optimal antenna is

an issue that often requires on field testing.

Creation
date:

2010-04-23

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 29 of 31

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

In the following picture (Figure 26) are presented two emission diagrams for the SGHA-15 and the

SGHA-10 antennas. From these emission diagrams it can be observed that the SGHA-15 has a -3

dB emission beam width of approximately 30°, while the SGHA-10 has a -3 dB emission beam

width of approximately 60°. The area illuminated by the emitted signal is normally wider than the -

3 dB emission beam. The -3 dB beam width is generally used as a safety value.

Figure 26: Emission diagrams for the SGHA-15 antennas (left) and the SGHA-10 antennas (right).

Precautions for the system switching off

To definitively switch off the LISAMOBILE system at the end of a measuring session (e.g. after a

periodical check campaign or before a maintenance intervention) execute the “Quit” command, then

execute the “Load default parameters” command and finally execute the “shut down” command.

Turn off the LP and MW switches and afterwards the power base main power

switch ONLY after having verified that the display on the power base has

completely switched off.

ellegi srl

c.so magenta, 12 milano

sede operativa

via petrarca 55, rovello porro co

Status: Confidential, Public

Subject: User’s guide: Main LiSAmobile release 4.5.0

Customer
Ref.:

File:

- Int. Ref.: IB Rev.: 05 Rev. date: 2014-03-14

User's Guide - Main LiSA
Mobile_release_4.5.0.r7.doc

Special note: Confidential Page: 30 of 31

Creation
date:

2010-04-23

… a step ahead in monitoring

structures and natural hazards

by ellegi srl

Contacts, Warnings and Legals

For further information on the software or technical support please contact:

ellegi srl

Via Petrarca, 55

I-22070 Rovello Porro CO Italy

Phone: [phone] Web page: www.lisalab.com

Fax: [phone] e-mail: [e-mail]

WARNING
