Page 1
Chair
ASSEMBLY INSTRUCTIONS
Page 2
Guidelines
Thank you for selecting an Elle Decor Collection piece!
FAILURE TO FOLLOW THESE WARNINGS
WHEN IN USE COULD RESULT IN INJURY
Our primary objective is to provide fast, friendly
customer service to all of our customers. We are here
to help if you have any questions, comments, or are
in need of warranty replacement parts.
Please call us toll free at:
U.S. Monday - Friday 6:00am - 5:00pm PST,
U.K. Monday - Friday 2:00pm - 1:00am U.K. Time
Or visit our website:
www.truecustomersupport.com
www.trueinnovations.com
1-855-372-2315 U.S.
0-800-051-6775 U.K.
• Do not stand on the item or use as a step ladder
• The piece has been tested and approved for users
weighing up to 250 lbs (113kg) per seat.
• Do not use this item unless all bolts and screws are
firmly secured and fastened.
• Check all bolts and screws every 90 days. As necessary
tighten if any are loose.
• Lift up then move. Pushing over or dragging this
product can result in an injury or cause damage to the
floor and piece.
2
Page 3
Pre-Assembly Preparation:
Please read through this instruction booklet before
beginning assembly of this item.
Two adults are recommended for assembly.
• Clear out the space for assembly and lay out all
parts on Parts List, extra room will allow you to
easily determine if all the pieces are present.
• Save all packing materials until assembly is
complete to avoid accidentally discarding smaller
parts or hardware.
• Keep small parts and pieces away from children
and pets until fully assembled.
• Please check for any loose screws and tighten them
before you use.
WARNING: DO NOT LET
CHILDREN PLAY IN OR
AROUND THE UNIT DUE
TO THE POSSIBLE RISK
OF INJURY.
3
Page 4

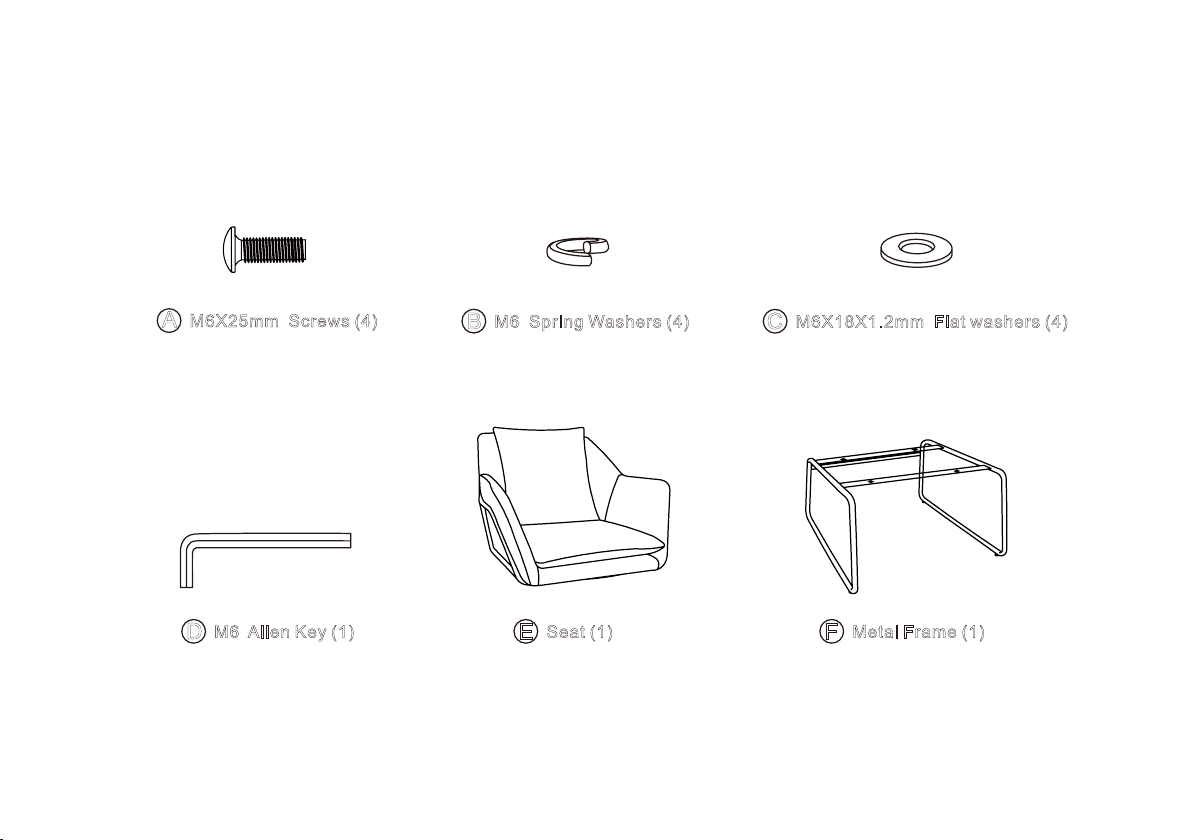

Parts List
M6X25mm Screws (4)
A
M6 Spring Was he rs ( 4)
B
M6X18X1.2mm Flat washers (4)
C
M6 Allen Key (1)
D
E
Seat (1)
Metal Frame (1)
F
4
Page 5
Step 1--
1.Remove all parts from the carton and place them on a protected surface or carpet.
2.Upside down the seat (E) and attach metal frame (F) to the bottom of seat (A), be make sure the front
mark face to front as shown.
F
FRONT
FR ON T
E
5
Page 6

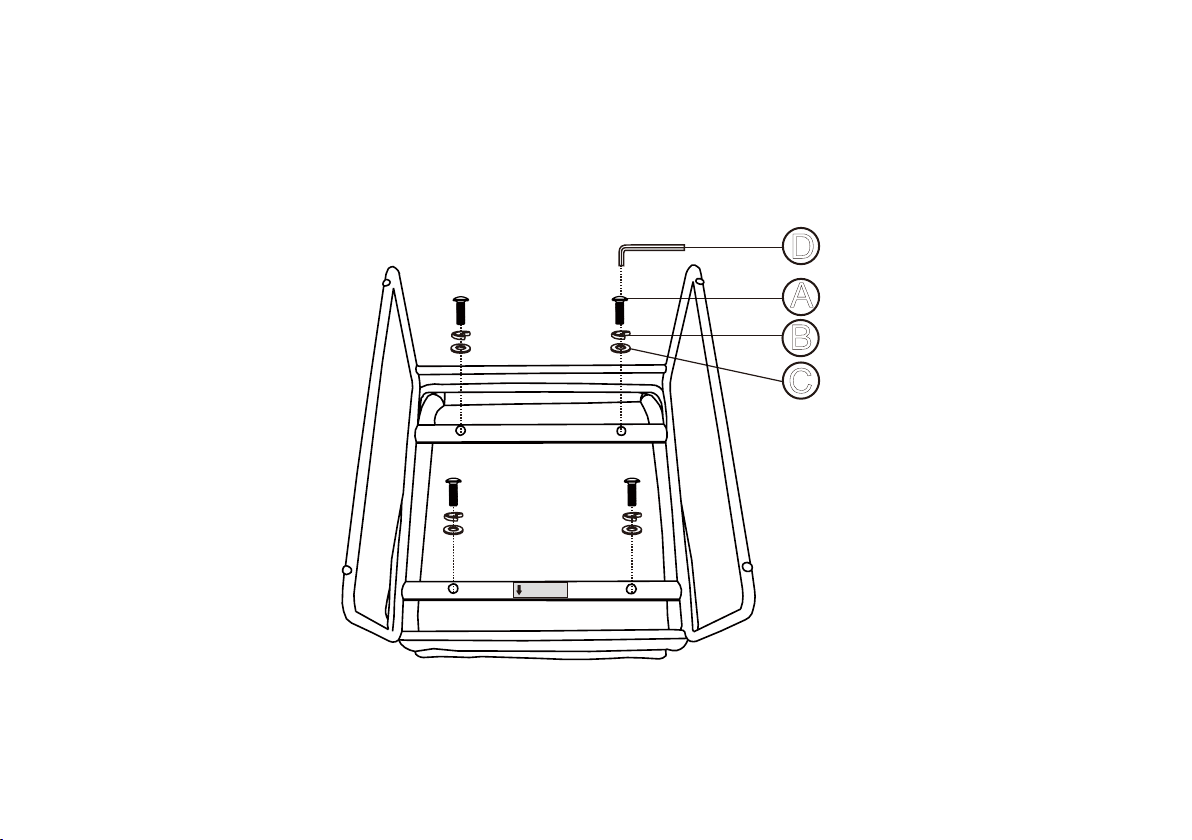

Step 2--
Connect Seat (E) and Metal Frame (F) with Screw (A), Spring Washer(B) and Flat Washer (C) then tighten
screws securely with Allen Key (D).
D
A
B
C
FRO N T
6
Page 7
30.91”
30. 32”
26. 38”
Product Dimension
7
Page 8
Limited Warranty
The product you have purchased is warranted against
defects in material and workmanship while owned by
the “Original Purchaser”. The term “Original Purchaser”
is defined as that party or entity which purchases these
products from an authorized dealer or retailer as shown
by the original sales receipt. This warranty does not
apply too “as is” or previously owned products.
The manufacturer warrants its products to be free from
defects in materials and workmanship (normal wear and
tear, fading and stretching excepted), for one year from
the date of purchase, except as provided below under
the limited warranty.
This warranty gives you specific rights, and you may also
have other rights, which vary from state to state (or
country to country). All warranties are limited to the
original purchaser for normal use by a maximum of two
users. Total weight capacity per chair is 250 pounds for
a single user.
The exceptions or exclusions to this warranty are:
• Upholstery material and foam cushion material is
warranted against defects in material and workmanship
for a period of one year, beginning on the date of
purchase as shown on the original sales receipt.
• Any warranty claim that is submitted after the limited
warranty period, or without proper proof of purchase
will not include the cost of parts, labor, or delivery on
the warranted parts within a reasonable amount of time.
We reserve the right to require damaged parts to be
returned to us upon request. Natural markings such as
scars, brands, grain variations, wrinkles, color variations,
etc. will be considered normal characteristics and not
construed as defects.
• For claims or questions concerning this warr
please contact the Customer Service Department
on the web at www.truecustomersupport.com.
Be prepared to provide your name, address,
daytime phone number, the model and purchase order
number of the product, date of purchase, and the store
where it was purchased. The manufacturer requires that
the original sales receipt be submitted with all requests
to confirm that you are the original purchaser according
to our written warranty.
anty,
8
