Page 1
Sofa
ASSEMBLY INSTRUCTIONS
Page 2
Guidelines
Thank you for selecting an Elle Decor Collection piece!
Our primary objective is to provide fast, friendly
customer service to all of our customers. We are here
to help if you have any questions, comments, or are
in need of warranty replacement parts.
Please call us toll free at: 1-855-372-2315
(Monday - Friday 6:00am - 5:00pm PST)
Or visit our website:
www.truecustomersupport.com
www.trueinnovations.com
Or call us toll free: 1-800-379-9773
FAILURE TO FOLLOW THESE WARNINGS
WHEN IN USE COULD RESULT IN INJURY
• Do not stand on the item or use as a step ladder
• The piece has been tested and approved for users
weighing up to 250 lbs (113kg) per seat.
• Do not use this item unless all bolts and screws are
firmly secured and fastened.
• Check all bolts and screws every 90 days. As necessary
tighten if any are loose.
• Lift up then move. Pushing over or dragging this
product can result in an injury or cause damage to the
floor and piece.
2
Page 3
Pre-Assembly Preparation:
Please read through this instruction booklet before
beginning assembly of this item.
Two adults are recommended for assembly.
• Clear out the space for assembly and lay out all
parts on Parts List, extra room will allow you to
easily determine if all the pieces are present.
• Save all packing materials until assembly is
complete to avoid accidentally discarding smaller
parts or hardware.
• Keep small parts and pieces away from children
and pets until fully assembled.
• Please check for any loose screws and tighten them
before you use.
3
WARNING: DO NOT LET
CHILDREN PLAY IN OR
AROUND THE UNIT DUE
TO THE POSSIBLE RISK
OF INJURY.
Page 4

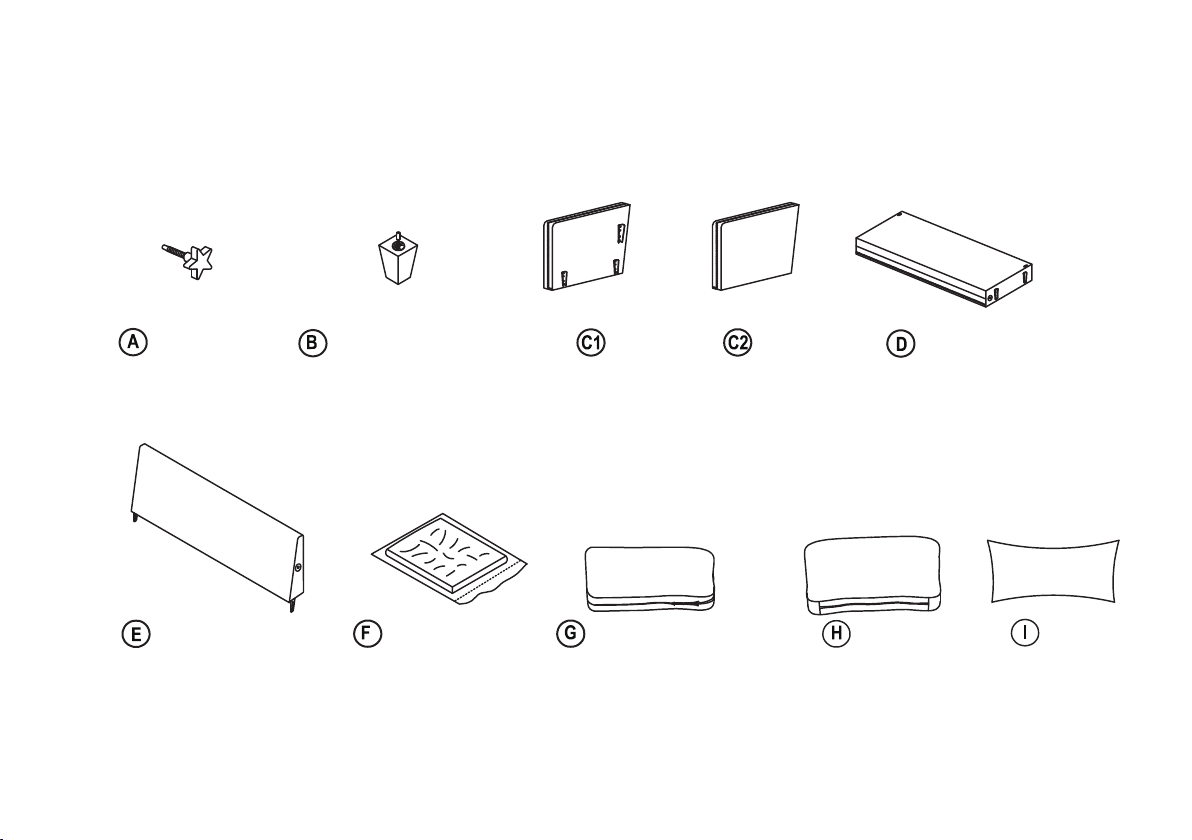

Parts List
Thumb Bolts (4) Arms Arms
Back Frame (1)
Wood Legs with Washers (4)
Seat Cushion Covers (2) Back Cushion (2) Pillow (2)Seat Cushions (2)
Seat Frame (1)
4
Page 5

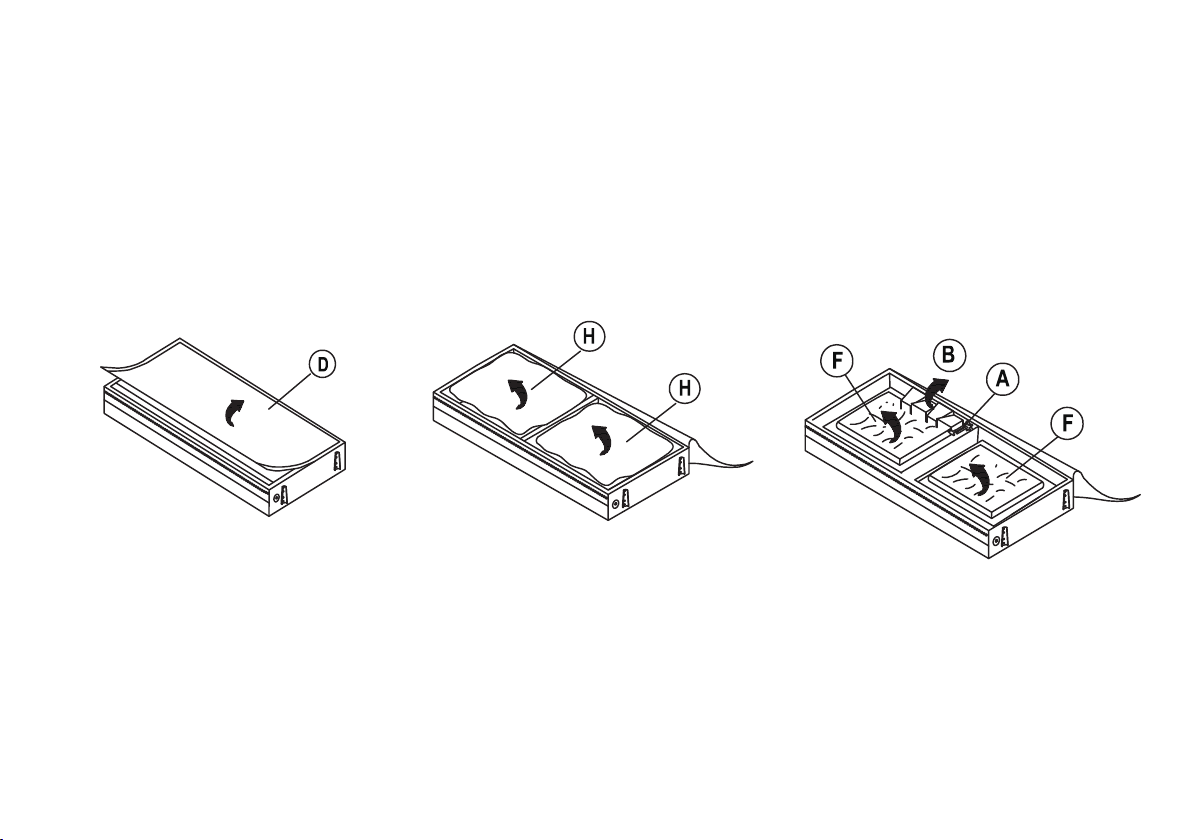

Step 1--
Remove all parts from the carton and place them on a protected surface or carpet. Place the Seat Frame
(D) upside down and open the bottom flap. Take the Back Cushions (H) then take Thumb Bolts (A),
Wood Legs with Washers (B), Seat Cushion (F) out of the seat box.
5
Page 6

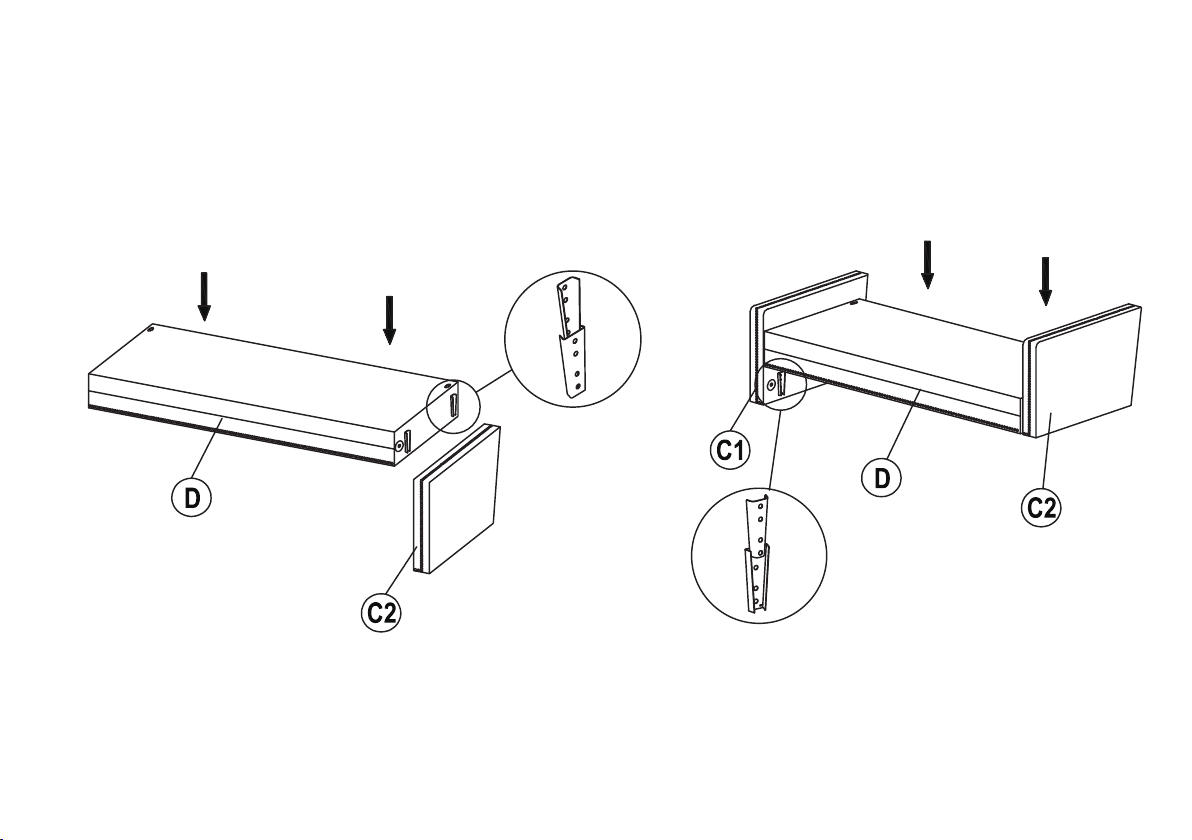

Step 2--
Attach Seat Frame (D) to Arm (C2) by sliding the receivers into the mechanism posts located on sides of Arm
(C2), press down Seat Frame (D) then Move Seat Frame (D) to attach the Arm (C1), press down on both sides
of the Seat Frame (D) to firmly secure.
6
Page 7

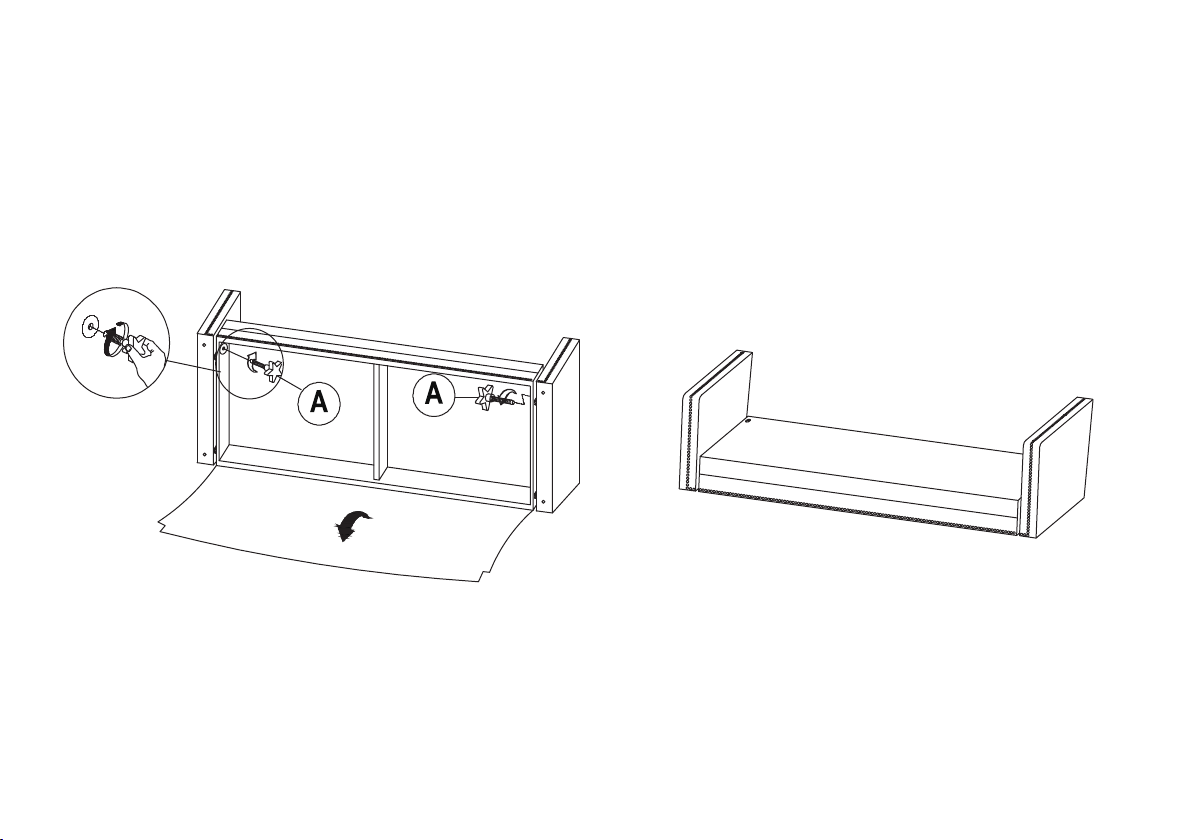

Step 3--
Insert Thumb Bolts (A) x 2 into holes on sides of Seat Frame (D) and tighten the bolts to Arms (C1 & C2).
7
Page 8

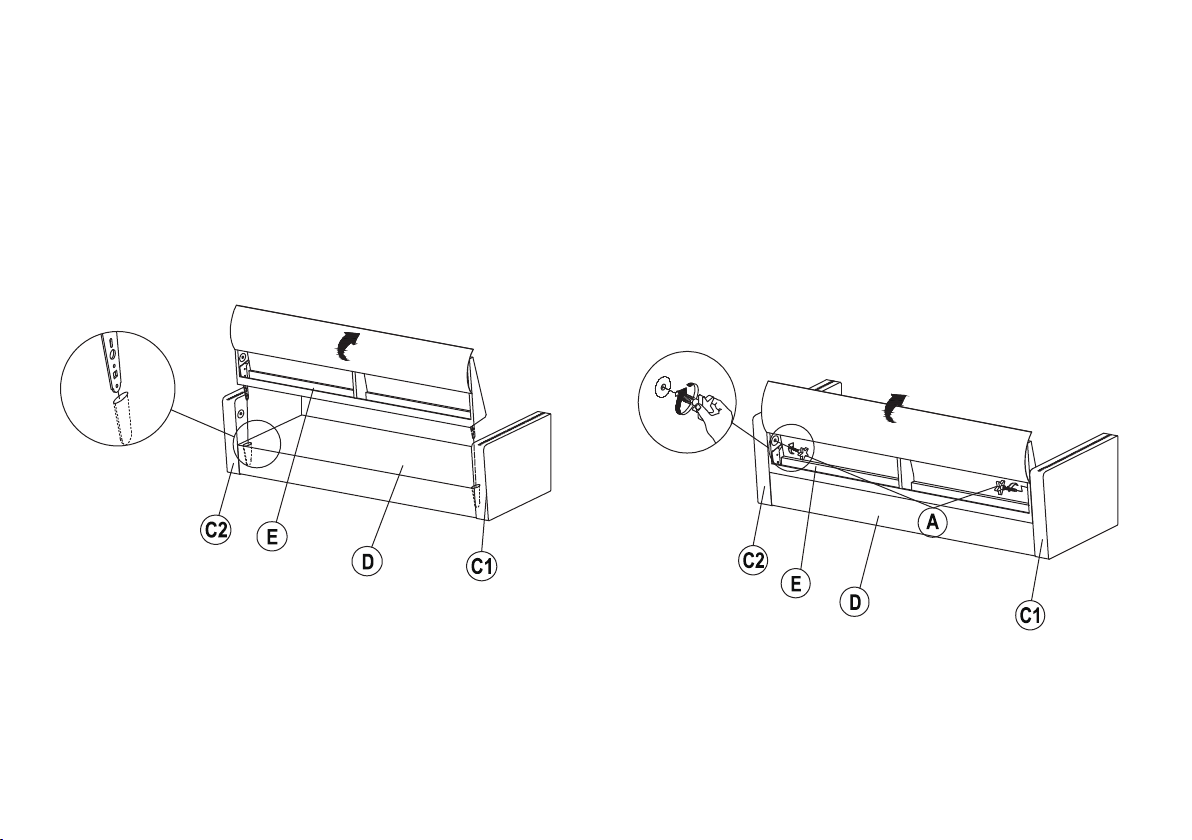

Step 4--
1. Slide the Back Frame (E) into the Seat Frame (D) & align the bracket on the Back Frame (E) until fully engaged.
2. Insert Thumb Bolts (A) x 2 into holes on sides of Back Frame (E) into sides of Arms (C1 & C2) holes and tighten
the bolts.
8
Page 9

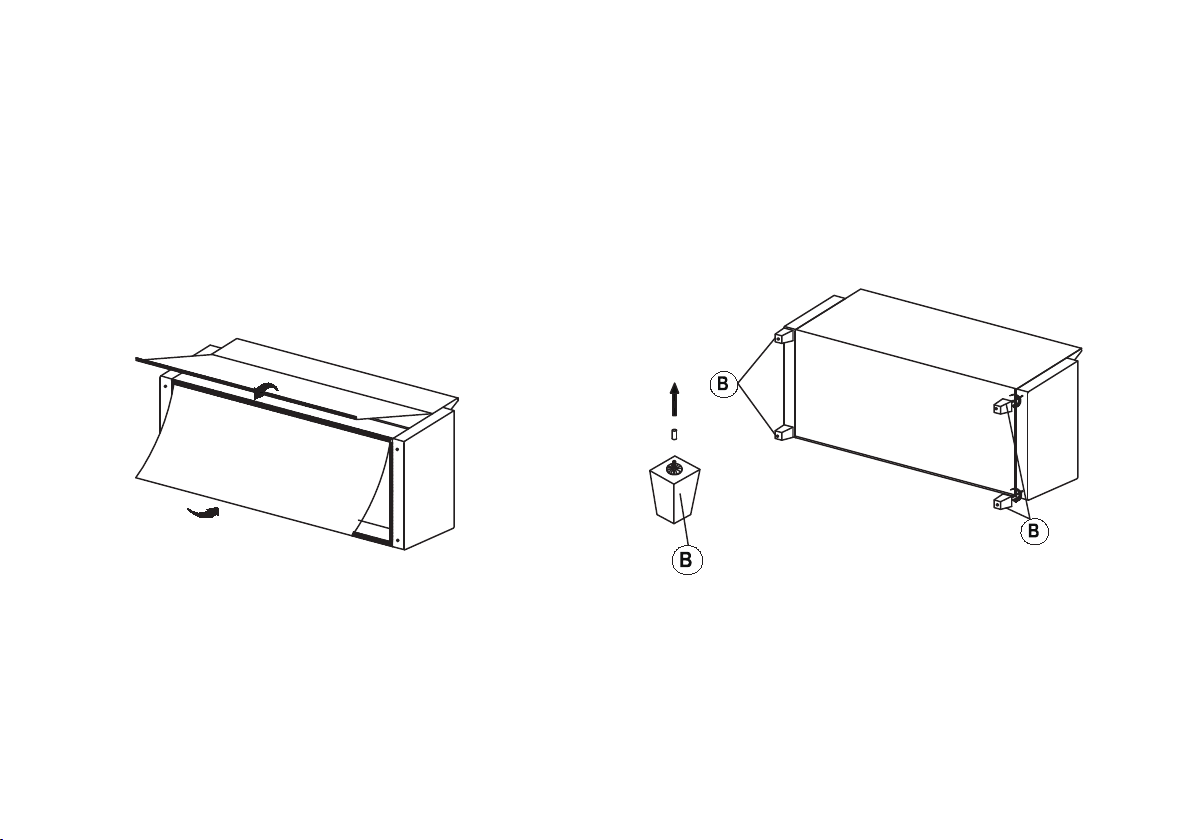

Step 5--
1. Secure the back cover to the hook & loop strip & secure the bottom cover to the hook & loop strip.
2. Turn over Seat Frame (D), remove the plastic caps on the threaded bolts of each Wood Leg (B). Attach the
Wood Legs with Washers (B) to the corners of the sofa.
9
Page 10

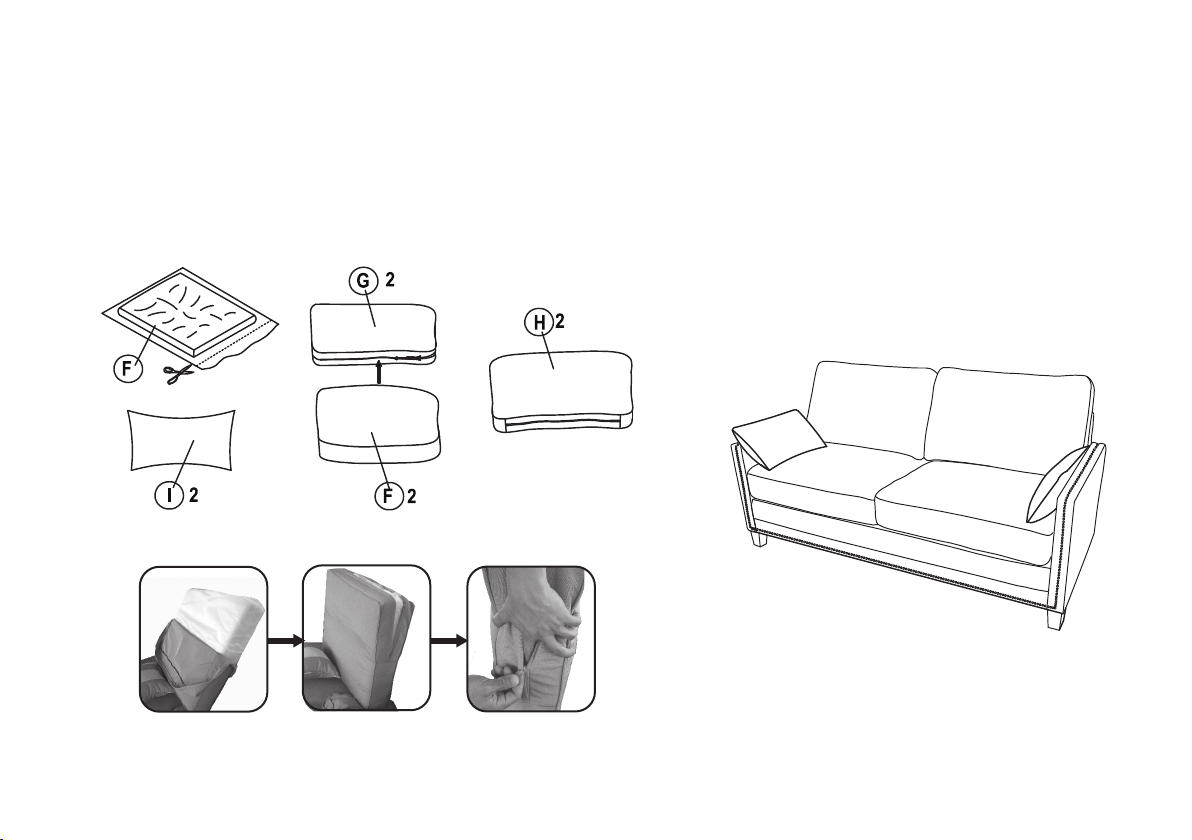

Step 6--
1. Open the vacuum packed Seat Cushions (F) by carefully cutting the bags with a pair of scissors. Insert
the Seat Cushions (F) into the appropriate Seat Covers (G). Ensure the cushion cover completely covers
the filler as image (2). When closing the zipper as image (3) the cushion is compressed. This will allow the
zipper to close with ease. Fluff all cushions and pillows to allow them to expand.
2. Lastly, position all Cushions and Pillows (I) on the sofa. Seat and back cushions may take 24-48 hours
to fully expand, which will allow wrinkles and indentations caused by packing to fade.
image (1) image (2) image (3)
10
Page 11
Limited Warranty
Millwork Holdings seating products are warranted against
defects in material and workmanship while owned by the
“Original Purchaser”. The term “Original Purchaser” is
defined as that party or entity which purchases Millwork
Holdings furniture from an authorized Millwork Holdings
retailer as shown by the original sales receipt. This
warranty does not apply to “as is” or previously owned
seating products.
Millwork Holdings warrants its products to be free from
defects in materials and workmanship (normal wear and
tear, fading and stretching excepted), for one year from
the date of purchase, except as provided below under the
limited warranty.
This warranty gives you specific rights, and you may also
have other rights, which vary from state to state.
All warranties are limited to the original purchaser for
normal use by a maximum of two users. Total weight
capacity per chair is 250 pounds for a single user.
The exceptions or exclusions to this warranty are:
• Upholstery material and foam cushion material is
warranted against defects in material and workmanship
for a period of one year, beginning on the date of
purchase as shown on the original sales receipt.
• Any warranty claim that is submitted after the limited
warranty period, or without proper proof of purchase
will not include the cost of parts, labor, or delivery on
the warranted parts within a reasonable amount of time.
We reserve the right to require damaged parts to be
returned to us upon request. Natural markings such as
scars, brands, grain variations, wrinkles, color variations,
etc. will be considered normal characteri
construed as defects.
• For claims or questions concerning this warranty,
please contact Millwork Holdings Customer Service
department on the web at www.truecustomersupport.com.
Be prepared to provide your name, address,
daytime phone number, the model and purchase order
number of the product, date of purchase, and the store
where it was purchased. Millwork Holdings requires that
the original sales receipt be submitted with all requests
to confirm that you are the original purchaser according
to our written warranty.
s
tics and not
11
