Elle Decor ELDC1064 Installation & Assembly

Vallauris Outdoor Sectional

Assembly Instructions

iNClUDES iMPOrTANT SAFETy iNFOrMATiON.

{ }

PlEASE rEAD AND KEEP FOr FUTUrE rEFErENCE.

02

Should you prefer to
speak with a customer
service representative,
you may call toll free :

1-855-372-2315.

Limited Warranty

Millwork Holdings seating products are warranted against
defects in material and workmanship while owned by the
“Original Purchaser”. The term “Original Purchaser” is
defined as that party or entity which purchases Millwork
Holdings furniture from an authorized Millwork Holdings
retailer as shown by the original sales receipt. This
warranty does not apply to “as is” or previously owned
seating products.

Millwork Holdings warrants its products to be free from
defects in materials and workmanship (normal wear and
tear, fading and stretching excepted), for one year from
the date of purchase, except as provided below under
the limited warranty.

This warranty gives you specific rights, and you may also
have other rights, which vary from state to state.
All warranties are limited to the original purchaser for
normal use by a maximum of two users. Total weight
capacity per chair is 250 pounds for a single user.

The exceptions or exclusions to this warranty are:

• Upholstery material and foam cushion material is
warranted against defects in material and workmanship for
a period of one year, beginning on the date of purchase as
shown on the original sales receipt.

• Any warranty claim that is submitted after the limited
warranty period, or without proper proof of purchase
will not include the cost of parts, labor, or delivery on the
warranted parts within a reasonable amount of time. We
reserve the right to require damaged parts to be returned
to us upon request. Natural markings such as scars, brands,
grain variations, wrinkles, color variations, etc. will be
considered normal characteristics and not construed as
defects.

• For claims or questions concerning this warranty, please
contact Millwork Holdings Customer Service department
on the web at www.truecustomersupport.com. Be prepared
to provide your name, address, daytime phone number,
the model and purchase order number of the product,
date of purchase, and the store where it was purchased.
Millwork Holdings requires that the original sales receipt
be submitted with all requests to confirm that you are the
original purchaser according to our written warranty.

03

Guidelines

Thank you for selecting an Elle Decor piece!

Our primary objective is to provide fast, friendly
customer service to all of our customers. We are here
to help if you have any questions, comments, or are in
need of warranty replacement parts.

Please call us toll free at: 1-855-372-2315
(Monday - Friday 6:00am - 5:00pm PST)

Or visit our website:
www.truecustomersupport.com

www.trueinnovations.com

Assembly time ~ 15 minutes

FAILURE TO FOLLOW THESE WARNINGS
WHEN IN USE COULD RESULT IN INJURY

• Do not stand on the item or use as a step ladder.

• The chair is only designed for one person to use at

a time (per seat).

• The chair has been tested and approved for users
weighing up to 250 lbs (113kg) per seat.

• The chair is not recommended for use by individuals
weighing more than 250 lbs (113kg) per seat.

• Do not use this item unless all bolts and screws are
firmly secured and fastened.

•

Check all bolts and screws every 90

tighten if any are loose.

• Please lift up then move. Pushing over or dragging this
product can result in an injury or cause damage to the
floor and outdoor piece.

days. As necessary,

04

WARNING: DO NOT LET CHILDREN PLAY IN OR AROUND THE UNIT
DUE TO THE POSSIBLE RISK OF FINGER ENTRAPMENT.

Pre-Assembly Preparation:

Please read through this instruction before beginning
assembly of this item.

Two adults assembly are recommended.

• Clear out space for assembly and lay out all parts
shown in parts list. Extra room will allow you to easily
determine if all the pieces are present.

• Save all packing materials until assembly is complete to
avoid accidentally discarding smaller parts or hardware.

• Keep small parts and pieces away from children
until fully assembled.

• Please check for any loose screws and tighten them
before you use.

Cleaning & Maintenance:

• Wash frame parts with mild soap and water, rinse
thoroughly. Dry frame parts completely. Do not
use bleach, acid or other solvents on the wicker or
metal parts.

• We recommend the use of furniture covers to
protect the set when not in use.

• Inspect and tighten all bolts on a regular basis to
ensure proper performance and safety.

• In order to prolong the life of your outdoor
furniture, we recommend storing it in a dry and
protected area during o season periods.

05

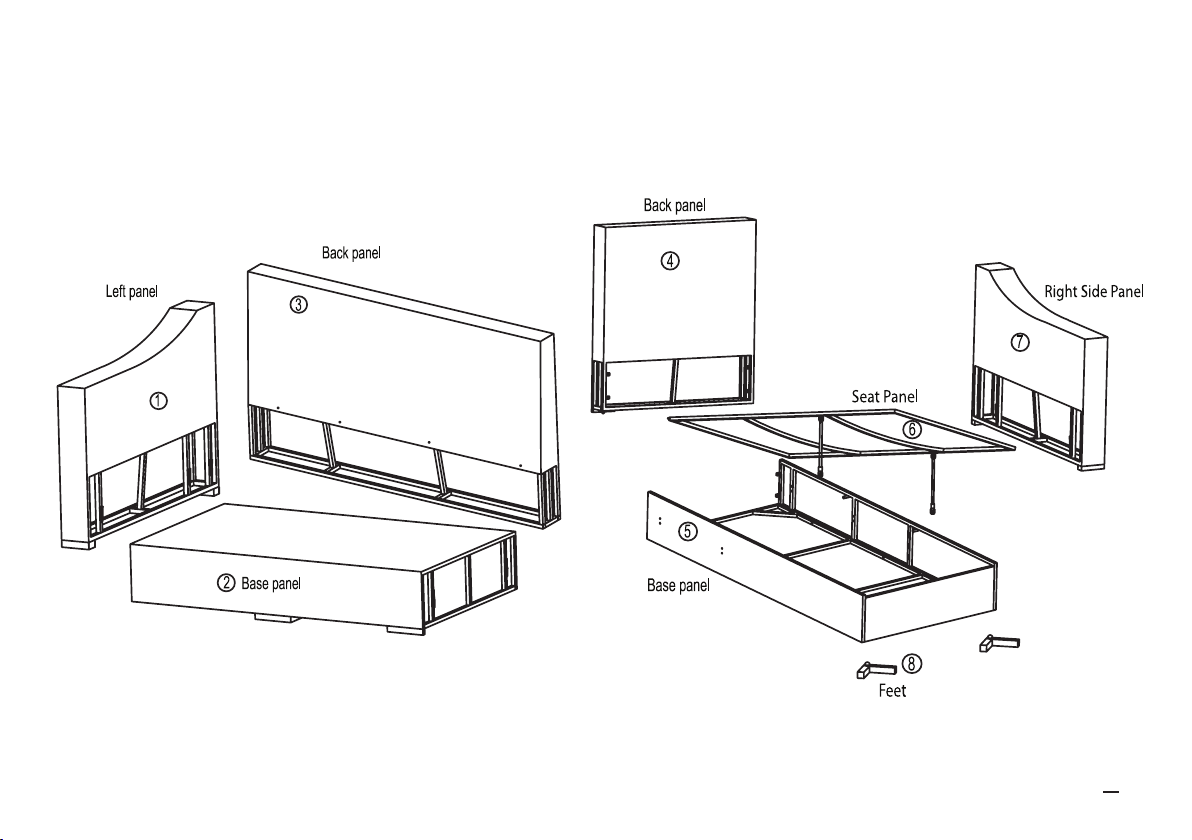

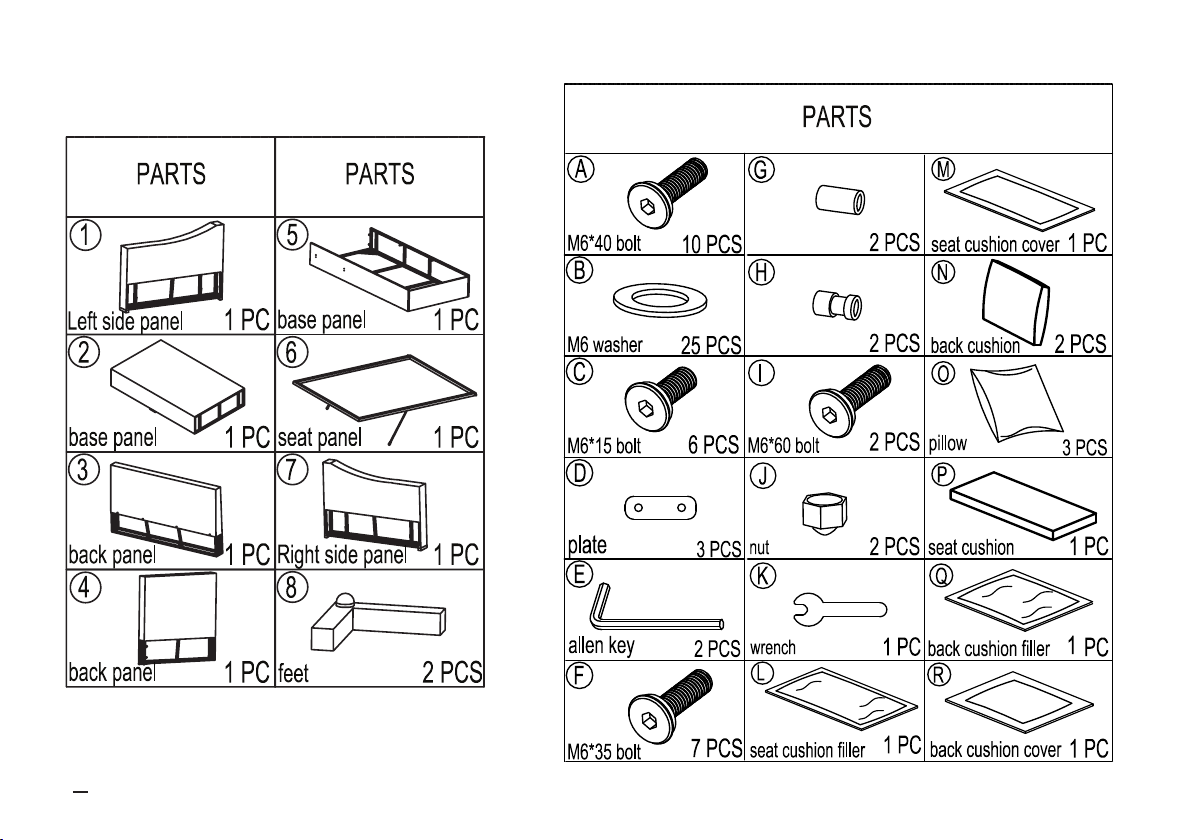

Parts Inventory

06

07

STEP 1

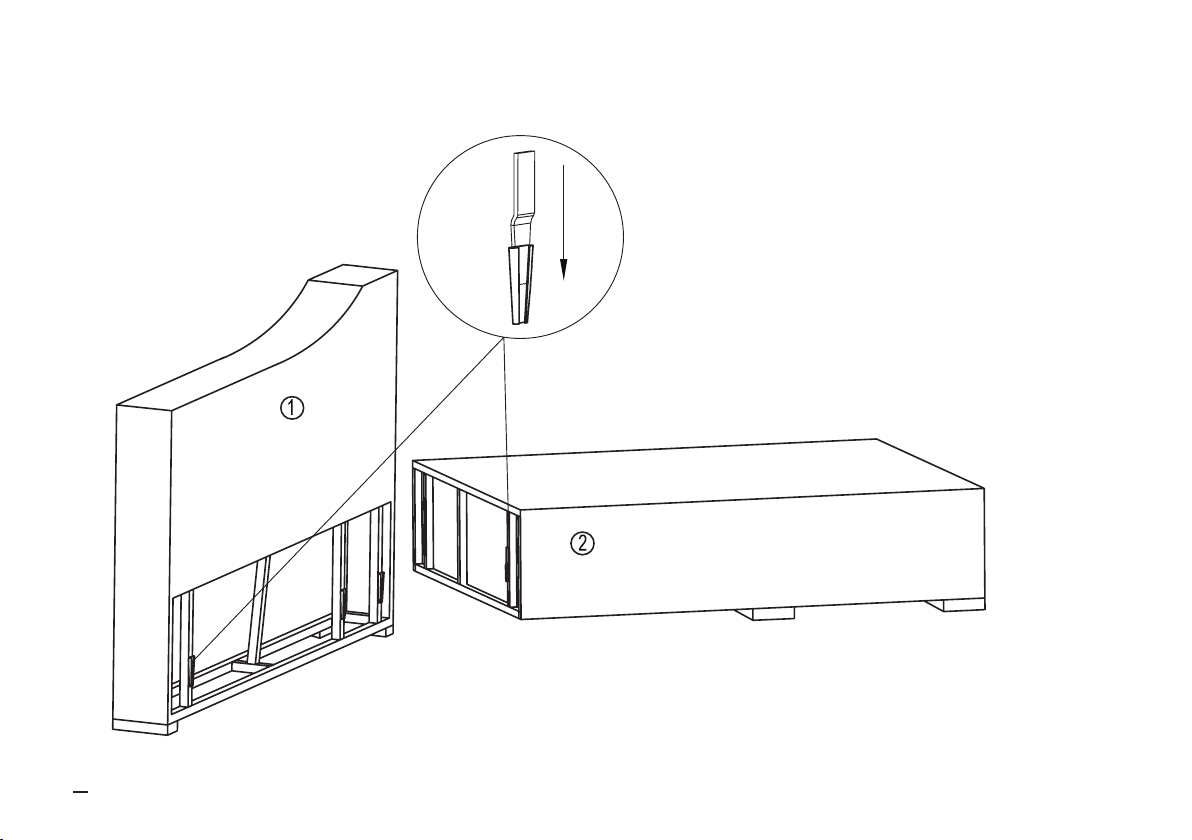

Lift to insert Left Side Panel’s (1) attached hardware
into Base Panel’s
Push downwards until fully locked in place.

(2) attached hardware.

08

STEP 2

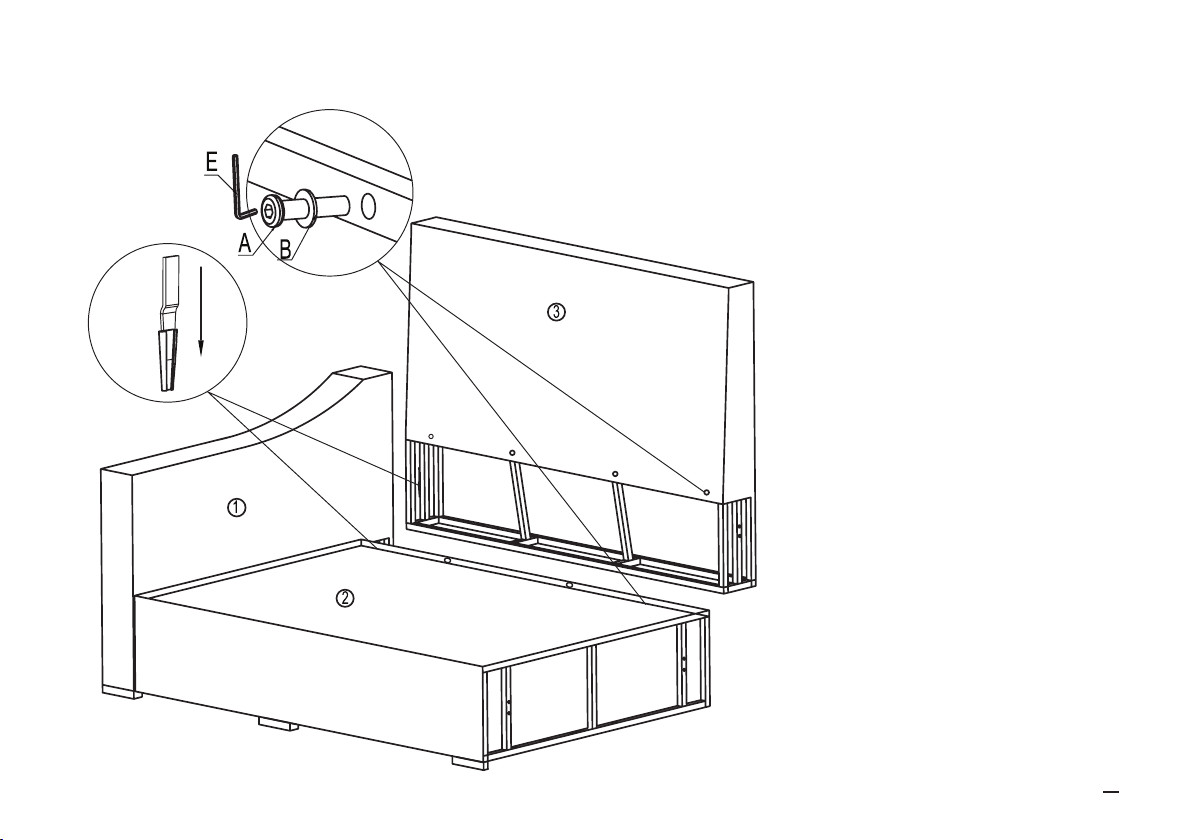

1. Lift to insert Back Panel (3) and
attach hardware into Left Side
Panel’s (1) hardware and push down
until fully connected.

2. Insert M6 x 40mm bolt (A) with
Washer (B) with Allen Key (E)
through Base Panel (2) connecting
to Back Panel. Fully tighten.

09

STEP 3

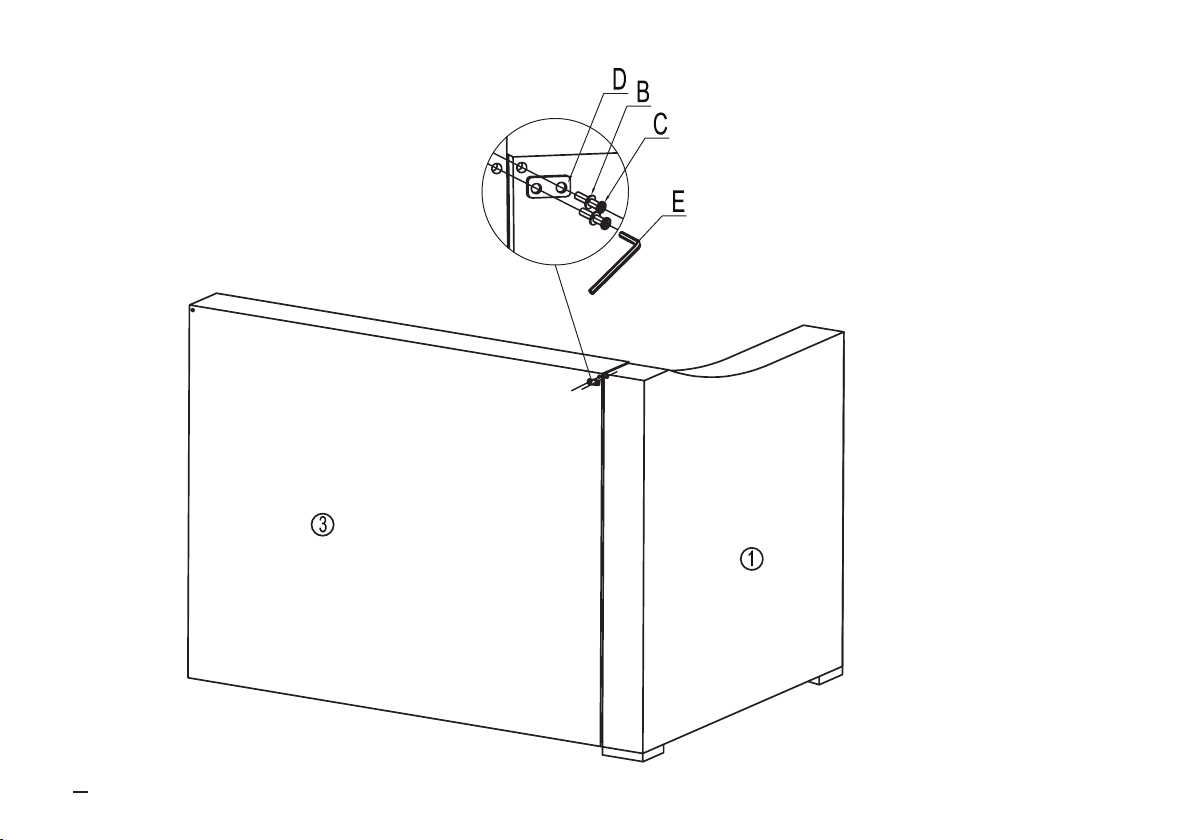

Attach plate (D) with M6 x 15mm bolt
(C) and Washer (B) and fully tighten
using Allen Key (E).

10

STEP 4

M

Insert cushion (L) into Cushion

(M). Repeat for each cushion.

Cover

L

11

STEP 5

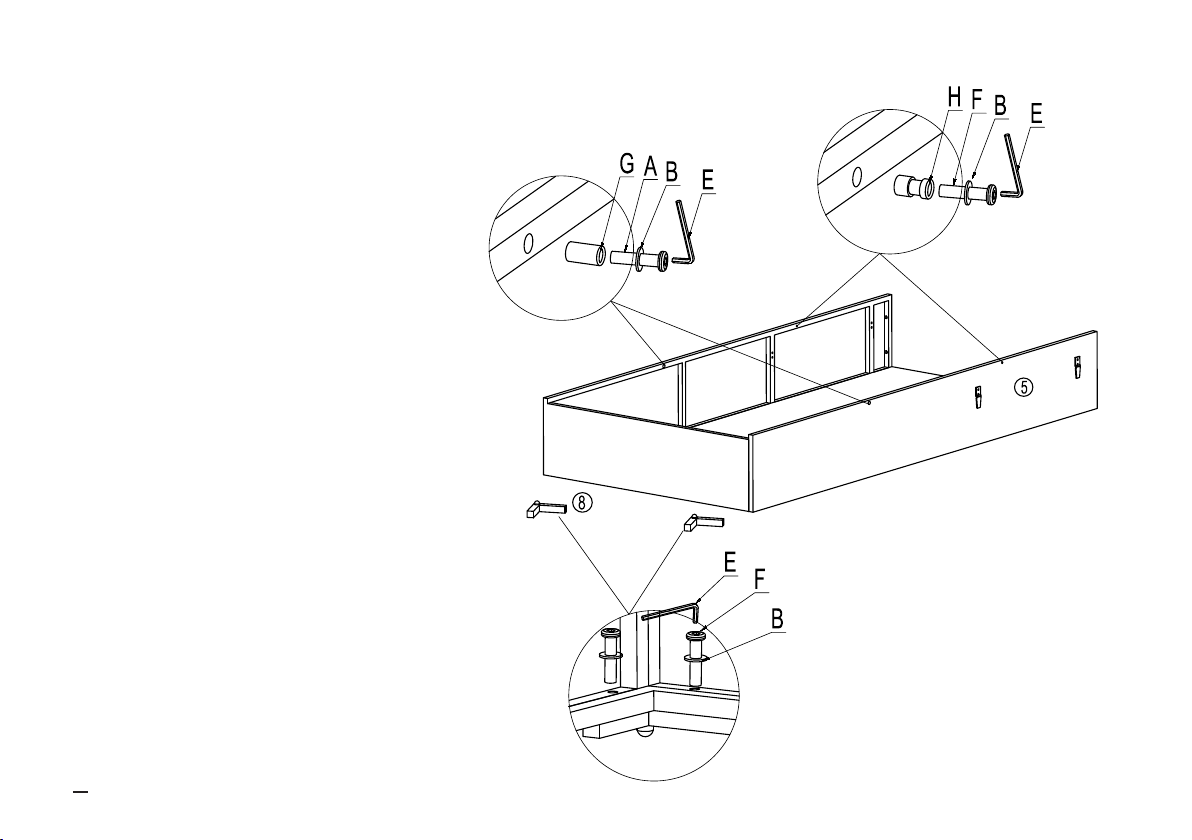

1. Take out seat cushion (P) from Base
panel (5).

2. Attach Feet (8) to Base panel (5) by

using M6 x 35mm bolt (F) and Washer
(B). Tighten using Allen Key (E).

3. Attach Part (G) to Base panel (5) by
using M6 x 40mm bolt (A) and Washer
(B). Tighten using Allen Key (E).

4. Attach Part (H) to Base panel (5) by
using M6 x 35mm bolt (F) and Washer
(B). Tighten using Allen Key (E).

12

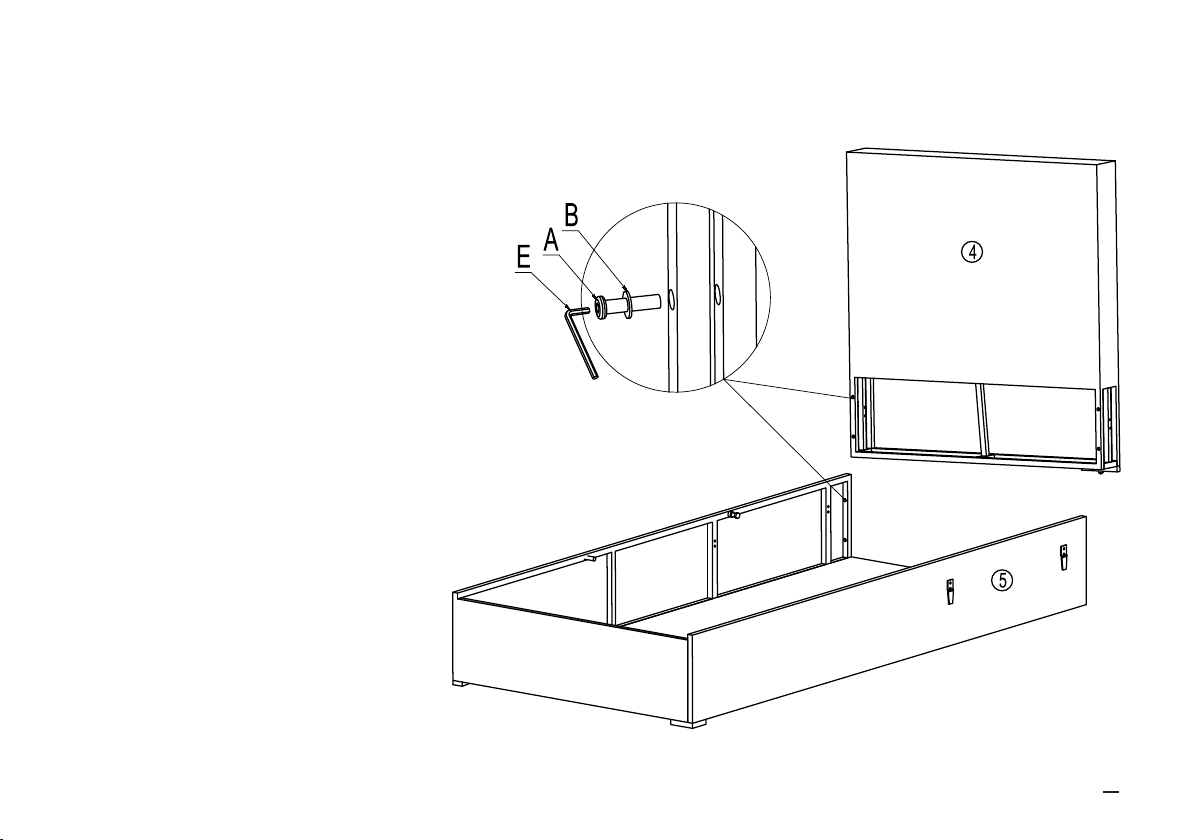

STEP 6

Attach Back Panel (4) to Base panel (5)
by using M6 x 40mm bolt (A) and Washer
(B). Tighten using Allen Key (E).

13

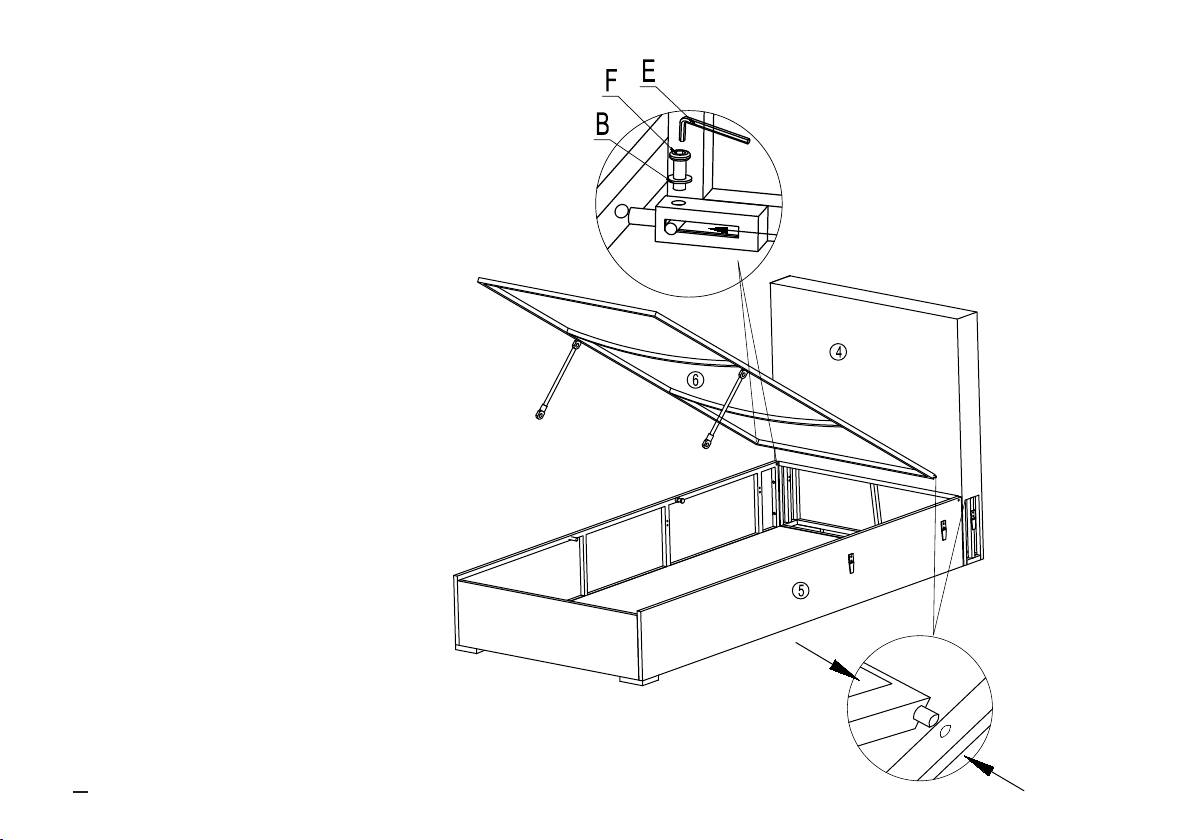

STEP 7

Attach Seat panel (6) by inserting
into holes located on Base panel
(5) and tighten the left hole by

using M6 x 35mm bolt (F) and
Washer (B) with Allen Key (E) as

shown in diagram.

14

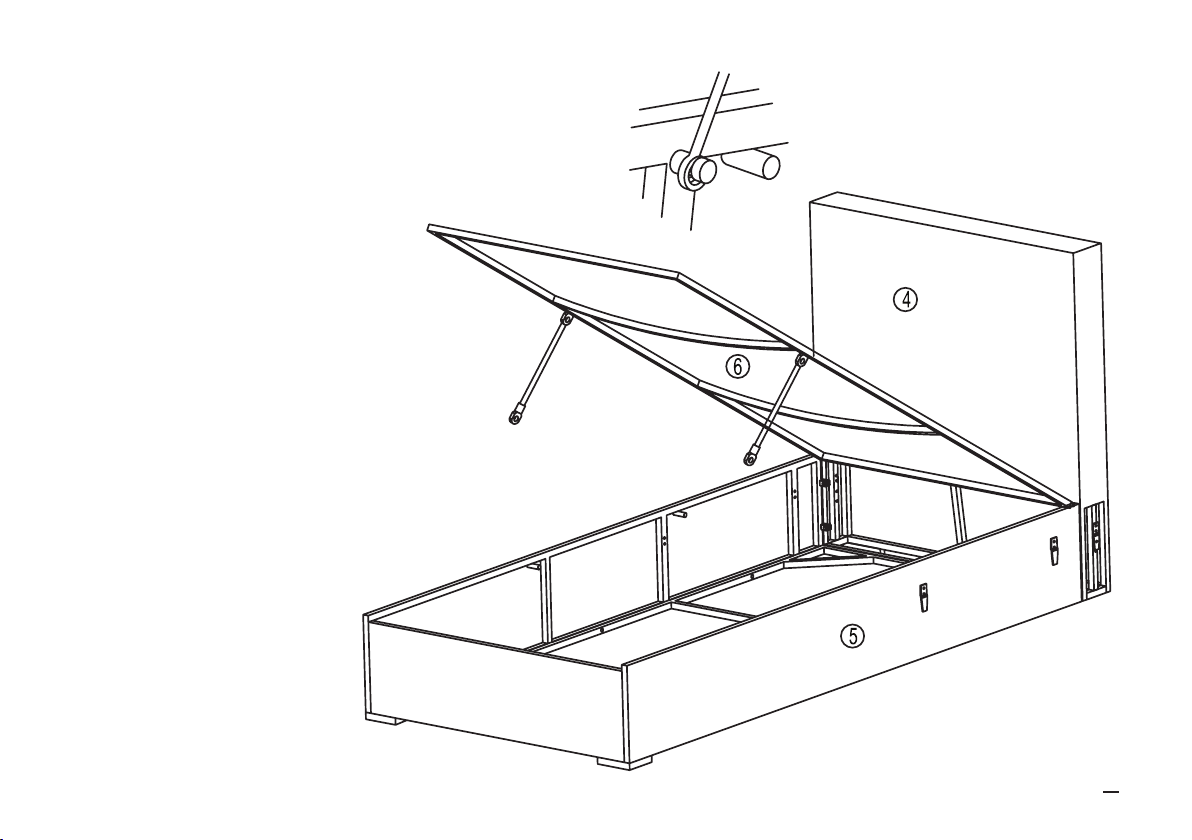

STEP 8

TO RAISE AND LOCK LID

Raise the Seat panel (6) until the
ring on the Hardware is able to fit
over the Hardware Rod.
Remove to lock.

15

STEP 9

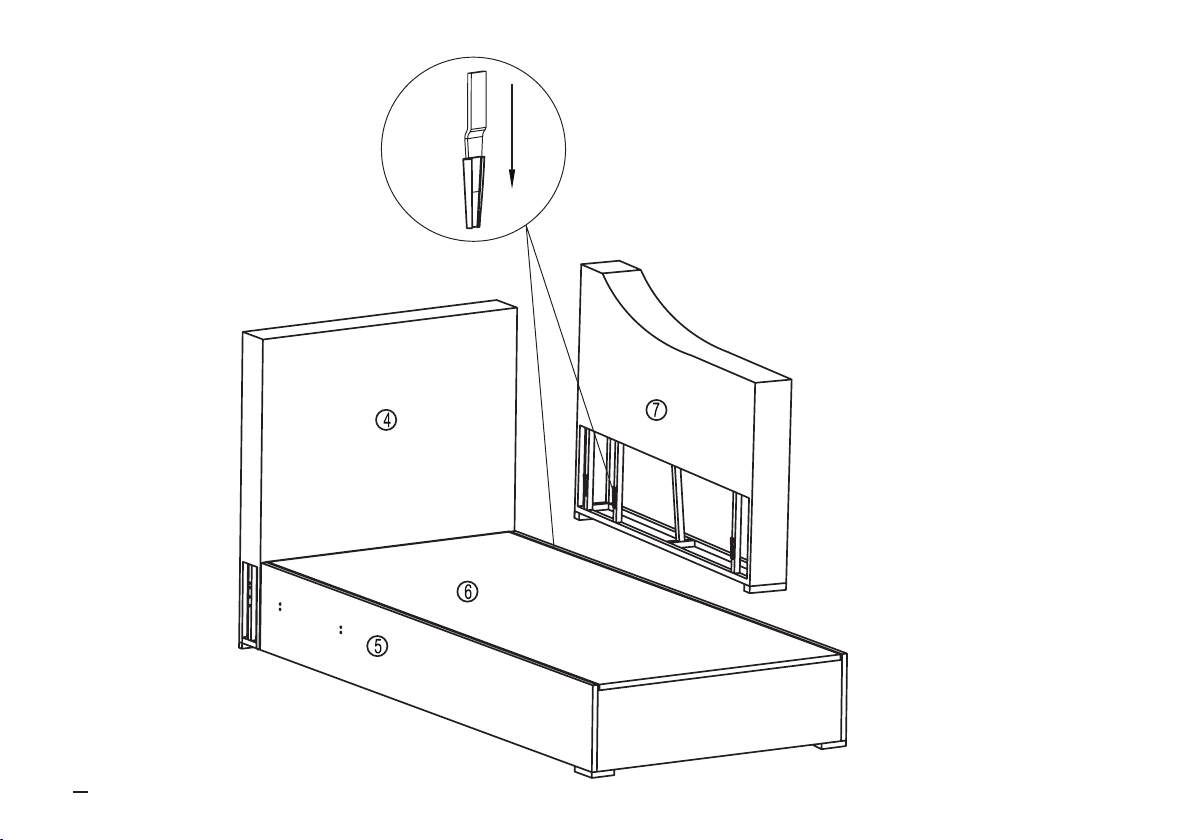

Lift to insert Right side panel’s (7)
attached hardware into Base panel
(5) and Back panel’s (4) attached
hardware. Push downwards until fully
locked in place.

16

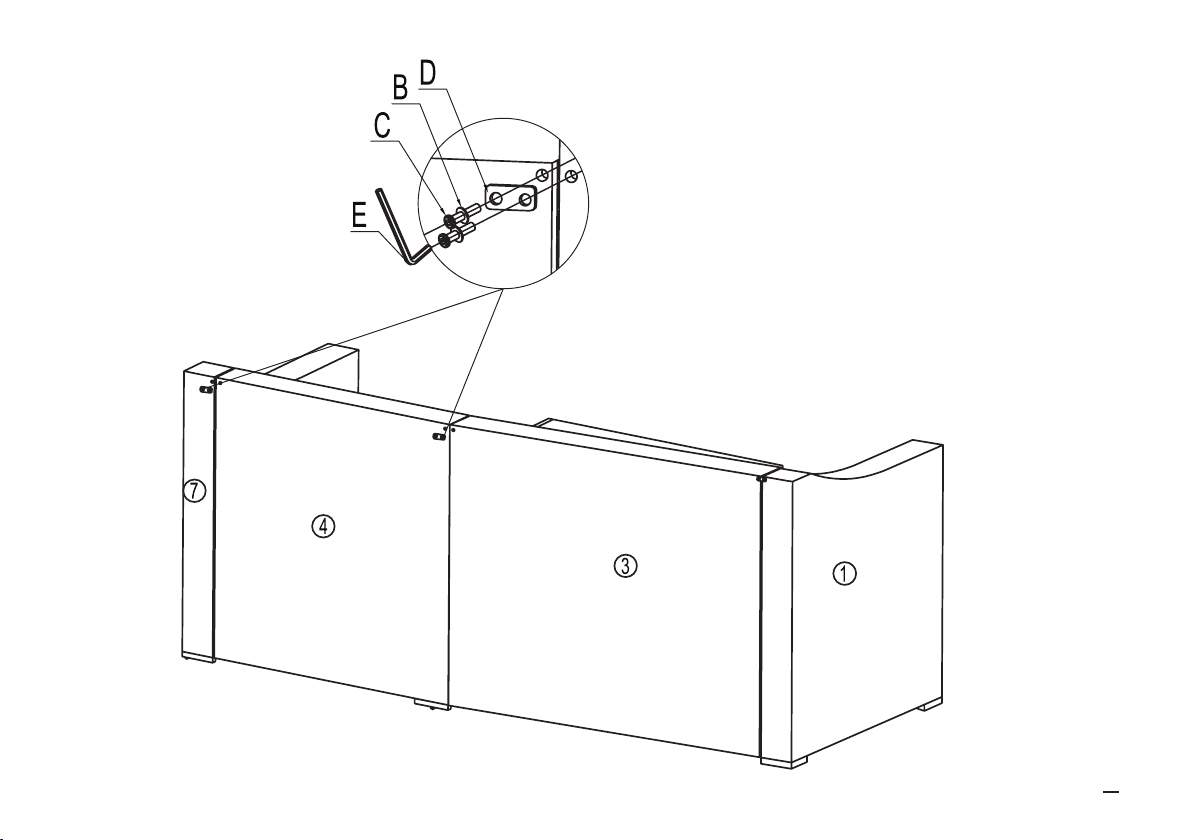

STEP 10

Attach plate (D) with M6x 15mm bolt
(C) with Washer (B) and fully tighten
using Allen Key (E).

17

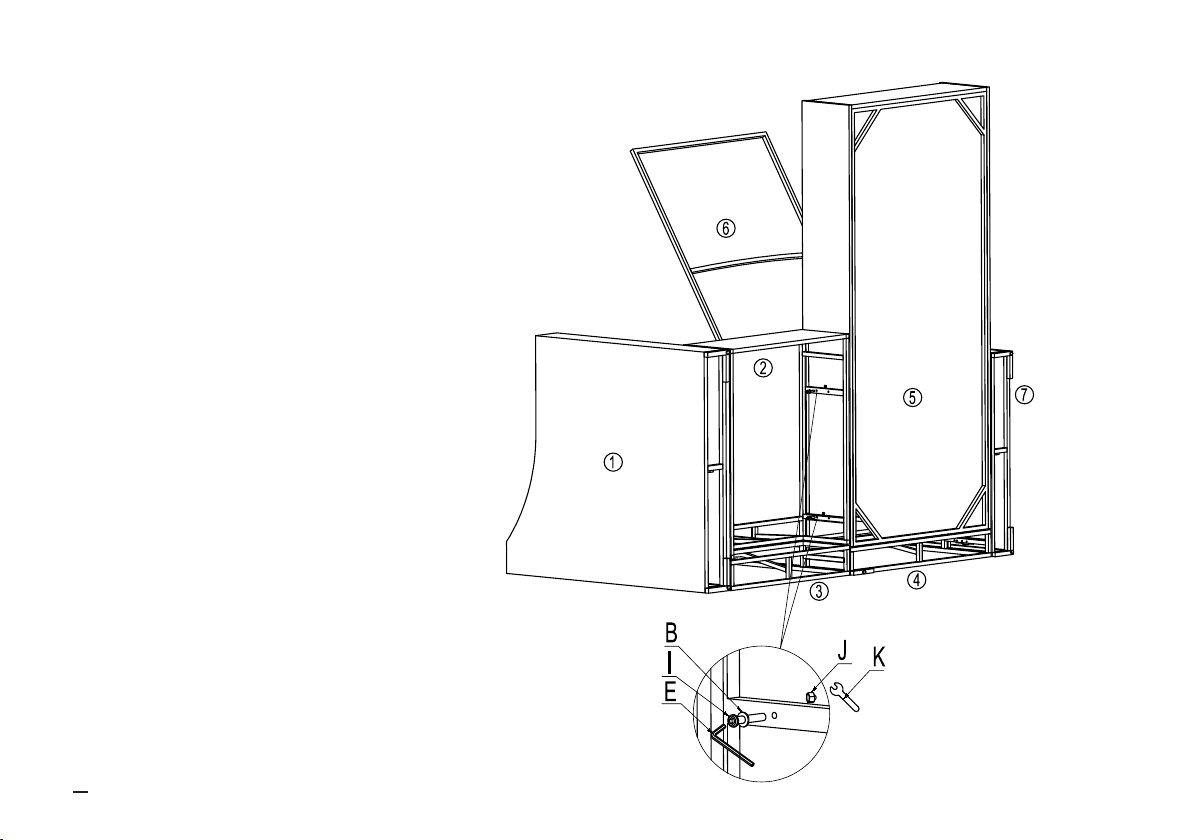

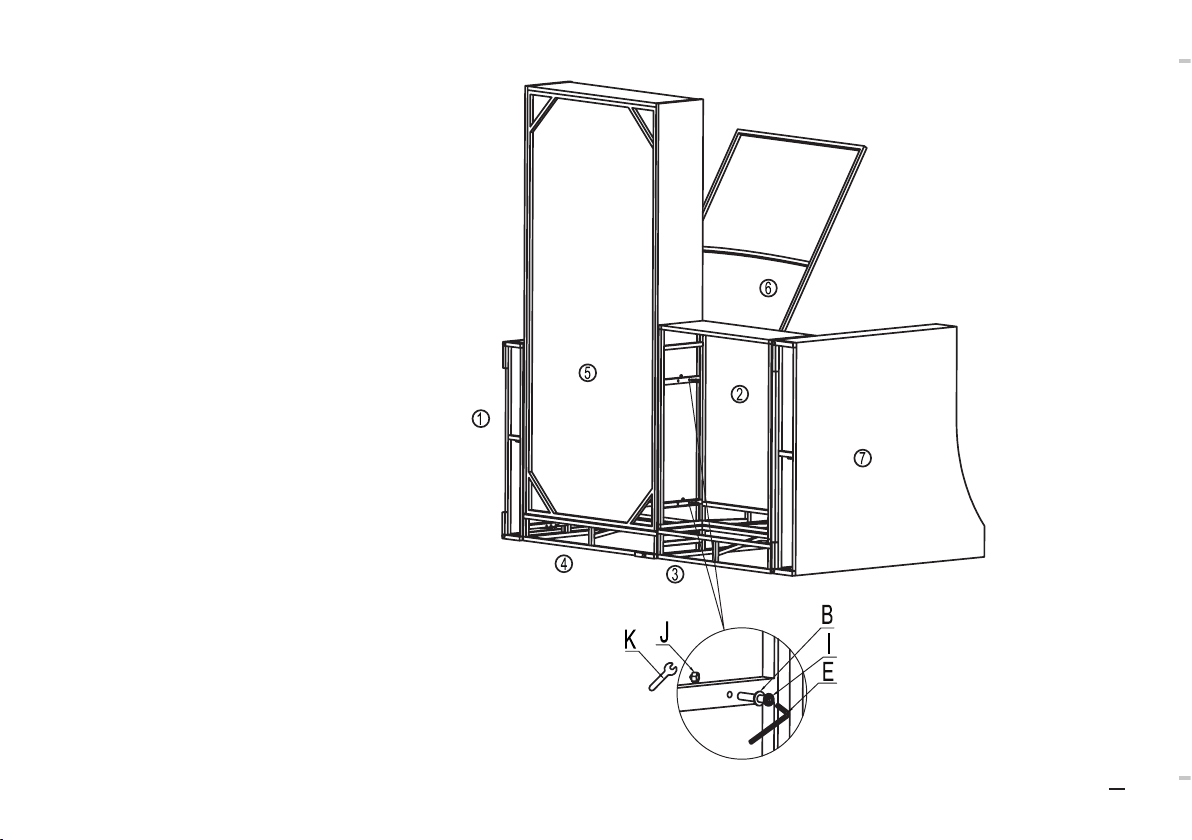

STEP 11

Turn the sofa on its back and attach
the sofa and lounger in front by M6
x 60mm Bolt (I) and Washer (B) and
Nut (J), then fully tighten by Allen
Key (E) and Wrench (K).

18

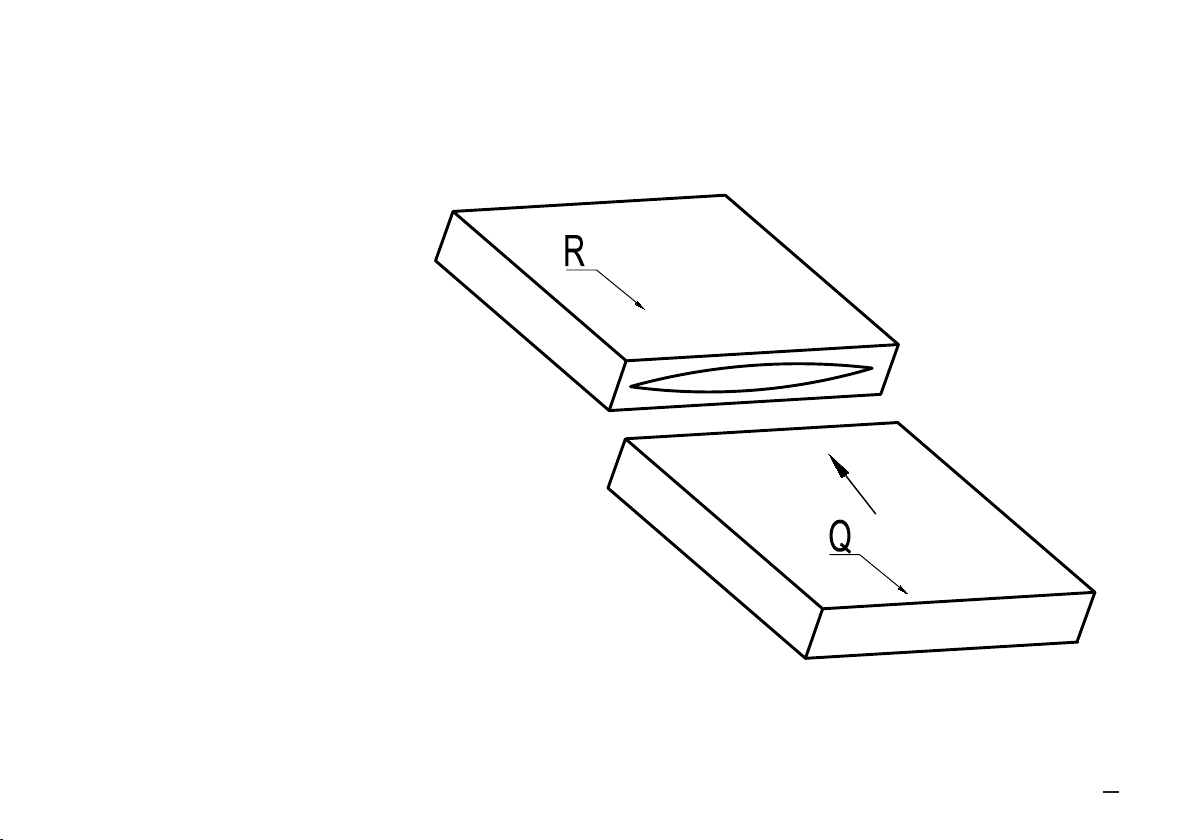

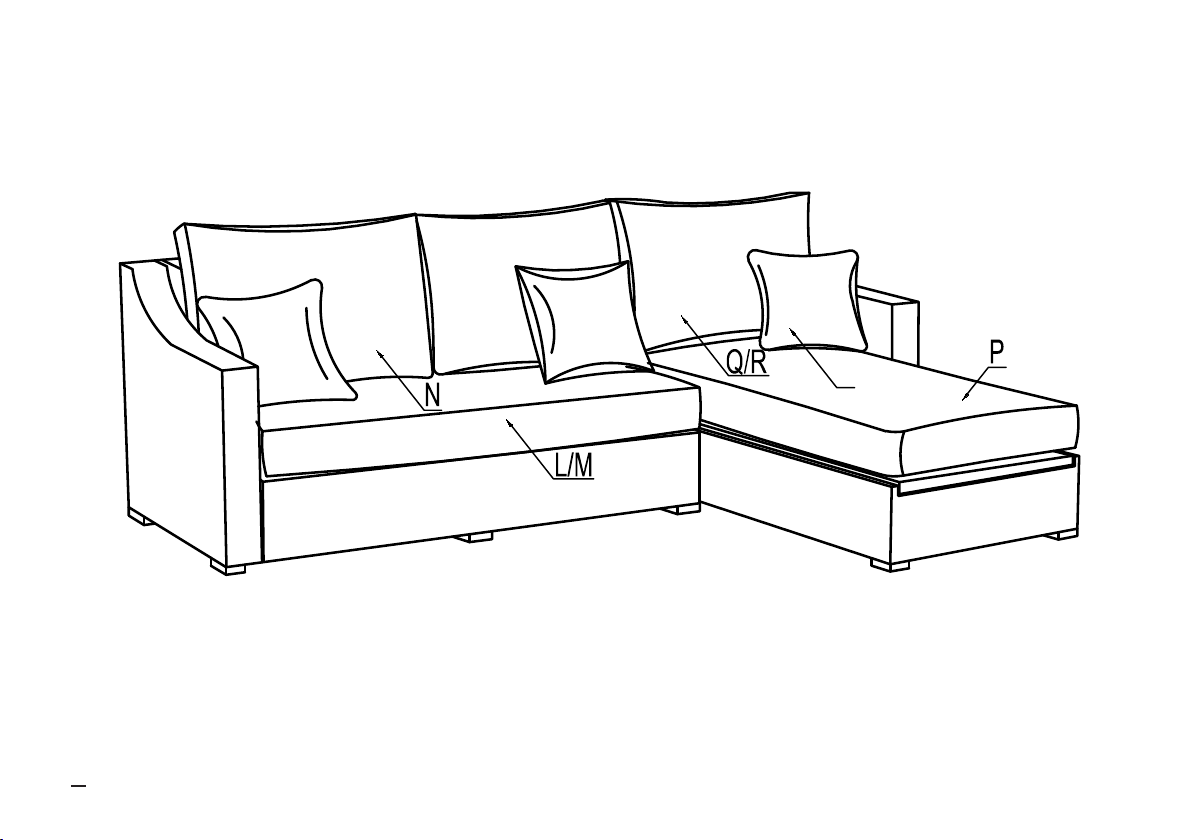

STEP 12

Your cushion filler is vacuum packed.
Open Back cushion filler pack (Q)
and insert to Back cushion cover (R).

19

20

O

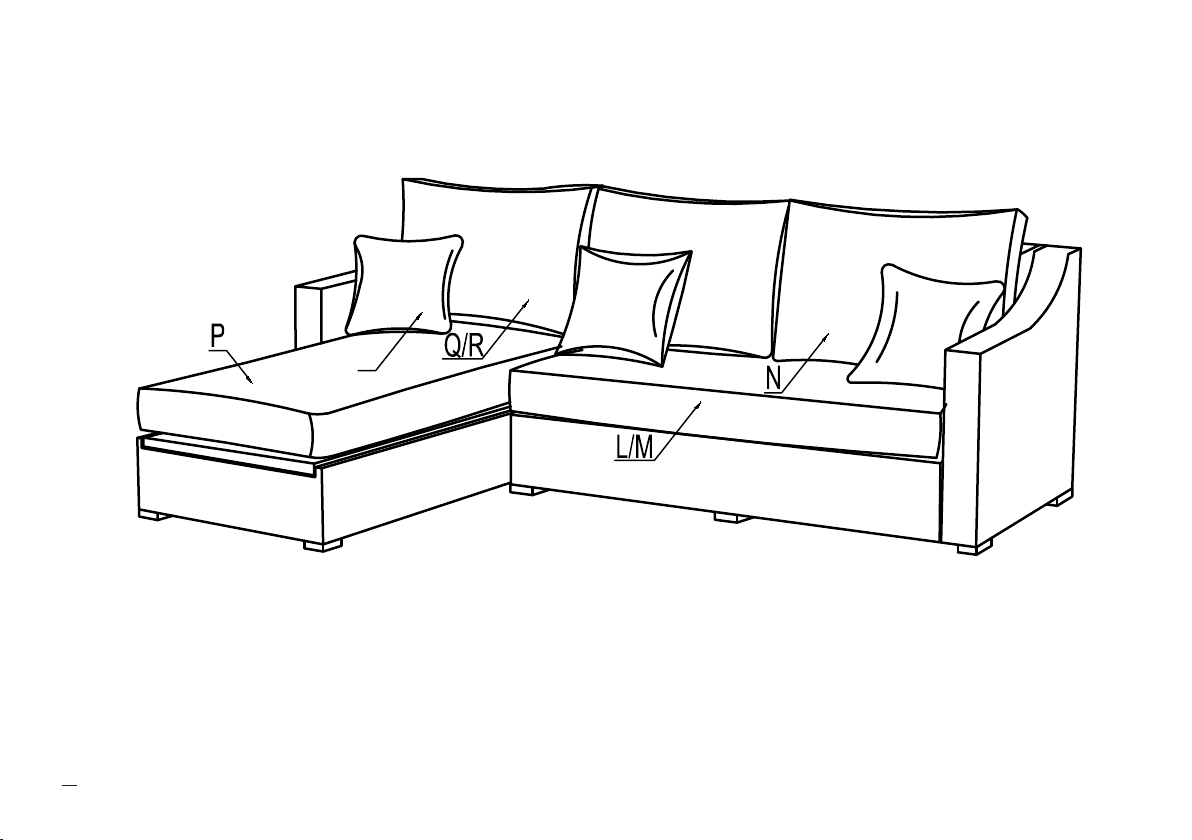

All  nished!

To REVERSE THE PoSIoN FoR
SoFA AND LoUNGER- oPTIoNAL

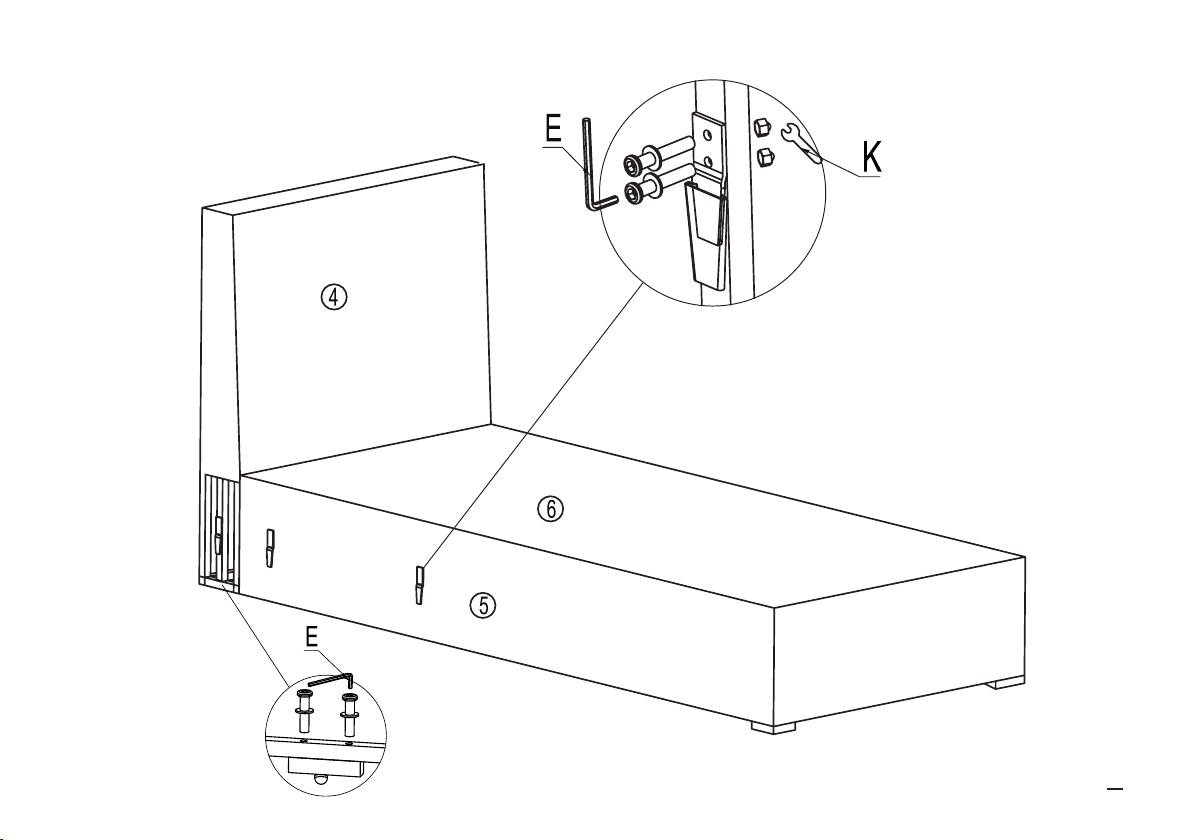

STEP 1

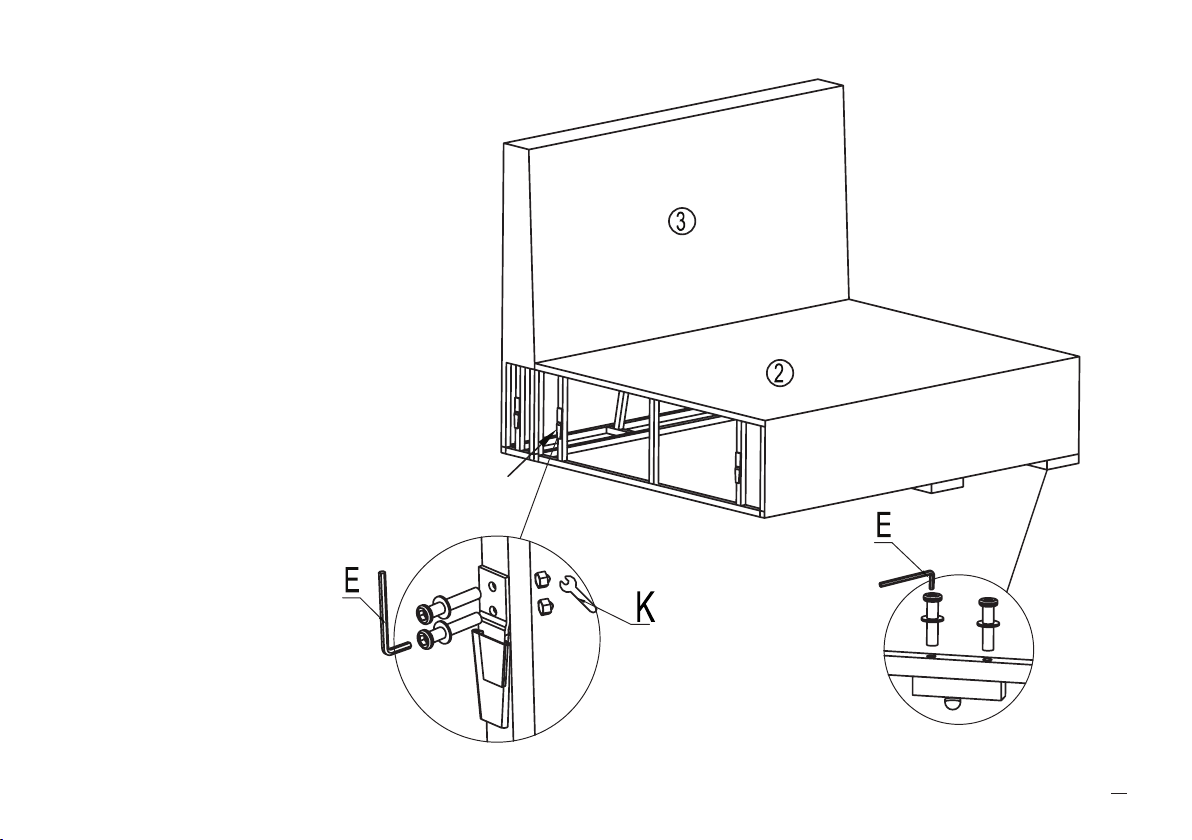

1. Unscrew the screw and nut of the 3
pieces of hardware on the Sofa seat
with Allen Key (E) and Wrench (K).

2. Unscrew the screw on the feet with
Allen Key (E).

hardware

feet

1

2

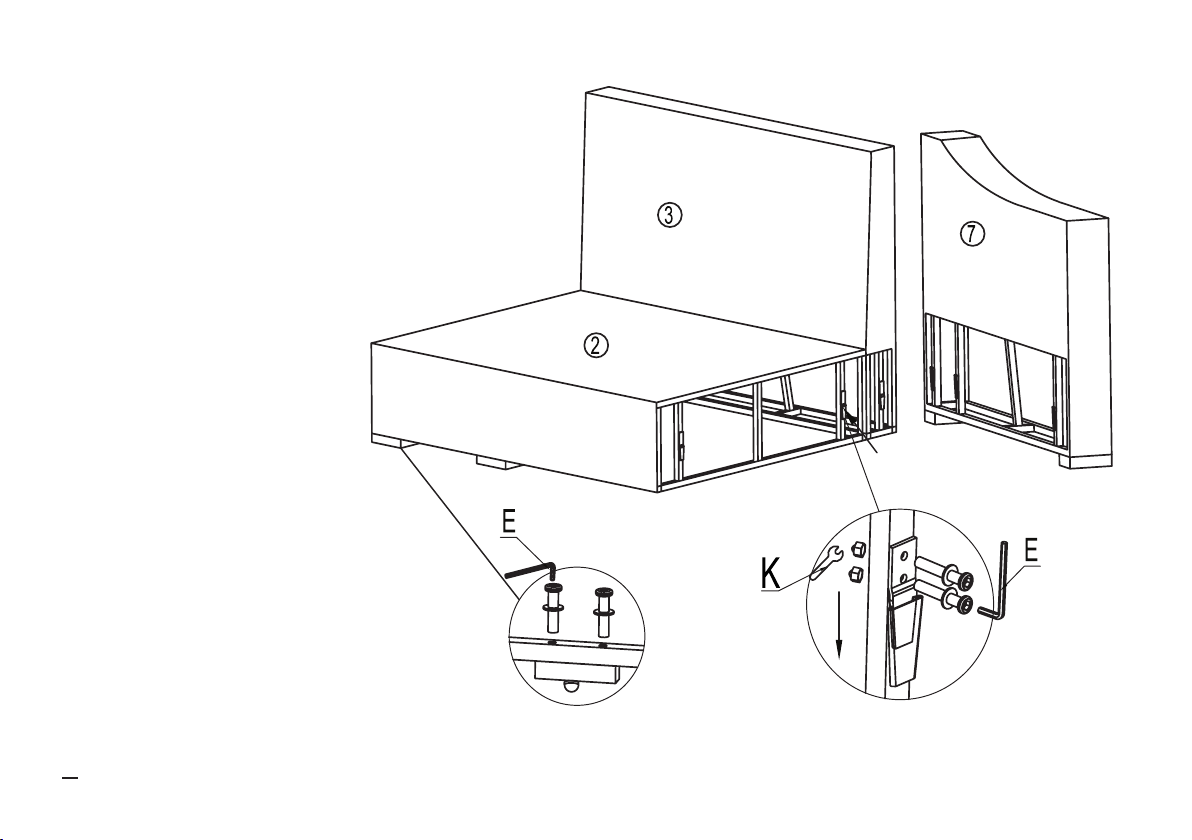

STEP 2

1. Screw the screw and nut of
the 3 pieces of hardware on

the opposite side of the Sofa
seat with Allen Key (E) and
Wrench (K).

2. Screw in the screw on Feet
with Allen Key (E).

3. Lift to insert Right side
panel’s (7) attached hardware
into Sofa’s attached hardware.
Push downwards until fully
locked in place.

feet

hardware

22

STEP 3

1. Unscrew the screw and nut on 3
piece hardware on loungers with
Allen Key (E) and Wrench (K).

2. Unscrew in the screw on Feet with
Allen Key (E).

feet

23

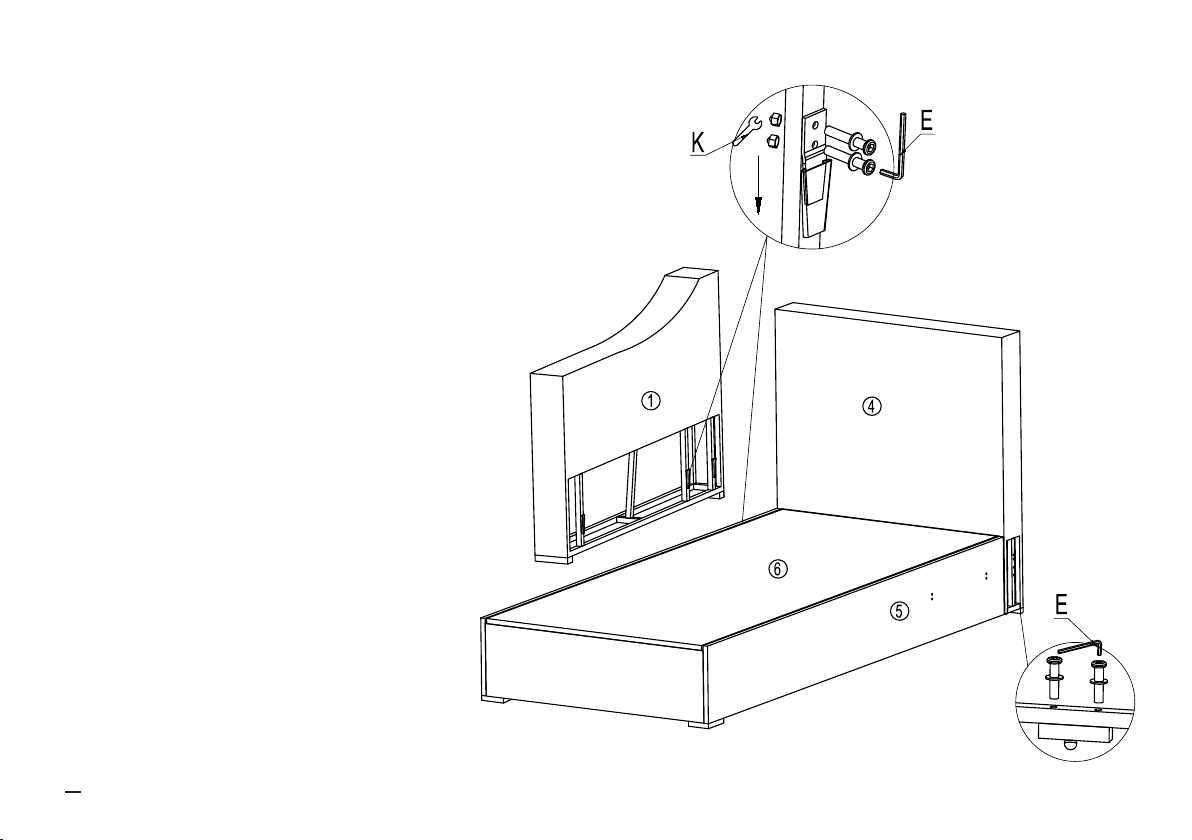

STEP 4

1. Screw in the screw and nut on 3 piece
hardware by Allen Key (E) and Wrench (K).

2. Lift to insert Left Side Panel (1) attached
hardware into Base panel (5) and
Back panel’s (4) attached hardware.
Push downards until fully locked in
place.

3. screw in the screw on feet by
Allen Key(E).

24

STEP 5

Turn the sofa on its back and attach
the sofa and lounger in front with
M6x 60mm Bolt (I) and Washer (B)
and Nut (J). Then fully tighten by
Allen Key (E) and Wrench (K).

25

26

O

All  nished!

Thank you for your purchase!

We hope you love your Elle Decor piece

as much as we do.
