Elkron TC680-IP Installation Manual

IS1160-AA

Manuale di Installazione

Installation Manual

TC680-IP

IP Camera

I

GB

17/32 TC680-IP

TABLE OF CONTENTS

CHAPTER 1. Minimal system requirement........................................................................................................................ 3

1.1 Computer hardware ................................................................................................................................................ 3

1.2 Software.................................................................................................................................................................. 3

1.3 Installation............................................................................................................................................................... 3

CHAPTER 2. Operation manual.......................................................................................................................................... 4

2.1 Installation method.............................................................................................................................................. 4

2.2 IE browser setting (only requires first time usage setting) .................................................................................. 4

2.3 Network on-line.................................................................................................................................................... 5

2.4 Network control ...................................................................................................................................................6

2.5 View Log.............................................................................................................................................................. 7

2.6 System Setting .................................................................................................................................................... 8

2.7 User Management............................................................................................................................................... 9

2.8 Network Setting................................................................................................................................................. 10

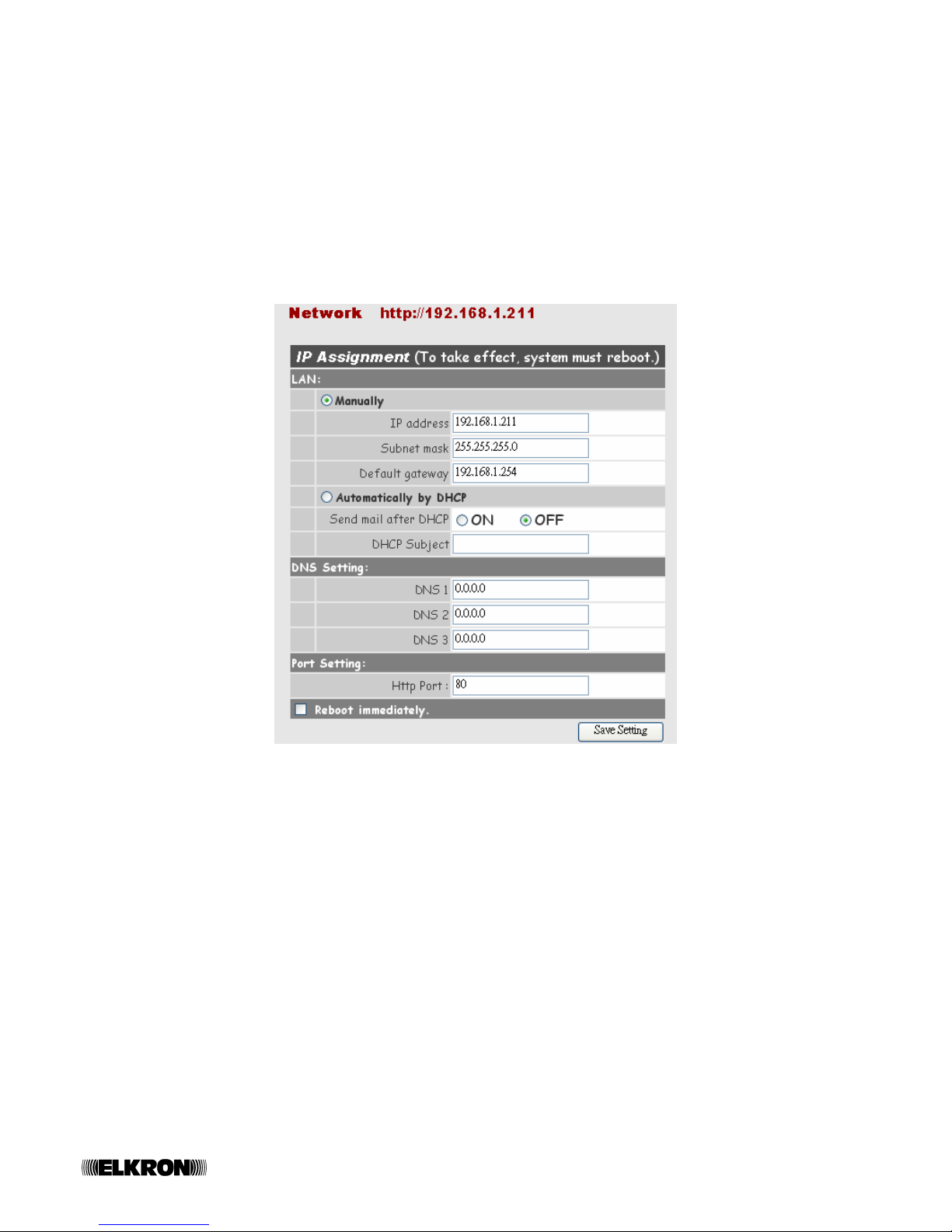

2.8.1 IP Assignment....................................................................................................................................................10

2.8.2 PPPoE................................................................................................................................................................ 11

2.9 DDNS ................................................................................................................................................................ 12

2.10 Motion Detect .................................................................................................................................................... 13

2.10.1 Motion Detection Setting........................................................................................................................ 13

2.10.2 Mail Setting............................................................................................................................................. 13

2.10.3 FTP Setting ............................................................................................................................................14

2.11 CCD Module......................................................................................................................................................15

2.12 Advance Setting................................................................................................................................................ 15

2.13 Setting up a multiple IP camera web server...................................................................................................... 16

CHAPTER 3. FAQ...............................................................................................................................................................17

18/32 TC680-IP

1. MINIMAL SYSTEM REQUIREMENT

1.1 Computer hardware

1. CPU: Intel Pentium or AMD, 800MHz or above

2. Microsoft Windows 98, ME, 2000 or XP

3. 128MB RAM or above

4. 5GB available hard drive space

5. 800x600 display monitor with 16 bit color

1.2 Software

1. Inside the CD there are two types. Cht represents the application program and manual in Chinese language.
Eng represents the application program and manual in English language.

2. Application program: IPInstallerCht.exe: Chinese user interface

3. IPInstallerEng.exe: English user interface

4. If Microsoft O.S is utilized, inside the computer it is necessary to have IE browser.Ver6.0.

5. If Linux O.S. is utilized, for the setting please refer to the setting of Linux.

1.3 Installation

As there are different network systems, therefore there are a few different installation methods that will be introduced
separately.

1. (Static IP) fixed IP

2. (Dynamic IP) dynamic IP

3. (PPPoE) dialing method

For various installation methods.

19/32 TC680-IP

2. OPERATION MANUAL

2.1 Installation method

Install the IPInstallerEng.exe first and the desk will provide IP scanning function.
If IPInstallerEng.exe is installed, omit the setting explanation in 2.3
IP position setting
Install the machine inside the LAN internal network or utilize cross-over interlaced network cable directly (in the

accessories pack) and one computer to conduct direct connection. This step is to set the IP position of the IP Cam.

Following this execute the IPInstallerEng.exe and the following diagram will appear:

The “Device lists” on the left will list out all IP Cam on LAN. When the equipment is pointed by the mouse, the right side
will show the parameters of various networks. Various parameters can be revised on it and by pressing the “Submit” on
the lower part, the revision is completed.

Attention: Please input correct network parameters. No space is allowed between characters.

Search Device: please search for all devices on the LAN once.
Exit: Exit

2.2 IE browser setting (only requires first time usage setting)

If this setting is already installed with IPInstallerEng.exe, the setting of this explanation can be exempted.

IEÆtoolÆInternet network optionÆsafetyÆself assigned level

The above three options are all based on reselect as the prompt.
As indicated in the diagram.

1. Tool

2. Internet option

3. Safety

4. Self assigned level
The above three are all set as prompt. During registration, please select yes

20/32 TC680-IP

2.3 Network on-line

After setting up the IP based on the above step, connect to the intended network or LAN. Execute IE directly on PC.
Directly input IP to conduct on-line as the following diagram:

Default User name admin password admin
The left side of the above diagram is the control panel and the right side is image display.

21/32 TC680-IP

2.4 Network control

The left area is the control panel of the network as indicated in the following diagram.

Divided into 5 types of control:

1. Image Adjust Quality: with 4 options – Best / High / Medium / Low.
Resolution: 3 kinds including VGA / CIF / QCIF.
Advances: Brightness/Contrast/Saturation/Hue/Sharpness.

2. Operation mode Continuous and Periodic:

Cyclical and user can select how many seconds interval and then send out image.

3. Image Capture Recording and Snapshot.
a. Push “Recording” key, the Panel will appear as the following diagram:

On the most upper part select “Select:
Save as JPEG will record as JPEG file with one by one image video recording.
Save as AVI will record as AVI file with one section image video recording.
JPEG and AVI can be set separately:
No limit no limitation on the size of file.
Number will limit how many frames in the file is the maximum number.
