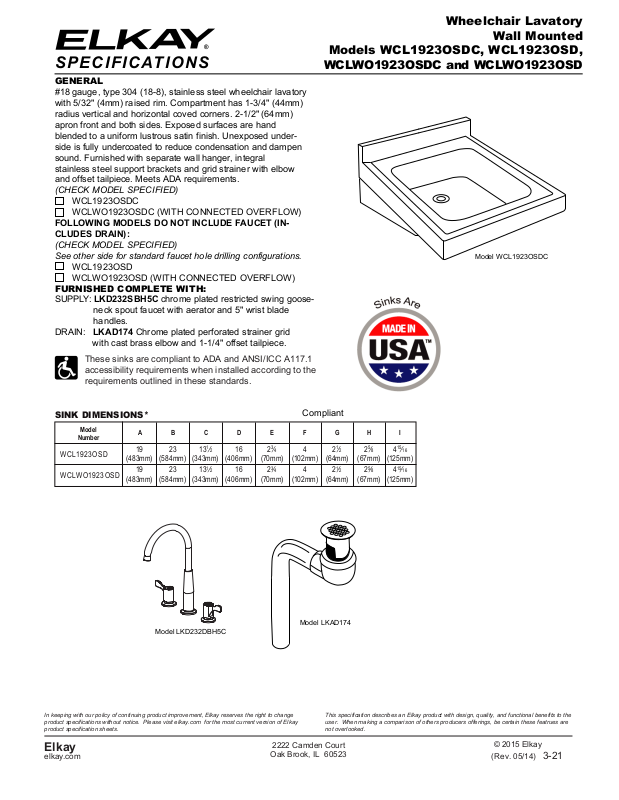

Elkay WCL1923OSD User Manual
®
SPECIFICATIONS
GENERAL
#18 gauge, type 304 (18-8), stainless steel wheelchair lavatory
with 5/32" (4mm) raised rim. Compartment has 1-3/4" (44mm)
radius vertical and horizontal coved corners. 2-1/2" (64mm)
apron front and both sides. Exposed surfaces are hand
blended to a uniform lustrous satin finish. Unexposed underside is fully undercoated to reduce condensation and dampen
sound. Furnished with separate wall hanger, integral
stainless steel support brackets and grid strainer with elbow
and offset tailpiece. Meets ADA requirements.
(CHECK MODEL SPECIFIED)
WCL1923OSDC
WCLWO1923OSDC (WITH CONNECTED OVERFLOW)
FOLLOWING MODELS DO NOT INCLUDE FAUCET (INCLUDES DRAIN):
(CHECK MODEL SPECIFIED)
See other side for standard faucet hole drilling configurations.
WCL1923OSD
WCLWO1923OSD (WITH CONNECTED OVERFLOW)
FURNISHED COMPLETE WITH:
SUPPLY: LKD232SBH5C chrome plated restricted swing goose neck spout faucet with aerator and 5" wrist blade
handles.
DRAIN: LKAD174 Chrome plated perforated strainer grid
with cast brass elbow and 1-1/4" offset tailpiece.
These sinks are compliant to ADA and ANSI/ICC A117.1
accessibility requirements when installed according to the
requirements outlined in these standards.
Wheelchair Lavatory
Wall Mounted
Models WCL1923OSDC, WCL1923OSD,
WCLWO1923OSDC and WCLWO1923OSD
Model WCL1923OSDC
SINK DIMENSIONS*
Model
Number
WCL1923OSD
WCLWO1923OSD
A
19
(483mm)
19
(483mm)
B
23
(584mm)
23
(584mm)
Model LKD232DBH5C
C
131⁄2
(343mm)
1
13
⁄2
(343mm)
D
16
(406mm)
16
(406mm)
E
23⁄4
(70mm)
3
2
⁄4
(70mm)
Compliant
F
4
(102mm)
(102mm)
(64mm)
4
(64mm)
Model LKAD174
21⁄2
2
G
1
H
25⁄8
(67mm)
5
2
⁄2
(67mm)
⁄8
I
415⁄16
(125mm)
15
4
⁄16
(125mm)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.
Elkay
elkay.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of others producers offerings, be certain these featrues are
not overlooked.
© 2015 Elkay
(Rev. 05/14)
3-21
Wheelchair Lavatory
Wall Mounted
Models WCL1923OSDC, WCL1923OSD,
WCLWO1923OSDC and WCLWO1923OSD
®
SPECIFICATIONS
4-1/2"
(114mm)
2-1/2"
(64mm)
1"
(25mm)
B
D
TOP
SEE OTHER SIDE
FOR FAUCET HOLE
DRILLING CONFIGURATIONS
3-1/2"
(89mm)
9-1/2"
(241mm)
1-3/4" R
(44mm)
E E
C
A
4 SLOTS 1/4" (6mm)x1" (25mm)
1"
(24mm)
5"
(127mm)
1-5/8" (41mm) DIA.
FINISHED HOLE
RAISED RIM
FRONT & ENDS
F
SIDE
H
5/8"
(16mm)
G
G
5-1/8"
(130mm)
F
8-7/8"
(225mm)
(457mm)
STAINLESS STEEL HOUSING
WITH RUBBER WASHER
FURNISHED LOOSE WITH
NON-OVERFLOW MODELS
OVERFLOW
(only for Series WCLWO)
1-3/4" R
(44mm)
18"
HII
FRONT
WALL HANGER
1/4"
(6mm)
5"
(127mm)
3/8" (10mm) DIA.
2 HOLES
EACH BRACKET
31-1/2"
(800mm)
(RECOMMENDED)
FINISH FLOOR
HOLE DRILLING CONFIGURATIONS
1-1/4" (32mm) DIA. 1 HOLE
1-1/2"
(38mm)
Models WCL1923OSD1
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.
Elkay
elkay.com
WCLWO1923OSD1
2222 Camden Court
Oak Brook, IL 60523
4"
(102mm)
Models WCL1923OSD3
WCLWO1923OSD3
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of others producers offerings, be certain these featrues are
not overlooked.
4"
(102mm)
1-1/2"
(38mm)
1-1/2" (38mm) DIA. 3 HOLES
© 2015 Elkay
(Rev. 05/14)
3-21
