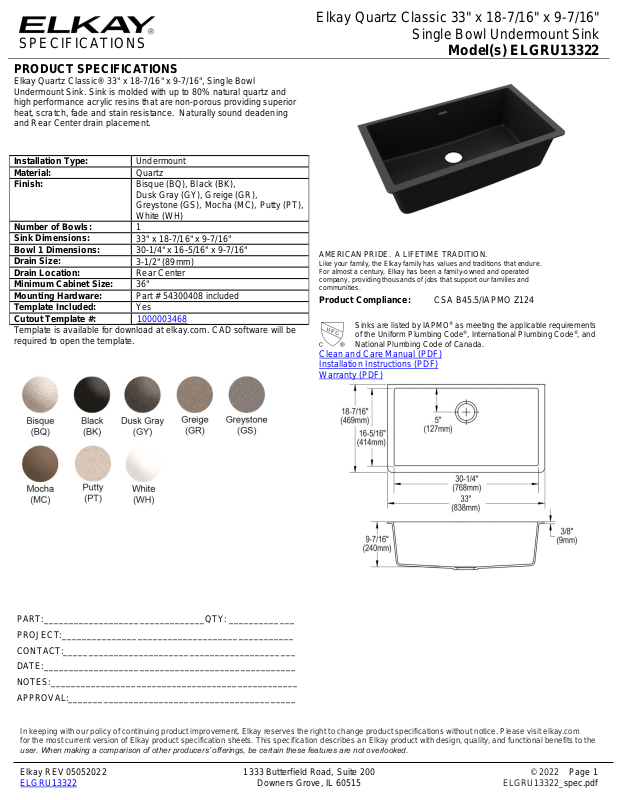

Page 1
SPECIFICATIONS
Elkay Quartz Classic 33" x 18-7/16" x 9-7/16"
Single Bowl Undermount Sink
Model(s) ELGRU13322
PRODUCT SPECIFICATIONS
Elkay Quartz Classic® 33" x 18-7/16" x 9-7/16", Single Bowl
Undermount Sink. Sink is molded with up to 80% natural quartz and
high performance acrylic resins that are non-porous providing superior
heat, scratch, fade and stain resistance. Naturally sound deadening
and Rear Center drain placement.
Installation Type:
Undermount
Material:
Quartz
Finish:
Bisque (BQ), Black (BK),
Dusk Gray (GY), Greige (GR),
Greystone (GS), Mocha (MC), Putty (PT),
White (WH)
Number of Bowls:
1
Sink Dimensions:
33" x 18-7/16" x 9-7/16"
Bowl 1 Dimensions:
30-1/4" x 16-5/16" x 9-7/16"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 54300408 included
Template Included:
Yes
Cutout Template #:
1000003468
Template is available for download at elkay.com. CAD software will be
required to open the template.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
CSA B45.5/IAPMO Z124
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05052022 1333 Butterfield Road, Suite 200 © 2022 Page 1
ELGRU13322 Downers Grove, IL 60515 ELGRU13322_spec.pdf
Page 2
SPECIFICATIONS
Elkay Quartz Classic 33" x 18-7/16" x 9-7/16"
Single Bowl Undermount Sink
Model(s) ELGRU13322
Installation Profile:
Optional Accessories
LKOBG2915SS
Elkay Stainless Steel 27-1/2" x 13-1/2" x 1-1/4" Bottom Grid
Spec Sheet (PDF)
LK99
Elkay Deluxe 3-1/2" Drain Type 304 Stainless Steel Body Strainer Basket Rubber Seal and
Tailpiece
Spec Sheet (PDF)
LKQD35
Elkay Polymer 3-1/2" Disposer Flange with Removable Basket Strainer and Rubber Stopper
Spec Sheet (PDF)
LKQS35
Elkay Polymer 3-1/2" Drain Fitting with Removable Basket Strainer and Rubber Stopper
Spec Sheet (PDF)
LK6000CR
Elkay Everyday Single Hole Deck Mount Kitchen Faucet with Pull-down Spray Forward Only
Lever Handle Chrome
Spec_Sheet (PDF)
LKEC2031
Elkay Explore Single Hole Kitchen Faucet with Pull-down Spray and Forward Only Lever Handle
Spec_Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05052022 1333 Butterfield Road, Suite 200 © 2022 Page 2
ELGRU13322 Downers Grove, IL 60515 ELGRU13322_spec.pdf
