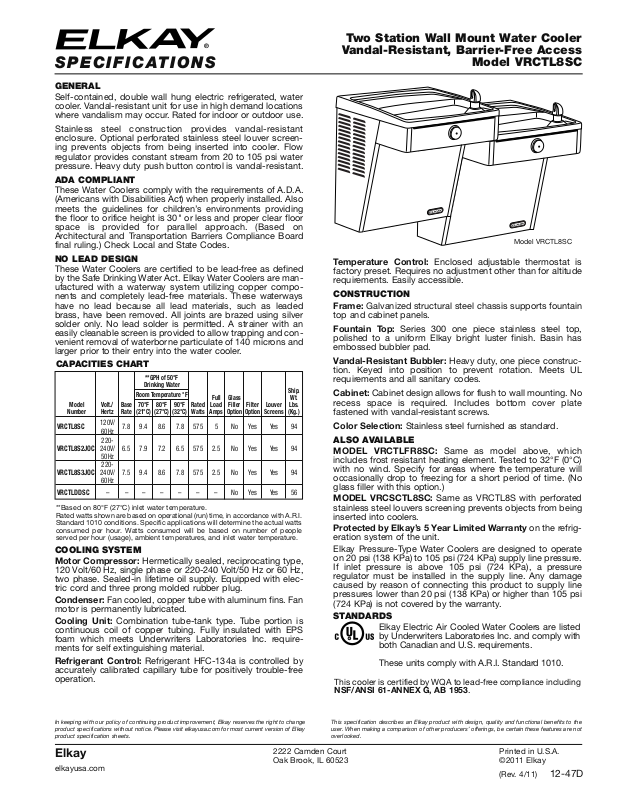

Elkay VRCTL8SC User Manual



SPECIFICATIONS

ENERAL

Self-contained, double wall hung electric refrigerated, water cooler. Vandal-resistant unit for use in high demand locations where vandalism may occur. Rated for indoor or outdoor use.

Stainless steel construction provides vandal-resistant enclosure. Optional perforated stainless steel louver screening prevents objects from being inserted into cooler. Flow regulator provides constant stream from 20 to 105 psi water pressure. Heavy duty push button control is vandal-resistant.

ADA COMPLIANT

These Water Coolers comply with the requirements of A.D.A. (Americans with Disabilities Act) when properly installed. Also meets the guidelines for children’s environments providing the floor to orifice height is 30" or less and proper clear floor space is provided for parallel approach. (Based on Architectural and Transportation Barriers Compliance Board final ruling.) Check Local and State Codes.

NO LEAD DESIGN

These Water Coolers are certified to be lead-free as defined by the Safe Drinking Water Act. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler.

CAPACITIES CHART

**GPH of 50°F

Drinking Water

Model Volt./ Base 70°F 80°F 90°F Rated Load Filler Filter Louver Lbs.

Number Hertz Rate (21°C) (27°C) (32°C) Watts Amps Option Option Screens (Kg.)

VRCTL8SC

VRCTL8S2JOC 240V/ 6.5 7.9 7.2 6.5 575 2.5 No Yes Yes 94

VRCTL8S3JOC 240V/ 7.5 9.4 8.6 7.8 575 2.5 No Yes Yes 94

VRCTLDDSC –––––––No Yes Yes 56

**Based on 80°F (27°C) inlet water temperature. Rated watts shown are based on operational (run) time, in accordance with A.R.I.

Standard 1010 conditions. Specific applications will determine the actual watts consumed per hour. Watts consumed will be based on number of people served per hour (usage), ambient temperatures, and inlet water temperature.

120V/

60Hz 220-

50Hz 220-

60Hz

Room Temperature °F

7.8 9.4 8.6 7.8 575 5 No Yes Yes 94

Full Glass Wt.

COOLING SYSTEM

Motor Compressor: Hermetically sealed, reciprocating type, 120 Volt/60 Hz, single phase or 220-240 Volt/50 Hz or 60 Hz, two phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug.

Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.

Cooling Unit: Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material.

Refrigerant Control: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free operation.

Ship.

Two Station Wall Mount Water Cooler

Vandal-Resistant, Barrier-Free Access

Model VRCTL8SC

odel VRCTL8SC

Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements. Easily accessible.

CONSTRUCTION

Frame: Galvanized structural steel chassis supports fountain top and cabinet panels.

Fountain Top: Series 300 one piece stainless steel top, polished to a uniform Elkay bright luster finish. Basin has embossed bubbler pad.

Vandal-Resistant Bubbler: Heavy duty, one piece construction. Keyed into position to prevent rotation. Meets UL requirements and all sanitary codes.

Cabinet: Cabinet design allows for flush to wall mounting. No recess space is required. Includes bottom cover plate fastened with vandal-resistant screws.

Color Selection: Stainless steel furnished as standard.

ALSO AVAILABLE

MODEL VRCTLFR8SC: Same as model above, which includes frost resistant heating element. Tested to 32°F (0°C) with no wind. Specify for areas where the temperature will occasionally drop to freezing for a short period of time. (No glass filler with this option.)

MODEL VRCSCTL8SC: Same as VRCTL8S with perforated stainless steel louvers screening prevents objects from being inserted into coolers.

Protected by Elkay’s 5 Year Limited Warranty on the refrigeration system of the unit.

Elkay Pressure-Type Water Coolers are designed to operate on 20 psi (138 KPa) to 105 psi (724 KPa) supply line pressure. If inlet pressure is above 105 psi (724 KPa), a pressure regulator must be installed in the supply line. Any damage caused by reason of connecting this product to supply line pressures lower than 20 psi (138 KPa) or higher than 105 psi (724 KPa) is not covered by the warranty.

STANDARDS

Elkay Electric Air Cooled Water Coolers are listed by Underwriters Laboratories Inc. and comply with both Canadian and U.S. requirements.

These units comply with A.R.I. Standard 1010.

This cooler is certified by WQA to lead-free compliance including NSF/ANSI 61-ANNEX G, AB 1953.

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkayusa.com for most current version of Elkay

product specification sheets.

Elkay

elkayusa.com

2222 Camden Court Oak Brook, IL 60523

This specification describes an Elkay product with design, quality and functional benefits to the user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.

(Rev. 4/11) 12-47D

Two Station Wall Mount Water Cooler



OPERATION OF QUICK CONNECT FITTINGS

SIMPLY PUSH IN

TUBE TO ATTACH TUBE IS SECURED

IN POSITION PUSH IN COLLET

TO RELEASE TUBE

PUSHING TUBE IN BEFORE

PULLING IT OUT HELPS TO

RELEASE TUBE

OPERATION OF QUICK CONNECT FITTINGS

SIMPLY PUSH IN

TUBE TO ATTACH

TUBE IS SECURED

IN POSITION

PUSH IN COLLET

TO RELEASE TUBE

PUSHING TUBE IN BEFORE PULLING IT OUT HELPS TO

RELEASE TUBE

NOTE: WATERFLOW

DIRECTION SERVICE STOP

(NOT FURNISHED)

3/8" O.D. TUBE CONNECT

COLD WATER SUPPLY 1/4" O.D. TUBE

WATER INLET

TO COOLER BUILDING WATER

NLET

NOTE: WATERFLOW

DIRECTION

SERVICE STOP (NOT FURNISHED)

3/8" O.D. TUBE CONNECT COLD WATER SUPPLY

1/4" O.D. TUBE WATER INLET TO COOLER

BUILDING WATER

NLET

RIM

HEIGHT

ORIFICE

HEIGHT

ORIFICE

HEIGHT

HANGER BRACKET

FINISHED FLOOR

5/16" (8mm)

(10 HOLES)

13-7/8"

(351mm)

20-3/8"

(518mm)

2-7/16"

(62mm)

10"

(254mm)5"(127mm)

1-1/2"

(38mm)

37-1/2"

(952mm)

6-1/2"

(166mm)

12-5/16"

(313mm)

18-5/8"

(473mm)

(203mm)

6-3/4"

(173mm)

1-3/8"

(35mm) 1-3/8"

(35mm)

5-3/4"

(146mm) 5-3/4"

(146mm)

1-3/8"

(35mm) 1-3/8"

(35mm)

5-3/4"

(146mm)

5-3/4"

(146mm)

18-1/16"

(459mm)

20-1/8"

(511mm)

4-1/2"

(114mm)

(127mm)

18-3/4"

(476mm) 25-1/8"

(638mm)

32-15/16"

(837mm)

39-1/2"

(1003mm)

2-5/8"

(67mm)

27"*

(686mm)

3-1/2"

(89mm)

4-3/4"

(121mm)

31-7/8"

(810mm)

LEGEND

A = RECOMMENDED WATER SUPPLY LOCATION. SHUT OFF VALVE (NOT FURNISHED) TO ACCEPT 3/8" O.D. UNPLATED COPPER TUBE.

3” (76mm) MAXIMUM OUT FROM WALL.

B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/2" O.D. DRAIN.

C = 1-1/2" TRAP NOT FURNISHED

D = ELECTRICAL SUPPLY (3) WIRE RECESSED BOX.

E = INSURE PROPER VENTILATION BY MAINTAINING 6" (152mm) (MIN.) CLEARANCE FROM CABINET LOUVERS TO WALL.

F = 7/16" BOLT HOLES FOR FASTENING UNIT TO WALL.

ADA REQUIREMENT

REDUCE HEIGHT BY 3" FOR INSTALLATION OF CHILDRENS ADA COOLER

RIM

HEIGHT

ORIFICE HEIGHT

HANGER BRACKET

FINISHED FLOOR

5/16" (8mm)

(10 HOLES)

13-7/8"

(351mm)

20-3/8"

(518mm)

2-7/16"

(62mm)

10"

(254mm)

(127mm)

1-1/2"

(38mm)

37-1/2"

(952mm)

6-1/2"

(166mm)

12-5/16" (313mm)

18-5/8"

(473mm)

(203mm)

6-3/4"

(173mm)

1-3/8"

(35mm)

1-3/8"

(35mm)

5-3/4"

(146mm)

5-3/4"

(146mm)

1-3/8"

(35mm)

1-3/8"

(35mm)

5-3/4"

(146mm)

5-3/4"

(146mm)

18-1/16" (459mm)

20-1/8"

(511mm)

4-1/2"

(114mm)

(127mm)

18-3/4"

(476mm)

25-1/8"

(638mm)

32-15/16"

(837mm)

39-1/2"

(1003mm)

2-5/8"

(67mm)

27"*

(686mm)

3-1/2"

(89mm)

4-3/4"

(121mm)

31-7/8"

(810mm)

LEGEND A = RECOMMENDED WATER SUPPLY LOCATION. SHUT OFF VALVE (NOT FURNISHED) TO ACCEPT 3/8" O.D. UNPLATED COPPER TUBE. 3” (76mm) MAXIMUM OUT FROM WALL. B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/2" O.D. DRAIN. C = 1-1/2" TRAP NOT FURNISHED D = ELECTRICAL SUPPLY (3) WIRE RECESSED BOX. E = INSURE PROPER VENTILATION BY MAINTAINING 6" (152mm) (MIN.) CLEARANCE FROM CABINET LOUVERS TO WALL. F = 7/16" BOLT HOLES FOR FASTENING UNIT TO WALL.

ADA REQUIREMENT

REDUCE HEIGHT BY 3" FOR INSTALLATION OF CHILDRENS ADA COOLER

Vandal-Resistant, Barrier-Free Access Model VRCTL8SC

ROUGH-IN DIMENSIONS

NSTALLER PLEASE NOTE:

THIS WATER COOLER HAS BEEN DESIGNED AND BUILT TO PROVIDE WATER TO THE USER

HICH HAS NOT BEEN ALTERED BY MATERIALS IN THE COOLER WATERWAYS. THE

ROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO

G WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING

UT MAY ALSO OCCUR AWAY FROM THE BUILDING. THIS GROUNDING CAN CAUSE

LECTRICAL FEEDBACK INTO A WATER COOLER CREATING AN ELECTROLYSIS WHICH

E CREATES A METALLIC TASTE OR CAUSES AN INCREASE IN THE METAL CONTENT OF THE

ATER. THIS CONDITION IS AVOIDABLE BY INSTALLING THE COOLER USING THE PROPER

ATERIALS AS SHOWN BELOW.

THIS WATER COOLER MUST BE CONNECTED TO THE WATER SUPPLY USING A DIELECTRIC

OUPLING. THE COOLER IS FURNISHED WITH A NON-METALLIC STRAINER WHICH MEETS

C THIS REQUIREMENT. THE DRAIN TRAP WHICH IS PROVIDED BY THE INSTALLER SHOULD ALSO BE PLASTIC TO COMPLETELY ISOLATE THE COOLER FROM THE BUILDING PLUMBING SYSTEM.

MINIMUM 40 PSI SUPPLY LINE PRESSURE REQUIRED IN SPECIAL CIRCUMSTANCES WHEN BOTH

IDES OF BILEVEL ARE IN USE SIMULTANEOUSLY TO ENSURE ADEQUATE STREAM HEIGHT. DOES

OT APPLY TO NON-REFRIGERATED UNITS.

IMPORTANT

NOTICE

2222 Camden Court Oak Brook, IL 60523

elkayusa.com

Elkay

12-47D (Rev. 4/11)
