Elkay SCUH1012SM Specs

Minimum Ship.

Model

Overall Inside Bowl

Cutout in Cabinet Wt.

Number L W L W D Countertop Size Lbs.

SCUH1012BH 12 14 10 12 61⁄2 15 7
SCUH1012BM 12 14 10 12 61⁄2 15 7
SCUH1012BS 12 14 10 12 61⁄2 15 7
SCUH1012CH 12 14 10 12 61⁄2

See

15 7

SCUH1012CM 12 14 10 12 61⁄2

Template**

15 7

SCUH1012CS 12 14 10 12 61⁄2 15 7
SCUH1012SH 12 14 10 12 61⁄2 15 6
SCUH1012SM 12 14 10 12 61⁄2 15 6

GENERAL

High quality single bowl sink is seamlessly formed of #18
gauge brass, copper, or type 304 (18-8) nickel bearing stainless
steel material. Specialty Collection brass or copper sinks are
made from genuine solid, uncoated material and will naturally
tarnish.

SCUH1012BH brass with hammered mirror finish
SCUH1012BM brass with mirror finish
SCUH1012BS brass with satin finish
SCUH1012CH copper with hammered mirror finish
SCUH1012CM copper with mirror finish
SCUH1012CS copper with satin finish
SCUH1012SH stainless steel with hammered mirror finish
SCUH1012SM stainless steel with mirror finish

DESIGN FEATURES

Bowl Depth: 6-1/2".
Coved Corners: 3" vertical and horizontal radii.
Underside: Sound deadening pads on sides.

OTHER

Drain Opening: 3-1/2".
Note: All Elkay undermount sinks are designed to affix easily to

the underside of any solid surface countertop.
Brass and copper sink models furnished complete with match-

ing drain and basket strainer.

SINK DIMENSIONS (INCHES)*

*Length is left to right. Width is front to back.
**Template and countertop mounting clips are packed with every sink.

COUNTERTOP

CONTOUR EDGE
TO CUSTOMER DESIRE

MOUNTING
BRACKET

1/2"

SILICONE CAULK
(NOT FURNISHED)

SINK

1-1/8"

FASTENER
(NOT FURNISHED)

Installation Profile of SCUH Models

The template provided with each SCUH sink provides

the only type of installation recommended by Elkay.

ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.

In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.

This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.

Elkay

2222 Camden Court
Oak Brook, IL 60523

Printed in U.S.A.
©2005 Elkay

(Rev. 1/05) 1-174A

www.elkayusa.com

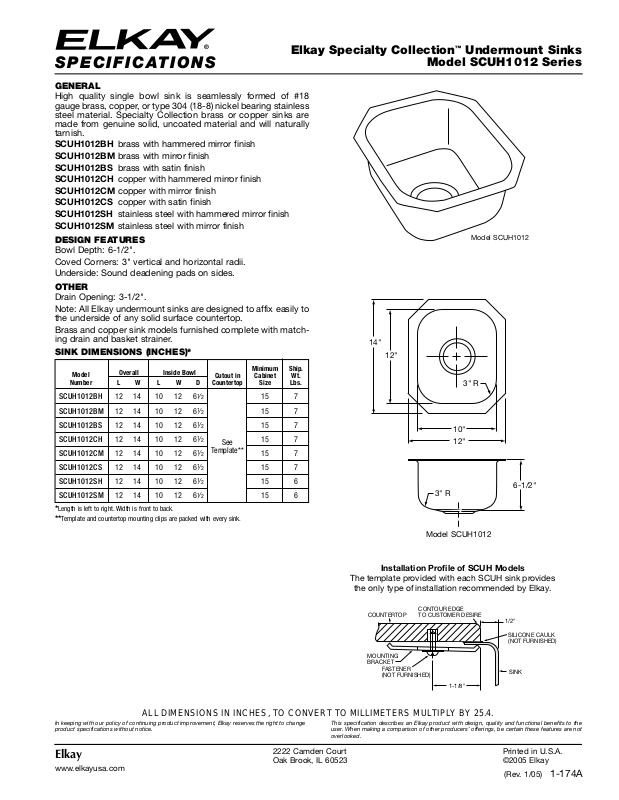

Elkay Specialty Collection™Undermount Sinks

Model SCUH1012 Series

®

SPECIFICATIONS

Model SCUH1012

3" R

10"
12"

14"

12"

3" R

6-1/2"

Model SCUH1012
