GENERAL
Fine quality sink bowl seamlessly formed of #20 gauge, type
304 (18-8) nickel bearing stainless steel. Self-rimming.
DESIGN FEATURES
Bowl Depth: 7-1/8".
Coved Corners: 1-3/4" vertical and horizontal radius.
Bowl and Faucet Deck Recess: 3/16" below outside edge of
sink.
Finish: Exposed surfaces are polished to a lustrous highlighted
satin finish.
Underside: Fully undercoated to dampen sound and prevent
condensation.
OTHER
Drain Opening: 3-1/2".
Slotted hole allows for vandal-resistant bubbler.
Suffix “L” (left) or “R” (right) denotes the location of the side
ledge.
NOTE: Unless otherwise specified, sink is only furnished with 4
faucet holes as shown.
These sinks comply with ANSI Standard A112.19.3M.
Elkay
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2004 Elkay
(Rev. 3/04) 1-137B
www.elkayusa.com
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
SEE OTHER SIDE FOR PRODUCT DIMENSIONS.

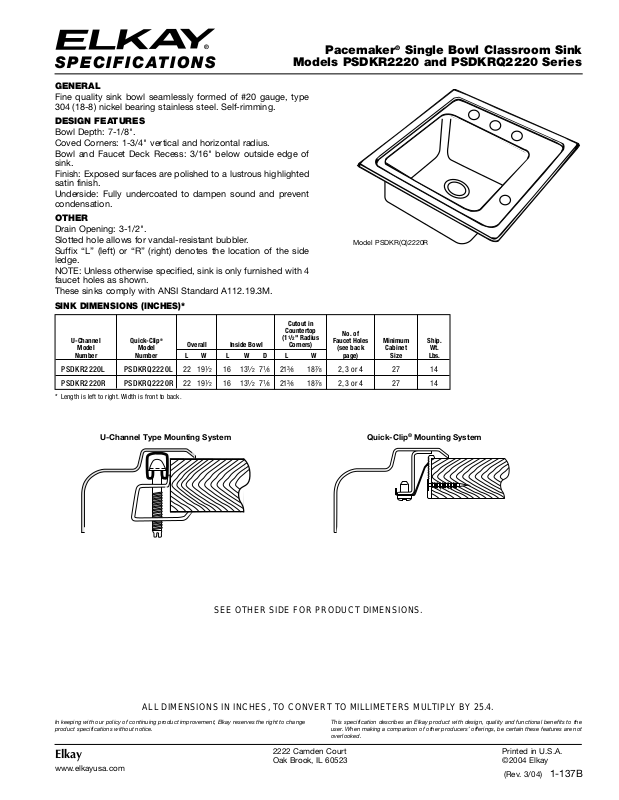

Pacemaker®Single Bowl Classroom Sink
Models PSDKR2220 and PSDKRQ2220 Series
®
SPECIFICATIONS
Quick-Clip® Mounting System
U-Channel Type Mounting System
Model PSDKR(Q)2220R
Cutout in
Countertop
No. of
U-Channel Quick-Clip
®
(11/2" Radius
Faucet Holes Minimum Ship.
Model Model
Overall Inside Bowl Corners)
(see back Cabinet Wt.
Number Number L W L W D L W page) Size Lbs.
PSDKR2220L PSDKRQ2220L 22 191⁄2 16 131⁄2 71⁄8 213⁄8 187⁄8 2, 3 or 4 27 14
PSDKR2220R PSDKRQ2220R 22 191⁄2 16 131⁄2 71⁄8 213⁄8 187⁄8 2, 3 or 4 27 14
SINK DIMENSIONS (INCHES)*
* Length is left to right. Width is front to back.
Model PSDKR2220R4 Illustrated
19-1/2"
13-1/2"
2-1/2"
3"
16"
1-3/4" R
1-3/4" R
7-1/8"
22"
SLOTTED
HOLE
(1 PLACE)
Elkay
2222 Camden Court
Oak Brook, IL 60523
www.elkayusa.com
Printed in U.S.A.
©2004 Elkay
1-137B (Rev. 3/04)
Pacemaker®Single Bowl Classroom Sink
Models PSDKR2220 and PSDKRQ2220 Series
®
SPECIFICATIONS
HOLE DRILLING CONFIGURATIONS
3 HOLE CONFIGURATION
2 HOLE CONFIGURATION
4 HOLE CONFIGURATION
MODEL PSDKR2220R2 MODEL PSDKR2220L2
MODEL PSDKR2220R3 MODEL PSDKR2220L3
MODEL PSDKR2220R4 MODEL PSDKR2220L4
3"
SLOTTED
HOLE
(1 PLACE)
1-1/2" DIA.
HOLE
(1 PLACE)
SLOTTED
HOLE
(1 PLACE)
SLOTTED
HOLE
(1 PLACE)
3"
3"
4"
3"
4"
3"
4"4"
3"
4" 4"
1-1/2" DIA.
HOLE
(2 PLACES)
1-1/2" DIA.
HOLE
(3 PLACES)
SLOTTED
HOLE
(1 PLACE)
3"
2-1/2"
1-3/4" R
16"
22"
1-3/4" R
Model PSDKR2220L4 Illustrated
7-1/8"
19-1/2"
13-1/2"
1-1/8" DIA.
Slotted Hole
