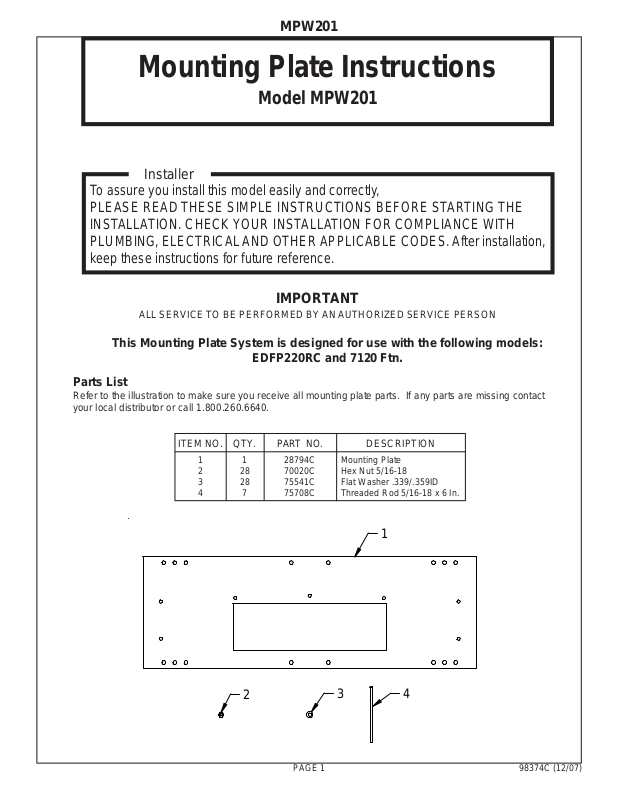

Elkay MPW201 Installation Manual

MPW201

Mounting Plate Instructions

Model MPW201

Installer
To assure you install this model easily and correctly,
PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE
INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH
PLUMBING, ELECTRICAL AND OTHER APPLICABLE CODES. After installation,
keep these instructions for future reference.

IMPORTANT

ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON

This Mounting Plate System is designed for use with the following models:

EDFP220RC and 7120 Ftn.

Parts List

Refer to the illustration to make sure you receive all mounting plate parts. If any parts are missing contact
your local distributor or call 1.800.260.6640.

ITEM NO. QTY.

1
2
3
4

1
28
28

7

PAR T NO . DESCRIPTION

28794C
70020C
75541C
75708C

Mounting Plate
Hex Nut 5/16-18
Flat Washer .339/.359ID
Threaded Rod 5/16-18 x 6 In.

1

2

PAGE 1 98374C (12/07)

3

4

MPW201

When mounting plate directly to wall studs please refer to the

diagrams shown below. For electrical, waste, and water supply locations please

refer to the Installation/Owners manual.

3/8" MTG. HARDW A R E

(SUPPLIED BY OTHERS)

MTG. HOLES FOR
THREADED RODS

MTG. PLATE

FINISHED WALL

MTG. HOLES

12 1/2"
318mm

FOUNTAIN

16 1/2"
419mm

MTG. HOLES

MTG.
HOLES

5/8"
16mm

25 1/16"
637mm

10 3/4"
273mm

27"

*

686mm

FINISHED WALL

FINISHED FLOOR

* ADA REQUIREMENT

NOTE - AFTER INSTALLATION, THREADED RODS MAY NEED TO BE TRIMMED

PAGE 298374C (12/07)
