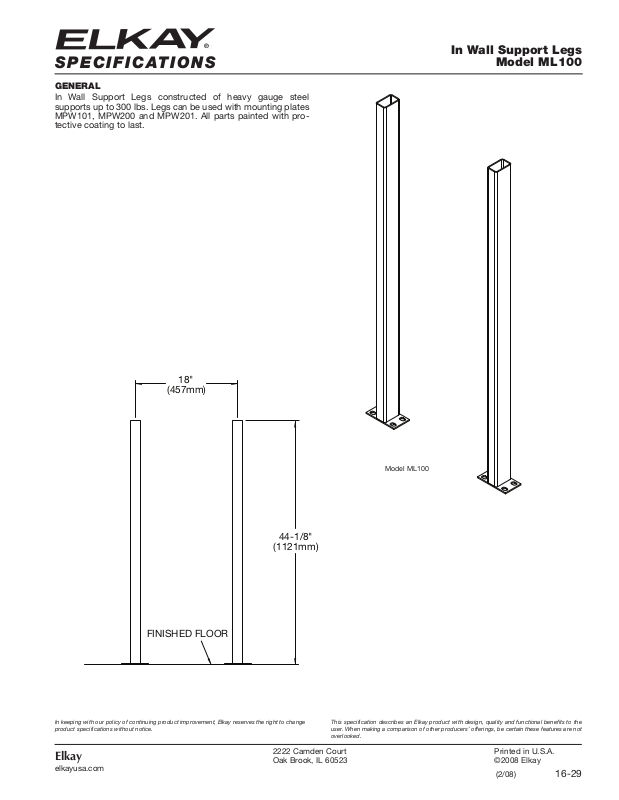

S PE C I FIC AT I ONS
GENERAL
In Wall Support Legs constructed of heavy gauge steel
supports up to 300 lbs. Legs can be used with mounting plates
MPW101, MPW200 and MPW201. All parts painted with protective coating to last.
In Wall Support Legs
Model ML100
18"
(457mm)
FINISHED FLOOR
Model ML100
44-1/8"
(1121mm)
In keeping with our policy of continuing product improvement, Elkay reser ves the right to change
product specifications without notice.
Elkay
elkayusa.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
Printed in U.S.A.
©2008 Elkay
(2/08) 16-29
