Elkay MB23A Installation Manual

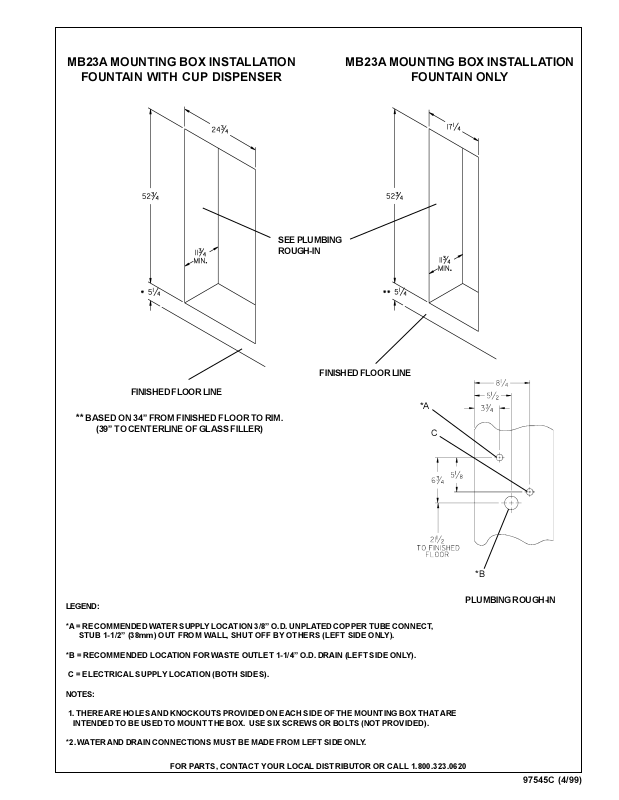

MB23A MOUNTING BOX INSTALLATION

FOUNTAIN WITH CUP DISPENSER

SEE PLUMBING
ROUGH-IN

MB23A MOUNTING BOX INSTALLATION

FOUNTAIN ONLY

FINISHED FLOOR LINE

FINISHED FLOOR LINE

*A

** BASED ON 34 FROM FINISHED FLOOR TO RIM.

(39 TO CENTERLINE OF GLASS FILLER)

LEGEND:

*A = RECOMMENDED WATER SUPPLY LOCATION 3/8 O.D. UNPLATED COPPER TUBE CONNECT,
STUB 1-1/2 (38mm) OUT FROM WALL, SHUT OFF BY OTHERS (LEFT SIDE ONLY).

*B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/4 O.D. DRAIN (LEFT SIDE ONLY).

C

*B

PLUMBING ROUGH-IN

C = ELECTRICAL SUPPLY LOCATION (BOTH SIDES).

NOTES:

1. THERE ARE HOLES AND KNOCKOUTS PROVIDED ON EACH SIDE OF THE MOUNTING BOX THAT ARE
INTENDED TO BE USED TO MOUNT THE BOX. USE SIX SCREWS OR BOLTS (NOT PROVIDED).

*2. WATER AND DRAIN CONNECTIONS MUST BE MADE FROM LEFT SIDE ONLY.

FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620

97545C (4/99)
