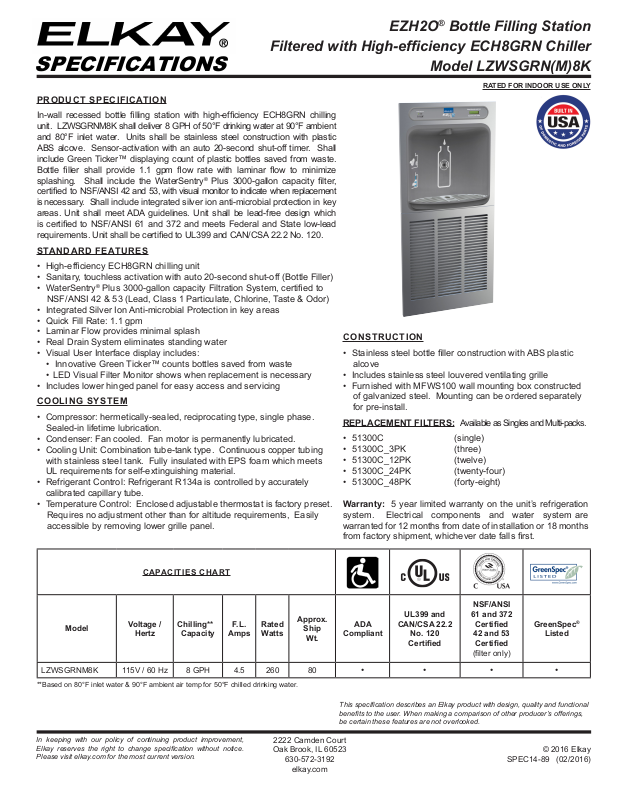

SPECIFICATIONS
Filtered with High-efciency ECH8GRN Chiller
PRODUCT SPECIFICATION
In-wall recessed bottle lling station with high-efciency ECH8GRN chilling
unit. LZWSGRNM8K shall deliver 8 GPH of 50°F drinking water at 90°F ambient
and 80°F inlet water. Units shall be stainless steel construction with plastic
ABS alcove. Sensor-activation with an auto 20-second shut-off timer. Shall
include Green Ticker™ displaying count of plastic bottles saved from waste.
Bottle ller shall provide 1.1 gpm ow rate with laminar ow to minimize
splashing. Shall include the WaterSentry® Plus 3000-gallon capacity lter,
certied to NSF/ANSI 42 and 53, with visual monitor to indicate when replacement
is necessary. Shall include integrated silver ion anti-microbial protection in key
areas. Unit shall meet ADA guidelines. Unit shall be lead-free design which
is certied to NSF/ANSI 61 and 372 and meets Federal and State low-lead
requirements. Unit shall be certied to UL399 and CAN/CSA 22.2 No. 120.
STANDARD FEATURES
• High-efciency ECH8GRN chilling unit
• Sanitary, touchless activation with auto 20-second shut-off (Bottle Filler)
• WaterSentry® Plus 3000-gallon capacity Filtration System, certied to
NSF/ANSI 42 & 53 (Lead, Class 1 Particulate, Chlorine, Taste & Odor)
• Integrated Silver Ion Anti-microbial Protection in key areas
• Quick Fill Rate: 1.1 gpm
• Laminar Flow provides minimal splash
• Real Drain System eliminates standing water
• Visual User Interface display includes:
• Innovative Green Ticker™ counts bottles saved from waste
• LED Visual Filter Monitor shows when replacement is necessary
• Includes lower hinged panel for easy access and servicing
COOLING SYSTEM
• Compressor: hermetically-sealed, reciprocating type, single phase.
Sealed-in lifetime lubrication.
• Condenser: Fan cooled. Fan motor is permanently lubricated.
• Cooling Unit: Combination tube-tank type. Continuous copper tubing
with stainless steel tank. Fully insulated with EPS foam which meets
UL requirements for self-extinguishing material.
• Refrigerant Control: Refrigerant R134a is controlled by accurately
calibrated capillary tube.
• Temperature Control: Enclosed adjustable thermostat is factory preset.
Requires no adjustment other than for altitude requirements, Easily
accessible by removing lower grille panel.
EZH2O® Bottle Filling Station
Model LZWSGRN(M)8K
RATED FOR INDOOR USE ONLY
CONSTRUCTION
• Stainless steel bottle ller construction with ABS plastic
alcove
• Includes stainless steel louvered ventilating grille
• Furnished with MFWS100 wall mounting box constructed
of galvanized steel. Mounting can be ordered separately
for pre-install.
REPLACEMENT FILTERS: Available as Singles and Multi-packs.
• 51300C (single)
• 51300C_3PK (three)
• 51300C_12PK (twelve)
• 51300C_24PK (twenty-four)
• 51300C_48PK (forty-eight)
Warranty: 5 year limited warranty on the unit’s refrigeration
system. Electrical components and water system are
warranted for 12 months from date of installation or 18 months
from factory shipment, whichever date falls rst.
CAPACITIES CHART
Model
LZWSGRNM8K 115V / 60 Hz 8 GPH 4.5 260 80
**Based on 80°F inlet water & 90°F ambient air temp for 50°F chilled drinking water.
In keeping with our policy of continuing product improvement,
Elkay reserves the right to change specication without notice.
Please visit elkay.com for the most current version.
Voltage /
Hertz
Chilling**
Capacity
F.L.
Amps
Rated
Watts
Approx.
Ship
Wt.
2222 Camden Court
Oak Brook, IL 60523
630-572-3192
elkay.com
NSF/ANSI
61 and 372
Certied
42 and 53
Certied
(lter only)
GreenSpec®
Listed
ADA
Compliant
UL399 and
CAN/CSA 22.2
No. 120
Certied
• • • •
This specication describes an Elkay product with design, quality and functional
benets to the user. When making a comparison of other producer’s offerings,
be certain these features are not overlooked.
SPEC14-89 (02/2016)
© 2016 Elkay
O
FLOOR LINE
EZH2O® Bottle Filling Station
Filtered with High-efciency ECH8GRN Chiller
Model LZWSGRN(M)8K
Job Name: ____________________________________
Model: _______________________ Qty. ____________
Contact: ______________________________________
Approval Signature: _____________________________
Notes:
*NOTE - NON-REFRIGERATED
MODELS (WITHOUT CHILLER)
DO NOT NEED CHILLER SHELF
IMPORTANT:
DOUBLE STUD OR 3 INCHES (76 mm)
BETWEEN MOUNTING FRAMES
IF PLACED NEXT TO ANOTHER
BOTTLE FILLER, FOUNTAIN OR WALL
5/16" SCREWS OR BOLTS
(10 REQ'D-NOT PROVIDED)
HOOK RODS (2)
P/N 101567443730
SCREWS OR BOLTS
(NOT PROVIDED)
3/8" O.D. TUBE CONNECT
(CHILLER WATER INLET)
SHUT OFF VALVE BY OTHERS
DOUBLE STUD OR 3" (76mm)
BETWEEN MOUNTING FRAMES
IF PLACED NEXT TO ANOTHER
FOUNTAIN OR WALL
ROUGH-IN DIMENSIONS
RATED FOR INDOOR USE ONLY
WOOD OR STEEL
FRAME SHOWN
1"
25mm
ELECTRICAL INLET
LOCATION ON CHILLER
5 1/8"
130mm
(NOT PROVIDED)
8"
203mm
TO FLOOR LINE
BACK OF WALL T
FRAME
TOP & SIDE VIEWS
1 1/8"
29mm
40"
1016mm
4 1/2
114mm
*CHILLER SHELF
P/N 27638C
3"
79mm
1/4" O.D. TUBE CONNECT
(CHILLER WATER OUTLET)
8 1/8"
206mm
18 3/4"
476mm
9 3/8"
238mm
18 3/4"
476mm
BE 12" (305mm)
MIN DEPTH
1 3/16"
30mm
ACTIVATION
SENSOR
38 7/8"
988mm
32 11/16
831mm
FRONT VIEW
19 3/4"
502mm
17 3/8"
441mm
FINISHED FLOOR
1 3/16"
30mm
20 3/8"
518mm
NOTE: NON-REFRIGERATED
MODELS (WITHOUT CHILLER)
DO NOT INCLUDE LOUVERS
27"
20 7/16"
519mm
682mm
2222 Camden Court
Oak Brook, IL 60523
WALL LAYOUT
2 7/8"
73mm
ELECTRICAL
INLET
25 1/4"
642mm
FINISHED FLOOR
1 1/8"
29mm
elkay.com
4"
102mm
12"
305mm
MINIMUM
DEPTH
11"
279mm
NOTE - NON-REFRIGERATED MODELS
(WITHOUT CHILLER) REQUIRE 8" (203mm)
MINIMUM DEPTH
BACK WALL LINE
1-1/4" (32MM)
WASTE TUBE
FURNISHED
25 7/8"
3 1/2"
658mm
89mm
4 1/2"
117mm
Printed in U.S.A.
© 2016 Elkay
