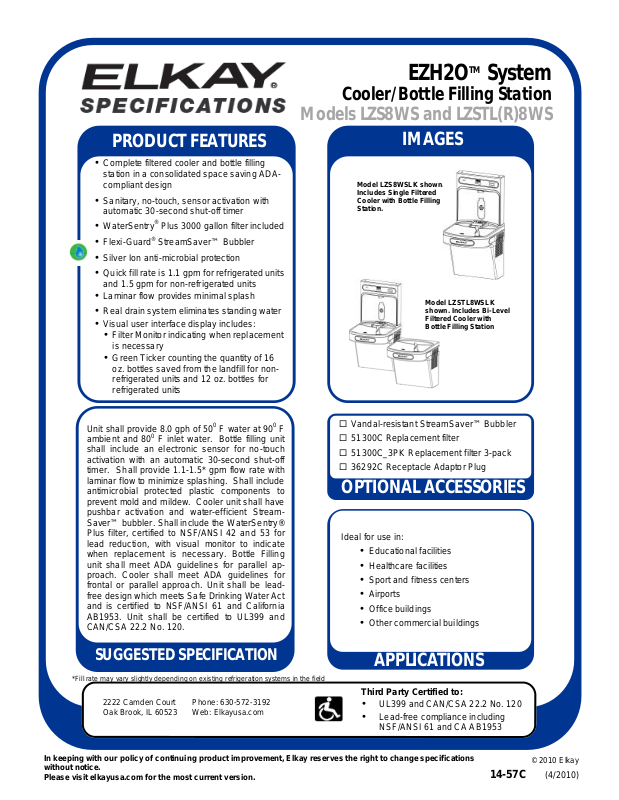

Elkay LZSTL(R)8WS User Manual
EZH2OTM System
Cooler/Bottle Filling Station
Models LZS8WS and LZSTL(R)8WS
PRODUCT FEATURES
• Complete filtered cooler and bottle filling
station in a consolidated space saving ADAcompliant design
• Sanitary, no-touch, sensor activation with
automatic 30-second shut-off timer
• WaterSentry
• Flexi-Guard
• Silver Ion anti-microbial protection
• Quick fill rate is 1.1 gpm for refrigerated units
and 1.5 gpm for non-refrigerated units
• Laminar flow provides minimal splash
• Real drain system eliminates standing water
• Visual user interface display includes:
• Filter Monitor indicating when replacement
is necessary
• Green Ticker counting the quantity of 16
oz. bottles saved from the landfill for nonrefrigerated units and 12 oz. bottles for
refrigerated units
Unit shall provide 8.0 gph of 500 F water at 900 F
ambient and 800 F inlet water. Bottle filling unit
shall include an electronic sensor for no-touch
activation with an automatic 30-second shut-off
timer. Shall provide 1.1-1.5* gpm flow rate with
laminar flow to minimize splashing. Shall include
antimicrobial protected plastic components to
prevent mold and mildew. Cooler unit shall have
pushbar activation and water-efficient StreamSaver™ bubbler. Shall include the WaterSentry®
Plus filter, certified to NSF/ANSI 42 and 53 for
lead reduction, with visual monitor to indicate
when replacement is necessary. Bottle Filling
unit shall meet ADA guidelines for parallel approach. Cooler shall meet ADA guidelines for
frontal or parallel approach. Unit shall be leadfree design which meets Safe Drinking Water Act
and is certified to NSF/ANSI 61 and California
AB1953. Unit shall be certified to UL399 and
CAN/CSA 22.2 No. 120.
®
Plus 3000 gallon filter included
®
StreamSaver™ Bubbler
IMAGES
Model LZS8WSLK shown.
Includes Single Filtered
Cooler with Bottle Filling
Station.
Model LZSTL8WSLK
shown. Includes Bi-Level
Filtered Cooler with
Bottle Filling Station
¨ Vandal-resistant StreamSaver™ Bubbler
¨ 51300C Replacement filter
¨ 51300C_3PK Replacement filter 3-pack
¨ 36292C Receptacle Adaptor Plug
OPTIONAL ACCESSORIES
Ideal for use in:
• Educational facilities
• Healthcare facilities
• Sport and fitness centers
• Airports
• Office buildings
• Other commercial buildings
SUGGESTED SPECIFICATION
*Fill rate may vary slightly depending on existing refrigeration systems in the field
2222 Camden Court
Oak Brook, IL 60523
In keeping with our policy of continuing product improvement, Elkay reserves the right to change specifications
without notice.
Please visit elkayusa.com for the most current version.
Phone: 630-572-3192
Web: Elkayusa.com
APPLICATIONS
Third Party Certified to:
• UL399 and CAN/CSA 22.2 No. 120
• Lead-free compliance including
NSF/ANSI 61 and CA AB1953
© 2010 Elkay
14-57C (4/2010)
ELKAY
Page 2
ELECTRICAL
Water Cooler and EZH2O Station equipped with
electric cords and three-prong molded rubber plugs
for use with 15-amp minimum dual receptacle.
Rated at 115 volt, 60 Hz, single phase.
®
and LZSTL8WS
Models LZS8WS
Bi-Level Cooler Installation
ROUGH-IN DIMENSIONS
Job Name: ________________________________________
Date: __________________________________ Qty: ______
Contact Info (Name, Phone, Email): _____________________
__________________________________________________
__________________________________________________
Approval for Manufacture Signature and Date:
__________________________________________________
Single Cooler Installation
EZH2O is designed to fit on an EZ Cooler which is properly
*Rated for Indoor Use Only
installed per the EZ Spec Sheet rough-in design.
2222 Camden Court
Oak Brook, IL 60523
Phone: 630-572-3192
Web: Elkayusa.com
Specifications and measurements are subject to change
without notification.
Please visit elkayusa.com for most current version.
Basin will be pre-punched.
Installation Notes:
• Unit will mount on bracket attached to wall by 6 holes (as shown above)
• Water and electrical will connect thru a hole punched into basin.
• Refer to page 3 for single EZ rough-in.
• Refer to page 4 for bi-level EZ rough-in.
