Elkay LWR3322L4 User Manual
Model LWR(Q)3322R4
GENERAL
Highest quality sink bowl seamlessly formed of #18 gauge, type
304 (18-8) nickel bearing stainless steel. Self-rimming.
DESIGN FEATURES
Bowl Depths: 7-5/8" (large bowl), 6-1/8" (waste bowl).
Coved Corners: 1-3/4" vertical and horizontal radius.
Bowl and Faucet Deck Recess: 3/16" below outside edge of
sink.
Finish: Exposed surfaces are hand blended to a lustrous
highlighted satin finish.
Underside: Fully undercoated to dampen sound and prevent
condensation.
OTHER
Drain Opening: 3-1/2".
Suffix “L” (left) or “R” (right) denotes waste disposer opening
located in left or right bowl.
NOTE: Unless otherwise specified, sink is furnished with 4
faucet holes as shown.
These sinks comply with ANSI Standard A112.19.3M.
OPTIONAL ACCESSORIES
Rinsing Basket: LKRB1414CR, LKRB1611 or LKERBSS.
Bottom Grid: LKOBG1616.
Cutting Board: CB1713 or CBS1316.
Cutout in
No. of
Countertop
1
1
/2" Dia.
U-Channel Quick-Clip
®
Inside Inside (11/2" Radius
Faucet Minimum Ship.
Model Model
Overall Left Bowl Right Bowl Corners)
Holes Cabinet Wt.
Number Number L W L W D L W D L W 4" Centers Size Lbs.
LWR3322L LWRQ3322L 33 22 111⁄2 16 61⁄8 16 16 75⁄8 323⁄8 213⁄8 1, 2, MR2,3, 4 or 5 36 21
LWR3322R LWRQ3322R 33 22 16 16 75⁄8 111⁄2 16 61⁄8 323⁄8 213⁄8 1, 2, MR2,3, 4 or 5 36 21
SINK DIMENSIONS (INCHES)*
* Length is left to right. Width is front to back.
SEE OTHER SIDE FOR PRODUCT DIMENSIONS.
Elkay
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2004 Elkay
(Rev. 3/04)
1-66F
www.elkayusa.com
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.

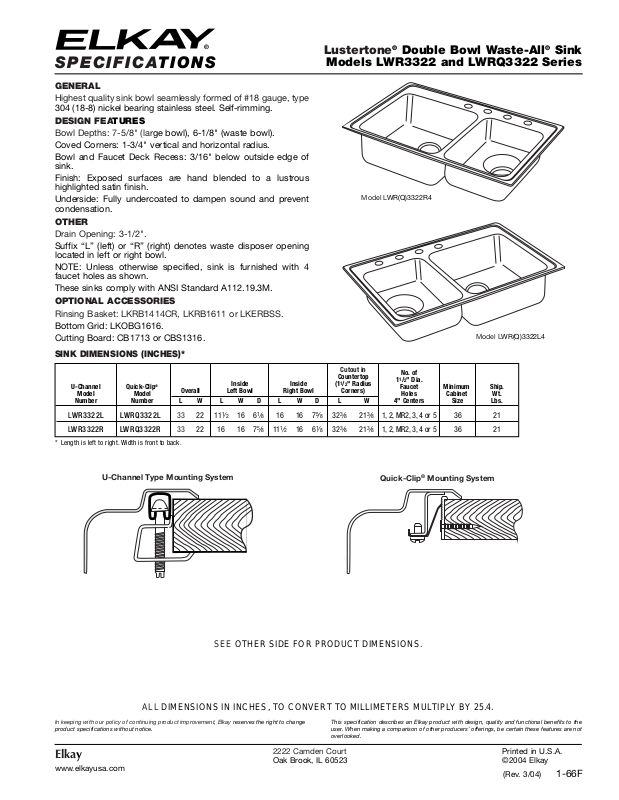

Lustertone®Double Bowl Waste-All®Sink
Models LWR3322 and LWRQ3322 Series
®
SPECIFICATIONS
Quick-Clip® Mounting System
U-Channel Type Mounting System
Model LWR(Q)3322L4
Model LWR3322R4 IllustratedModel LWR3322L4 Illustrated
7-5/8"
1-3/4" R
1-3/4" R
4"4"4"
1-1/4"
16"
16"
22"
5"
3-3/4" 3-3/4"
6-1/8"
2"
33"
11-1/2"
7-5/8"
1-3/4" R
1-3/4" R
4" 4" 4"
1-1/4"
16"
16"
22"
5"
6-1/8"
2"
33"
11-1/2"
Elkay
2222 Camden Court
Oak Brook, IL 60523
www.elkayusa.com
Printed in U.S.A.
©2004 Elkay
1-66F (Rev. 3/04)
Lustertone®Double Bowl Waste-All®Sink
Models LWR3322 and LWRQ3322 Series
®
SPECIFICATIONS
HOLE DRILLING CONFIGURATIONS
1
2
3
MR2
5
4
4"
4"4"
4"4"
4"4"4"
4" 4"4"4"
