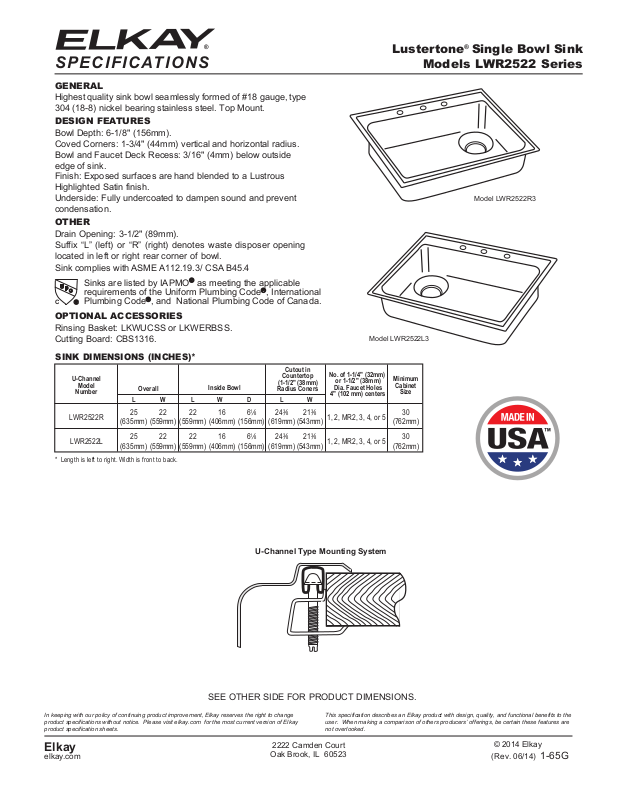

Elkay LWR2522 User Manual
®
SPECIFICATIONS
GENERAL
Highest quality sink bowl seamlessly formed of #18 gauge, type
304 (18-8) nickel bearing stainless steel. Top Mount.
DESIGN FEATURES
Bowl Depth: 6-1/8" (156mm).
Coved Corners: 1-3/4" (44mm) vertical and horizontal radius.
Bowl and Faucet Deck Recess: 3/16" (4mm) below outside
edge of sink.
Finish: Exposed surfaces are hand blended to a Lustrous
Highlighted Satin finish.
Underside: Fully undercoated to dampen sound and prevent
condensation.
OTHER
Drain Opening: 3-1/2" (89mm).
Suffix “L” (left) or “R” (right) denotes waste disposer opening
located in left or right rear corner of bowl.
Sink complies with ASME A112.19.3/ CSA B45.4
Sinks are listed by IAPMO as meeting the applicable
requirements of the Uniform Plumbing Code , International
Plumbing Code , and National Plumbing Code of Canada.
C
OPTIONAL ACCESSORIES
Rinsing Basket: LKWUCSS or LKWERBSS.
Cutting Board: CBS1316.
Lustertone
Model LWR2522L3
®
Single Bowl Sink
Models LWR2522 Series
Model LWR2522R3
SINK DIMENSIONS (INCHES)*
U-Channel
Model
Number
LWR2522R
LWR2522L
* Length is left to right. Width is front to back.
Overall
L W L W D L W
25
(635mm)22(559mm)
(559mm)
25
(635mm)22(559mm)
(559mm)
22
22
Inside Bowl
16
(406mm)
16
(406mm)
1
6
⁄8
(156mm)
1
6
⁄8
(156mm)
Cutout in
Countertop
(1-1/2" (38mm)
Radius Coners
243⁄8
(619mm)
3
24
⁄8
(619mm)
(543mm)
(543mm)
No. of 1-1/4" (32mm)
4" (102 mm) centers
3
21
⁄8
1, 2, MR2, 3, 4, or 5
3
21
⁄8
1, 2, MR2, 3, 4, or 5
or 1-1/2" (38mm)
Dia. Faucet Holes
U-Channel Type Mounting System
Minimum
Cabinet
Size
30
(762mm)
30
(762mm)
SEE OTHER SIDE FOR PRODUCT DIMENSIONS.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.
Elkay
elkay.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of others producers’ offerings, be certain these features are
not overlooked.
© 2014 Elkay
(Rev. 06/14)
1-65G
Lustertone
®
Single Bowl Sink
Models LWR2522 Series
®
SPECIFICATIONS
(102mm)
3-3/4"
(92mm)
(559mm)
(635mm)
4"
3-3/4"
(92mm)
22"
25"
R1-3/4"
(44mm)
R1-3/4"
(44mm)
(559mm)
16"
(406mm)
6-1/8"
(156mm)
(51mm)
22"
2"
22"
(559mm)
(406mm)
(156mm)
2"
(51mm)
16"
6-1/8"
4"
(102mm)
3-3/4"
(92mm)
3-3/4"
(92mm)
R1-3/4"
(44mm)
22"
(559mm)
25"
(635mm)
R1-3/4"
(44mm)
Model LWR2522R3 Illustrated
Hole Drilling Configurations
"
(32mm) Diameter Faucet Holes on 4" (102mm) Centers
1-1/4
1
2
MR2
3
4
5
Model LWR2522L3 Illustrated
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.
Elkay
elkay.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of others producers’ offerings, be certain these features are
not overlooked.
© 2014 Elkay
(Rev. 06/14)
1-65G
