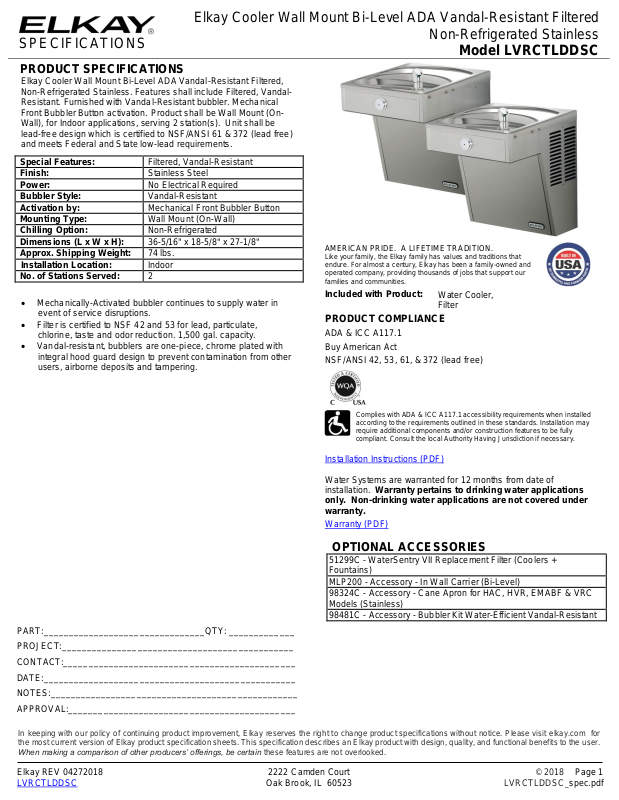

SPECIFICATIONS
Elkay Cooler Wall Mount Bi-Level ADA Vandal-Resistant Filtered
Non-Refrigerated Stainless
Model LVRCTLDDSC
PRODUCT SPECIFICATIONS
Elkay Cooler Wall Mount Bi-Level ADA Vandal-Resistant Filtered,
Non-Refrigerated Stainless. Features shall include Filtered, VandalResistant. Furnished with Vandal-Resistant bubbler. Mechanical
Front Bubbler Button activation. Product shall be Wall Mount (OnWall), for Indoor applications, serving 2 station(s). Unit shall be
lead-free design which is certified to NSF/ANSI 61 & 372 (lead free)
and meets Federal and State low-lead requirements.
Special Features:
Filtered, Vandal-Resistant
Finish:
Stainless Steel
Power:
No Electrical Required
Bubbler Style:
Vandal-Resistant
Activation by:
Mechanical Front Bubbler Button
Mounting Type:
Wall Mount (On-Wall)
Chilling Option:
Non-Refrigerated
Dimensions (L x W x H):
36-5/16" x 18-5/8" x 27-1/8"
Approx. Shipping Weight:
74 lbs.
Installation Location:
Indoor
No. of Stations Served:
2
Mechanically-Activated bubbler continues to supply water in
event of service disruptions.
Filter is certified to NSF 42 and 53 for lead, particulate,
chlorine, taste and odor reduction. 1,500 gal. capacity.
Vandal-resistant, bubblers are one-piece, chrome plated with
integral hood guard design to prevent contamination from other
users, airborne deposits and tampering.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Included with Product:
Water Cooler,
Filter
PRODUCT COMPLIANCE
ADA & ICC A117.1
Buy American Act
NSF/ANSI 42, 53, 61, & 372 (lead free)
Complies with ADA & ICC A117.1 accessibility requirements when installed
according to the requirements outlined in these standards. Installation may
require additional components and/or construction features to be fully
compliant. Consult the local Authority Having Jurisdiction if necessary.
Installation Instructions (PDF)
Water Systems are warranted for 12 months from date of
installation. Warranty pertains to drinking water applications
only. Non-drinking water applications are not covered under
warranty.
Warranty (PDF)
OPTIONAL ACCESSORIES
51299C - WaterSentry VII Replacement Filter (Coolers +
Fountains)
MLP200 - Accessory - In Wall Carrier (Bi-Level)
98324C - Accessory - Cane Apron for HAC, HVR, EMABF & VRC
Models (Stainless)
98481C - Accessory - Bubbler Kit Water-Efficient Vandal-Resistant
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com for
the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the user.
When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04272018 2222 Camden Court © 2018 Page 1
LVRCTLDDSC Oak Brook, IL 60523 LVRCTLDDSC_spec.pdf
SPECIFICATIONS
Elkay Cooler Wall Mount Bi-Level ADA Vandal-Resistant Filtered
Non-Refrigerated Stainless
Model LVRCTLDDSC
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com for
the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the user.
When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04272018 2222 Camden Court © 2018 Page 2
LVRCTLDDSC Oak Brook, IL 60523 LVRCTLDDSC_spec.pdf
