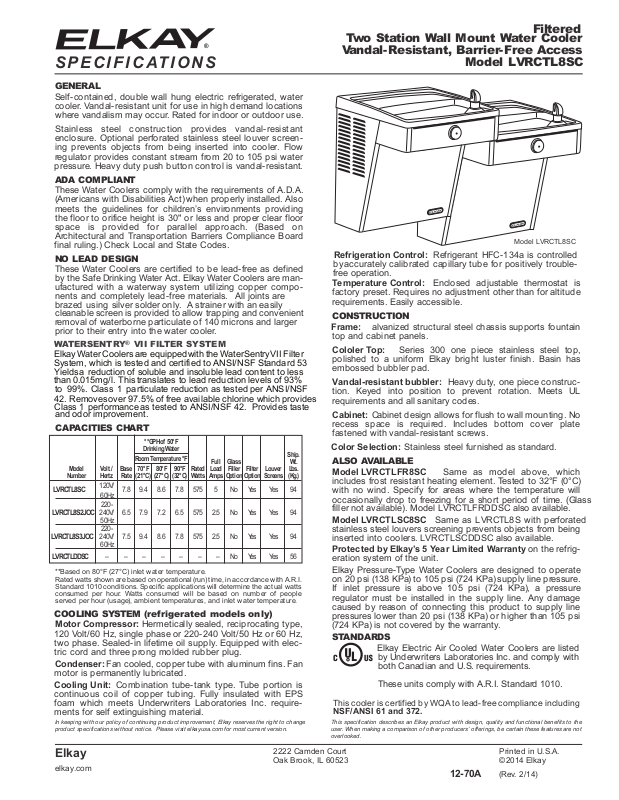

Elkay LVRCTL8SC Specifications
®
S P E C I F I C AT I O N S
GENERAL
Self-contained, double wall hung electric refrigerated, water
cooler. Vandal-resistant unit for use in high demand locations
where vandalism may occur. Rated for indoor or outdoor use.
Stainless steel construction provid es vandal- resistant
enclosure. Optional perforated stainless steel louver screening prevents objects from being inserted into cooler. Flow
regulator provides constant stream fr
pressure. Heavy dut
y push button control is vandal-resistant.
ADA COMPLIANT
These Water Coolers comply with the requirements of A.D.A.
(Americans with Disabilities Act) when properly installed. Also
meets the guidelines for children’s environments providing
the floor to orifice height is 30" or less and proper clear floor
space is provided for parallel approach. (Based on
Architectu
ral and Transportation Barriers Compliance Board
final ruling.) Check Local and State Codes.
NO LEAD DESIGN
These Water Coolers are certified to be lead-free as defined
by the Safe Drinking Water Act. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. All joints are
brazed using silver solder only. A strainer with an easily
cleanable screen is provided to allow trapping and convenient
removal of waterborne particulate of 140 microns and larger
prior to their entry into the water cooler.
WATERSENTRY®VII FILTER SYSTEM
Elkay Water Coolers are equipped with the WaterSentry VII Filter
System, which is tested and certified to ANSI/NSF Standard 53
than 0.015mg/l. This translates to lead reduction levels of 93%
to 99%. Class 1 particulate reduction as tested per ANSI/NSF
42. Removes over 97.5% of free available chlorine which provides
Class 1 performance as tested to ANSI/NSF 42. Provides taste
and odor improvement.
CAPACITIES CHART
**GPH of 50°F
Drinking Water
Room Temperature °F
Model Volt./ Base 70°F 80°F 90°F Rated Load Filler Filter Louver Lbs.
Number Hertz Rate (21°C) (27°C) (32°C) Watts Amps Option Option Screens (Kg.)
LVRCTL8SC
LVRCTL8S2JOC 240V/ 6.5 7.9 7.2 6.5 575 2.5 No Yes Yes 94
LVRCTL8S3JOC 240V/ 7.5 9.4 8.6 7.8 575 2.5 No Yes Yes 94
LVRCTLDDSC – – – – – – – No Yes Yes 56
**Based on 80°F (27°C) inlet water temperature.
Rated watts shown are based on operational (run) time, in accordance with A.R.I.
Standard 1010 conditions. Specific applications will determine the actual watts
consumed per hour. Watts consumed will be based on number of people
served per hour (usage), ambient temperatures, and inlet water temperature.
120V/
7.8 9.4 8.6 7.8 575 5 No Yes Yes 94
60Hz
220-
50Hz
220-
60Hz
COOLING SYSTEM (refrigerated models only)
Motor Compressor:
Hermetically sealed, rec
120 Volt/60 Hz, single phase or 220-240 Volt/50 Hz or 60 Hz,
two phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug.
Condenser:
Fan cooled, copper tube with aluminum fins. Fan
motor is permanently lubricated.
Cooling Unit:
Combination tube-tank type. Tube portion is
continuous coil of copper tubing. Fully insulated with EPS
foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material.
In keeping with our polic y of continuing product imp rovement, Elkay reserves the right to change
produc t specificatio ns without not ice. Please visit elkayusa.com for most current version.
Elkay
elkay.com
om 20 to 105 psi water
Yields a reduction of soluble and insoluble lead content to less
Full Glass Wt.
Ship.
iprocating type,
2222 Camden Court
Oak Brook, IL 60523
Two Station Wall Mount Water Cooler
Filtered
Vandal-Resistant, Barrier-Free Access
Model LVRCTL8SC
Model LVRCTL8SC
Refrigeration Control:
by accurately calibrated capillary
free operation.
Temperature Control:
factory preset. Requires no adjustment other than for altitude
requirements. Easily accessible.
CONSTRUCTION
Frame:
alvanized structural steel chassis supports fountain
top and cabinet panels.
Cololer Top:
Series 300 one piece stainless steel top,
polished to a uniform Elkay bright luster finish. Basin has
embossed bubbler pad.
Vandal-resistant bubbler: H
tion. Keyed into position to prevent rotation. Meets UL
requirements an
d all sanitary codes.
CCabinet:
abinet design allows for flush to wall mounting. No
recess space is required. Inc lude
fastened with vandal-resistant screws.
Color Selection:
ALSO AVAILABLE
Model LVRCTLFR8SC
includes frost resistant heating element. Tested to 32°F (0°C)
with no wind. Specify for areas where the temperature will
occasionally drop to freezing for a sho
filler not available). Model LVRCTLFRDDSC also available.
Model LVRCTLSC8SC
stainless steel louvers screening prevents objects from being
inserted into coolers. LVRCTLSCDDSC also available.
Protected by
Elkay’s 5 Year Limited Warranty on the refrig-
eration system of the unit.
Elkay Pressure-Type Water Coolers are designed to operate
on 20 psi (138 KPa) to 105 psi (724 KPa) supply line pressure.
If inlet pressure is above 105 psi (724 KPa), a pressure
reg
ulator must be installed in the supply line. Any damage
caused by reason of connecting this product to supply line
pressures lower than 20 psi (138 KPa) or higher than 105 psi
(724 KPa) is not covered by the warranty.
STANDA
RDS
Elkay Electric Air Cooled Water Coolers are listed
by Underwriters Laboratories Inc. and comply with
both Canadian and U.S. requirements.
These units comply with A.R.I. Standard 1010.
This cooler is certified by WQA to lead-free compliance including
NSF/ANSI 61 and 372.
This specification describes an Elkay product wit h design, quality and f unctional b enefits to the
user. When making a com parison of other pro ducers’ of ferings, be certain these features are not
overlooked.
Ref
rigerant HFC-134a
is controlled
tube for positively trouble-
Enclosed adjustable thermostat is
eavy duty, one piece construc-
s bottom cover plate
Stainless steel furnished as standard.
Same as model above, which
rt period of time. (Glass
Same as L VRCTL8S with perforated
Printed in U.S.A.
©2014 Elkay
12-70A
(Rev. 2/14)
E
O
OPERATION OF QUICK CONNECT FITTINGS
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
(NOT FURNISHED)
ACKET
)
3" FOR INSTALLATION OF CHILDRENS ADA COOLER
18-1/16"
*
Filtered
Two Station Wall Mount Water Cooler
Vandal- Resistant, Barrier-Free Access
Model LVRCTL8SC
®
ROUGH- I N DI M E NSION S
1/4" O.D. TUBE
WATER INLET
TO COOLER
NOTE: WATERFLOW
RELEASE TUBE
PULLING IT OUT HELPS T
PUSHING TUBE IN BEFOR
AB
C
TUBE TO ATTACH
IN POSITION
TO RELEASE TUBE
SIMPLY PUSH IN
TUBE IS SECURED
PUSH IN COLLET
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE TO ATTACH
A B
*
ADAREQUIREMENT
F = 7/16" BOLT HOLES FOR FASTENING UNIT TO WALL.
E = INSURE PROPER VENTILATION BY MAINTAINING 6" (152mm) (MIN.) CLEARANCE FROM CABINET LOUVERS TO WALL.
D = ELECTRICAL SUPPLY (3) WIRE RECESSED BOX.
C = 1-1/2" TRAP NOT FURNISHED
B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/2" O.D. DRAIN.
3” (76mm) MAXIMUM OUT FROM WALL.
A = RECOMMENDED WATER SUPPLY LOCATION. SHUT OFF VALVE (NOT FURNISHED) TO ACCEPT 3/8" O.D. UNPLATED COPPER TUBE.
LEGEND
REDUCE HEIGHT BY
FINISHED FLOOR
(127mm)
5"
(511mm)
(313mm)
(114mm)
20-1/8"
(351mm)
12-5/16"
(686mm)
4-1/2"
(518mm)
(254mm)5"(127mm)
13-7/8"
27"*
(89mm)
20-3/8"
10"
(173mm
3-1/2"
B
(476mm)
(638mm)
6-3/4"
18-3/4"
25-1/8"
(121mm)
(62mm)
HEIGHT
4-3/4"
2-7/16"
ORIFICE
(952mm)
(837mm)
F
37-1/2"
32-15/16"
C
(38mm)
1-1/2"
F
A
L
HEIGHT
(203mm)
C
RIM
8"
(810mm)
E
E
31-7/8"
L
C
D
HEIGHT
ORIFICE
(1003mm)
(166mm)
6-1/2"
39-1/2"
(35mm)
(35mm)
1-3/8"
1-3/8"
(146mm)
(146mm)
(10 HOLES)
(67mm)
5/16" (8mm)
5-3/4"
5-3/4"
2-5/8"
(35mm)
(35mm)
1-3/8"
1-3/8"
(146mm)
(146mm)
(473mm)
5-3/4"
HANGER BR
5-3/4"
18-5/8"
(459mm)
18-1/16"
5/16" (8mm)
(10 HOLES)
6-1/2"
(166mm)
37-1/2"
(952mm)
20-3/8"
(518mm)
3/8" O.D. TUBE CONNECT
COLD WATER SUPPLY
DIRECTION
TUBE IS SECURED
IN POSITION
5-3/4"
(146mm)
1-3/8"
(35mm)
E
F
5"
(127mm)
FINISHED FLOOR
BUILDING WATER
INLET
THIS WATER COOLER HAS BEEN DESIGNED AND BUILT TO PROVIDE WATER TO THE USER
WHICH HAS NOT BEEN ALTERED B Y MATERIALS IN THE COOLER WATERWAYS. THE
GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO
WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING
BUT MAY AL SO OCCUR AWAY FROM THE BUILDING. THIS GROUNDING CAN C
SERVICE STOP
ELECTRICAL FEEDBACK INTO A WATER COOLER CREATING AN ELECTROLYSIS WH ICH
CREATES A METALLIC TASTE OR CAUSES AN INCREASE IN THE METAL CONTENT OF THE
WATER. THIS CONDITION IS AVOIDABLE BY INSTALLING THE COOLER USING THE PROPER
MATERIALS AS SHOWN BELOW.
THIS WATER COOLER MUST BE CONNECTED TO THE WATER SUPPLY USING A DIELECTRIC
PUSH IN COLLET
TO RELEASE TUBE
C
RELEASE TUBE
1-3/8"
(35mm)
C
L
(459mm)
5-3/4"
(146mm)
5-3/4"
(146mm)
1-3/8"
(35mm)
1-3/8"
(35mm)
COUPLING. THE COOLER IS FURNISHED WITH A NON-METALLIC STRAINER WHICH
QUIREMENT. THE DRAIN TRAP WHICH IS PROVIDED BY THE INSTALLER SHOULD ALSO
THIS RE
BE PLASTIC TO COMPLETELY ISOLATE THE COOLER FROM THE BUILDING PLUMBING SYSTEM.
MINIMUM 40 PSI SUPPLY LINE PRESSURE REQUIRED IN SPECIAL CIRCUMSTANCES WHEN BOTH
SIDES OF BILEVEL ARE IN USE SIMULTANEOUSLY TO ENSURE ADEQUATE STREAM HEIGHT. DOES
NOT APPLY TO NON-REFRIGERATED UNITS.
5-3/4"
(146mm)
39-1/2"
(1003mm)
D
ORIFICE
HEIGHT
E
C
1-1/2"
(38mm)
L
A
F
2-7/16"
(62mm)
10"
(254mm)
5"
(127mm)
3-1/2"
(89mm)
4-1/2"
(114mm)
18-3/4"
(476mm)
B
13-7/8"
(351mm)
25-1/8"
(638mm)
20-1/8"
(511mm)
REDUCE HEIGHT BY 3" FOR INSTALLATION OF CHILDRENS ADA COOLER
INSTALLER PLEASE NOTE:
IMPORTANT
NOTICE
HANGER BRACKET
2-5/8"
(67mm)
31-7/8"
(810mm)
RIM
HEIGHT
32-15/16"
(837mm)
ORIFICE
HEIGHT
(686mm)
* "72
8"
(203mm)
C
4-3/4"
(121mm)
18-5/8"
(473mm)
12-5/16"
(313mm)
AUSE
MEETS
6-3/4"
(173mm)
LEGEND
A = RECOMMENDED WATER SUPPLY LOCATION. SHUT OFF VALVE (NOT FURNISHED) TO ACCEPT 3/8" O.D. UNPLATED COPPER TUBE.
3” (76mm) MAXIMUM OUT FROM WALL.
B = RECOMMENDED LOCATION FOR WASTE OUTLET 1- 1/2" O.D. DRAIN.
C = 1-1/ 2" TRAP NOT FURNISHED
D = ELECTRICAL SUPPLY (3) WIRE RECESSED BOX.
E = INSURE PROPER VENTILATION BY MAINTAINING 6" (152mm) (MIN.) CLEARANCE FROM CABINET LOUVERS TO WALL.
F = 7/16" BOLT H
ADA REQUIREMENT
Elkay
(Rev. 4/14) 12-70A
OLES FOR FASTENING UNIT TO WALL.
2222 Camden Court
Oak Brook, IL 60523
elkay.com
Printed in U.S.A.
©2014 Elkay
