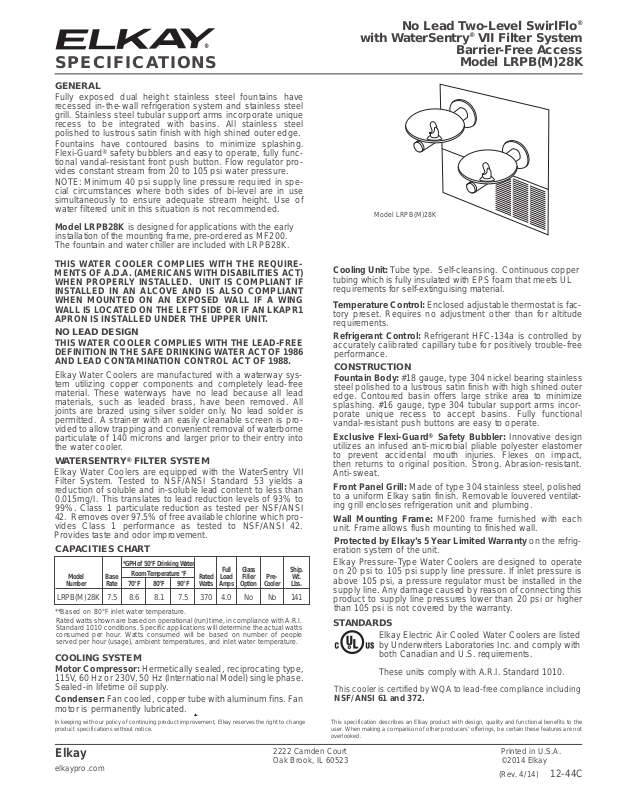

Elkay LRPBM28K Specifications
®
SPECIFICATIONS
GENERAL
Fully exposed dual height stainless steel fountains have
recessed in-the-wall refrigeration system and stainless steel
grill. Stainless steel tubular support arms incorporate unique
recess to be integrated with basins. All stainless steel
polished to lustrous satin finish with high shined outer edge.
Fountains have contoured basins to minimize splashing.
Flexi-Guard
tional vandal-resistant front push button. Flow regulator provides constant stream from 20 to 105 psi water pressure.
NOTE: Minimum 40 psi supply line pressure required in special circumstances where both sides of bi-level are in use
simultaneously to ensure adequate stream height. Use of
water filtered unit in this situation is not recommended.
Model LRPB28K is designed for applications with the early
installation of the mounting frame, pre-ordered as MF200.
The fountain and water chiller are included with LRPB28K.
THIS WATER COOLER COMPLIES WITH THE
MENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT)
WHEN PROPERLY INSTALLED. UNIT IS COMPLIANT IF
INSTALLED IN AN ALCOVE AND IS ALSO COMPLIANT
WHEN MOUNTED ON AN EXPOSED WALL IF A WING
WALL IS LOCATED ON THE LEFT SIDE OR IF AN LKAPR1
APRON IS INSTALLED UNDER THE UPPER UNIT.
NO LEAD DESIGN
THIS WATER COOLER COMPLIES WITH THE LEAD-FREE
DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986
AND LEAD CONTAMINAT
Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free
material. These waterways have no lead because all lead
materials, such as leaded brass, have been removed. All
joints are brazed using silver solder only. No lead solder is
permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne
particulate of 140 microns and larger prior to their entry into
the water cooler.
WATERSENTRY®FILTER SYSTEM
Elkay Water Coolers are equipped with the WaterSentry VII
Filter System. Tested to NSF/ANSI Standard 53 yields a
reduction of soluble and in-soluble lead content to less than
0.015mg/l. This translates to lead reduction levels of 93% to
99%. Class 1 particulate reduction as tested per N
42. Removes over 97.5% of free available chlorine which provides Class 1 performance as tested to NSF/ANSI 42.
Provides taste and odor improvement.
CAPACITIES CHART
Model Base
Number Rate 70°F 80°F 90°F Watts Amps Option Cooler Lbs.
LRPB(M)28K 7.5 8.6 8.1 7.5 370 4.0 No No 141
**Based on 80°F inlet water temperature.
Rated watts shown are based on operational (run) time, in compliance with A.R.I.
Standard 1010 conditions. Specific applications will determine the actual watts
consumed per hour. Watts consumed will be based on number of people
served per hour (usage), ambient temperatures, and inlet water temperature.
COOLING SYSTEM
Motor Compressor: Hermetically sealed, reciprocating type,
115V, 60 Hz or 230V, 50 Hz (International Model) single phase.
Sealed-in lifetime oil supply.
Condenser:Fan cooled, copper tube with aluminum fins. Fan
motor i
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay
elkaypro.com
®
safety bubblers and easy to operate, fully func-
ION CONTROL ACT OF 1988.
*GPH of 50°F Drinking Water
Room Temperature °F
Full Glass Ship.
Rated Load Filler Pre- Wt.
s permanently lubricated.
REQ
UIRE-
SF/ANSI
2222 Camden Court
Oak Brook, IL 60523
No Lead Two-Level SwirlFlo
with WaterSentry®VII Filter System
Barrier-Free Access
Model LRPB(M)28K
Model LRPB(M)28K
Cooling Unit:
tubing which is fully insulated with EPS foam that meets UL
requirements for self-extinguising material.
Temperature Control:Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude
requirements.
Refrigerant Control: Refrigerant HFC-134a is controlled by
accurately calibrated capillary tube for positively trouble-free
performance.
CONSTRUCTION
Fountain Body: #18 gauge, type 304 nickel bearing stainless
steel polished to a lustrou
edge. Contoured basin offers large strike area to minimize
splashing. #16 gauge, type 304 tubular support arms incorporate unique recess to accept basins. Fully functional
vandal-resistant push buttons are easy to operate.
Exclusive Flexi-Guard
utilizes an infused anti-microbial pliable polyester elastomer
to prevent accidental mouth injuries. Flexes on impact,
then returns to original position. Strong. Abrasion-resistant.
Anti-sweat.
Front Panel Grill: Made of type 304 stainless steel, polished
to a uniform Elkay satin finish. Removable louvered ventilating grill encloses refrigeration unit and plumbing.
Wall Mounting Frame: MF200 frame furnished with each
unit. Frame allows flush mounting to finished wall.
Protected by Elkay’s 5
eration system of the unit.
Elkay Pressure-Type Water Coolers are designed to operate
on 20 psi to 105 psi supply line pressure. If inlet pressure is
above 105 psi, a pressure regulator must be installed in the
supply line. Any damage caused by reason of connecting this
product to supply line pressures lower than 20 psi or higher
than 105 psi is not covered by the war
STANDARDS
This cooler is certified by WQA to lead-free compliance including
NSF/ANSI 61 and 372.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these featu
overlooked.
Tube type. Self-cleansing. Continuous copper
s satin finish with high shined outer
®
Safety Bubbler: Innovative design
Year Limited Warranty on the refrig-
ranty.
Elkay Electric Air Cooled Water Coolers are listed
by Underwriters Laboratories Inc. and comply with
both Canadian and U.S. requirements.
These units comply with A.R.I. Standard 1010.
res are not
Printed in U.S.A.
©2014 Elkay
(Rev. 4/14) 12-44C
®
SHOWN (NOT PROVIDED)
NOTE: WATERFLOW
DIRECTION
SERVICE STOP
(NOT FURNISHED)
3/8" O.D. TUBE CONNECT
COLD WATER SUPPLY
1/4" O.D. TUBE
WATER INLET
TO COOLER
BUILDING WATER
INLET
(NOT FURNISHED)
OPERATION OF QUICK CONNECT FITTINGS
No Lead Two-Level SwirlFlo
®
with WaterSentry®VII Filter System
Barrier-Free Access
Model LRPB(M)28K
®
ROUGH-IN DIMENSIONS
IMPORTANT!
INSTALLER PLEASE NOTE:
The grounding of electrical equipment suc
phone, computers, etc., to water lines is a common
procedure. This grounding may be in the building or
may occur away from the building. This grounding
can cause electrical feedback into a water cooler,
creating an electrolysis which causes a metallic
taste or causes an increase in the metal content of
the water. This condition is avoidable by using the
proper materials as indicated below.
n fittings which are provided by the installer
The drai
should also be plastic to electrically isolate the cooler
from the building plumbing system.
LRPBM28K MOUNTING FRAME INSTRUCTIONS
1.Cut a square rectangular wall opening 37-1/2"
(953mm) W x 37-3/4" (959mm) H and 4-1/2"
(114mm) above the floor line. These dimensions
are required to obtain proper rim and bubbler
heights for compliance with ANSI standard
A117.1. (See Figure 2)
2.Reinforce the wall opening on all sides so that it
will adequately support the water fountain. This
reinforcement must suppor
load and provide a means for securing the frame
assembly in place.
NOTE: Building construction must allow for
adequate air flow on both sides and top of remote
chiller unit. Minimum of 4" (102mm) is required.
(See Figures 1 & 2)
3.Install plumbing and electrical rough-ins. See
Figure 1 for location of the supply water inlet to
chiller and for the location of the waste water
uncti
outlet. A j
circuit is provided on the inside of the chiller.
(Standard 120 Volts, 60 Hz and single phase)
See Figure 2 for the electrical inlet location.
4.Remove frame assembly and related hardware
from packaging. Attach the two frames together
thru the upright supports with (4) 5/16" x 3/4"
(19mm) long bolts and nuts (not provided).
Tighten securely.
NOTE: Frame with higher
left side.
5.Install the frame assembly squarely in wall
opening with frame upright support edges flush
with the finished wall face. Secure the frame to the
wall thru holes with (12) 5/16" x 2" (51mm) long
lag bolts or screws (not provided). Tighten securely.
NOTE: Be sure that frame is squared in location.
Do not use less than required screw quantity and
size.
6.Attach the chiller sh
side frame uprights at the second set of holes
counting from the bottom and to the shelf at the
(2) side holes. Line up the other shelf holes with
the frame bottom holes and fasten the assembly
to the wall using appropriately sized wood screws
or bolts and nuts (not provided). (See Figure 2)
1/4" O.D. TUBE
WATER INLET
TO COOLER
on box for a (3) wire, 10 amp branch
t u
p to 150 lbs static
u
pper channel to be on
elf
support rods to the right
3/8" O.D. TUBE CONNECT
COLD WATER SUPPLY
NOTE: WATERFLOW
DIRECTION
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
BA
h as
tele-
BUILDING WATER
INLET
SERVICE STOP
PUSH IN COLLET
TO RELEASE TUBE
C
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
WaterSentry® VII Filter System
(121mm)
(978mm)
FIG. 2
(12 REQ’D-NOT PROVIDED)
FRAME
(NOT PROVIDED)
(12 REQ’D-NOT PROVIDED)
(959mm)
(29mm)
LOCATION ON CHILLER
FRAME
(114mm)
(203mm)
TO FLOOR LINE
(NOT PROVIDED)
(953mm)
(130mm)
(NOT PROVIDED)
CHILLER SHELF
MIN DEPTH
FLOOR LINE
HOOK RODS (2)
(4 REQ’D-NOT PROVIDED)
(NOT PROVIDED)
HOOK RODS (2)
SHUT OFF VALVE BY OTHERS
FIG.1
(73mm)(73mm) (356mm)(356mm)
(517mm)
(519mm)
(41mm)
(41mm)
4
(1059mm)
(863mm)
(959mm)
(114mm)
(4 REQ’D-NOT PROVIDED)
REQUIREMENT
ELECTRICAL INLET
FINISHED FLOOR
CHILLER SHELF
(467mm)
(953mm)
(29mm)
(79mm)
COLD WATER OUTLET
MINIMUM DEPTH
(16mm)
5
(140mm)
(29mm)
(279mm)
(29mm)
(203mm)
(130mm)
FLOOR LINE
(476mm)
(206mm)
(238mm)
BACK WALL LINE
W
FURNISHED
(25mm)
(927mm)
(730mm)
(89mm)
(203mm)
(114mm)
SHOWN (NOT PROVIDED)
LOCATION ON CHILLER
TO FLOOR LINE
MIN DEPTH
