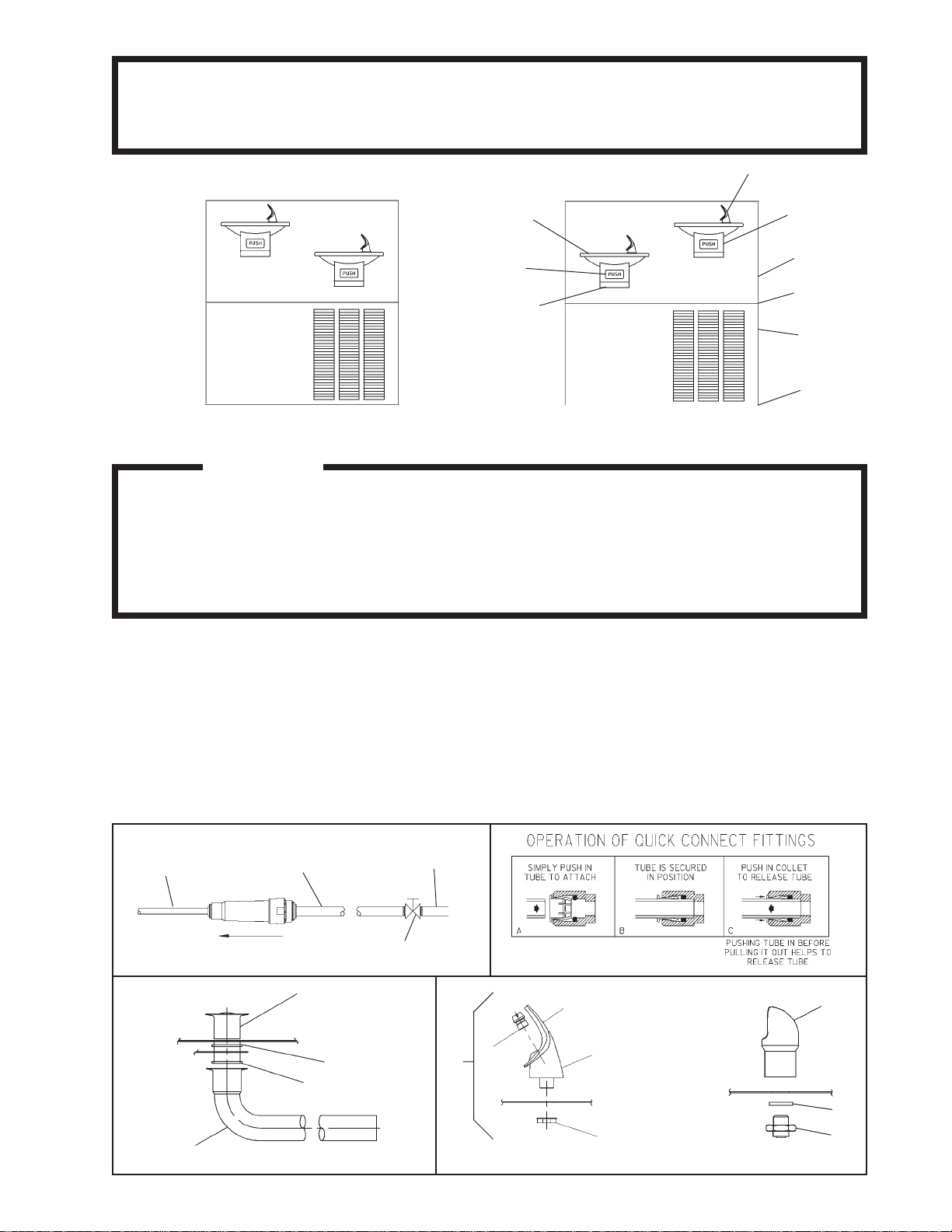

Elkay ERPA2-8RAC*A, ERPAVR2-8C*A, LPTEA8C*A, ERPAVR2-8RAC*A, LPTEA8RAC*A Installation, Care & Use Manual

ERP A2-8C*A ERP A2-8RAC*A ERP A VR2-8C*A ERP A VR2-8RAC*A LPTEA8C*A LPTEA8RAC*A

Installation/Care/Use Manual

SwirlFlo® Refrigerated Fountains with FLEXI-GUARD

®

SEE FIG. 4 OR 5

42

SEE FIG. 11

38, 40, 41

35
44

37, 39, 41

36

44

ERP A2-8C, LPTEA8C

ERPA2-8RAC, LPTEA8RAC

Installer

To assure you install this model easily and correctly, PLEASE READ
THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLA­TION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH
PLUMBING, ELECTRICAL AND OTHER APPLICABLE CODES. After
installation, leave these instructions inside the fountain for future reference.

IMPORTANT

ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON

IMPORTANT! INSTALLER PLEASE NOTE.

THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. T O WATER LINES
IS A COMMON PROCEDURE. THIS GROUNDING MA Y BE IN THE BUILDING OR MA Y OCCUR AW A Y FROM THE
BUILDING . THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNT AIN, CREA TING AN ELEC­TROLYSIS WHICH CAUSES A MET ALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE WA TER.
THIS CONDITION IS A VOIDABLE BY USING THE PROPER MATERIALS AS INDICA TED. ANY DRAIN FITTINGS
PROVIDED BY THE INST ALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALL Y ISOLA TE THE FOUNT AIN
FROM THE BUILDING PLUMBING SYSTEM.

1/4" O.D. TUBE
WATER INLET
TO COOLER

FIG. 1

FIG. 3

NOTE: WATER FLOW

DIRECTION

48

3/8" O.D. UNPLATED
COPPER TUBE CONNECT
COLD WATER SUPPLY

45

BASIN

46

47

BUILDING WATER
INLET

SERVICE STOP
(NOT FURNISHED)

1

FIG. 4

2

FIG. 2

NOTE: WHEN INSTALLING
REPLACEMENT BUBBLER

3

AND PEDESTAL, TIGHTEN
NUT (ITEM 5 OR 33) ONLY
TO HOLD PARTS SNUG
IN POSITION. DO NOT

4

OVER TIGHTEN.

5

51

49

33

FIG. 5

97876C (REV. D - 12/04)

ERP A2-8C*A ERP A2-8RAC*A ERP A VR2-8C*A ERP A VR2-8RAC*A LPTEA8C*A LPTEA8RAC*A

LPTEA8C LPTEA8RAC

97876C (REV. D - 12/04)

FIG. 6

PAGE 2

LEGEND

A = 1/4" O.D. TUBE CONNECT (CHILLER WATER OUTLET)

B = 3/8" O.D. TUBE CONNECT (CHILLER WA TER INLET) SHUT OFF V AL VE BY OTHERS

C = 1-1/4" TRAP NOT FURNISHED

D = ELECTRICAL INLET

ERP A2-8C*A ERP A2-8RAC*A ERP A VR2-8C*A ERP A VR2-8RAC*A LPTEA8C*A LPTEA8RAC*A

INST ALLA TION INSTRUCTIONS

1. Install remote chiller. Remove front panel of chiller. Remove and discard cardboard inner pack from between compressor and
side panel. Slide chiller onto the shelf and position it to the left side of shelf. (See Figure 6)
NOTE: Building construction must allow for adequate air flow on both sides, top, and back of chiller. See chiller instructions for
additional instructions.

2. Make water supply connections. Install a shut-off valve and union connection to building water supply (valve and union not
provided). Turn on the water supply and flush the line thoroughly.

3. ERPA MODELS: Make connection between remote chiller and building supply line. Inlet port is marked on the chiller (1/4" O.D.
copper tube). Bend the copper tube (provided) at an appropriate length from chiller to opening in frame. Install the in-line strainer
(provided with chiller) by pushing it in until it reachs a positive stop, approximately 3/4" (19mm) on the marked chiller inlet port.
Connect building supply line to strainer. DO NOT SOLDER TUBES INSERTED INTO THE STRAINER AS DAMAGE TO THE
O-RINGS MAY RESULT. (See Figure 7).
LPTEA MODEL:Mount filter head assembly to side of chiller (See Figure 9). Make connection between filter and building supply
line (3/8" O.D. tube not provided). Inlet port is marked on the chiller (1/4" O.D. copper tube). Install a 1/4" x 1/4" union (provided)
on the inlet port. Insert the 1/4" poly tubing (provided) into fitting on filter and connect to the union on the chiller. DO NOT SOLDER
TUBES INSERTED INTO THE UNIONS AS DAMAGE TO THE O-RINGS MAY RESULT. (See Figure 8).

4. Hang the upper panel on the mounting frame hanger. Align holes in the panel with the holes in the mounting frame. Be sure that
panel is engaged with hanger at top of frame before releasing it.

5. Install the fountain. Remove access cover plate on underside of fountains and save the screws. Mount the fountain to the
upper panel and the wall frame with (4) 5/16" x 1 3/4" (44mm) long bolts and nuts (provided). Install spacers on bottom two bolts.
Tighten securely.

6. Attach waste tube (1 1/4" OD) to 1 1/4" OD slip trap (provided by others).

7. ERPA MODELS: Make connections between remote chiller outlet tube and fountains. Outlet port is marked on the chiller
(1/4" O.D. copper tube). Install a 1/4" tee (provided) on the marked chiller outlet port. Insert the 1/4" poly tubing coming from the
fountains into the tee. Turn on water supply and check for leaks. DO NOT SOLDER TUBES INSERTED INTO THE TEE AS

DAMAGE TO THE O-RINGS MAY RESULT. (See Figure 7).
LPTEA MODEL: Make connections between remote chiller and fountains. Outlet port is marked on the chiller (1/4" O.D. copper

tube). Install a 1/4' tee (provided) on the marked chiller outlet port. Insert the 1/4" poly tubing coming from the fountains into the
tee. Turn on water supply and check for leaks. DO NOT SOLDER TUBES INSERTED INTO THE TEE AS DAMAGE TO THE O-
RINGS MAY RESULT. (See Figure 8).

8. These products are designed to operate on 20-105 PSIG supply line pressure. If inlet pressure is above 105 PSIG, a pressure
regulator must be installed in the supply line. Any damage caused by reason of connecting these products to supply line
pressures lower than 20 PSIG or higher than 105 PSIG is not covered by warranty.

9. Make electrical connections to the chiller. See chiller instructions.

10. Check stream height from bubbler. Stream height is factory set at 35 PSI. If supply pressure varies greatly from this, turn
adjustment screw on regulator (Item 12). Clockwise adjustment will raise stream height and counter-clockwise
will lower stream height. For best adjustment stream should hit basin approximately 6 1/2" from the bubbler.

11. Mount lower panel. Loosen the (2) #10-24 x 5/8" (16mm) screws at frame bottom lip. Slide upper tongue of lower panel under
lower edge of already installed upper panel. Tighten previously loosened screws securely.

12. Replace bottom access panel to fountain basin using screws provided. Tighten securely.

TROUBLE SHOOTING AND MAINTENANCE

1. Orifice Assy: Mineral deposits on orifice can cause water flow to spurt or not regulate. Mineral deposits may be removed
from orifice with a small round file not over 1/8" diameter or a small diameter wire. CAUTION: Do not file or cut orifice materials.

2. Stream Regulator: If orifice is free of material deposits, regulate flow according to instruction 10 stated above.

3. Actuation of Quick Connect Water Fittings: Cooler is provided with lead-free connectors which utilize an o-ring water
seal. To remove tubing from the fitting, relieve water pressure, push in on the gray collar while pulling on the tubing (See Fig. 2)
To insert tubing, push tube straight into the fitting until it reaches a positive stop, approximately 3/4".

4. Caution: Cleaning of Bronzetone Models requires special care. Outer surfaces must be cleaned with a mild detergent or
mixture of vinegar and water only, rinsed and wiped dry. Abrasive and acidic cleaners may eventually damage the
Bronzetone finish.

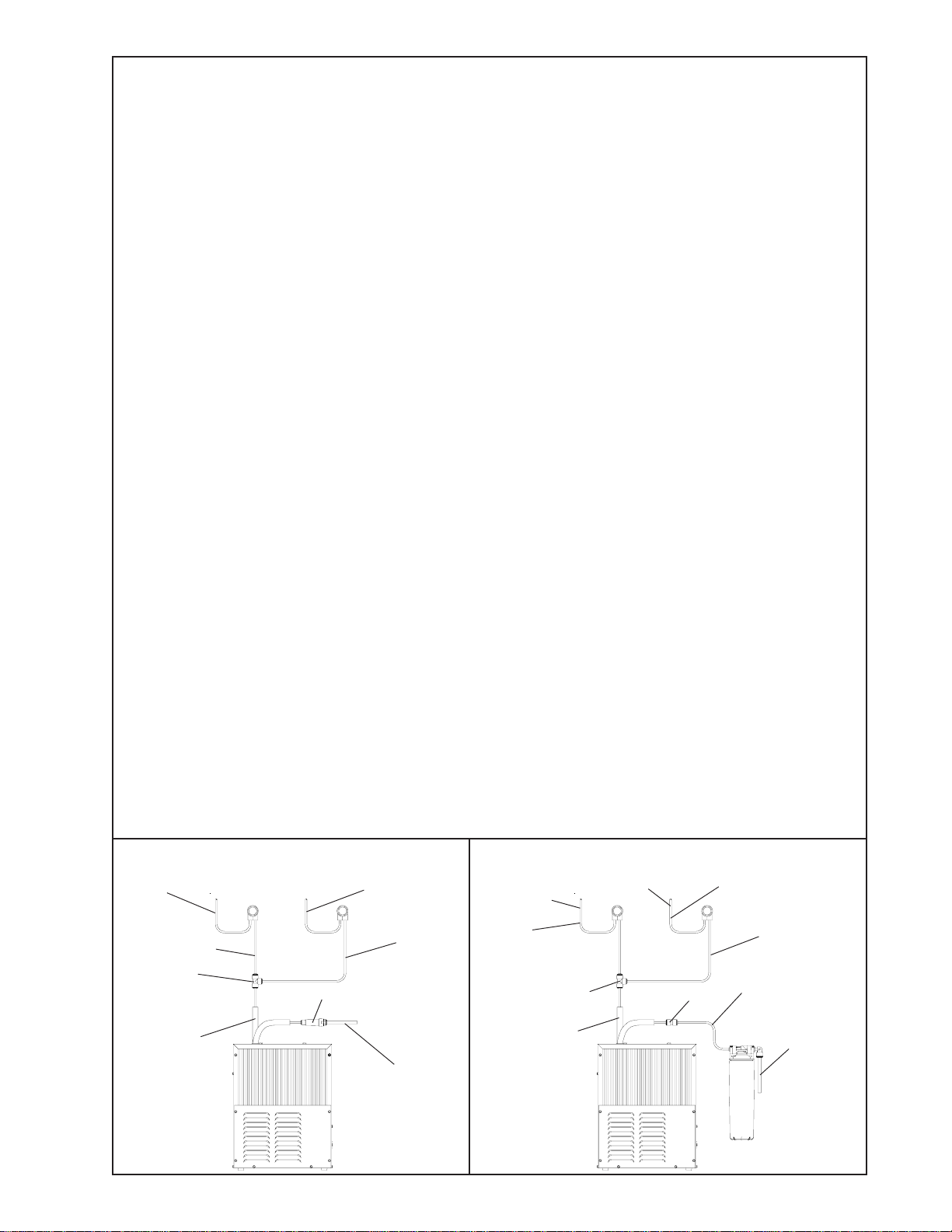

ERP A2-8C /ERPA2-8RAC TUBE ROUTING

50 - TO
BUBBLER

50

32

43

CHILLER
OUTLET

50 - TO
BUBBLER

FIG. 7

50

CHILLER
INLET

TO BUBBLER

50

FIG. 8

PAGE 3

LPTEA8C /LPTEA8RAC TUBE ROUTING

TO BUBBLER

32

CHILLER
OUTLET

50

50

34

50

97876C (REV. D - 12/04)

WATER
INLET

ERP A2-8C*A ERP A2-8RAC*A ERP A VR2-8C*A ERP A VR2-8RAC*A LPTEA8C*A LPTEA8RAC*A

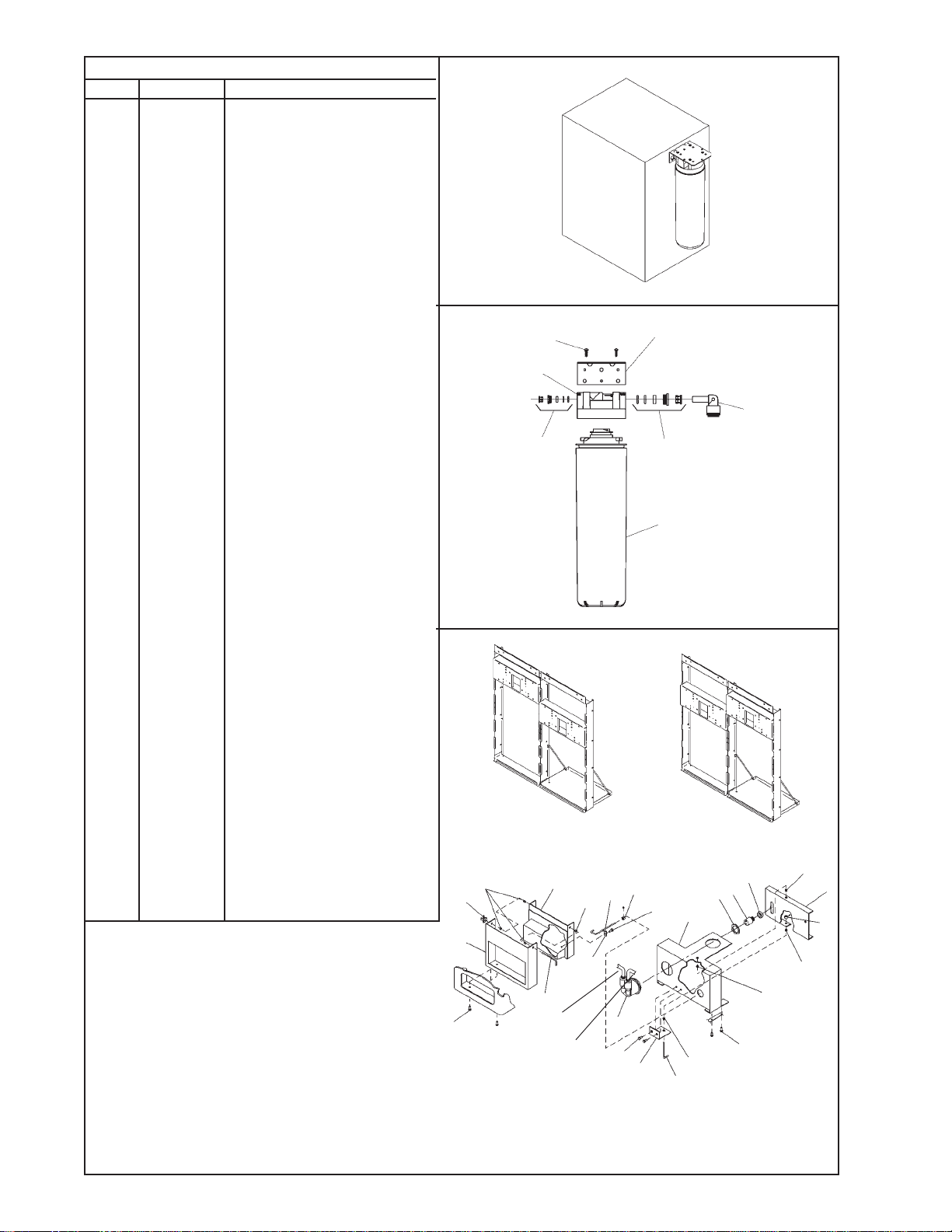

PAR TS LIST

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

NS
NS
NS

PAR T NO.ITEM NO.

56073C
40322C
56011C
55997C
75580C
28322C
21810C
28324C
70426C
50986C
40045C
61313C
15005C
75555C
50198C
70410C
70425C
70378C
21705C
70002C
28325C

40206000

112627543890

22490C
51294C
51299C
28321C
70792C
70818C
70822C
70823C
70682C
15009C
70683C
28185C
28187C
27026C
21822C
21823C
21845C
21846C
70055C

55001026

55996C

111008343890

45336C
50074C
50377C
45330C

100322740560

56092C
98118C
70199C
70020C

74080053

DESCRIPTION

Bubbler Assy
Orifice Assy
Housing Assembly
Pedestal
Bubbler Locknut
Push Bar Mounting Bracket
Push Bar Assy
Regulator Activator Arm
Screw - #8-32 X .25 THMS
Holder-Regulator
Hex Nut
Regulator
Retaining Nut
Clip
Bushing - Nylon
Rod - Pivot
Rod - Pivot
Rod - Push
Clip - Push Rod
Screw - #10 X .50 HHSM
Pivot Rod Bracket
Retainer
Screw - #10-24 X .37 PHTC
Filter Mounting Bracket
Filter Head Assy
Filter Assy
Regulator Mounting Bracket
Screw - #8-18 x .75" PH
Elbow - 3/8" (10mm)
Fitting - Superseal 1/4" (6mm)
Fitting - Superseal 3/8" (10mm)
Tee - 1/4
Bubbler-Nipple-(VR Model Only)
Union - 1/4 X 1/4
Back Panel RH ADA
Back Panel LH ADA
Lower Panel
Ftn Body & Shell-Short
Ftn Body & Shell-Long
Cover Plate-Short
Cover Plate-Long
Speed Nut
Basin-Swirlflow
Strainer
Screw - #10-24 X .62 HHMS
Strainer & Ferrule Assembly
Gasket - Tailpipe
Gasket - Tailpipe
Waste Arm
Gasket-(VR Model Only)
Poly Tubing (Cut To Length)
Bubbler Assembly (VR Model Only)
Bolt - 5/16-18 x 1.75 Lg.
Nut - Hex 5/16-18
Spacer

14

FIG. 9

FIG. 10

15

28

24

25

30

31

26

RH ADA LH ADA

7

15

18

22

20

11

27

12

13

29

15

6

8

22

97876C (REV. D - 12/04)

19

16

9

FIG . 1 1

50

50

10
20

21

www.DrinkingFountainDoctor.com 800-518-5388

PAGE 4

15

15

23

15

17
