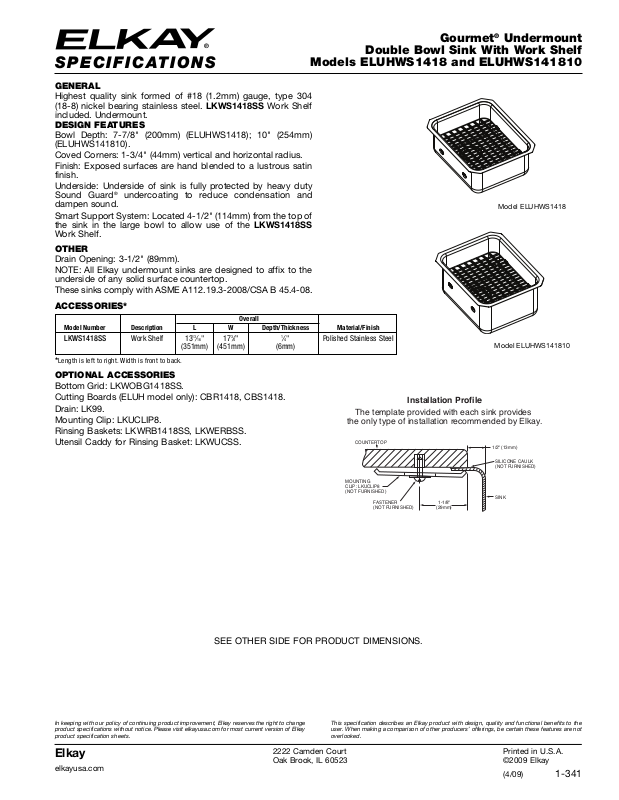

SPECIFICATIONS
COUNTERTOP
M
OUNTING
CLIP: LKUCLIP8
(NOT FURNISHED)
1
/2" (13mm)
SILICONE CAULK
(NOT FURNISHED)
SINK
1-1/8"
(29mm)
FASTENER
(NOT FURNISHED)
Installation Profile
The template provided with each sink provides
the only type of installation recommended by Elkay.
ENERAL
G
Models ELUHWS1418 and ELUHWS141810
Highest quality sink formed of #18 (1.2mm) gauge, type 304
(18-8) nickel bearing stainless steel. LKWS1418SS Work Shelf
included. Undermount.
DESIGN FEATURES
Bowl Depth: 7-7/8" (200mm) (ELUHWS1418); 10" (254mm)
(ELUHWS141810).
Coved Corners: 1-3/4" (44mm) vertical and horizontal radius.
Finish: Exposed surfaces are hand blended to a lustrous satin
finish.
nderside: Underside of sink is fully protected by heavy duty
U
ound Guard
S
ampen sound.
d
®
ndercoating to reduce condensation and
u
Smart Support System: Located 4-1/2" (114mm) from the top of
the sink in the large bowl to allow use of the LKWS1418SS
Work Shelf.
OTHER
Drain Opening: 3-1/2" (89mm).
NOTE: All Elkay undermount sinks are designed to affix to the
underside of any solid surface countertop.
These sinks comply with ASME A112.19.3-2008/CSA B 45.4-08.
ACCESSORIES
odel Number Description LWDepth/Thickness Material/Finish
M
LKWS1418SS Work Shelf 1313⁄16" 173⁄4"
*
Length is left to right. Width is front to back.
*
verall
O
1
(351mm) (451mm) (6mm)
⁄4" Polished Stainless Steel
OPTIONAL ACCESSORIES
Bottom Grid: LKWOBG1418SS.
Cutting Boards (ELUH model only): CBR1418, CBS1418.
Drain: LK99.
Mounting Clip: LKUCLIP8.
Rinsing Baskets: LKWRB1418SS, LKWERBSS.
Utensil Caddy for Rinsing Basket: LKWUCSS.
Gourmet®Undermount
Double Bowl Sink With Work Shelf
odel ELUHWS1418
M
Model ELUHWS141810
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkayusa.com for most current version of Elkay
product specification sheets.
Elkay
elkayusa.com
See other Side for product dimenSionS.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2009 Elkay
(4/09) 1-341
7-7/8"
(200mm)
Model ELUHWS1418
16-1/2"
(419mm)
1-3/4" R
(44mm)
20-1/2"
(521mm)
5"
(127mm)
18"
(457mm)
14"
(356mm)
10"
(254mm)
Model ELUHWS141810
16-1/2"
(419mm)
1-3/4" R
(44mm)
20-1/2"
(521mm)
5"
(127mm)
18"
(457mm)
14"
(356mm)
9"
(229mm)
4-1/2"
(114mm)
9"
(229mm)
4-1/2"
(114mm)
1-3/4" R
(44mm)
1-3/4" R
(44mm)
Gourmet®Undermount Single Bowl Sink
Models ELU1418 and ELUH1418 Series
SINK DIMENSIONS*
verall Inside Bowl
odel
M
umber LWL W DCountertop Size
N
ELUHWS1418 161/2 201/2 14 18 77/8 21
ELUHWS141810 161/2 201/2 14 18 10
*Length is left to right. Width is front to back.
*Template is packed with every sink.
*
O
(419mm) (521mm) (356mm) (457mm) (200mm) See (533mm)
(419mm) (521mm) (356mm) (457mm) (254mm) (533mm)
utout in Cabinet
C
Template**
M
SPECIFICATIONS
inimum
21
Elkay
1-341 (4/09)
2222 Camden Court
Oak Brook, IL 60523
elkayusa.com
Printed in U.S.A.
©2009 Elkay
