Elkay LKDA2437, LKD2437BH Parts List

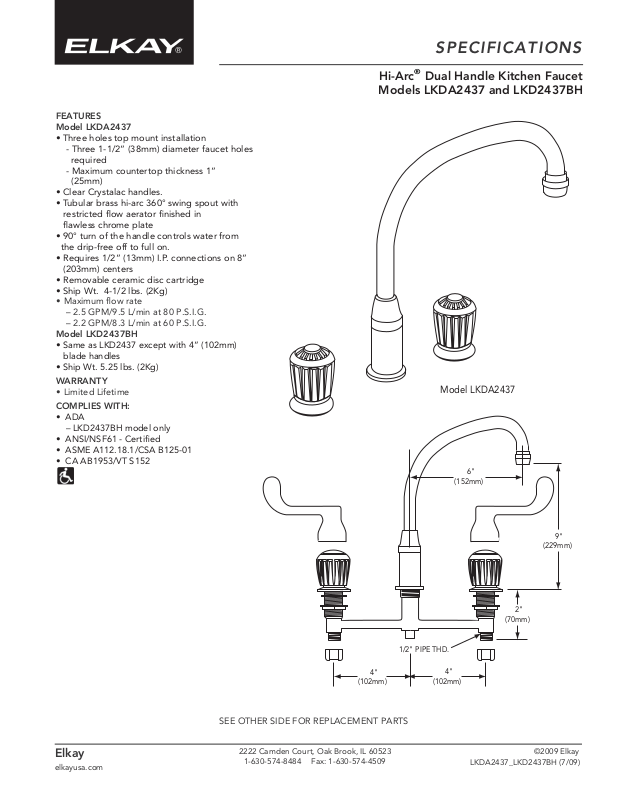

SPECIFICATIONS

FEATURES Model LKDA2437

• Three holes top mount installation

- Three 1-1/2” (38mm) diameter faucet holes required

- Maximum countertop thickness 1” (25mm)

• Clear Crystalac handles.

• Tubular brass hi-arc 360° swing spout with restricted ow aerator nished in awless chrome plate

• 90° turn of the handle controls water from the drip-free off to full on.

• Requires 1/2” (13mm) I.P. connections on 8” (203mm) centers

• Removable ceramic disc cartridge

• Ship Wt. 4-1/2 lbs. (2Kg)

• Maximum ow rate – 2.5 GPM/9.5 L/min at 80 P.S.I.G. – 2.2 GPM/8.3 L/min at 60 P.S.I.G.

Model LKD2437BH

•

Same as LKD2437 except with 4” (102mm)

blade handles

•

Ship Wt. 5.25 lbs. (2Kg)

WARRANTY

• Limited Lifetime

COMPLIES WITH:

• ADA

– LKD2437BH model only

• ANSI/NSF61 - Certied

• ASME A112.18.1/CSA B125-01

• CA AB1953/VT S152

Hi-Arc Dual Handle Kitchen Faucet

Models LKDA2437 and LKD2437BH

Model LKDA2437

6" (152mm)

Elkay

elkayusa.com

1/2" PIPE THD.

4" (102mm)

SEE OTHER SIDE FOR REPLACEMENT PARTS

2222 Camden Court, Oak Brook, IL 60523

1-630-574-8484 Fax: 1-630-574-4509

9" (229mm)

2" (70mm)

4" (102mm)

LKDA2437_LKD2437BH (7/09)

REPLACEMENT PARTS

ITEM IND. PART KIT PART DESCRIPTION

1N/A

2N/A

3N/A

4N/A

5 P05101

6 P35212

7 P36133

8 P01264

7 P36133

8 P01264

9 P35211

10 P29121NL N/A RH CARTRIDGE

11 P29122NL N/A LH CARTRIDGE

P02116

P35168

P03133

N/A FLANGE

P02164

N/A FLANGE

16 P35174

N/A WASHER

17 P02119

N/A LOCKNUT

N/A

20 P02103

N/A COUPLING NUT

21 P36114

22 P01241

23 P36115

A52814R

ESCUTCHEON SLEEVE

A52722R

SPOUT ASSEMBLY

A52835R

RH HANDLE ASSEMBLY

A52834R

LH HANDLE ASSEMBLY

BODY ASSEMBY

A73645R

RH BH HANDLE ASSEMBLY

LH BH HANDLE ASSEMBLY

A55180R

A55179R
