Elkay LKD2442C Specs

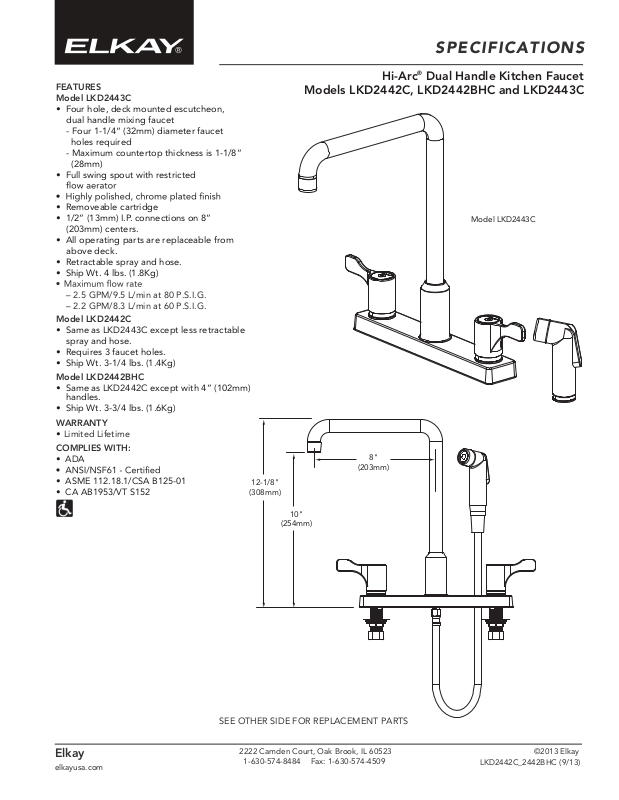

SPECIFICATIONS
FEATURES
Model LKD2443C
• Four hole, deck mounted escutcheon,
dual handle mixing faucet
- Four 1-1/4“ (32mm) diameter faucet
holes required
- Maximum countertop thickness is 1-1/8”
(28mm)
• Full swing spout with restricted
• Removeable cartridge
• 1/2” (13mm) I.P. connections on 8”
(203mm) centers.
• All operating parts are replaceable from
above deck.
• Retractable spray and hose.
• Ship Wt. 4 lbs. (1.8Kg)
– 2.5 GPM/9.5 L/min at 80 P.S.I.G.
– 2.2 GPM/8.3 L/min at 60 P.S.I.G.
Model LKD2442C
• Same as LKD2443C except less retractable
spray and hose.
• Requires 3 faucet holes.
• Ship Wt. 3-1/4 lbs. (1.4Kg)
Model LKD2442BHC
• Same as LKD2442C except with 4” (102mm)
handles.
• Ship Wt. 3-3/4 lbs. (1.6Kg)
WARRANTY
•
Limited Lifetime
COMPLIES WITH:
• ADA
• ASME 112.18.1/CSA B125-01
• CA AB1953/VT S152
Hi-Arc® Dual Handle Kitchen Faucet
Models LKD2442C, LKD2442BHC and LKD2443C
Model LKD2443C
8"
(203mm)
12-1/8"
(308mm)
Elkay
elkayusa.com
10"
(254mm)
SEE OTHER SIDE FOR REPLACEMENT PARTS
2222 Camden Court, Oak Brook, IL 60523
1-630-574-8484 Fax: 1-630-574-4509
©2013 Elkay
LKD2442C_2442BHC (9/13)
REPLACEMENT PARTS
Hi-Arc® Dual Handle Kitchen Faucet
Models LKD2442C, LKD2442BHC and LKD2443C
ITEM PART # DESCRIPTION
1 0000000680 2.6” Blade Handle
2 0000000682 Cartridges
3 0000000686 360° Swing Spout Repair Kit
4 0000000688 Aerator
5 0000000689 Diverter Valve
4
1
2
3
5
Elkay
elkayusa.com
2222 Camden Court, Oak Brook, IL 60523
1-630-574-8484 Fax: 1-630-574-4509
©2013 Elkay
LKD2442C_LKD2442BHC (9/13)
