Elkay LK722B User Manual
Backsplash-Mounted Sensor Faucet
®
3/8" (10mm)
COPPER SUPPLY TUBE
(NOT SUPPLIED)
5-3/8"
(137mm)
10-1/4"
(261mm)
2-1/2"
(64mm)
30"
(762mm)
MAX
8-3/4"
(222mm)
Battery Powered
LK722B

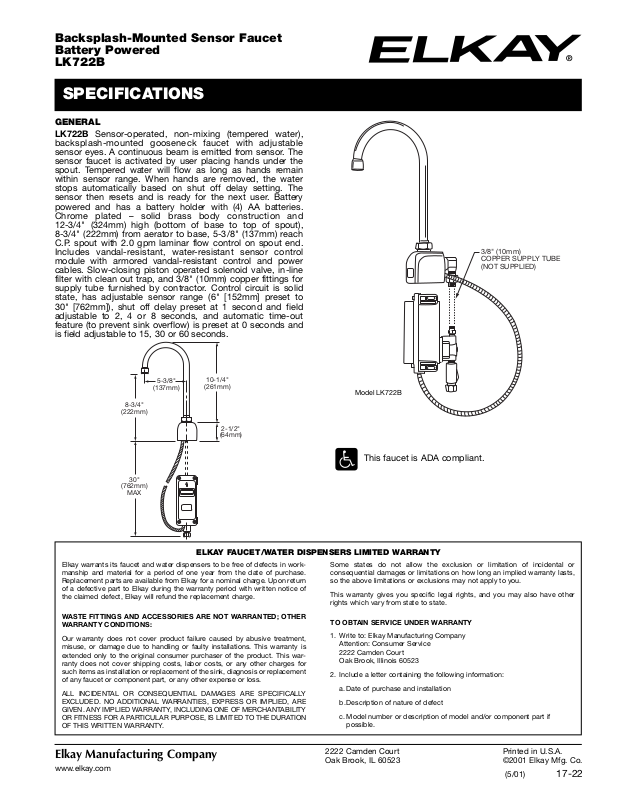

SPECIFICATIONS
GENERAL
LK722B Sensor-operated, non-mixing (tempered water),
backsplash-mounted gooseneck faucet with adjustable
sensor eyes. A continuous beam is emitted from sensor. The
sensor faucet is activated by user placing hands under the
spout. Tempered water will flow as long as hands remain
within sensor range. When hands are removed, the water
stops automatically based on shut off delay setting. The
sensor then resets and is ready for the next user. Battery
powered and has a battery holder with (4) AA batteries.
Chrome plated – solid brass body construction and
12-3/4" (324mm) high (bottom of base to top of spout),
8-3/4" (222mm) from aerator to base, 5-3/8" (137mm) reach
C.P. spout with 2.0 gpm laminar flow control on spout end.
Includes vandal-resistant, water-resistant sensor control
module with armored vandal-resistant control and power
cables. Slow-closing piston operated solenoid valve, in-line
filter with clean out trap, and 3/8" (10mm) copper fittings for
supply tube furnished by contractor. Control circuit is solid
state, has adjustable sensor range (6" [152mm] preset to
30" [762mm]), shut off delay preset at 1 second and field
adjustable to 2, 4 or 8 seconds, and automatic time-out
feature (to prevent sink overflow) is preset at 0 seconds and
is field adjustable to 15, 30 or 60 seconds.
Elkay warrants its faucet and water dispensers to be free of defects in workmanship and material for a period of one year from the date of purchase.
Replacement parts are available from Elkay for a nominal charge. Upon return
of a defective part to Elkay during the warranty period with written notice of
the claimed defect, Elkay will refund the replacement charge.
WASTE FITTINGS AND ACCESSORIES ARE NOT WARRANTED; OTHER
WARRANTY CONDITIONS:
Our warranty does not cover product failure caused by abusive treatment,
misuse, or damage due to handling or faulty installations. This warranty is
extended only to the original consumer purchaser of the product. This warranty does not cover shipping costs, labor costs, or any other charges for
such items as installation or replacement of the sink, diagnosis or replacement
of any faucet or component part, or any other expense or loss.
ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE SPECIFICALLY
EXCLUDED. NO ADDITIONAL WARRANTIES, EXPRESS OR IMPLIED, ARE
GIVEN. ANY IMPLIED WARRANTY, INCLUDING ONE OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO THE DURATION
OF THIS WRITTEN WARRANTY.
Elkay Manufacturing Company
www.elkay.com
Model LK722B
This faucet is ADA compliant.
ELKAY FAUCET/WATER DISPENSERS LIMITED WARRANTY
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts,
so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
TO OBTAIN SERVICE UNDER WARRANTY
1. Write to: Elkay Manufacturing Company
Attention: Consumer Service
2222 Camden Court
Oak Brook, Illinois 60523
2. Include a letter containing the following information:
a. Date of purchase and installation
b.Description of nature of defect
c. Model number or description of model and/or component part if
possible.
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2001 Elkay Mfg. Co.
(5/01) 17-22
®
Backsplash-Mounted Sensor Faucet
1
2
3
4
18
19
20
21
5
6
7
8
9
10
15
17
16
11
12
13
14
Battery Powered
LK722B
PARTS LIST
ITEM NUMBER PART
NUMBER REQUIRED NUMBER PART DESCRIPTION
1 1 LK726 Laminar Flow Control
2 1 72001942 Gooseneck Spout
3 1 72001914 Spout Nut
4 2 72001915 Split Washer
5 1 72001930 Body
6 1 72001929 LED Lens
7 1 72001932 Supply Nipple
8 1 72001933 O-Ring
9
10 Mounting Nut (1 Required)
11 1 72001935 90° Elbow
12 1 72001936 Compression Adapter
13 1 Supply Tube (Not Supplied)
14 Compression Nut (2 Required)
15 1 72001937 Compression Ferrule (2 Required)
16 Compression Fitting (1 Required)
17 1 72001923 Solenoid Valve
18 1 72001924 In-Line Filter
19 1 72001925 Nylon Washer
20 1 72001938 Sensor Eye & Cable
21 1 72001928
N/S 1 72001920 PC Board Module
N/S 1 72001939 Filter Screen
N/S 1 72001940 Solenoid Valve Repair Kit
N/S 1 72001941 Solenoid Coil
N/S 1 LK729 Battery Holder
Elkay Manufacturing Company
17-22 (5/01)
1 72001934
Washer (1 Required)
Control Box – Solenoid Valve, In-Line Filter,
PC Board Module & Battery Holder Included
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2001 Elkay Mfg. Co.
