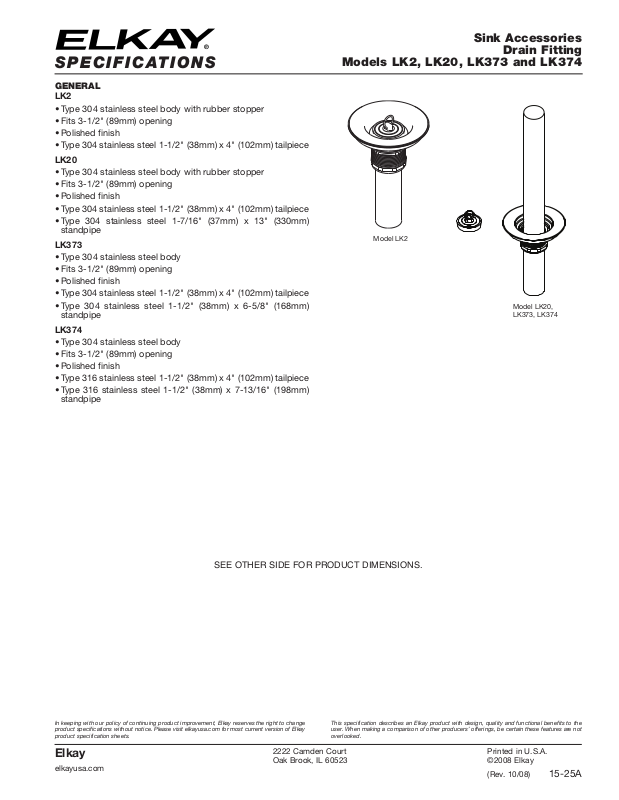

S PECIFICAT I O N S
ENERAL
G
LK2
• Type 304 stainless steel body with rubber stopper
• Fits 3-1/2" (89mm) opening
• Polished finish
• Type 304 stainless steel 1-1/2" (38mm) x 4" (102mm) tailpiece
LK20
• Type 304 stainless steel body with rubber stopper
• Fits 3-1/2" (89mm) opening
• Polished finish
• Type 304 stainless steel 1-1/2" (38mm) x 4" (102mm) tailpiece
• Type 304 stainless steel 1-7/16" (37mm) x 13" (330mm)
standpipe
LK373
• Type 304 stainless steel body
• Fits 3-1/2" (89mm) opening
• Polished finish
• Type 304 stainless steel 1-1/2" (38mm) x 4" (102mm) tailpiece
• Type 304 stainless steel 1-1/2" (38mm) x 6-5/8" (168mm)
standpipe
LK374
• Type 304 stainless steel body
• Fits 3-1/2" (89mm) opening
• Polished finish
• Type 316 stainless steel 1-1/2" (38mm) x 4" (102mm) tailpiece
• Type 316 stainless steel 1-1/2" (38mm) x 7-13/16" (198mm)
standpipe
Sink Accessories
Drain Fitting
Models LK2, LK20, LK373 and LK374
Model LK2
odel LK20,
M
K373, LK374
L
SEE OTHER SIDE FOR PRODUCT DIMENSIONS.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkayusa.com for most current version of Elkay
product specification sheets.
Elkay
elkayusa.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
Printed in U.S.A.
©2008 Elkay
(Rev. 10/08) 15-25A
Sink Accessories
®
RUBBER
"O" RING
REMOVABLE STANDPIPE
(#72000970)
DRAIN BODY
RUBBER WASHER
LOCKNUT
WASHER
COUPLING NUT
TAILPIECE
HOUSING
Model LK373 Illustrated
4-1/2"
(114mm)
6-5/8" (168mm)
(5-1/4" [133mm]
ASSEMBLED)
6-1/8"
(156mm)
ASSEMBLED
4"
(102mm)
REMOVABLE STANDPIPE
(#72000911)
DRAIN BODY
RUBBER WASHER
LOCKNUT
WASHER
COUPLING NUT
TAILPIECE
HOUSING
RUBBER
"O" RING
Model LK374 Illustrated
4-1/2"
(114mm)
7-13/16" (198mm)
(6-1/4" [159mm]
ASSEMBLED)
6-1/8"
(156mm)
ASSEMBLED
4"
(102mm)
RUBBER STOPPER
(#72002165)
BODY
HOUSING
LOCKNUT
WASHER
TAILPIECE
COUPLING NUT
4-5/8"
(117mm)
6-3/4"
(172mm)
Drain Fitting
Models LK2, LK20, LK373 and LK374
S PECIFICAT I O N S
Elkay
15-25A (Rev. 10/08)
2222 Camden Court
Oak Brook, IL 60523
elkayusa.com
Model LK2 Illustrated
Printed in U.S.A.
©2008 Elkay
