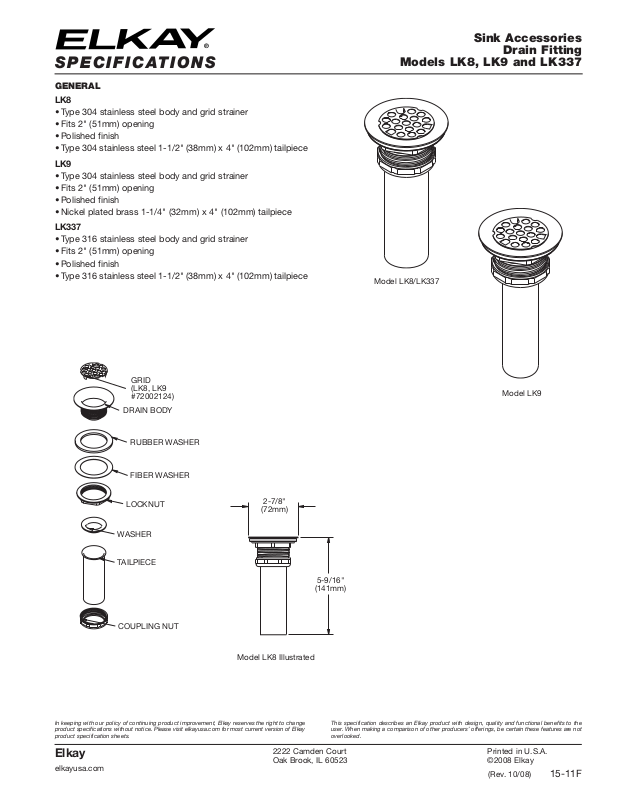

Elkay LK337 User Manual
GRID
(LK8, LK9
#72002124)
DRAIN BODY
RUBBER WASHER
FIBER WASHER
LOCKNUT
WASHER
2-7/8"
(72mm)
5-9/16"
(141mm)
TAILPIECE
COUPLING NUT
Model LK8 Illustrated
®
S PECIFICAT I O N S
ENERAL
G
K8
L
• Type 304 stainless steel body and grid strainer
• Fits 2" (51mm) opening
Polished finish
•
• Type 304 stainless steel 1-1/2" (38mm) x 4" (102mm) tailpiece
K9
L
• Type 304 stainless steel body and grid strainer
• Fits 2" (51mm) opening
Polished finish
•
• Nickel plated brass 1-1/4" (32mm) x 4" (102mm) tailpiece
LK337
• Type 316 stainless steel body and grid strainer
• Fits 2" (51mm) opening
• Polished finish
• Type 316 stainless steel 1-1/2" (38mm) x 4" (102mm) tailpiece
Sink Accessories
Drain Fitting
Models LK8, LK9 and LK337
Model LK8/LK337
Model LK9
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkayusa.com for most current version of Elkay
product specification sheets.
Elkay
elkayusa.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
Printed in U.S.A.
©2008 Elkay
(Rev. 10/08) 15-11F
