Hot Water Booster and Baffle

®

TO CONTROL BOX

LK246
COMPARTMENT
HEATER

BAFFLE HANGS
FROM FRONT COIL
OF HEATER

LK498 BAFFLE
(PERFORATIONS
OMITTED FOR
CLARITY)

5"

(127mm)

16-11/16"

(424mm)

13/16"

(21mm)

32"

(813mm)

15-1/4"

(387mm)

LISTED

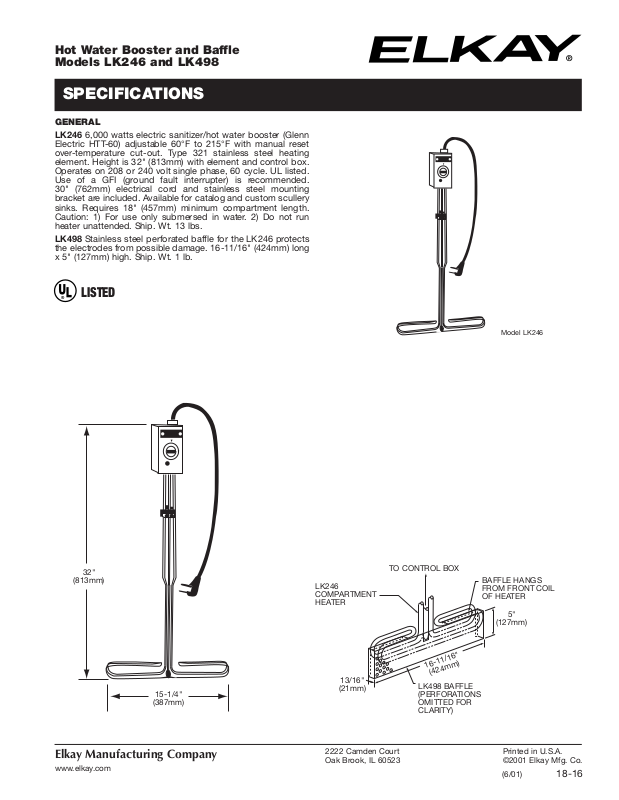

Models LK246 and LK498

SPECIFICATIONS

GENERAL

LK246 6,000 watts electric sanitizer/hot water booster (Glenn
Electric HTT-60) adjustable 60°F to 215°F with manual reset
over-temperature cut-out. Type 321 stainless steel heating
element. Height is 32" (813mm) with element and control box.
Operates on 208 or 240 volt single phase, 60 cycle. UL listed.
Use of a GFI (ground fault interrupter) is recommended.
30" (762mm) electrical cord and stainless steel mounting
bracket are included. Available for catalog and custom scullery
sinks. Requires 18" (457mm) minimum compartment length.
Caution: 1) For use only submersed in water. 2) Do not run
heater unattended. Ship. Wt. 13 lbs.

LK498 Stainless steel perforated baffle for the LK246 protects
the electrodes from possible damage. 16-11/16" (424mm) long
x 5" (127mm) high. Ship. Wt. 1 lb.

Model LK246

Elkay Manufacturing Company

www.elkay.com

2222 Camden Court
Oak Brook, IL 60523

Printed in U.S.A.
©2001 Elkay Mfg. Co.

(6/01) 18-16
