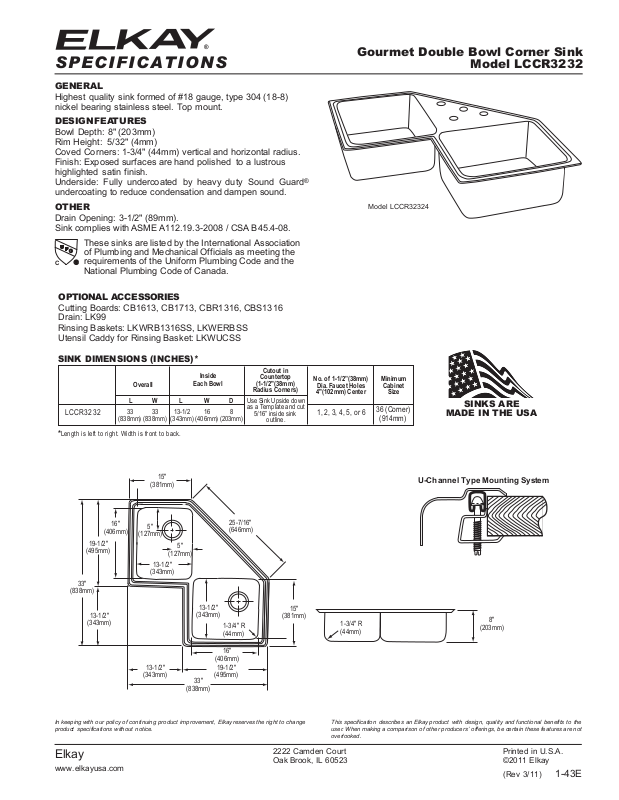

SPECIFICAT I O N S
GENERAL
Highest quality sink formed of #18 gauge, type 304 (18-8)
nickel bearing stainless steel. Top mount.
DESIGN FEATURES
Bowl Depth: 8" (203mm)
Rim Height: 5/32" (4mm)
Coved Corners: 1-3/4" (44mm) vertical and horizontal radius.
Finish: Exposed surfaces are hand polished to a lustrous
highlighted satin finish.
Underside: Fully undercoated by heavy duty Sound Guard
undercoating to reduce condensation and dampen sound.
OTHER
Drain Opening: 3-1/2" (89mm).
Sink complies with ASME A112.19.3-2008 / CSA B45.4-08.
These sinks are listed by the International Association
of Plumbing and Mechanical Officials as meeting the
requirements of the Uniform Plumbing Code and the
C
National Plumbing Code of Canada.
OPTIONAL ACCESSORIES
Cutting Boards: CB1613, CB1713, CBR1316, CBS1316
Drain: LK99
Rinsing Baskets: LKWRB1316SS, LKWERBSS
Utensil Caddy for Rinsing Basket: LKWUCSS
Gourmet Double Bowl Corner Sink
Model LCCR3232
®
Model LCCR32324
SINK DIMENSIONS (INCHES)*
Inside
Overall
L W
LCCR3232 1, 2, 3, 4, 5, or 6
*
Length is left to right. Width is front to back.
19-1/2"
(495mm)
33"
(838mm)
13-1/2"
(343mm)
33
(838mm)33(838mm)
16"
(406mm)
(381mm)
5"
(127mm)
13-1/2"
(343mm)
13-1/2"
(343mm)
15"
Each Bowl
L W D
13-1/2
(343mm)
(406mm)
5"
(127mm)
13-1/2"
(343mm)
33"
(838mm)
16
8
(203mm)
25-7/16"
(646mm)
1-3/4" R
(44mm)
16"
(406mm)
19-1/2"
(495mm)
Cutout in
Countertop
(1-1/2"(38mm)
Radius Corners)
Use Sink Upside down
as a Template and cut
5/16” inside sink
outline.
15"
(381mm)
No. of 1-1/2”(38mm)
Dia. Faucet Holes
4"(102mm) Center
1-3/4" R
(44mm)
Minimum
Cabinet
Size
36 (Corner)
(914mm)
SINKS ARE
MADE IN THE USA
U-Channel Type Mounting System
8"
(203mm)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay
www.elkayusa.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
Printed in U.S.A.
©2011 Elkay
(Rev 3/11) 1-43E
®
SPECIFICAT I O N S
1-1/2
"
(38mm) Diameter Faucet Holes on 4" (102mm) Centers
Gourmet Double Bowl Corner Sink
Model LCCR3232
Hole Drilling Configurations
1
7"
(178mm)
3
2
4
3-1/2"
(89mm)
65
3-1/2"
(89mm)
3-1/2"
(89mm)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay
www.elkayusa.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
Printed in U.S.A.
©2011 Elkay
(Rev 3/11) 1-43E
