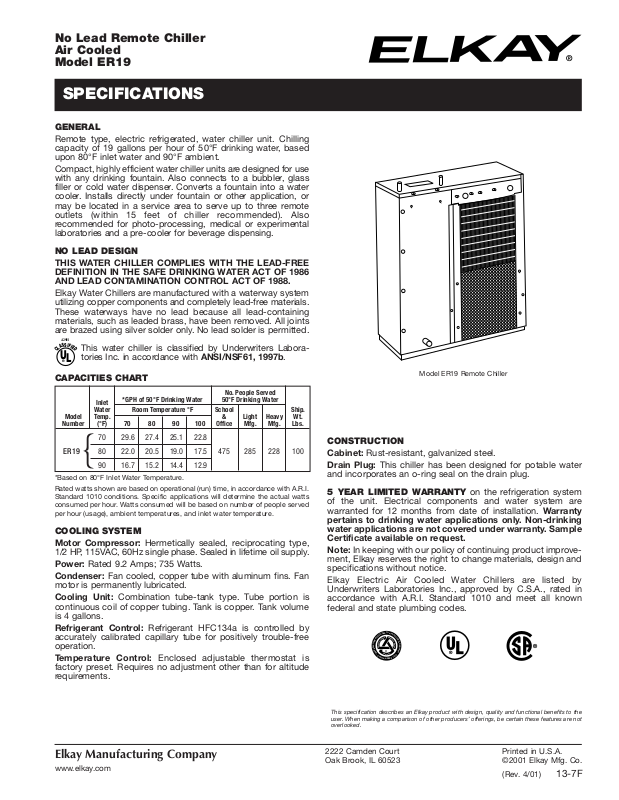

Page 1
No Lead Remote Chiller
®
C
L
A
S
S
I
F
I
E
D
U
L
®
429H
®
®
®
M
A
N
U
F
A
C
T
U
R
E
R
C
E
R
T
I
F
I
E
D
T
O
A
R
I
A
S
C
O
M
P
L
Y
I
N
G
W
I
T
H
•
A
R
I
S
T
A
N
D
A
R
D
1
0
1
0
•
C
O
O
L
E
R
S
D
R
I
N
K
I
N
G
W
A
T
E
R
S
E
L
F
C
O
N
T
A
I
N
E
D
Air Cooled
Model ER19
SPECIFICATIONS
GENERAL
Remote type, electric refrigerated, water chiller unit. Chilling
capacity of 19 gallons per hour of 50°F drinking water
upon 80°F inlet water and 90
°F ambient.
Compact, highly efficient water chiller units are designed for use
with any drinking fountain. Also connects to a bubbler, glass
filler or cold water dispenser. Converts a fountain into a water
cooler. Installs directly under fountain or other application, or
may be located in a service area to serve up to three r
outlets (within 15 feet of chiller recommended). Also
recommended for photo-processing, medical or experimental
laboratories and a pre-cooler for beverage dispensing.
NO LEAD DESIGN
THIS WATER CHILLER COMPLIES WITH THE LEAD-FREE
DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986
AND LEAD CONTAMINATION CONTROL ACT OF 1988.
Elkay Water Chillers are manufactured with a waterway system
utilizing copper components and completely lead-free materials.
These waterways have no lead because all lead-containing
materials, such as leaded brass, have been removed. All joints
are brazed using silver solder only. No lead solder is permitted.
, based
emote
This water chiller is classified by Underwriters Laboratories Inc. in accordance with ANSI/NSF61, 1997b.
CAPACITIES CHART
No. People Served
School
Ship.
Inlet
W
Model
Number
Temp. & Light Heavy Wt.
ER19 80
*GPH of 50
ater
(°F) 70 80 90 100 Office Mfg. Mfg. Lbs.
70
29.6 27.4 25.1 22.8
22.0 20.5 19.0 17.5 475 285 228 100
°F Drinking Water 50°F Drinking Water
Room T
emperature °F
90 16.7 15.2 14.4 12.9
*Based on 80°F Inlet Water Temperature.
Rated watts shown are based on operational (run) time, in accordance with A.R.I.
Standard 1010 conditions. Specific applications will determine the actual watts
consumed per hour. Watts consumed will be based on number of people served
per hour (usage), ambient temperatures, and inlet water temperature.
COOLING SYSTEM
Motor Compressor: Hermetically sealed, reciprocating type,
1/2 HP, 115VAC, 60Hz single phase. Sealed in lifetime oil supply.
Power: Rated 9.2 Amps; 735 Watts.
Condenser: Fan cooled, copper tube with aluminum fins. Fan
motor is permanently lubricated.
Cooling Unit: Combination tube-tank type. Tube portion is
continuous coil of copper tubing. Tank is copper. Tank volume
is 4 gallons.
Refrigerant Control: Refrigerant HFC134a is controlled by
accurately calibrated capillary tube for positively trouble-free
operation.
Temperature Control: Enclosed adjustable thermostat is
factory preset. Requires no adjustment other than for altitude
requirements.

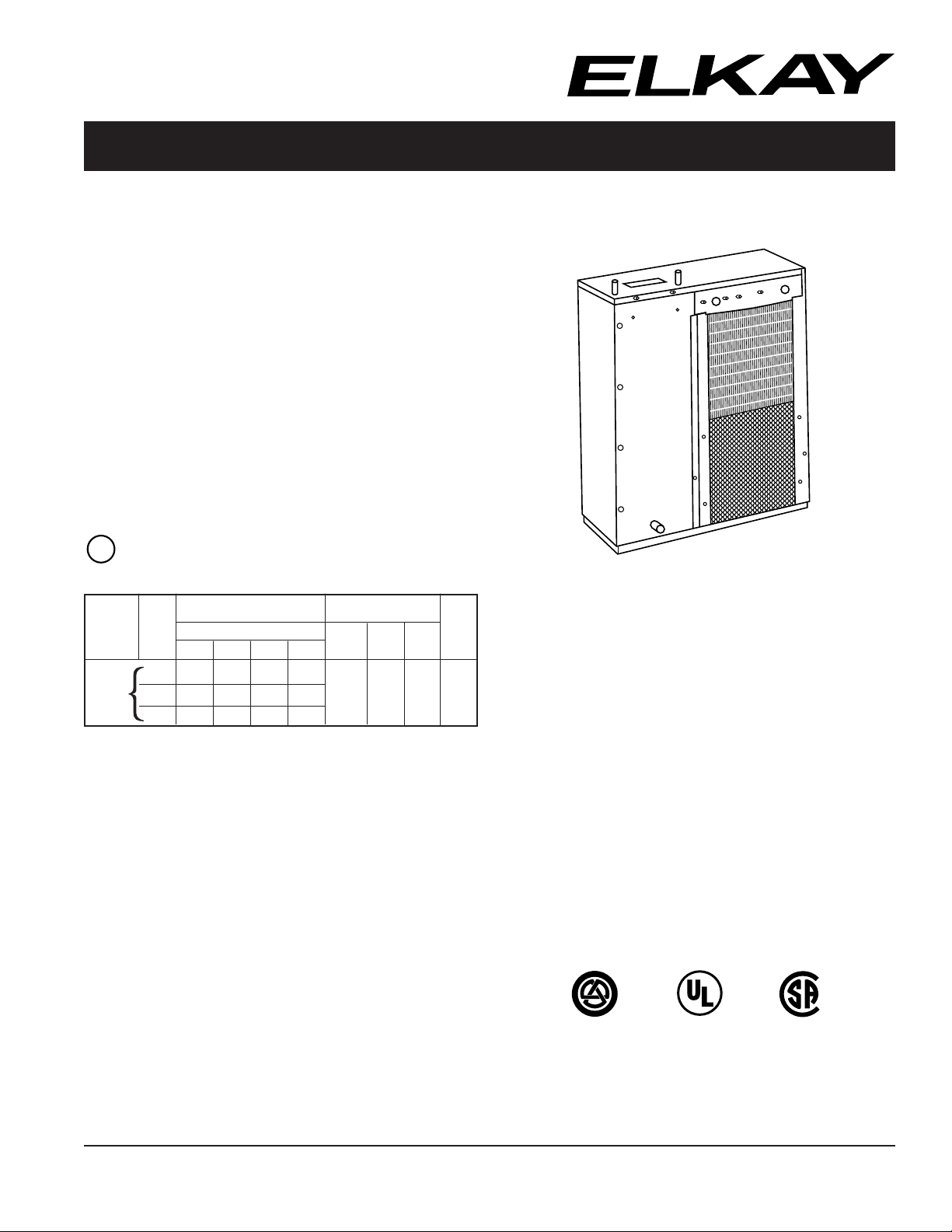

Model ER19 Remote Chiller
CONSTRUCTION
Cabinet: Rust-resistant, galvanized steel.
Drain Plug: This chiller has been designed for potable water
and incorporates an o-ring seal on the drain plug.
5 YEAR LIMITED WARRANTY on the refrigeration system
of the unit. Electrical components and water system are
warranted for 12 months from date of installation. Warranty
pertains to drinking water applications only. Non-drinking
water applications are not covered under warranty. Sample
Certificate available on request.
Note: In keeping with our policy of continuing product improve-
ment, Elkay reserves the right to change materials, design and
specifications without notice.
Elkay Electric Air Cooled Water Chillers are listed by
Underwriters Laboratories Inc., approved by C.S.A., rated in
accordance with A.R.I. Standard 1010 and meet all known
federal and state plumbing codes.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
Elkay Manufacturing Company
www.elkay.com
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2001 Elkay Mfg. Co.
(Rev. 4/01) 13-7F
Page 2
®
No Lead Remote Chiller
23"
(584 mm)
8-1/8"
(205mm)
4-1/4"
(114mm)
10-1/4"
(260 mm)
5-1/8"
(130mm)
1-9/16"
(40 mm)
3/8" O.D. TUBE
COLD WATER OUT
3/8" O.D. TUBE
WATER INLET
ELECTRICAL
ADJ. COLD
CONTROL
3/8" O.D. TUBE
TANK DRAIN
1-1/4"
(32 mm)
25-3/4"
(654 mm)
FRONT VIEW
TOP VIEW
SIDE VIEW
4-7/8"
(123 mm)
1-3/4" (44 mm)
Air Cooled
Model ER19

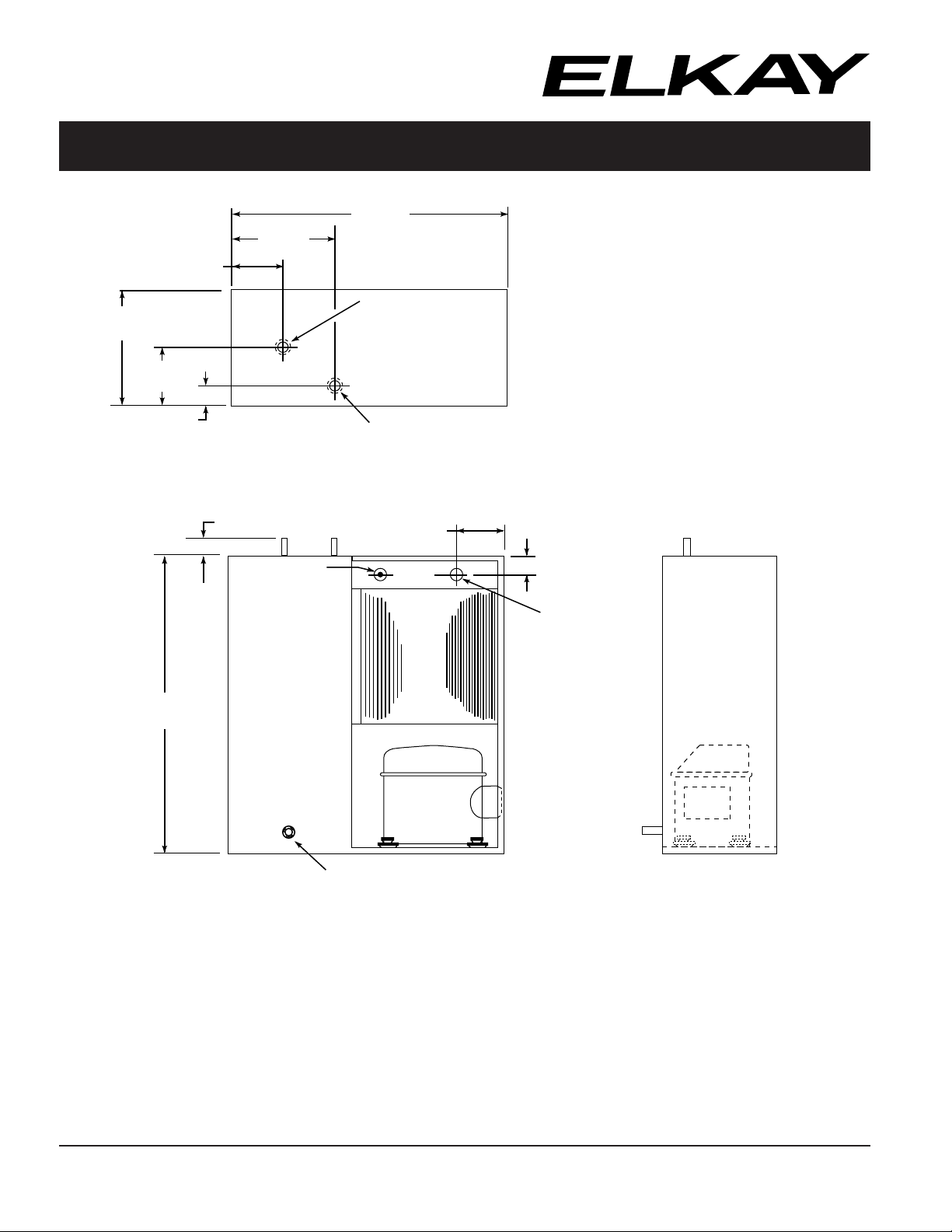

ROUGH-IN DIMENSIONS
Drain Plug: This chiller is provided with a plastic drain plug which incorporates
an o-ring seal. This fitting is designed for potable water applications and should
be replaced with a suitable fitting if chiller is used with more aggressive liquids.
NOTE: It is important to insure proper ventilation. Allow a minimum clearance of
6 inches (152mm) in front and 3 inches (76mm) in the rear of the unit. If
unit is to be installed in an enclosure, allow the following clearances
around unit: 1 inch (25mm) each side, 3 inches (76mm) in the rear,
3 inches (76mm) above. Wall grill, EG1 or EG2 may be used with this
unit.
Elkay Manufacturing Company
13-7F (Rev. 4/01)
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2001 Elkay Mfg. Co.
