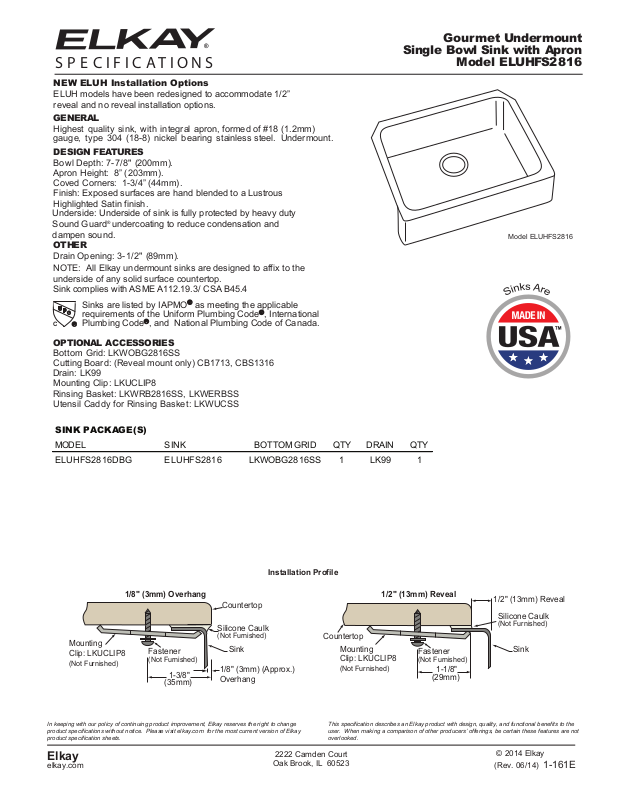

S P E C I F I C A T I O N S
NEW ELUH Installation Options
ELUH models have been redesigned to accommodate 1/2”
reveal and no reveal installation options.
GENERAL
Highest quality sink, with integral apron, formed of #18 (1.2mm)
gauge, type 304 (18-8) nickel bearing stainless steel. Undermount.
DESIGN FEATURES
Bowl Depth: 7-7/8" (200mm).
Apron Height: 8” (203mm).
Coved Corners: 1-3/4” (44mm).
Finish: Exposed surfaces are hand blended to a Lustrous
Highlighted Satin finish.
Underside: Underside of sink is fully protected by heavy duty
Soun
d Guard undercoating to reduce condensation and
dampen sound.
OTHER
Drain Opening: 3-1/2" (89mm).
NOTE: All Elkay undermount sinks are designed to affix to the
underside of any solid surface countertop.
Sink complies with ASME A112.19.3/ CSA B45.4
C
®
Sinks are listed by IAPMO as meeting the applicable
requirements of the Uniform Plumbing Code , International
Plumbing Code , and National Plumbing Code of Canada.
Gourmet Undermount
Single Bowl Sink with Apron
Model ELUHFS2816
Model ELUHFS2816
OPTIONAL ACCESSORIES
Bottom Grid: LKWOBG2816SS
Cutting Board: (Reveal mount only) CB1713, CBS1316
Drain: LK99
Mounting Clip: LKUCLIP8
Rinsing Basket: LKWRB2816SS, LKWERBSS
Utensil Caddy for Rinsing Baske t: LKWUCSS
SINK PACKAGE(S)
MODEL SINK BOTTOM GRID QTY DRAIN QTY
ELUHFS2816DBG ELUHFS2816 LKWOBG2816SS 1 LK99 1
Installation Profile
Mounting
Clip: LKUCLIP8
(Not Furnished)
1/8" (3mm) Overhang
Fastener
(Not Furnished)
1-3/8"
(35mm)
Countertop
Silicone Caulk
(Not Furnished)
Sink
1/8" (3mm) (Approx.)
Overhang
Countertop
Mounting
Clip: LKUCLIP8
(Not Furnished)
1/2" (13mm) Reveal
Fastener
(Not Furnished)
1-1/8"
(29mm)
1/2" (13mm) Reveal
Silicone Caulk
(Not Furnished)
Sink
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.
Elkay
elkay.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
© 2014 Elkay
(Rev. 06/14)
1-161E
8"
(203mm)
APRON
3/8" (10mm) R
1-5/8"
(41mm)
1-3/4" (44mm) R
7-7/8"
(200mm)
BOWL
3/8" (10mm) R
16"
(406mm)
20-1/2"
(521mm)
33"
(838mm)
28"
(711mm)
5"
(127mm)
Model ELUHFS2816 Illustrated
TOP VIEW
SIDE VIEW
Gourmet Undermount
®
Single Bowl Sink with Apron
Model ELUHFS2816
SINK DIMENSIONS*
S P E C I F I C A T I O N S
Model
Number L W L W D Size
ELUHFS2 816 33 201/2 28 16 77/8 36
*Lengt h is left to right. Width is front to back.
Overall Inside Bow l
(838mm ) (521mm) (711mm ) (406mm) (200mm) (914mm )
Minim um
Cabinet
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.
Elkay
elkay.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
© 2014 Elkay
(Rev. 06/14)
1-161E
