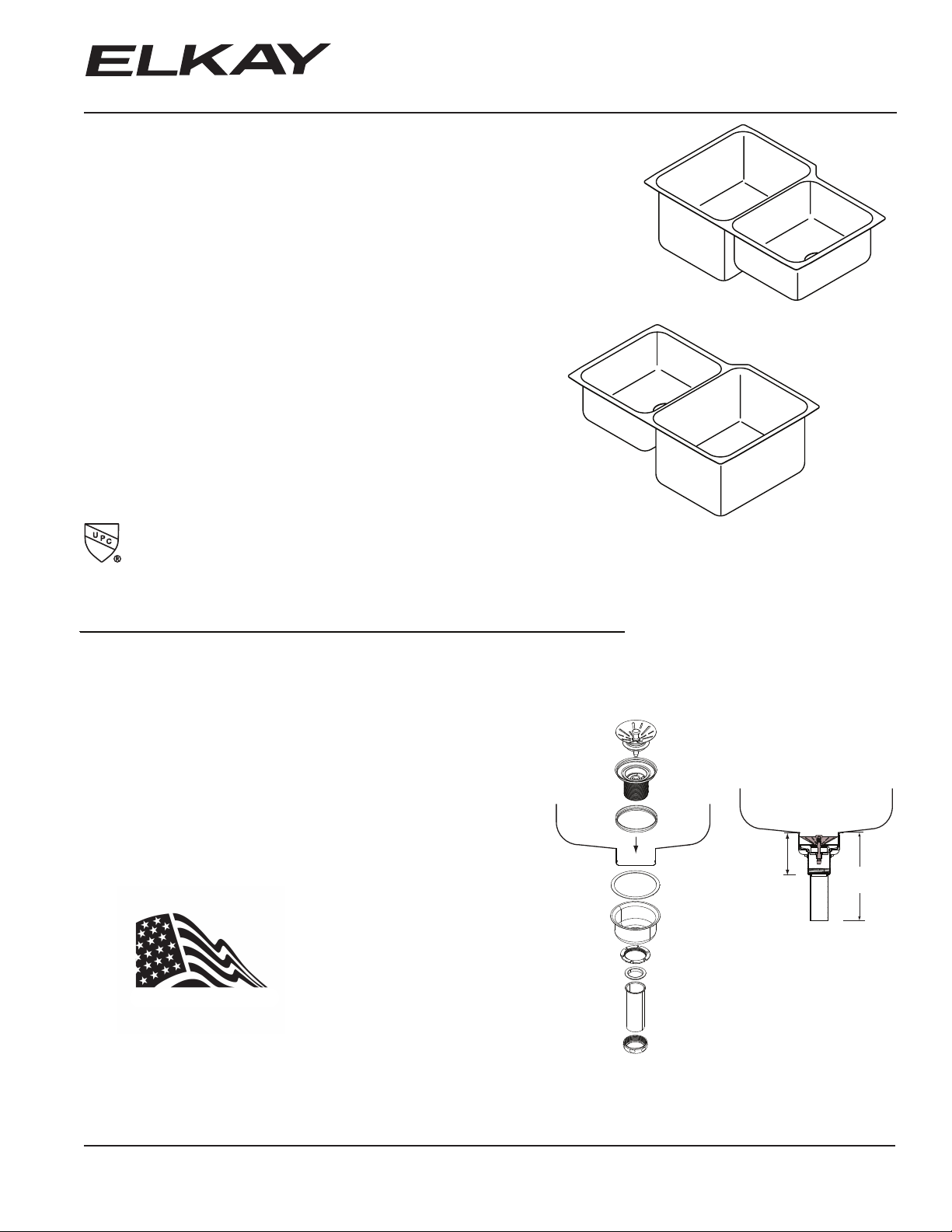

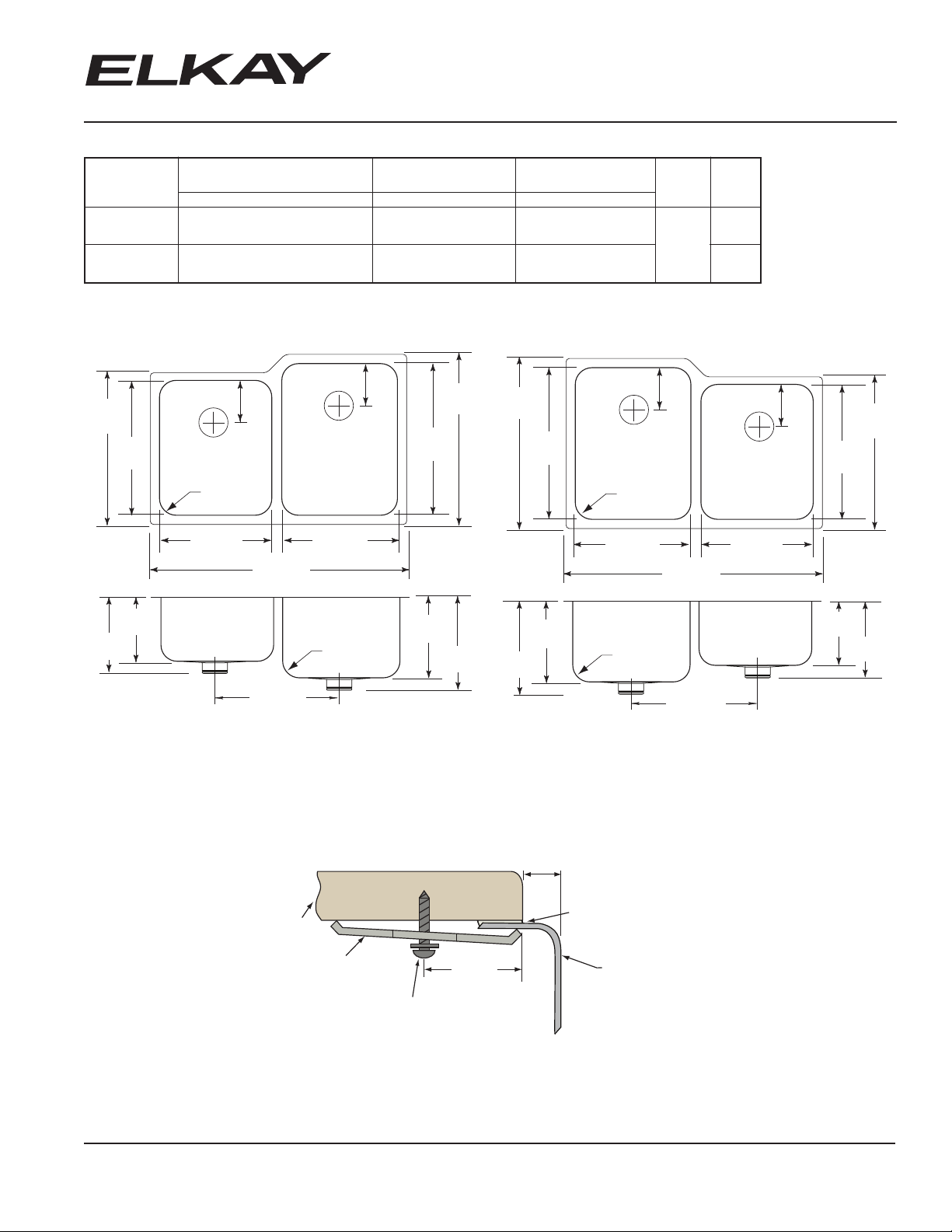

SP E CIFIC ATIONS
Models ELUH3120LPD and ELUH3120RPD
GENERAL
Highest quality sink formed of #18 (1.2mm) gauge, type 304
(18-8) nickel bearing stainless steel with Perfect Drain. Undermount.
DESIGN FEATURES
Bowl Depth: 7-7/8"(200mm), Overall depth:
9-3
/8"(238mm) (Small Bowl)
9-7/8"(251mm), Overall depth: 11-3/8"(289mm)(Large Bowl)
Coved Corners: 1-3/4" (44mm) vertical and horizontal radius.
Finish: Exposed surfaces are hand blended to a Lustrous Highlighted
Satin Finish.
Underside: Fully protected by
Sound Guard
®
undercoating
to reduce condensation and dampen sound.
Perfect Drain: Seamlessly welded stainless steel collar eliminates the gap
between a traditional drain and the sink for a sanitary and gap free installation.
Each sink shipped with two LKPD1 drain kits, or a garbage disposer
can be installed on either sink bowl for user convenience.
Patent Pending
OTHER
Drain opening: 3-3/8" (86mm)
Suffix L (left) or R (right) denotes location of the small bowl.
NOTE: All Elkay undermount sinks are designed to affix to the
underside of any solid surface countertop.
Waste Fitting complies with ASME A112.18.2/CAN/CSA-B125.2
Sink complies with ASME A112.19.3-2008 / CSA B45.4-08.
These sinks are listed by the International Association
of Plumbing and Mechanical Officials as meeting the
requirements of the Uniform Plumbing Code and the
C
National Plumbing Code of Canada.
Gourmet Undermount Sink
with Perfect Drain
Model ELUH3120RPD
Model ELUH3120LPD
TM
SINK PACKAGE(S)
MODEL SINK BOTTOM GRID QTY DRAIN QTY
ELUH3120LPDBG ELUH3120LPD LKWOBG1418SS 1 LKPD1 2
ELUH3120RPDBG ELUH3120RPD LKWOBG1418SS 1 LKPD1 2
OPTIONAL ACCESSORIES
Bottom Grids: LKWOBG1418SS (large bowl), LKWOBG1316SS
(small bowl).
Cutting Boards: CBR1418, CBS1418 (large bowl), CB1613,
CB1713, CBR1316, CBS1316 (small bowl).
Mounting Clip: LKUCLIP8 (2
packages required).
Rinsing Baskets: LKWRB1418SS (large bowl), LKWRB1316SS
(small bowl), LKWERBSS (either bowl).
Utensil Caddy for Rinsing Basket: LKWUCSS.
SINKS ARE
MADE IN THE USA
3-1/2"
(89mm)
7-9/16"
(192mm)
Sink with Drain
Kit Installed
SEE NEXT PAGE FOR PRODUCT DIMENSIONS.
In keeping with o ur policy o f cont inuing prod uct imp rovement, Elkay reserves the rig ht to change
product specific ations without notice. Please visit elkayusa.com f or most c urrent version of Elkay
product specification sheets.
Elkay
elkayusa.com
2222 Camden Court
Oak Brook, IL 60523
This specificatio n d escribes an Elkay prod uct with design, quality and funct ional benefits to the
user. When making a comparison of oth
overlooked.
er produc ers’ offerings, be certain t hese features are not
Printed in U.S.A.
©2011 Elkay
(Rev. 07/11)
1-405
®
SP E CIFIC ATIONS
Models ELUH3120LPD and ELUH3120RPD
Gourmet Undermount Sink
with Perfect Drain
SINK DIMENSIONS*
Model
Number L W L W DD Left D Right L W D Countertop Size
ELUH3120LPD 31-1/4 20-1/2 7-7/8
ELUH3120RPD 14 18 131/2 16 36
*Lengt h is left to ri ght. Width is front to back.
**Template # 74180233 is packed with every sink.
(794mm ) (521mm) (343mm ) (406mm) (200mm) (356mm) (457mm) (251mm) (914mm )
31-1/4 20-1/2
(794mm ) (521mm) (356mm ) (457mm) (251mm) (343mm) (406mm) (200mm)
Overall Left Bowl Right Bowl
9-3/8
(238mm )
11-3/8
(289mm )
11-3/8
(289mm )
9-3/8
(238mm )
13-1/2 16 14 18 36
Inside Inside
9-7/8
9-7/8
7-7/8
Cutout in Cabinet
See
Template**
TM
Minimum
(914mm )
18-1/2"
(470mm)
(406mm)
(200mm)
9-3/8"
(238mm)
16"
7-7/8"
5"
(127mm)
1-3/4" R
(44mm)
13-1/2"
(343mm)
31-1/4"
(794mm)
15"
(381mm)
Model ELUH3120LPD Illustrated
14"
(356mm)
1-3/4" R
(44mm)
20-1/2"
18"
(457mm)
9-7/8"
(251mm)
(521mm)
11-3/8"
(289mm)
5"
(127mm)
Installation Profile
1/2"(13mm) Reveal
20-1/2"
(521mm)
(457mm)
(251mm)
11-3/8"
(289mm)
18"
9-7/8"
5"
(127mm)
1-3/4" R
(44mm)
14"
(356mm)
31-1/4"
(794mm)
1-3/4" R
(44mm)
15"
(381mm)
Model ELUH3120RPD Illustrated
13-1/2"
(343mm)
5"
(127mm)
(470mm)
16"
(406mm)
7-7/8"
(200mm)
(238mm)
18-1/2"
9-3/8"
Countertop
Mounting
Clip: LKUCLIP8
(Not Furnished)
Fastener
1-1/8"
(29mm)
(Not Furnished)
In keeping with o ur policy o f cont inuing prod uct imp rovement, Elkay reserves the rig ht to change
product specific ations without notice. Please visit elkayusa.com f or most c urrent version of Elkay
product specification sheets.
Elkay
elkayusa.com
2222 Camden Court
Oak Brook, IL 60523
1/2" (13mm)
Silicone Caulk
(Not Furnished)
Sink
This specificatio n d escribes an Elkay prod uct with design, quality and funct ional benefits to the
user. When making a comparison of oth
overlooked.
er produc ers’ offerings, be certain t hese features are not
Printed in U.S.A.
©2011 Elkay
(Rev. 07/11)
1-405
