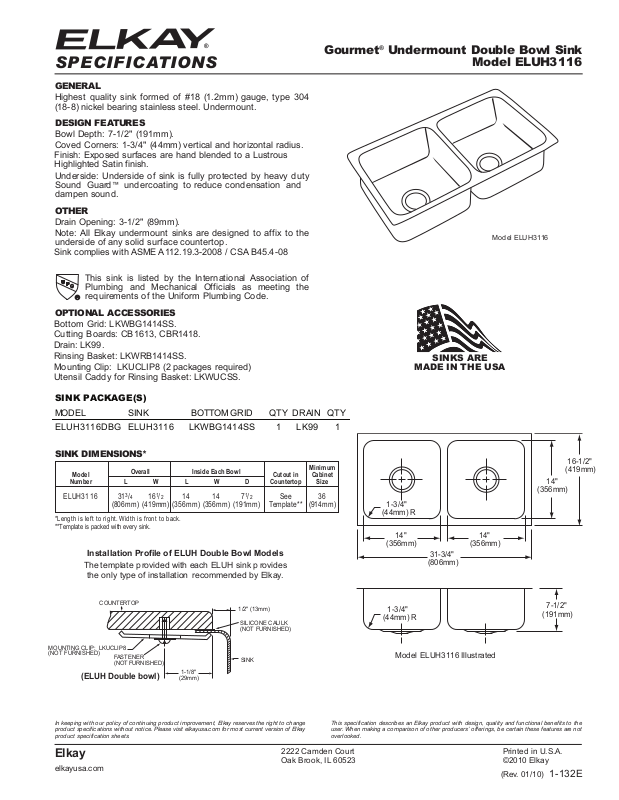

Elkay ELUH3116DBG Specs
Model ELUH3116 Illustrated
®
SINK PACKAGE(S)
SP ECIFICATIONS
GENERAL
Highest quality sink formed of #18 (1.2mm) gauge, type 304
(18-8) nickel bearing stainless steel. Undermount.
DESIGN FEATURES
Bowl Depth: 7- 1/2" (191mm).
Coved Corners: 1-3/4" (44mm) vertical and horizontal radius.
Finish: Exposed surfaces are hand blended to a Lustrous
Highlighted Satin finish.
Underside: Underside of sink is fully protected by heavy duty
Sound Guard
dampen sound.
OTHER
Drain Opening: 3-1/2" (89mm).
Note: All Elkay undermount sinks are designed to affix to the
underside of any solid sur
Sink complies with ASME A112.19.3-2008 / CSA B45.4-08
OPTIONAL ACCESSORIES
Bottom Grid: LKWBG1414SS.
Cutting Boards: CB1613, CBR1418.
Drain: LK99.
Rinsing Basket: LKWRB1414SS.
Mounting Clip: LKUCLIP8 (2 packages required)
Utensil Caddy for Rinsing Basket: LKWUCSS.
™
undercoating to reduce condensation and
face countertop.
This sink is listed by the International Association of
Plumbing and Mechanical Officials as meeting the
requirements of the Uniform Plumbing Code.
Gourmet®Undermount Double Bowl Sink
Model ELUH3116
Model ELUH3116
SINKS ARE
MADE IN THE USA
MODEL SINK BOTTOM GRID QTY DRAIN QTY
ELUH3116DBG ELUH3116 LKWBG1414SS 1 LK99 1
SINK DIMENSIONS*
Model
Number L W L W D Countertop Size
ELUH311 6 313/4 161/2 14 14 71/2 See 36
*Length i s lef t to right. Width i s front to back.
**Template is packed with every sink.
Overall Inside Each Bowl
(806mm ) (419mm) (356mm ) (356mm) (191mm) Template** (914mm)
Cutout in Cabinet
Minimum
Installation Profile of ELUH Double Bowl Models
The template provided with each ELUH sink p rovides
the only type of installation recommended by Elkay.
COUNTERTOP
MOUNTING CLIP: LKUCLIP8
(NOT FURNISHED)
FASTENER
(NOT FURNISHED)
(ELUH Double bowl)
1-1/8"
(29mm)
1/2" (13mm)
SILICONE CAULK
(NOT FURNISHED)
SINK
1-3/4"
(44mm) R
14"
(356mm)
1-3/4"
(44mm) R
16-1/2"
(419mm)
14"
(356mm)
14"
(356mm)
31-3/4"
(806mm)
7-1/2"
(191mm)
In keeping with our p olicy of c ontinuing p roduct im provement, Elkay reserves t he right to c hange
product specificatio ns without notice. Please visit elkayusa.co m for most current version of Elkay
product specific ation sheets.
Elkay
elkayusa.com
This specificatio n describ es an Elkay product w ith d esign, quality and func tional b enefits to the
user. When making a comparison of other p rod
overlooked.
2222 Camden Court
Oak Brook, IL 60523
ucers’ off erings, be certain t hese features are not
Printed in U.S.A.
©2010 Elkay
(Rev. 01/10) 1-132E
