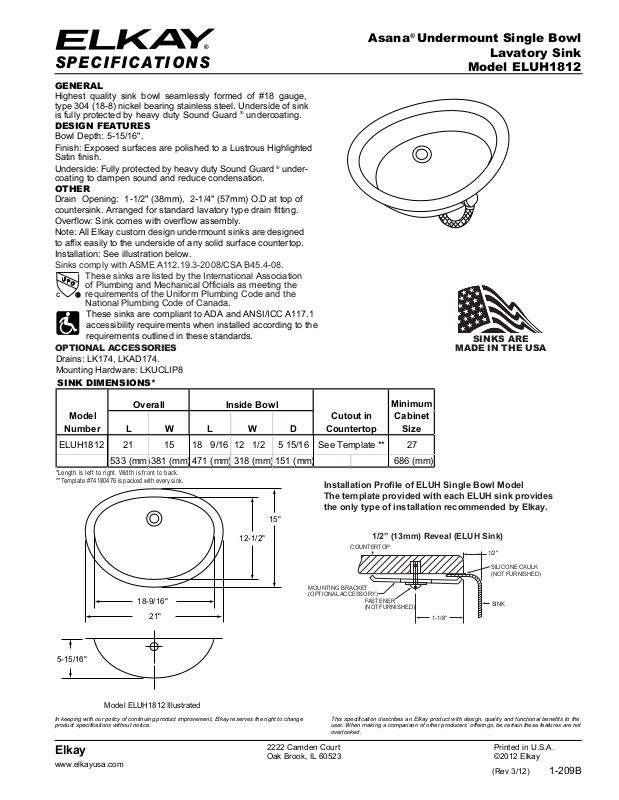

Elkay ELUH1812 User Manual

®

Overall

Inside Bowl

SPE C I F I C AT I O N S

GENERAL

Highest quality sink bowl seamlessly formed of #18 gauge,
type 304 (18-8) nickel bearing stainless steel. Underside of sink
is fully protected by heavy duty Sound Guard

DESIGN FEATURES

Bowl Depth: 5-15/16".
Finish: Exposed surfaces are polished to a Lustrous Highlighted

Satin finish.
Underside: Fully protected by heavy duty Sound Guard

coating to dampen sound and reduce condensation.

OTHER

Drain Opening: 1-1/2" (38mm), 2-1/4" (57mm) O.D at top of
countersink. Arranged for standard lavatory type drain fitting.
Overflow: Sink comes with overflow assembly.
Note: All Elkay custom design undermount sinks are designed
to affix easily to the underside of any solid surface countertop.
Installation: See illustration below.

Sinks comply with ASME A112.19.3-2008/CSA B45.4-08.

These sinks are listed by the International Association
of Plumbing and Mechanical Officials as meeting the
requirements of the Uniform Plumbing Code and the

C

National Plumbing Code of Canada.

These sinks are compliant to ADA and ANSI/ICC A117.1
accessibility requirements when installed according to the
requirements outlined in these standards.

OPTIONAL ACCESSORIES

Drains: LK174, LKAD174.
Mounting Hardware: LKUCLIP8

SINK DIMENSIONS*

®

undercoating.

®

under-

Asana

®

Undermount Single Bowl

Lavatory Sink

Model ELUH1812

SINKS ARE

MADE IN THE USA

Minimum

Model

Number

L W L W D

ELUH1812 21 15 18 9/16 12 1/2 5 15/16 27

Cutout in

Countertop

See Template **

Cabinet

Size

533 (mm) 381 (mm) 471 (mm) 318 (mm) 151 (mm) 686 (mm)

*Lengt h is left to right. Width is f ront to back.
**Template #74180476 is packed with every sink.

15"

12-1/2"

18-9/16"

21"

5-15/16"

Installation Profile of ELUH Single Bowl Model
The template provided with each ELUH sink provides
the only type of installation recommended by Elkay.

1/2” (13mm) Reveal (ELUH Sink)

COUNTERTOP

MOUNTING BRACKET
(OPTIONALACCESSORY)

FASTENER
(NOT FURNISHED)

1/2"

SILICONE CAULK
(NOT FURNISHED)

SINK

1-1/8"

Model ELUH1812 Illustrated

In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.

Elkay

www.elkayusa.com

This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.

2222 Camden Court
Oak Brook, IL 60523

Printed in U.S.A.
©2012 Elkay

(Rev 3/12) 1-209B
