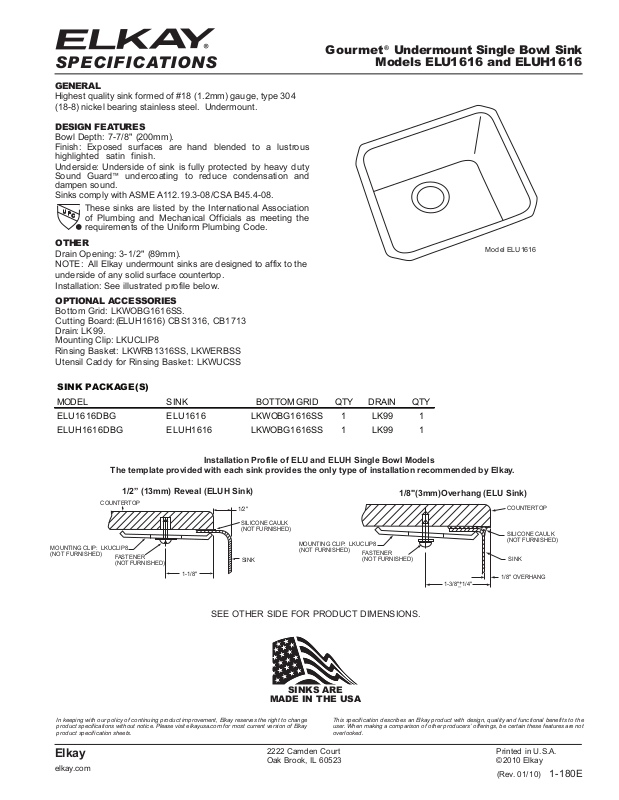

Elkay ELUH1616DBG Specs

SP ECIFICATIONS
SINK PACKAGE(S)
GENERAL
Highest quality sink formed of #18 (1.2mm) gauge, type 304 (18-8) nickel bearing stainless steel. Undermount.
DESIGN FEATURES
Bowl Depth: 7- 7/8" (200mm). Finish: Exposed surfaces are hand blended to a lustrous
high lighted satin finish. Underside: Underside of sink is fully protected by heavy duty
Sound Guard dampen sound. Sinks comply with ASME A112.19.3-08/CSA B45.4-08.
OTHER
Drain Opening: 3-1/2" (89mm). NOTE: All Elkay undermount sinks are designed to affix to the underside of any solid surface countertop. Installation: See illustrated profile below.
OPTIONAL ACCESSORIES
Bottom Grid: LKWOBG1616 Cutting Board: CBS1316(ELUH1616) Drain : LK99.
Mounting Clip: LKUCLIP8 Rinsing Basket: LKWRB1316SS, LKWERBSS Utensil Caddy for Rinsing Baske t: LKWUCSS
These sinks are listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code.
SS.
, CB1713
Gourmet
®
Undermount Single Bowl Sink
Models ELU1616 and ELUH1616
Model ELU1616
MODEL SINK BOTTOM GRID QTY DRAIN QTY
ELU1616DBG ELU1616 LKWOBG1616SS 1 LK99 1
ELUH1616DBG ELUH1616 LKWOBG1616SS 1 LK99 1
Installation Profile of ELU and ELUH Single Bowl Models The template provided with each sink provides the only type of installation recommended by Elkay.
1/2” (13mm) Reveal (ELUH Sink)
COUNTERTOP
MOUNTING CLIP: LKUCLIP8 (NOT FURNISHED)
FASTENER (NOT FURNISHED)
1/2"
SILICONE CAULK (NOT FURNISHED)
MOUNTING CLIP: LKUCLIP8 (NOT FURNISHED)
SINK
1-1/8"
FASTENER (NOT FURNISHED)
1/8"(3mm)Overhang (ELU Sink)
SEE OTHER SIDE FOR PRODUCT DIMENSIONS.
SINKS ARE
MADE IN THE USA
_
1-3/8"+1/4"
COUNTERTOP
SILICONE CAULK (NOT FURNISHED)
SINK
1/8" OVERHANG
In keeping wit h our po licy o f c ontinuing produc t improvement, Elkay reserves the right to change product sp ecifications without not ice. Please visit elkayusa.c om for most current version of Elkay product sp ecification sheets.
Elkay
elkay.com
This specification d escribes an Elkay p roduct w ith design, q uality and functional b enefits to the user. When making a c omparison of other produc ers’ offerings, be certain these features are not overlooked.
2222 Camden Court Oak Brook, IL 60523
Printed in U.S.A. ©2010 Elkay
(Rev. 01/10) 1-180E
Gourmet®Undermount Single Bowl Sink
Model ELU1616 Illustrated
Models ELU1616 and ELUH1616
SINK DIMENSIONS*
Model
Number L W L W D Countertop Size
ELU16 16 171/2 171/2 16 16 77/8 21
ELUH161 6 181/2 181/2 16 16 77/8
*Length is left to right. Width is front to back. **Template is packed with every sink.
Overall Inside Bowl
(445mm ) (445mm) (406mm) (406mm) (200mm)
(470mm ) (470mm) (406mm) (406mm) (200mm) (533mm )
Cutout in Cabinet
See
Template**
®
SP ECIFICATIONS
Minimum
(533mm )
21
5"
(127mm)
1-3/4"
(44mm) R
16"
(406mm)
17-1/2"
(445mm)
(445mm)
16"
(406mm)
17-1/2"
1-3/4" R
7-7/8"
(200mm)
5"
(127mm)
1-3/4"
(44mm) R
16"
(406mm)
18-1/2"
(470mm)
Model ELUH1616 Illustrated
18-1/2"
(470mm)
16"
(406mm)
Elkay
1-180E
(Rev. 01/10)
2222 Camden Court Oak Brook, IL 60523
elkayusa.com
Printed in U.S.A. ©2010 Elkay
