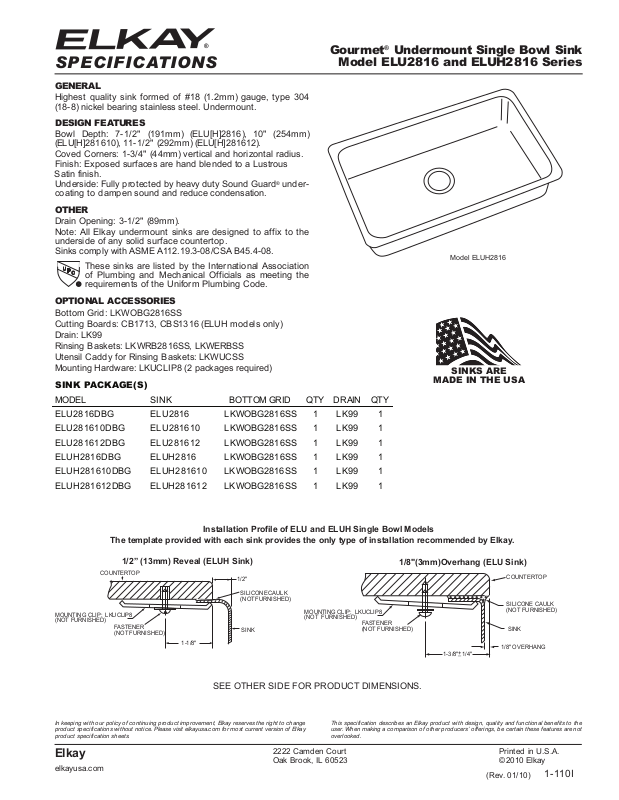

SP E CIFIC ATIONS
GENERAL
Highest quality sink formed of #18 (1.2mm) gauge, type 304
(18-8) nickel bearing stainless steel. Undermount.
DESIGN FEATURES
Bowl Depth: 7- 1/2" (191mm) (ELU[H]2816), 10" (254mm)
(ELU[H]281610), 11-1/2" (292mm) (ELU[H]281612).
Coved Corners: 1-3/4" (44mm) vertical and horizontal radius.
Finish: Exposed surfaces are hand blended to a Lustrous
Satin finish.
Underside: Fully protected by heavy duty Sound Guard
coating to dampen sound and reduce condensation.
OTHER
Drain Opening: 3-1/2" (89mm).
Note: All Elkay undermount sinks are desig
ned to affix to the
underside of any solid surface countertop.
Sinks comply with ASME A112.19.3-08/CSA B45.4-08.
These sinks are listed by the International Association
of Plumbing and Mechanical Officials as meeting the
requirements of the Uniform Plumbing Code.
OPTIONAL ACCESSORIES
Bottom Grid: LKWOBG2816SS
Cutting Boards: CB1713, CBS1316 (ELUH models only)
Drain: LK99
Rinsing Baskets: LKWRB2816SS, LKWERBSS
Utensil Caddy for Rinsing Baskets: LKWUCSS
Mounting Hardware: LKUCLIP8 (2 packages required)
®
under-
Gourmet®Undermount Single Bowl Sink
Model ELU2816 and ELUH2816 Series
Model ELUH2816
SINKS ARE
MADE IN THE USA
MODEL SINK BOTTOM GRID QTY DRAIN QTY
ELU2816DBG ELU2816 LKWOBG2816SS 1 LK99 1
ELU281610DBG ELU281610 LKWOBG2816SS 1 LK99 1
ELU281612DBG ELU281612 LKWOBG2816SS 1 LK99 1
ELUH2816DBG ELUH2816 LKWOBG2816SS 1 LK99 1
ELUH281610DBG ELUH281610 LKWOBG2816SS 1 LK99 1
ELUH281612DBG ELUH281612 LKWOBG2816SS 1 LK99 1
Installation Profile of ELU and ELUH Single Bowl Models
The template provided with each sink provides the only type of installation recommended by Elkay.
1/2” (13mm) Reveal (ELUH Sink)
COUNTERTOP
MOUNTING CLIP: LKUCLIP8
(NOT FURNISHED)
FASTENER
(NOT FURNISHED)
1/2"
SILICONE CAULK
(NOT FURNISHED)
MOUNTING CLIP: LKUCLIP8
(NOT FURNISHED)
SINK
1-1/8"
FASTENER
(NOT FURNISHED)
SEE OTHER SIDE FOR PRODUCT DIMENSIONS.
1/8"(3mm)Overhang (ELU Sink)
COUNTERTOP
SILICONE CAULK
(NOT FURNISHED)
SINK
_
1-3/8"+1/4"
1/8" OVERHANG
In keeping with o ur policy o f cont inuing prod uct im provement, Elkay reserves the right to change
produc t specif ications wit hout not ice. Please visit elkayusa.com for m ost current version of Elkay
product specific ation sheets.
Elkay
elkayusa.com
This specification d escribes an Elkay produc t with design, q uality and functional benefits to the
user. When making a comp arison of ot her prod ucers
overlooked.
2222 Camden Court
Oak Brook, IL 60523
offerings, be certain these features are not
’
Printed in U.S.A.
©2010 Elkay
(Rev. 01/10)
1-110I
Gourmet®Undermount Single Bowl Sink
Model ELU2816 and ELUH2816 Series
SINK DIMENSIONS*
®
SP E CIFIC ATIONS
Model
Number L W L W D Countertop Size
ELU2816 291/2 171/2 28 16 71/2 33
ELU281610 291/2 171/2 28 16 10 33
ELU281612 291/2 171/2 28 16 111/2 See 33
ELUH2816 301/2 181/2 28 16 71/2
ELUH281610 301/2 181/2 28 16 10 36
ELUH281612 301/2 181/2 28 16 111/2 36
*Lengt h is l eft to ri ght. Width is fr ont to back .
**Template is packed with every sink.
Overall Inside Each Bowl
(749mm ) (445mm) (711mm) (406mm) (191mm) (838mm )
(749mm ) (445mm) (711mm) (406mm) (254mm) (838mm )
(749mm ) (445mm) (711mm) (406mm) (292mm) (838mm )
(775mm ) (470mm) (711mm) (406mm) (191mm) (914mm )
(775mm ) (470mm) (711mm) (406mm) (254mm) (914mm )
(775mm ) (470mm) (711mm) (406mm) (292mm) (914mm )
5"
(127mm)
1-3/4"
(44mm) R
28"
(711m)
29-1/2"
(749mm)
Model ELU2816 Series
Cutout in Cabinet
See
Template**
Template**
17-1/2"
(445mm)
16"
(406mm)
Minimum
36
1-3/4"
(44mm) R
1-3/4"
(44mm) R
7-1/2"
10"
(254mm)
Elkay
1-3/4"
(44mm) R
28"
(711m)
30-1/2"
(775mm)
5"
(127mm)
18-1/2"
(470mm)
16"
(406mm)
2222 Camden Court
Oak Brook, IL 60523
elkayusa.com
1-3/4"
(44mm) R
11-1/2"
Printed in U.S.A.
©2010 Elkay
1-110I(Rev. 01/10)
