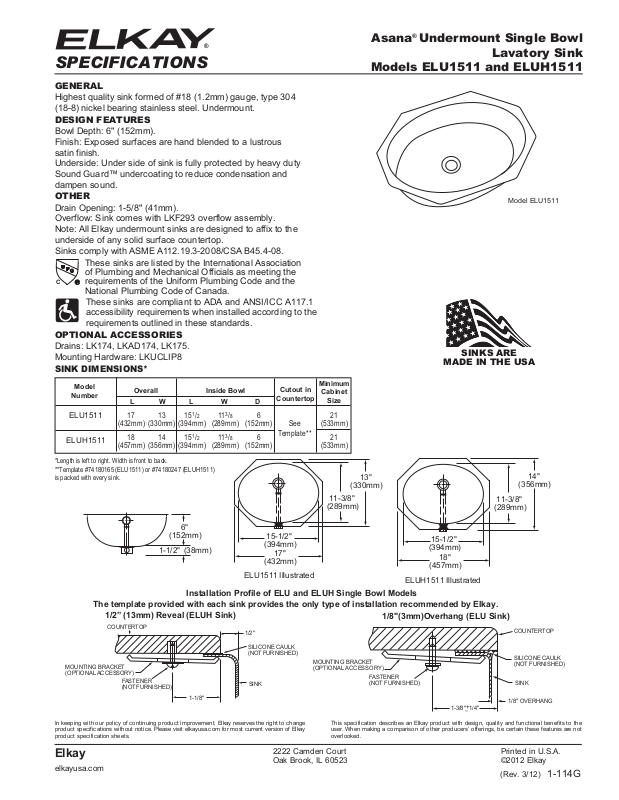

Elkay ELU1511 User Manual

®

SPECIFICATIONS

GENERAL

Highest quality sink formed of #18 (1.2mm) gauge, type 304
(18-8) nickel bearing stainless steel. Undermount.

DESIGN FEATURES

Bowl Depth: 6" (152mm).
Finish: Exposed surfaces are hand blended to a lustrous
satin finish.
Underside: Under side of sink is fully protected by heavy duty
Sound Guard™ undercoating to reduce condensation and
dampen sound.

OTHER

Drain Opening: 1-5/8" (41mm).
Overflow: Sink comes with LKF293 overflow assembly.
Note: All Elkay undermount sinks are designed to affix to the
underside of any solid surface countertop.
Sinks comply with ASME A112.19.3-2008/CSA B45.4-08.

These sinks are listed by the International Association
of Plumbing and Mechanical Officials as meeting the
requirements of the Uniform Plumbing Code and the

C

National Plumbing Code of Canada.

These sinks are compliant to ADA and ANSI/ICC A117.1
accessibility requirements when installed according to the
requirements outlined in these standards.

OPTIONAL ACCESSORIES

Drains: LK174, LKAD174, LK175.
Mounting Hardware: LKUCLIP8

SINK DIMENSIONS*

Model

Number

ELU1511

Overall Inside Bowl

L W L W D

17 13 15

1

/2 113/8 6 21

(432mm ) (330mm) (394mm) (289mm ) (152mm) See (533mm)

ELUH1511

*Length is left to right. Width is front to back.
**Template #74180165 (ELU1511) or #74180247 (ELUH1511)
is packed with every sink.

18 14 151/2 113/8 6

(457mm ) (356mm) (394mm) (289mm ) (152mm) (533mm)

Cutout in

Countertop

Template**

Minimum

Cabinet

Size

21

11-3/8"

(289mm)

Asana

®

Undermount Single Bowl

Lavatory Sink

Models ELU1511 and ELUH1511

Model ELU1511

SINKS ARE

MADE IN THE USA

13"

(330mm)

11-3/8"

(289mm)

14"

(356mm)

6"

(152mm)

1-1/2" (38mm)

15-1/2"

(394mm)

17"

(432mm)

ELU1511 Illustrated

Installation Profile of ELU and ELUH Single Bowl Models
The template provided with each sink provides the only type of installation recommended by Elkay.

1/2” (13mm) Reveal (ELUH Sink)

COUNTERTOP

MOUNTING BRACKET
(OPTIONALACCESSORY)

In keeping with our polic y of continuing product improvement, Elkay reserves the right to change
product specifications wit hout notic e. Please visit elkayusa.com fo r most current version of Elkay
product specification sheets.

Elkay

elkayusa.com

FASTENER
(NOT FURNISHED)

1-1/8"

1/2"

SILICONE CAULK
(NOT FURNISHED)

SINK

2222 Camden Court
Oak Brook, IL 60523

15-1/2"

(394mm)

18"

(457mm)

ELUH1511 Illustrated

1/8"(3mm)Overhang (ELU Sink)

COUNTERTOP

MOUNTING BRACKET
(OPTIONAL ACCESSORY)

This specification describes an Elkay produc t w ith d esign, quality and functional b enefits to the
user. When making a comparison of other prod ucers’ off erings, be
overlooked.

FASTENER
(NOT FURNISHED)

_

1-3/8"+1/4"

SILICONE CAULK
(NOT FURNISHED)

SINK

1/8" OVERHANG

certain these features are not

Printed in U.S.A.
©2012 Elkay

(Rev. 3/12) 1-114G
