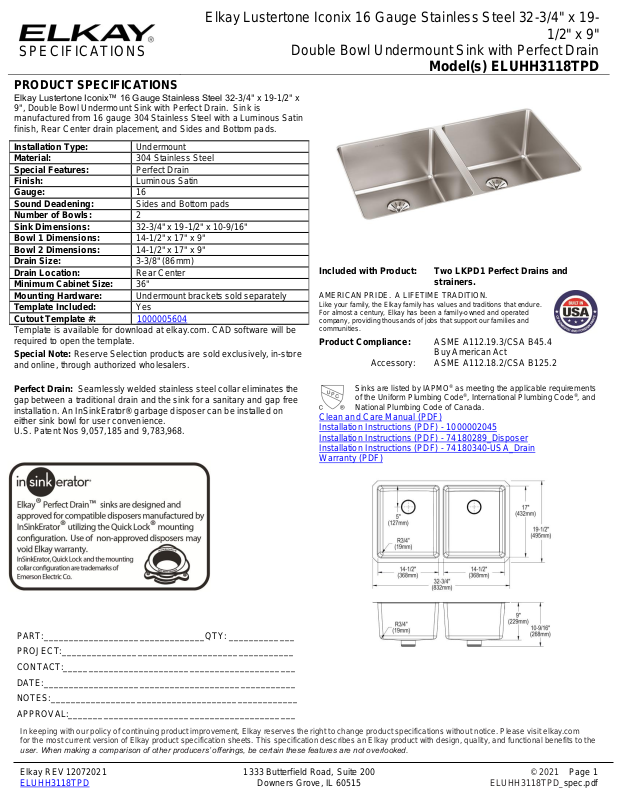

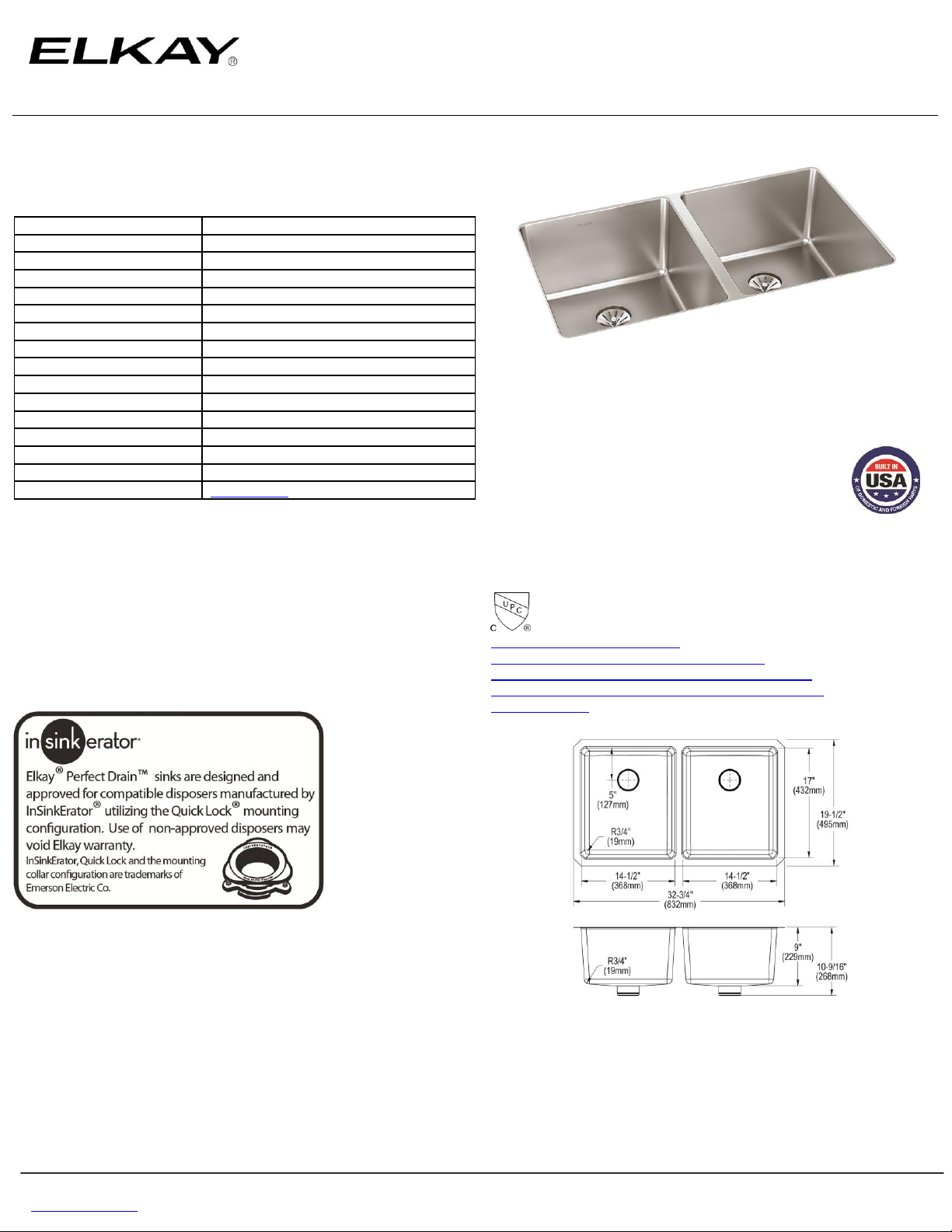

SPECIFICATIONS
Elkay Lustertone Iconix 16 Gauge Stainless Steel 32-3/4" x 19-
1/2" x 9"
Double Bowl Undermount Sink with Perfect Drain
Model(s) ELUHH3118TPD
PRODUCT SPECIFICATIONS
Elkay Lustertone Iconix™ 16 Gauge Stainless Steel 32-3/4" x 19-1/2" x
9", Double Bowl Undermount Sink with Perfect Drain. Sink is
manufactured from 16 gauge 304 Stainless Steel with a Luminous Satin
finish, Rear Center drain placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Special Features:
Perfect Drain
Finish:
Luminous Satin
Gauge:
16
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
2
Sink Dimensions:
32-3/4" x 19-1/2" x 10-9/16"
Bowl 1 Dimensions:
14-1/2" x 17" x 9"
Bowl 2 Dimensions:
14-1/2" x 17" x 9"
Drain Size:
3-3/8" (86mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000005604
Template is available for download at elkay.com. CAD software will be
required to open the template.
Special Note: Reserve Selection products are sold exclusively, in-store
and online, through authorized wholesalers.
Perfect Drain: Seamlessly welded stainless steel collar eliminates the
gap between a traditional drain and the sink for a sanitary and gap free
installation. An InSinkErator® garbage disposer can be installed on
either sink bowl for user convenience.
U.S. Patent Nos 9,057,185 and 9,783,968.
Included with Product:
Two LKPD1 Perfect Drains and
strainers.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Buy American Act
Accessory:
ASME A112.18.2/CSA B125.2
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 1000002045
Installation Instructions (PDF) - 74180289_Disposer
Installation Instructions (PDF) - 74180340-USA_Drain
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 12072021 1333 Butterfield Road, Suite 200 © 2021 Page 1
ELUHH3118TPD Downers Grove, IL 60515 ELUHH3118TPD_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Iconix 16 Gauge Stainless Steel 32-3/4" x 19-
1/2" x 9"
Double Bowl Undermount Sink with Perfect Drain
Model(s) ELUHH3118TPD

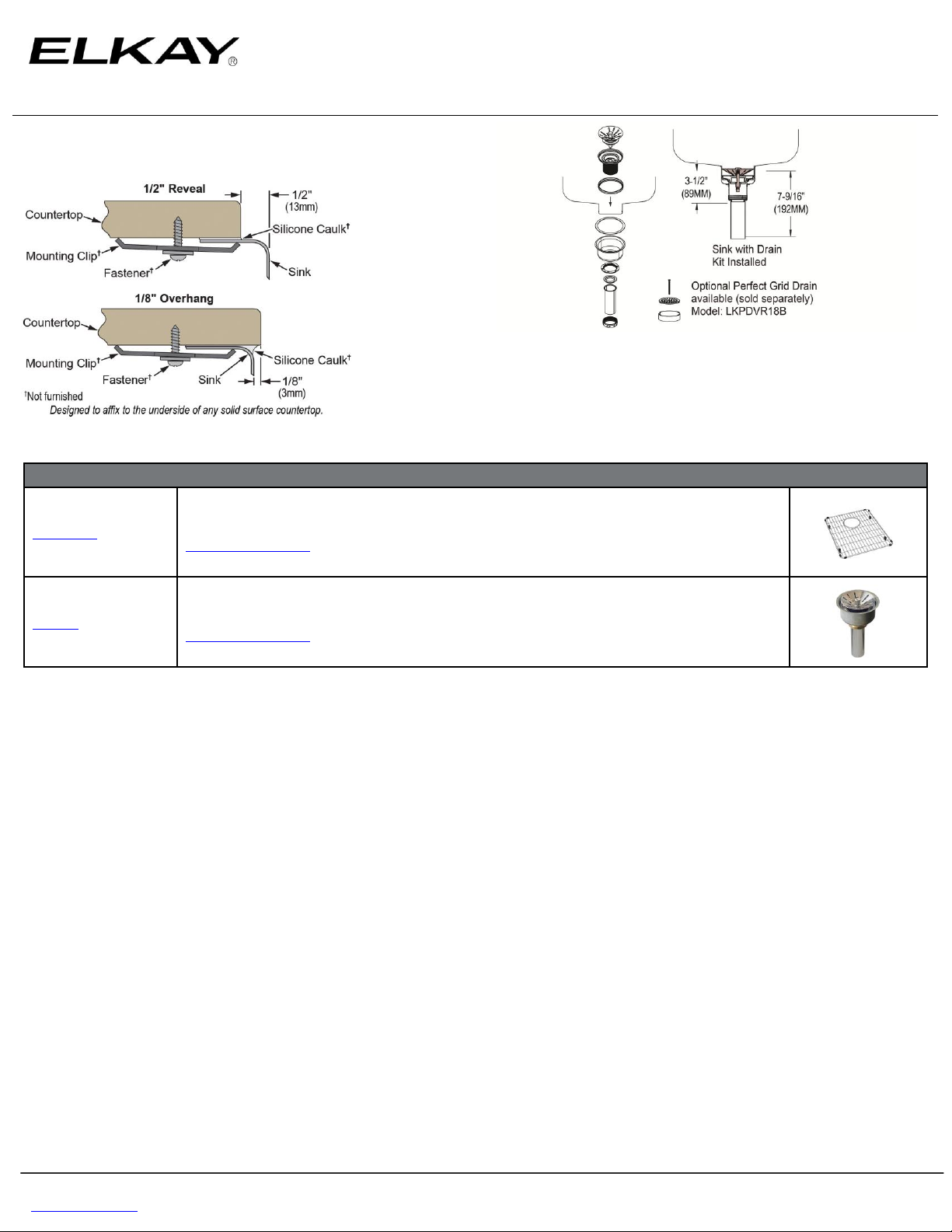

Installation Profile:
Optional Accessories
EBG1315
Elkay Stainless Steel 12-3/4" x 15-1/4" x 1-1/4" Bottom Grid
Spec Sheet (PDF)
LKPD1
Elkay Perfect Drain Fitting Type 304 Stainless Steel Body and Strainer
Spec Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 12072021 1333 Butterfield Road, Suite 200 © 2021 Page 2
ELUHH3118TPD Downers Grove, IL 60515 ELUHH3118TPD_spec.pdf
