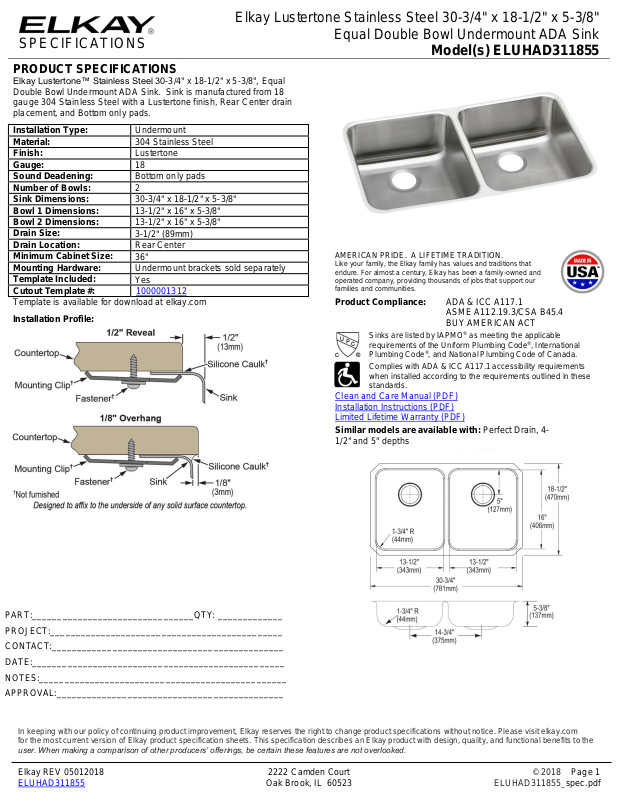

Page 1
SPECIFICATIONS
Elkay Lustertone Stainless Steel 30-3/4" x 18-1/2" x 5-3/8"
Equal Double Bowl Undermount ADA Sink
Model(s) ELUHAD311855
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Stainless Steel 30-3/4" x 18-1/2" x 5-3/8", Equal
Double Bowl Undermount ADA Sink. Sink is manufactured from 18
gauge 304 Stainless Steel with a Lustertone finish, Rear Center drain
placement, and Bottom only pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Lustertone
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
2
Sink Dimensions:
30-3/4" x 18-1/2" x 5-3/8"
Bowl 1 Dimensions:
13-1/2" x 16" x 5-3/8"
Bowl 2 Dimensions:
13-1/2" x 16" x 5-3/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001312
Template is available for download at elkay.com
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable
requirements of the Uniform Plumbing Code®, International
Plumbing Code®, and National Plumbing Code of Canada.
Complies with ADA & ICC A117.1 accessibility requirements
when installed according to the requirements outlined in these
standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: Perfect Drain, 41/2" and 5" depths
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05012018 2222 Camden Court © 2018 Page 1
ELUHAD311855 Oak Brook, IL 60523 ELUHAD311855_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Stainless Steel 30-3/4" x 18-1/2" x 5-3/8"
Equal Double Bowl Undermount ADA Sink
Model(s) ELUHAD311855
OPTIONAL ACCESSORIES
Bottom Grid:
LKWOBG1316SS
Cutting Board:
CB1613*, CB1713*, CBS1316*
Drain:
LK99, LKAD35
Faucet:
LKGT1041, LKGT2041
Hardware:
LKUCLIP8 (2 Required)
Rinsing Basket:
LKWRB1316SS
Sinkmate:
LKSMHSL
Soap Dispenser:
LKGT1054
* 1/2" sink reveal required for proper fit.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05012018 2222 Camden Court © 2018 Page 2
ELUHAD311855 Oak Brook, IL 60523 ELUHAD311855_spec.pdf
