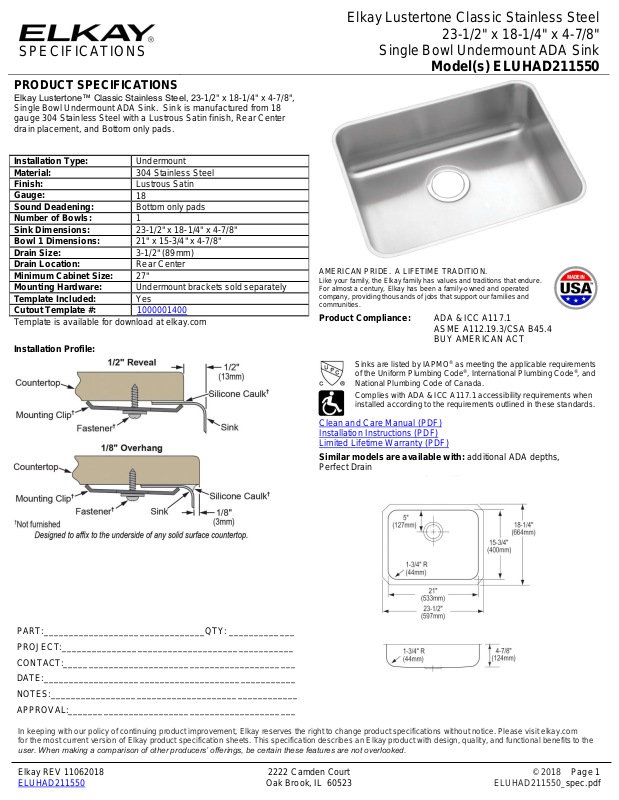

SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
23-1/2" x 18-1/4" x 4-7/8"
Single Bowl Undermount ADA Sink
Model(s) ELUHAD211550
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel, 23-1/2" x 18-1/4" x 4-7/8",
Single Bowl Undermount ADA Sink. Sink is manufactured from 18
gauge 304 Stainless Steel with a Lustrous Satin finish, Rear Center
drain placement, and Bottom only pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
1
Sink Dimensions:
23-1/2" x 18-1/4" x 4-7/8"
Bowl 1 Dimensions:
21" x 15-3/4" x 4-7/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
27"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001400
Template is available for download at elkay.com
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Complies with ADA & ICC A117.1 accessibility requirements when
installed according to the requirements outlined in these standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: additional ADA depths,
Perfect Drain
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11062018 2222 Camden Court © 2018 Page 1
ELUHAD211550 Oak Brook, IL 60523 ELUHAD211550_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
23-1/2" x 18-1/4" x 4-7/8"
Single Bowl Undermount ADA Sink
Model(s) ELUHAD211550
OPTIONAL ACCESSORIES
Bottom Grid:
LKWOBG2115SS
Cutting Board:
CB1516*
Drain:
LK99, LKAD35
Faucet:
LKGT1041, LKGT2041
Hardware:
LKUCLIP8
Rinsing Basket:
LKWERBSS
Soap Dispenser:
LKGT1054
* 1/2" sink reveal required for proper fit.
