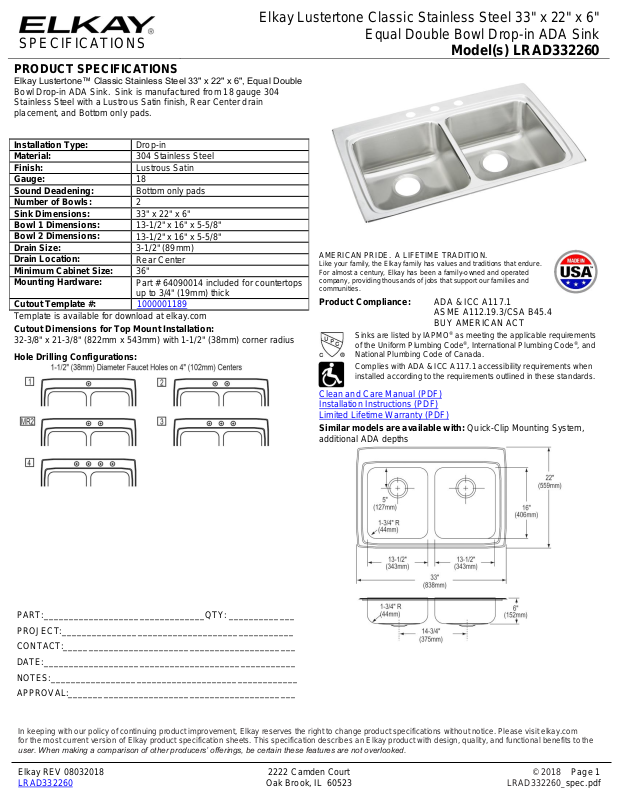

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 33" x 22" x 6"
Equal Double Bowl Drop-in ADA Sink
Model(s) LRAD332260
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 33" x 22" x 6", Equal Double
Bowl Drop-in ADA Sink. Sink is manufactured from 18 gauge 304
Stainless Steel with a Lustrous Satin finish, Rear Center drain
placement, and Bottom only pads.
Installation Type:
Drop-in
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
2
Sink Dimensions:
33" x 22" x 6"
Bowl 1 Dimensions:
13-1/2" x 16" x 5-5/8"
Bowl 2 Dimensions:
13-1/2" x 16" x 5-5/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 64090014 included for countertops
up to 3/4" (19mm) thick
Cutout Template #:
1000001189
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
32-3/8" x 21-3/8" (822mm x 543mm) with 1-1/2" (38mm) corner radius
Hole Drilling Configurations:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Complies with ADA & ICC A117.1 accessibility requirements when
installed according to the requirements outlined in these standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: Quick-Clip Mounting System,
additional ADA depths
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 08032018 2222 Camden Court © 2018 Page 1
LRAD332260 Oak Brook, IL 60523 LRAD332260_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 33" x 22" x 6"
Equal Double Bowl Drop-in ADA Sink
Model(s) LRAD332260
Installation Profile:
OPTIONAL ACCESSORIES
Bottom Grid:
LKWOBG1316SS
Cutting Board:
CB1613, CB1713, CBS1316
Drain:
LK99, LKAD35
Faucet:
LKGT1041, LKGT2041
Hardware:
LK364, LK463
Rinsing Basket:
LKWRB1316SS, LKWERBSS
Sinkmate:
LKSMHSL
Soap Dispenser:
LKGT1054
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 08032018 2222 Camden Court © 2018 Page 2
LRAD332260 Oak Brook, IL 60523 LRAD332260_spec.pdf
