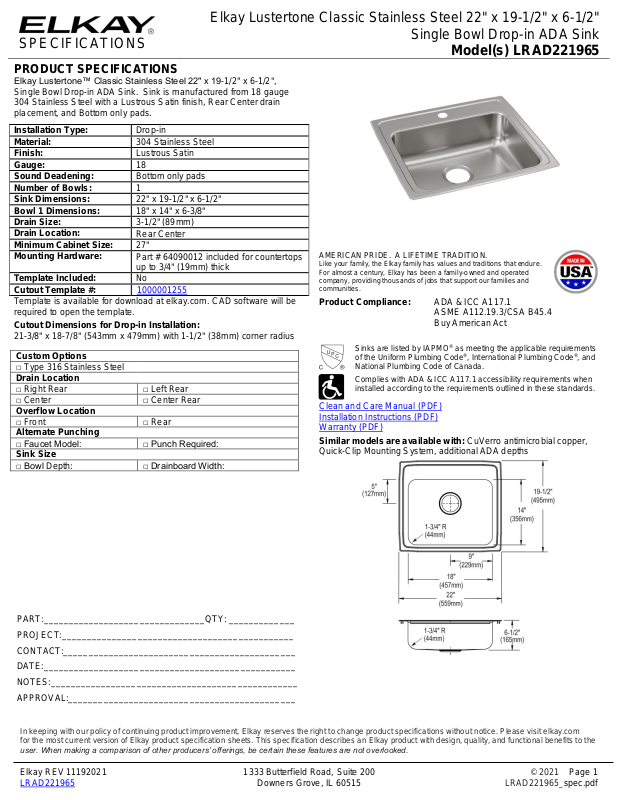

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 22" x 19-1/2" x 6-1/2"
Single Bowl Drop-in ADA Sink
Model(s) LRAD221965
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 22" x 19-1/2" x 6-1/2",
Single Bowl Drop-in ADA Sink. Sink is manufactured from 18 gauge
304 Stainless Steel with a Lustrous Satin finish, Rear Center drain
placement, and Bottom only pads.
Installation Type:
Drop-in
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
1
Sink Dimensions:
22" x 19-1/2" x 6-1/2"
Bowl 1 Dimensions:
18" x 14" x 6-3/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
27"
Mounting Hardware:
Part # 64090012 included for countertops
up to 3/4" (19mm) thick
Template Included:
No
Cutout Template #:
1000001255
Template is available for download at elkay.com. CAD software will be
required to open the template.
Cutout Dimensions for Drop-in Installation:
21-3/8" x 18-7/8" (543mm x 479mm) with 1-1/2" (38mm) corner radius
Custom Options
□ Type 316 Stainless Steel
Drain Location
□ Right Rear
□ Left Rear
□ Center
□ Center Rear
Overflow Location
□ Front
□ Rear
Alternate Punching
□ Faucet Model:
□ Punch Required:
Sink Size
□ Bowl Depth:
□ Drainboard Width:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
Buy American Act
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Complies with ADA & ICC A117.1 accessibility requirements when
installed according to the requirements outlined in these standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
Similar models are available with: CuVerro antimicrobial copper,
Quick-Clip Mounting System, additional ADA depths
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11192021 1333 Butterfield Road, Suite 200 © 2021 Page 1
LRAD221965 Downers Grove, IL 60515 LRAD221965_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 22" x 19-1/2" x 6-1/2"
Single Bowl Drop-in ADA Sink
Model(s) LRAD221965
Hole Drilling Configurations:
Installation Profile:
Optional Accessories
CBS1418
Elkay Hardwood 15" x 19" x 3/4" Cutting Board
Spec Sheet (PDF)
LK99
Elkay Deluxe 3-1/2" Drain Type 304 Stainless Steel Body Strainer Basket Rubber
Seal and Tailpiece
Spec Sheet (PDF)
LKAD35
Elkay 3-1/2" Drain Fitting" Stainless Steel Body Strainer Basket and Offset
Tailpiece
Spec Sheet (PDF)
LKWERBSS
Elkay Stainless Steel 15-3/8" x 12-3/8" x 5-7/16" Rinsing Basket
Spec Sheet (PDF)
LKWRB1418SS
Elkay Stainless Steel 13" x 17" x 7" Rinsing Basket
Spec Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11192021 1333 Butterfield Road, Suite 200 © 2021 Page 2
LRAD221965 Downers Grove, IL 60515 LRAD221965_spec.pdf
